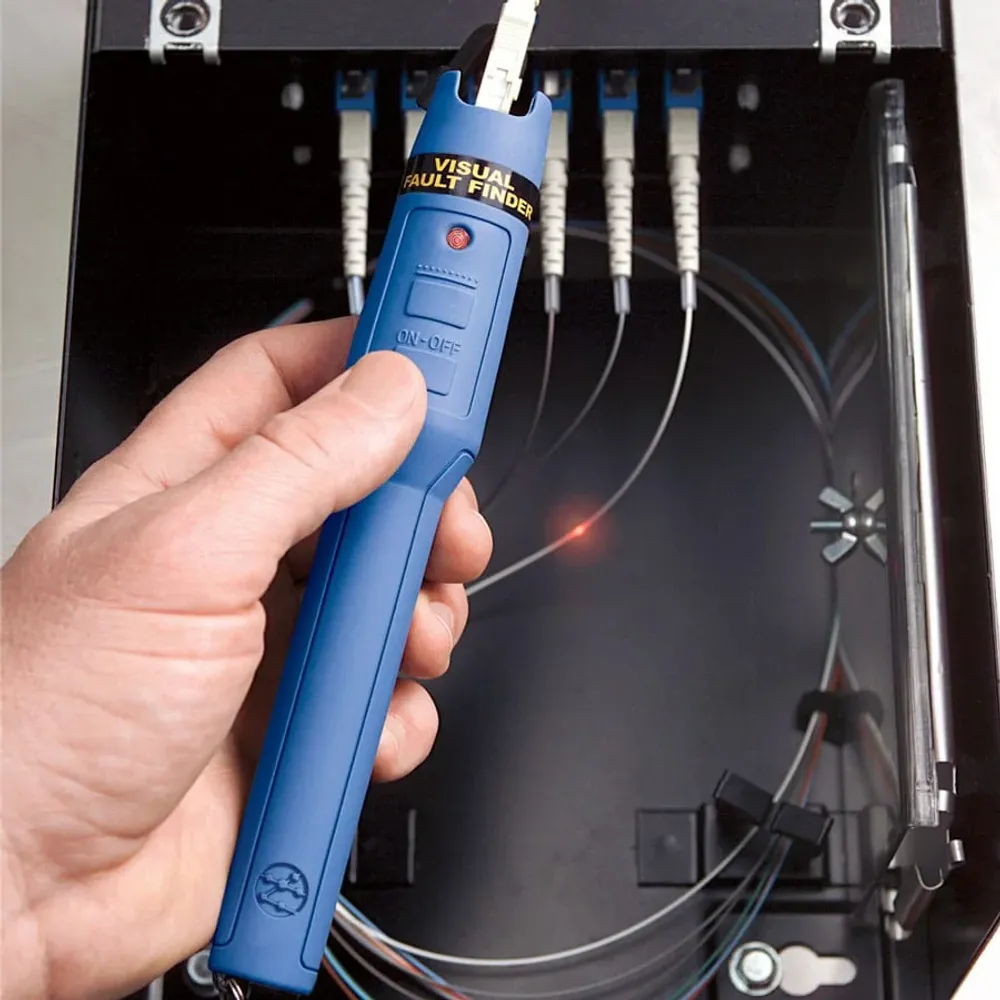

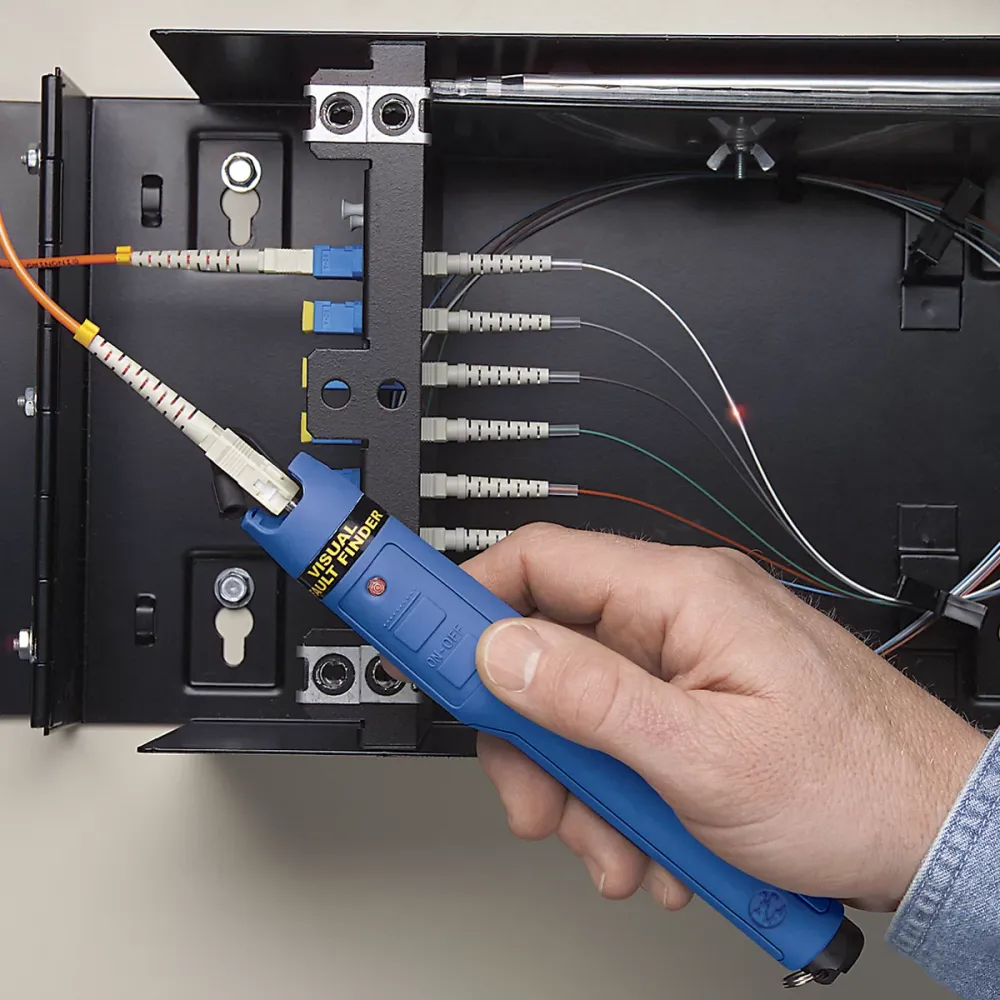

Trend Networks Visual Fault Finder Visual Fault Finder, Identify & Locate Faults In Fibre Optic Cabling

Features

• Fiber optic cable continuity tester/fault detector
• Hand-held, battery-powered tool
• Projects highly visible red light into fiber optic cables
• Used to check continuity of cabling between termination points and to locate bends or breaks in fibers at splicing and termination points
• Useful over distance of approximately 5km (3.1mi) into multimode fiber and single-mode fiber
• Use as stand-alone first-line basic troubleshooting tool, or in conjunction with an OTDR to pinpoint faults
• Any breaks will be seen as conspicuously glowing or blinking red light area (in. 3mm or smaller cables)
• Equipped with high-power, daylight visible 650nm laser diode, which operates either in continuous or flashing mode
• Design prevents battery drain due to accidental activation of tool while inside tool pouch
• Two AA batteries provide over 30 hours of operation in continuous mode and 80 hours of operation in flashing mode
• Packaged in pocket-sized, rugged metal housing
• Fitted with 2.5 mm universal connector that accepts ST, SC and FC optical connectors

Technical Information

• Product Type Fiber Optic Visual Fault Locator
• Laser Wavelength 650nm laser
• Operating Modes Continuous (CW) or Modulated (MOD; 1Hz Pulse)
• Connector Interface Universal 2.5mm interface (compatible with ST®, SC, and FC connectors)
• Functionality Visually identifies and locates faults in fiber optic cabling
• Adaptor 2.5mm universal adaptor for ST, SC, and FC connectors
• Range Effective over a distance of up to 5km (3 miles)
• Battery Life Up to 80 hours of operation
• Build Ruggedised aluminium body
• Part Number VFF5

Items Included

• 1 - VFF5 Visual Fault Finder
• 1 - Holster
• 1 - Integrated rubber port cover
• 1 - Lanyard
• 1 - Cell-phone style belt clip
• 2 - AA Alkaline Batteries
• 1 - Instruction Manual

Downloads

Datasheet
