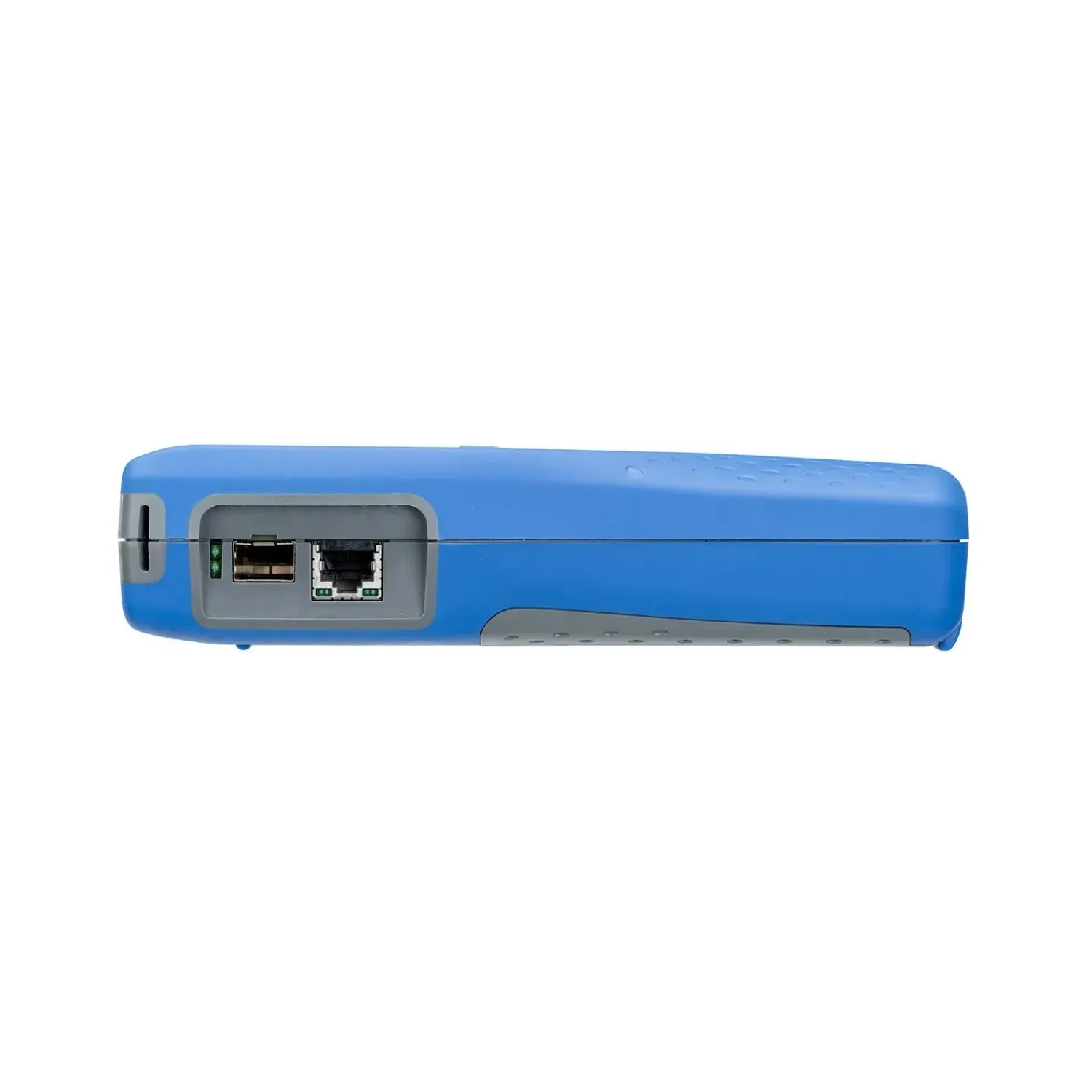

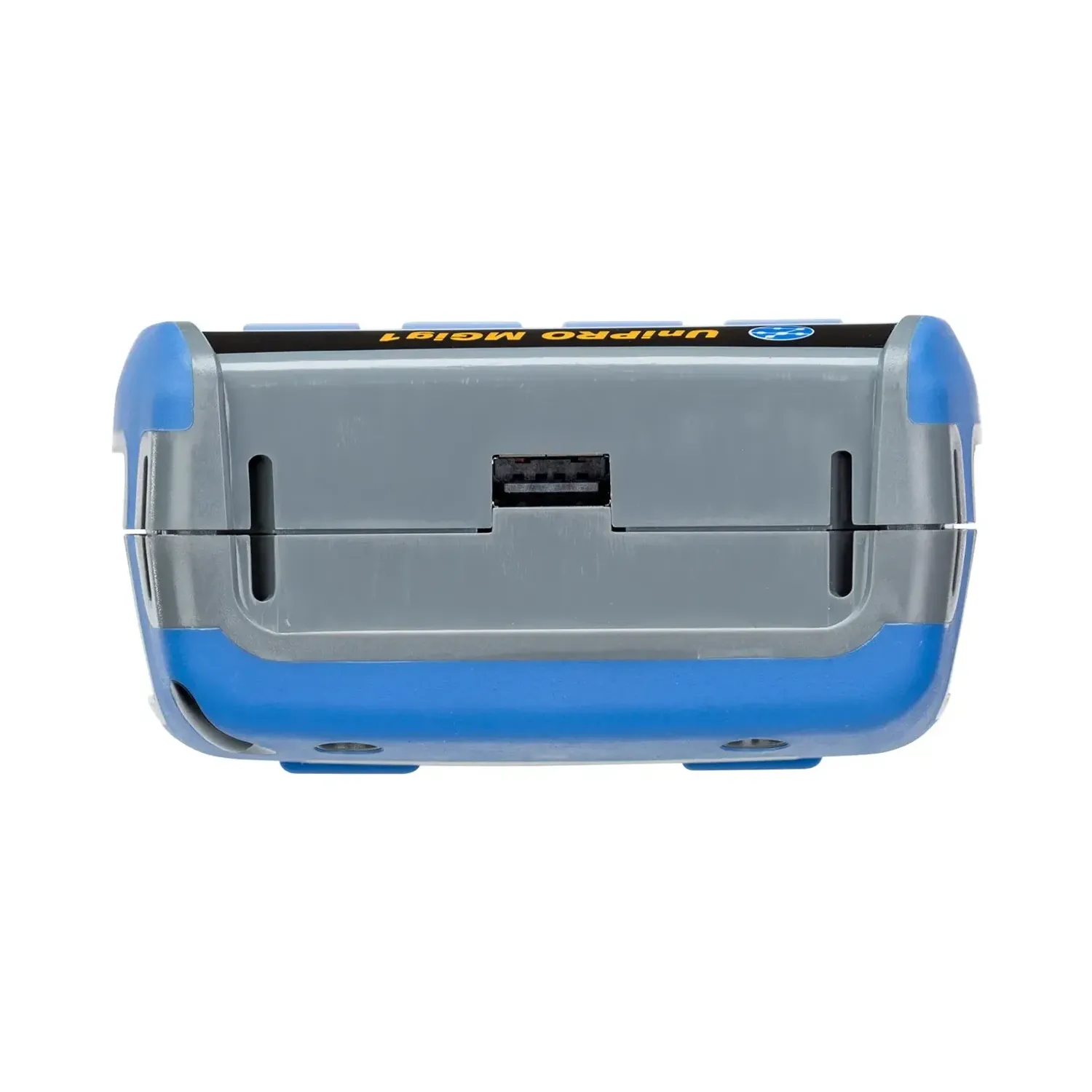

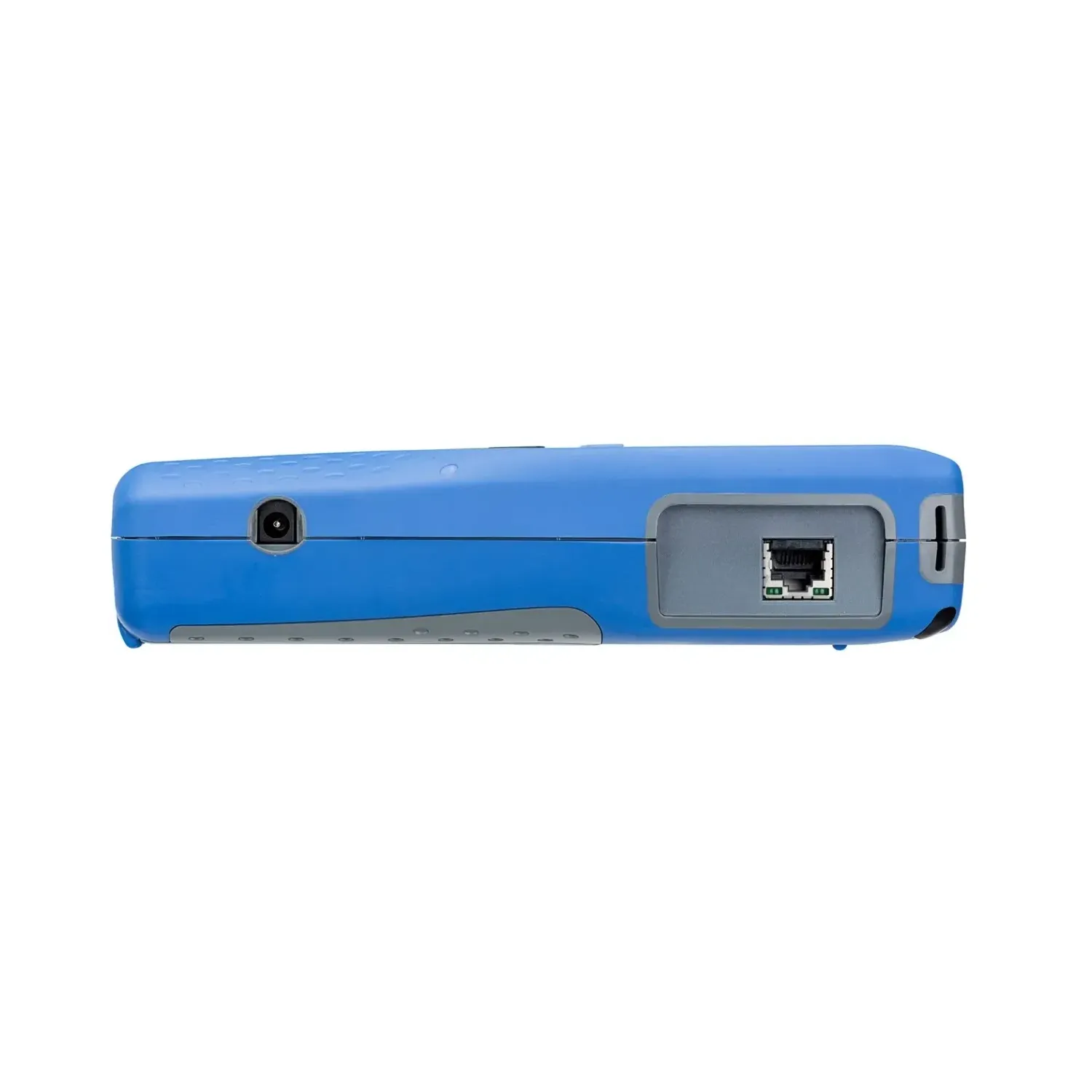

Trend Networks UniPRO MGig1 Duo UniPRO MGig1 Duo, Gigabit Ethernet Transmission Tester with Dual Copper Ports

Features

• Reduce configuration time with independent set-up parameters (devices, services and tests)
• Single button Autotest is an automatic sequence test function that executes user defined multi test items for specific applications (such as radio link installation)
• UniPRO MGig1 performs Bi-Directional or loop back testing of Y.1564 and RFC2544 including a jitter sub test with an-easy to understand pass/fail curve
• UniPRO MGig1 tests the actual bandwidth and performance compared to the agreed service levels from the service provider significantly faster than RFC2544 and Y.1564 testing. The SLA-Tick test simultaneously performs multi service (stream) information rate, frame loss, jitter, delay and service disruption time (SDT) into a single operation
• BERT tests the Ethernet frame payload from layer 1 to layer 4 in Ethernet links and compares the error ratio or error bit count to pre-defined limits ensuring error free transmission at the specified bandwidth
• Allows up to eight levels of VLAN within VLAN nesting for RFC2544, Y.1564 (NetSAM), BERT and SLA-Tick testing. For links using MPLS, UniPRO MGig1 PRO can test up to three levels with label, class and TTL for each service
• Measures total incoming and outgoing bandwidth consumption
• PoE/PoE+ testing monitors power consumed by a device and performs load testing to determine maximum amount of power available at a port
• Monitoring statistics include: multi cast, uni cast, broad cast, frame size, frame error count (FCS errors), network utilisation and LLDP protocol detection
• Simultaneous IPv4 and IPv6 support
• Supports both IPv4 and IPv6 internet addresses to future-proof the investment in UniPRO MGig1
• In specs table – PRO is 8 eight levels and Plus and Basic are 3 levels

Technical Information

• Product Type Gigabit Ethernet Transmission Tester for carrier and enterprise networks
• Network Monitoring Comprehensive in-line network monitoring
• Ease of Use Simplified setup of target devices, services, and tests
• Test Standards Supports RFC2544, BERT, SLA-Tick, and Y.1564 (NetSAM)
• Multi-Service Testing Simultaneous testing of multiple services
• QoS Testing Tests multiple VLANs (QinQ), MPLS, ToS, and DSCP
• Part no R152008

Items Included

• 1 - UniPRO MGig1 Duo
• 1 - NiMH Battery
• 2 - Patch Cables, 30cm Cat 5e STP
• 1 - Carrying Case
• 1 - Carrying Strap
• 1 - PSU with EU/UK/US adaptors
• 1 - User's Manual
• 1 - Quick Reference Guide
