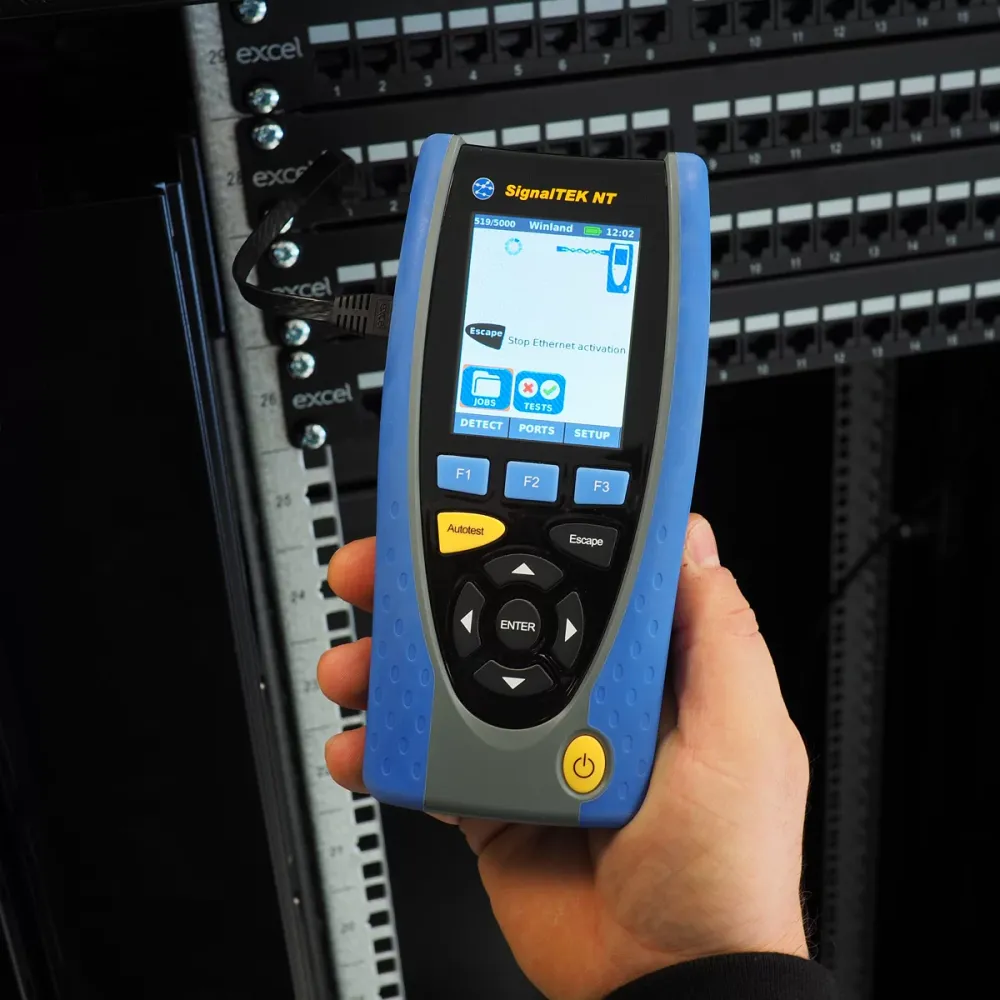

Trend Networks SignalTEK NT with Touchscreen SignalTEK NT, Active and passive, with Touchscreen

Features

• SignalTEK NT copper/fiber network tester
• Installation testing
• TREND Networks, formerly known as IDEAL Networks
• Network traffic performance test on copper and fiber to IEEE802.3ab standard
• Wiremap test for open, shorts, miswires and split pairs to TIA-568 standard
• Gigabit link verification for copper and fiber cabling
• Use list of wiremap templates for common Ethernet cable types including CAT 6A/7A/8, and non-Ethernet cable, such as Profinet and ISDN
• Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic
• PoE/PoE+ verification that displays available voltage at device location
• Check Ethernet connectivity at device location to 10/100/1000 Mb/s
• Verify network configuration (device IP/gateway address/subnet mask)
• Switch port identification via LLDP/CDP protocols
• Troubleshooting/diagnostics
• Advanced PoE/PoE+ testing
• Gigabit performance testing on passive cabling and active networks according to IEEE standard
• Tests connection speed, port ID, ping, traceroute, IPv4/IPv6
• Simulates VoIP/CCTV/Web/IP video network traffic

Technical Information

• Part no R156005

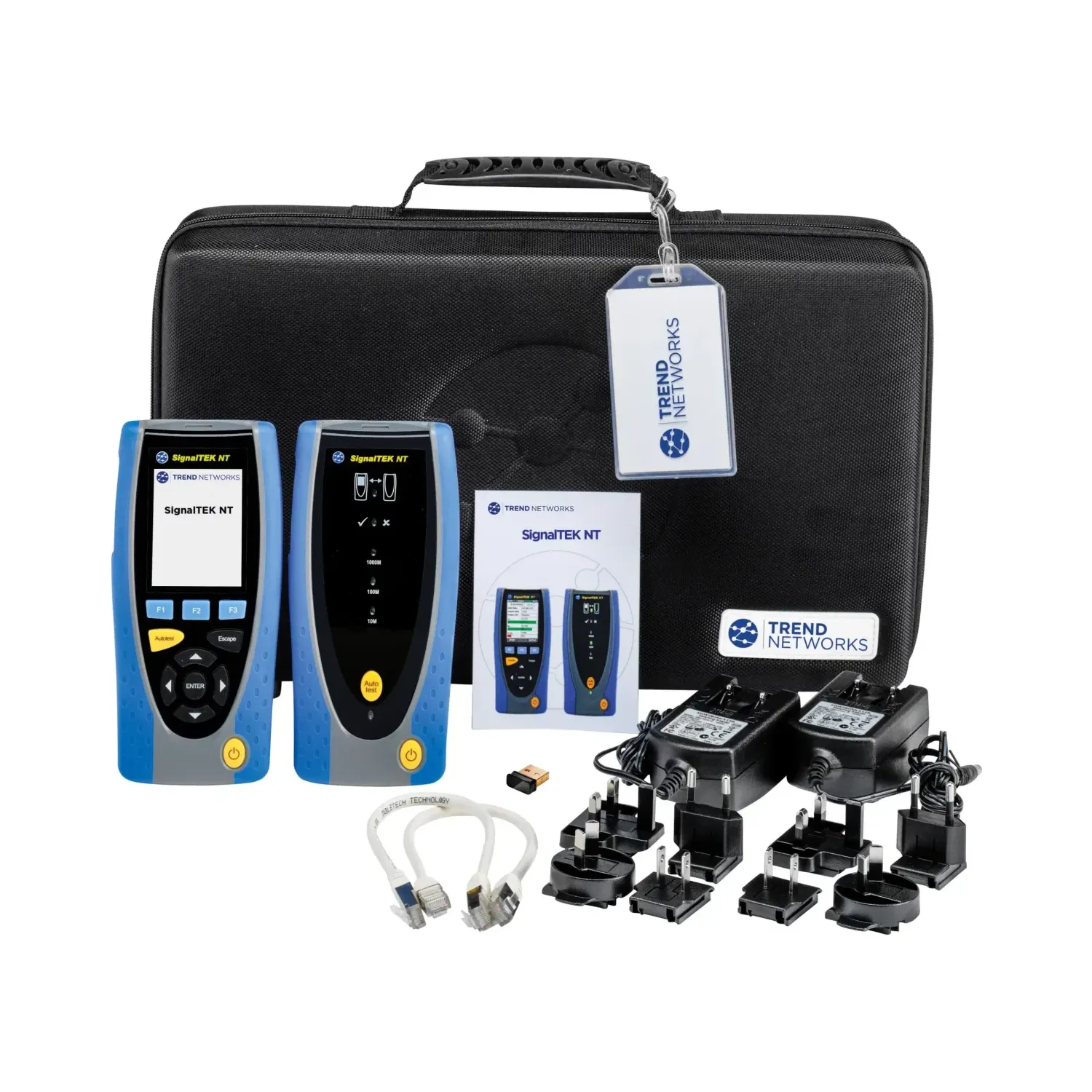

Items Included

• 1 - Display with Touchscreen
• 1 - Remote
• 2 - NiMH Batteries
• 2 - Patch Cables (12 inch, Cat 5e STP)
• 2 - Power Supply with EU/UK/US Adapters
• 1 - USB Wi-Fi Adapter
• 1 - Quick Reference Guide
• 1 - Carrying Case

Downloads

Datasheet
