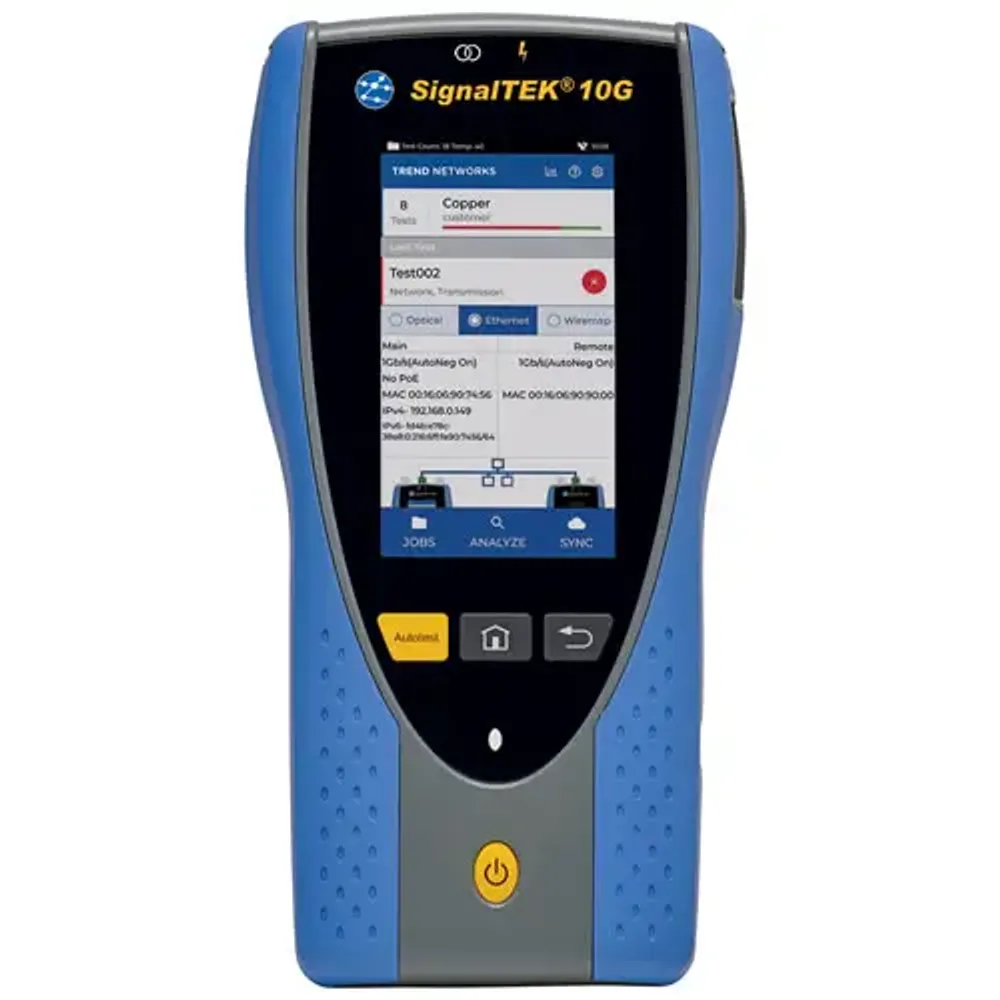

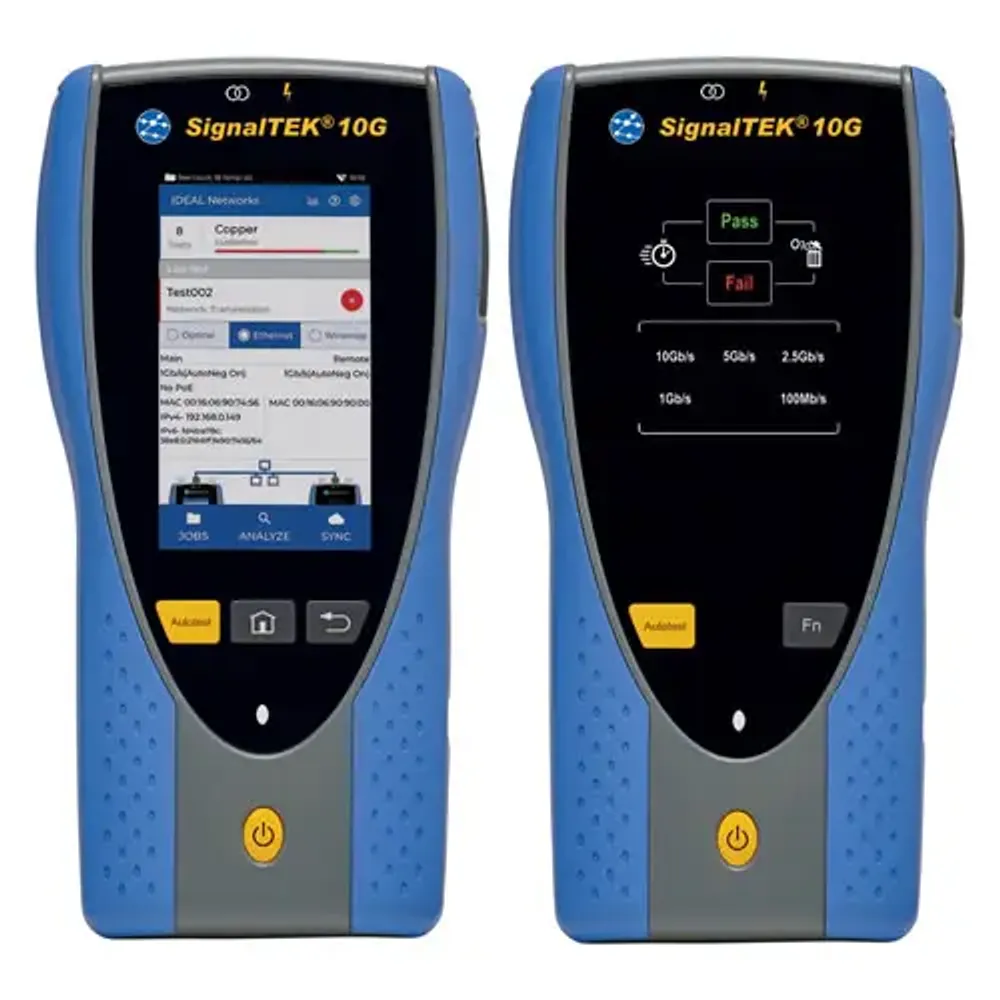

Trend Networks SignalTEK 10G FT - with fibre testing SignalTEK 10G FT - Ethernet Troubleshooter & Bandwidth Tester with Fiber Testing

Features

• SignalTEK 10G FT ethernet troubleshooter and bandwidth tester with fiber testing
• Complete connectivity: Wi-Fi connectivity to the AnyWARE Cloud management system; USB connection for transferring test data
• Partner finder: Provides audible tone and visible indicator when connected to remote units
• Built-in PDF reporting: Reports can be generated directly from SignalTEK 10G as well as Cloud
• Intuitive user interface: Simplified user interface for easy setup and operation
• Touchscreen: High resolution impact resistant touchscreen for ease of use
• Internal load speaker: Audible tones assist users while testing
• Rugged design: Rubberized housing, protected screen and protected measurement port
• Label printer connectivity: Easily send label IDs to printers for fast and accurate labeling

Technical Information

• Max bandwidth test Up to 10Gb/s
• Part no R157001

Items Included

• Max bandwidth test: Up to 10Gb/s
• Data transmission test: 1/2.5/5/10Gb
• NbaseT/Multi-Gigabit test: 1/2.5/5/10Gb
• Wiremap: Distance to fault, length
• Cable tracing: With compatible probe (not included)
• Pass/Fail: To copper IEEE standards
• Pass/Fail: To PoE IEEE standards
• Max power available: Up to 90 watts
• Type and Class: af/at/bt (Type), 0 to 8 (Class)
• Displays: Voltage and which pairs have PoE
• Optical Tx/Rx power indication
• Max bandwidth test: Up to 10Gb/s
• Data transmission test: 1/10Gb
• Pass/Fail: To fiber IEEE standards
• SFP details: Temperature, vendor, and model
• Supports: SFP/SFP+ (MM and SM)
