Trend Networks SignalTEK 10G CT- excl fibre and network testing SignalTEK 10G CT- Excl Fibre and Network Testing

Features

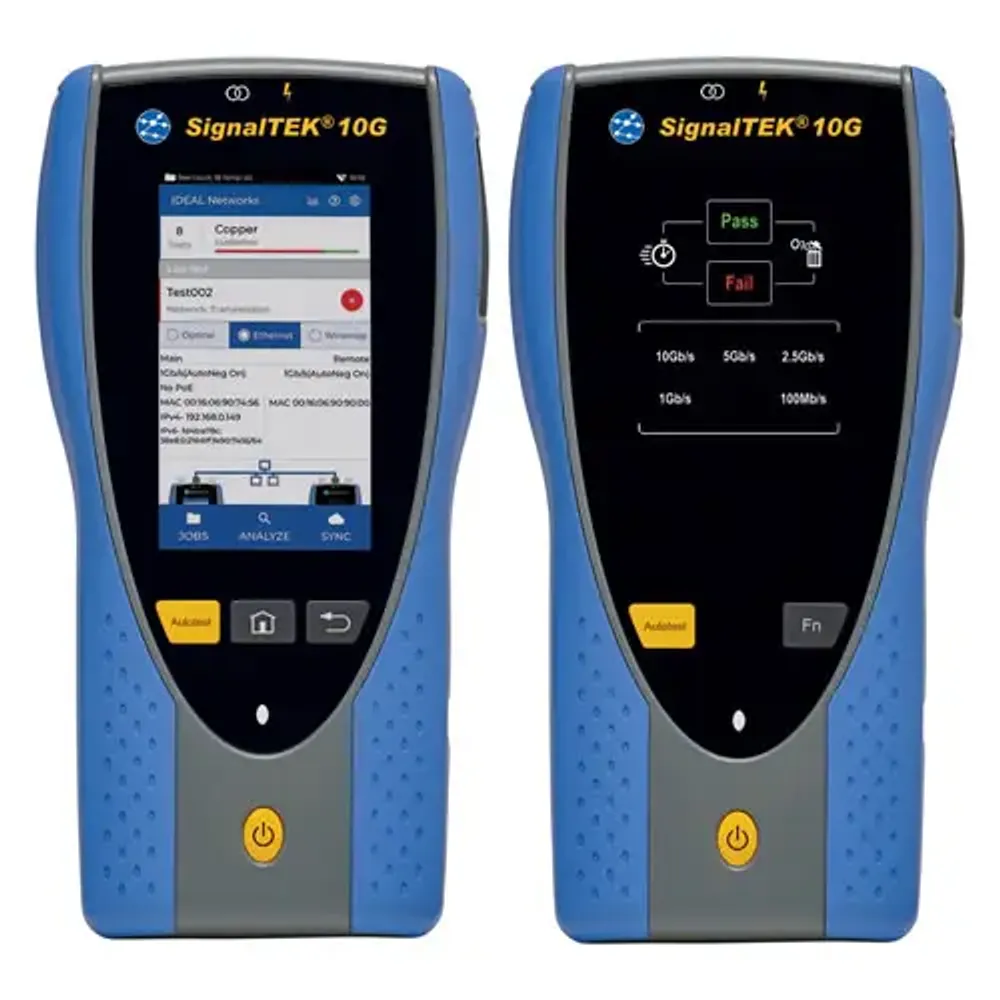

• SignalTEK 10G CT ethernet troubleshooter and bandwidth tester
• Complete connectivity: Wi-Fi connectivity to the AnyWARE Cloud management system; USB connection for transferring test data
• Partner finder: Provides audible tone and visible indicator when connected to remote units
• Built-in PDF reporting: Reports can be generated directly from SignalTEK 10G as well as Cloud
• Intuitive user interface: Simplified user interface for easy setup and operation
• Touchscreen: High resolution impact resistant touchscreen for ease of use
• Internal load speaker: Audible tones assist users while testing
• Rugged design: Rubberized housing, protected screen and protected measurement port
• Label printer connectivity: Easily send label IDs to printers for fast and accurate labeling

Technical Information

• Max Bandwidth Test Up to 10 Gb/s
• Data Transmission Test 1 / 2.5 / 5 / 10 Gb
• NBase-T / Multi-Gigabit Test 1 / 2.5 / 5 / 10 Gb
• Wiremap Supported
• Distance to Fault Measured
• Copper Cable Length Measured
• Copper Cable Tracing Supported (with compatible probe, not included)
• Copper Testing Compliance Pass / Fail to IEEE Copper Standards
• Compliance Pass / Fail to IEEE PoE Standards
• Maximum Power Available Up to 90 Watts
• PoE Type af / at / bt
• PoE Class 0 to 8
• Voltage Display Supported
• PoE Active Pairs Display Indicates which pairs have PoE
• Part no R157000

Items Included

• 1 - Set of SignalTEK 10G Display/Remote Handsets
• 2 - Li-ion Batteries
• 2 - Hanging Straps
• 2 - Power Supplies
• 2 - 2m Cat 6A Shielded Patch Cables
• 1 - Carrying Case
• 1 - Quick Reference Guide

Downloads

Datasheet
