Trend Networks LanXPLORER Pro LanXPLORER Pro Network Troubleshooter with Bandwidth Monitoring and Performance Diagnostics

Features

• LanXPLORER Pro network troubleshooter with bandwidth monitoring and performance diagnostics
• Display network configuration: IPv4/IPv6 compatible

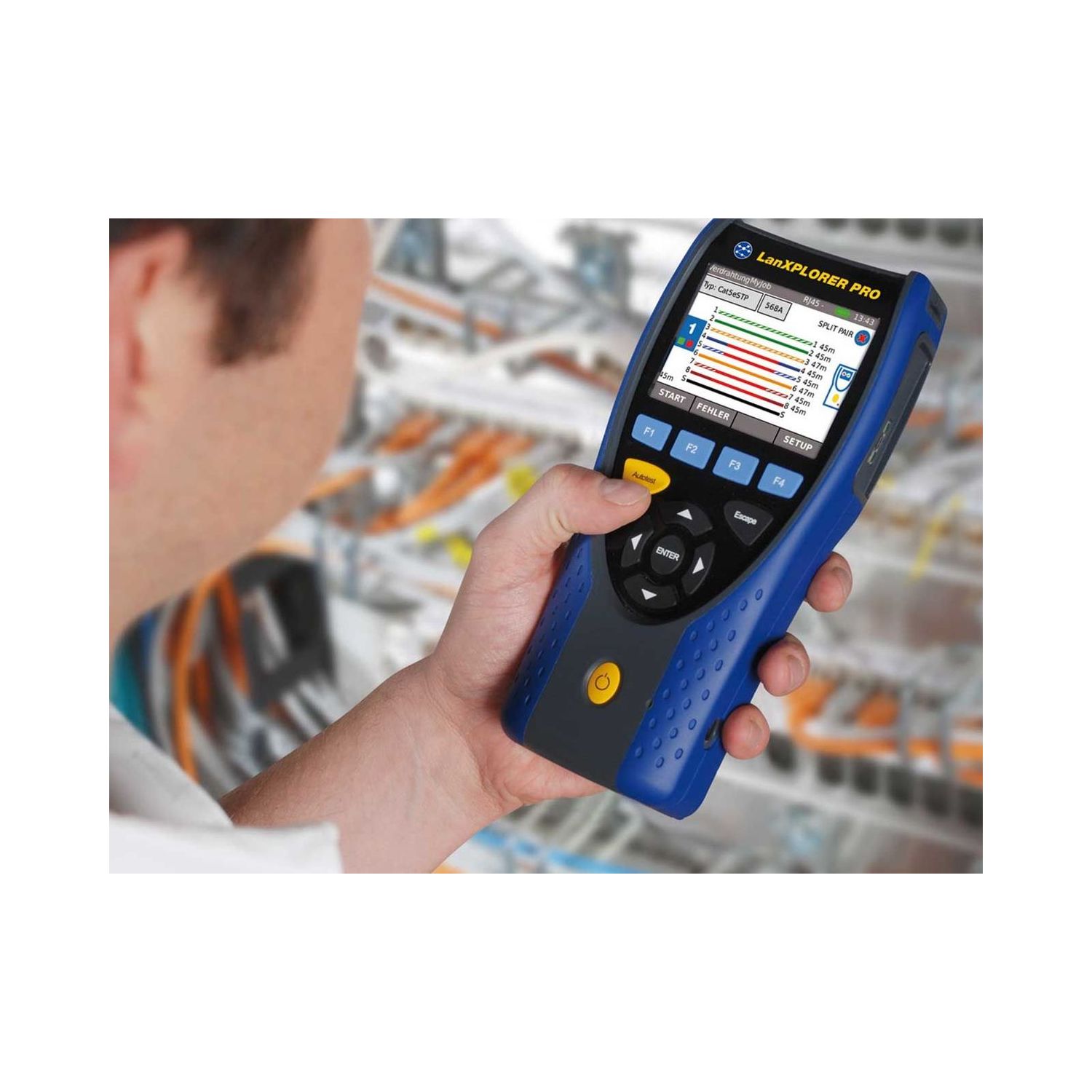

• Wiremap for miswires, split pairs, opens and shorts
• Distance to opens and shorts (TDR)
• PoE/PoE+ detection and load test
• Tone generator for cable tracing
• Autotest button performs Pin and Traceroute tests (network mode)
• Hub blink for port identification
• DHCP client
• Switch speed detection: 10/100/1000 Mb/s
• User-exchangeable RJ45 inserts
• Support for up to 12 wiremap remotes
• Backlit color screen
• Autotest button performs suite of network tests: Internet connectivity (Ping, DNS, Gateway, Traceroute) and NetScan
• Network Probe (NET TEST) provides detailed port and network information of each device
• Port identification using EDP/CDP/LLDP protocols
• VLAN detection
• Traffic utilisation bar graph
• Generate test reports (PDF or CSV)
• Send test reports from mobile devices using free TREND AnyWARE App
• Logon using the 802.1x protocol
• Optical interface with power level and pass/fail indication with supported SFP
• Loopback mode for transmission testing on both copper and fiber interfaces
• Custom wiremap
• Monitor PoE power consumption in-line
• NETMAP list all networks devices
• NETVERIFY compare two NETMAP scans to identity changes on networks

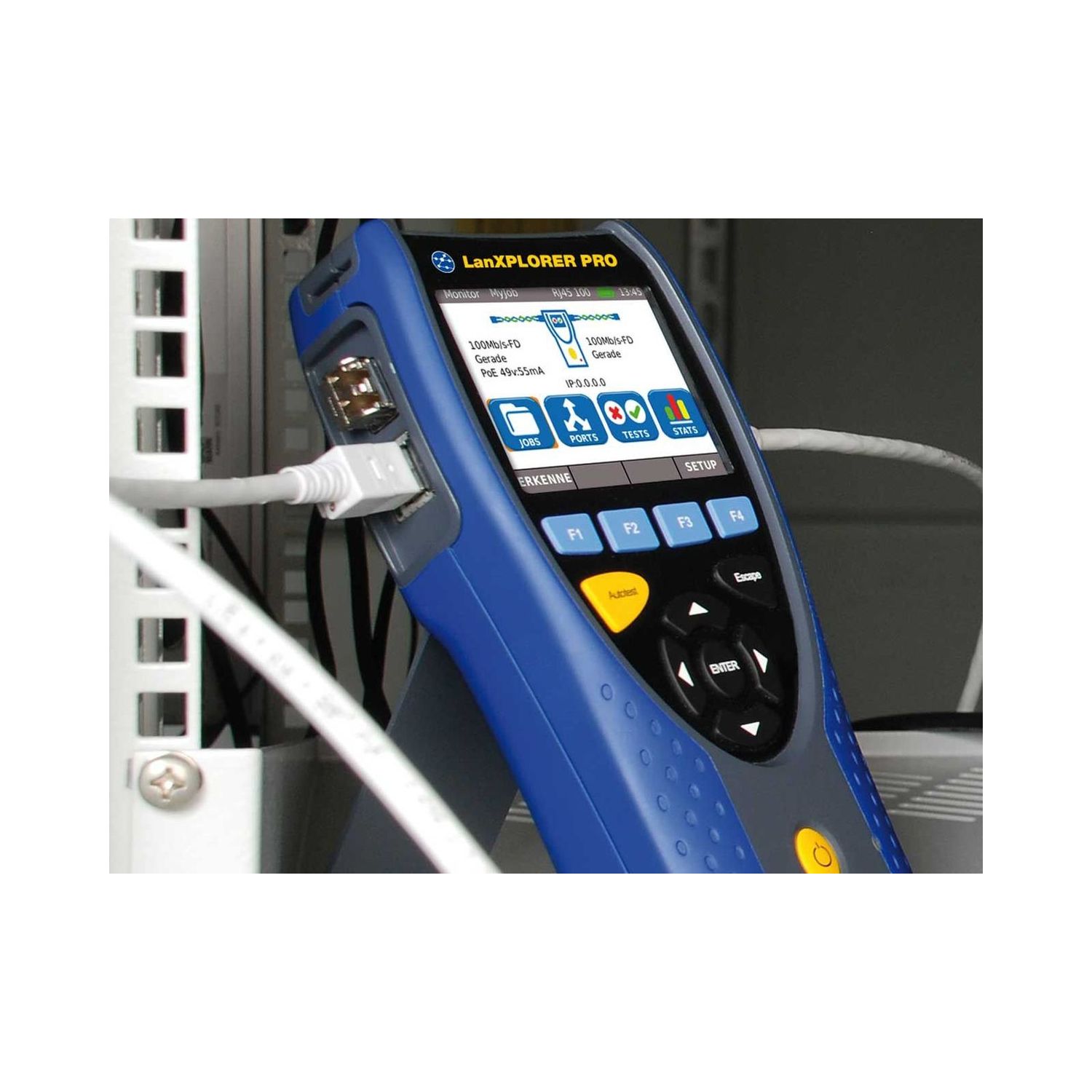

• In-Line mode for Ethernet device troubleshooting (copper)
• VoIP QoS and signal testing (in-line)
• Wi-Fi interface to access network
• Wi-Fi site survey @2.4GHz 802.11b/g/n
• Top 10 bandwidth talkers and listeners
• Discover IP address conflicts
• Traffic statistics: Network and devices

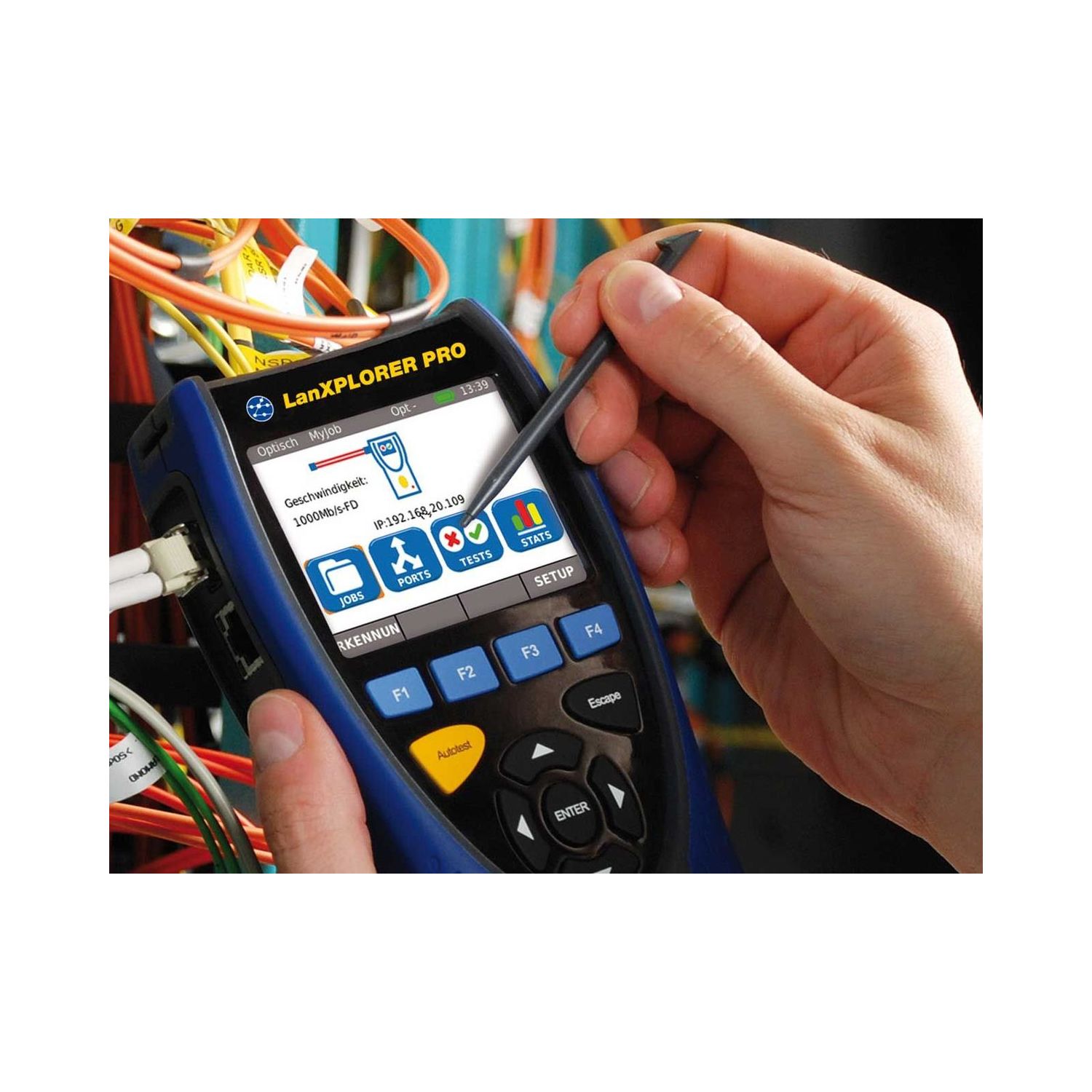

• Touch screen

Technical Information

• Network Bandwidth Throughput Monitoring Monitors total network bandwidth throughput
• Network Conflict Detection Identifies source of network conflicts on copper cables
• Device Identification Identifies MAC and IP addresses of devices on the network
• VoIP Quality Testing Performs Voice over IP (VoIP) QoS testing
• Wi-Fi Antenna Includes a 5GHz band Wi-Fi antenna
• Part Number R150001

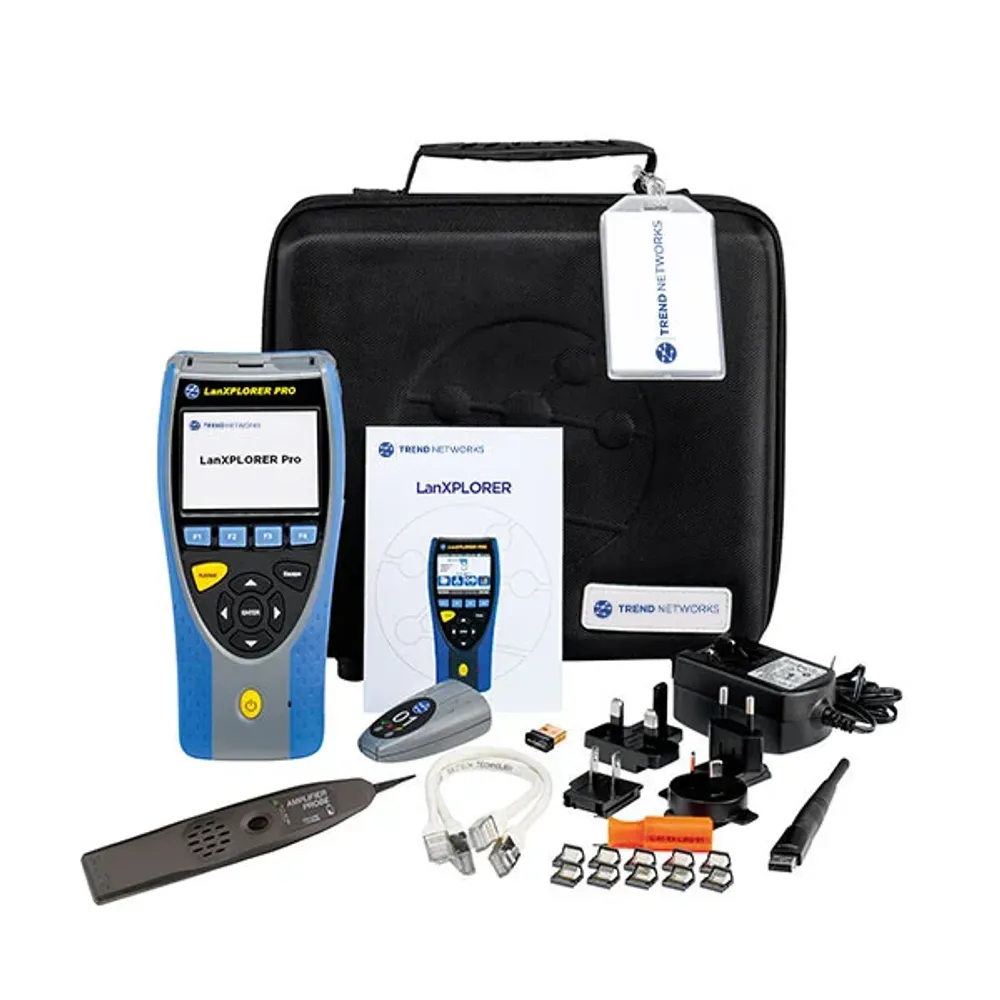

Items Included

• 1 - LanXPLORER Pro test unit
• 1 - Remote unit No. 1
• 1 - External USB high sensitivity Wi-Fi antenna
• 1 - NiMH battery pack
• 1 - Power supply with EU/UK/US adapter
• 2 - Patch cables, 30cm, Cat. 5e STP
• 1 - Quick reference guide
• 1 - USB Wi-Fi adapter
• 1 - Carry case
• 1 - IDEAL amplifier probe 62-164
• 1 - RJ45 insert extraction tool
• 10 - Lifejack RJ45 inserts
