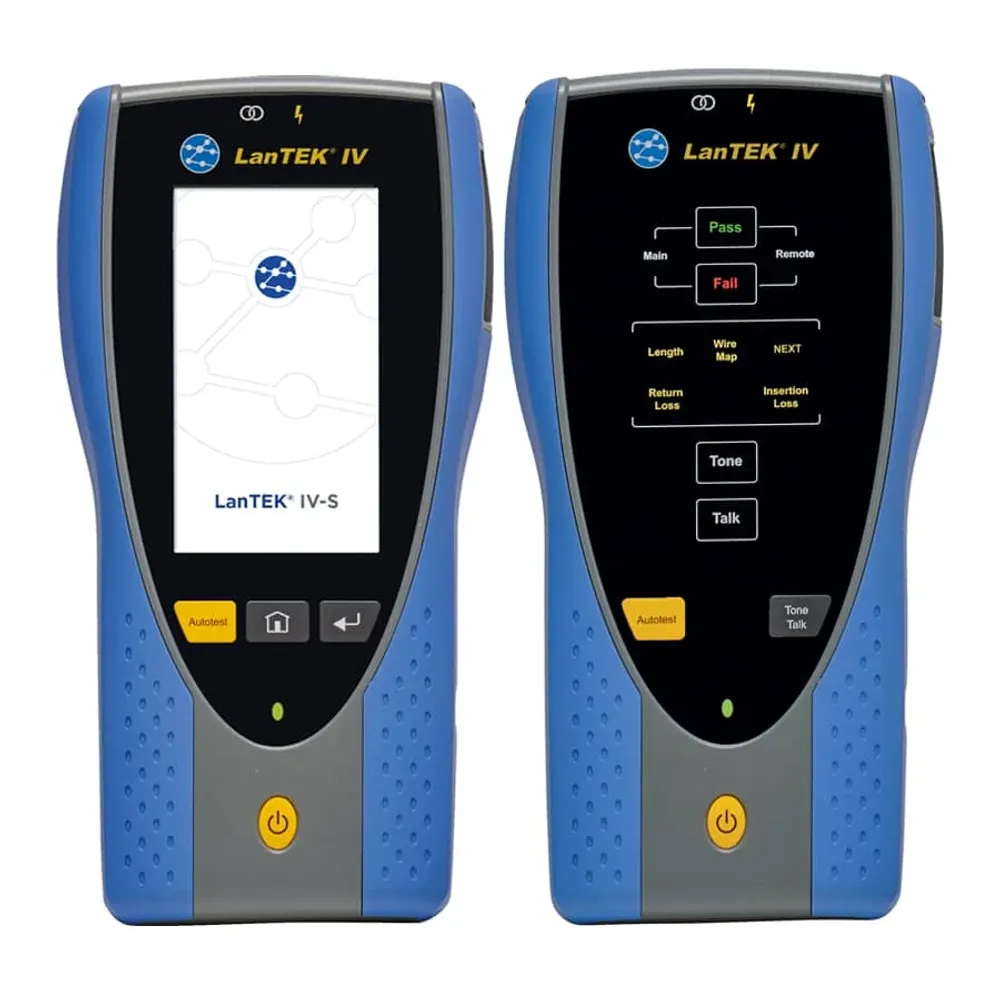

Trend Networks LanTEK-IVs 3000 LanTEK IV Cable Certifier Series – Fast, Accurate Cat6A to Cat8 Certification, Copper Data Cable Tester

Features

• LanTEK IV-S 3000MHz (with PL/CH adapters)
• 3000 MHz for Cat 6A/class EA and class FA, Cat 8 and Class I/II testing
• 25 second test time for 3000 MHz tests
• All autotests perform TCL, ELTCTL, DC resistance unbalance, Time Domain NEXT troubleshooting, and Time Domain Return Loss troubleshooting with no extra test time
• Storage for up to 5000 tests internally
• Extremely rugged test adapters that are captured by the instrument to prevent connector damage
• Can operate from AC main power with or without the battery installed
• High-resolution capacitive touch color display
• Integrated Wi-Fi (2.4/5 GHz 801.11b/g/n) connectivity
• TREND AnyWARE Cloud and Desktop reporting systems simplify reporting and project management

Technical Information

• Cat6A link test and save time 7 seconds
• Certification capability Up to Cat8.1 and Cat8.2
• Frequency sweep Up to 3000MHz
• CPU Dual-core processing
• RAM Doubled for enhanced performance
• Test memory 5,000 tests (previously 2,500)
• Interfaces I/O Other, Wifi, USB, USB-C
• Storage Internal Memory
• Product Weight 1.1 LBS
• Product Height 25.4 IN
• Product Length 12.7 IN
• Product Width 5.3 IN
• Shipping Weight 15.40 LBS
• Battery Type Li-ion
• Power Supply Voltage Battery Powered
• Country of Origin Poland
• Part no R163009

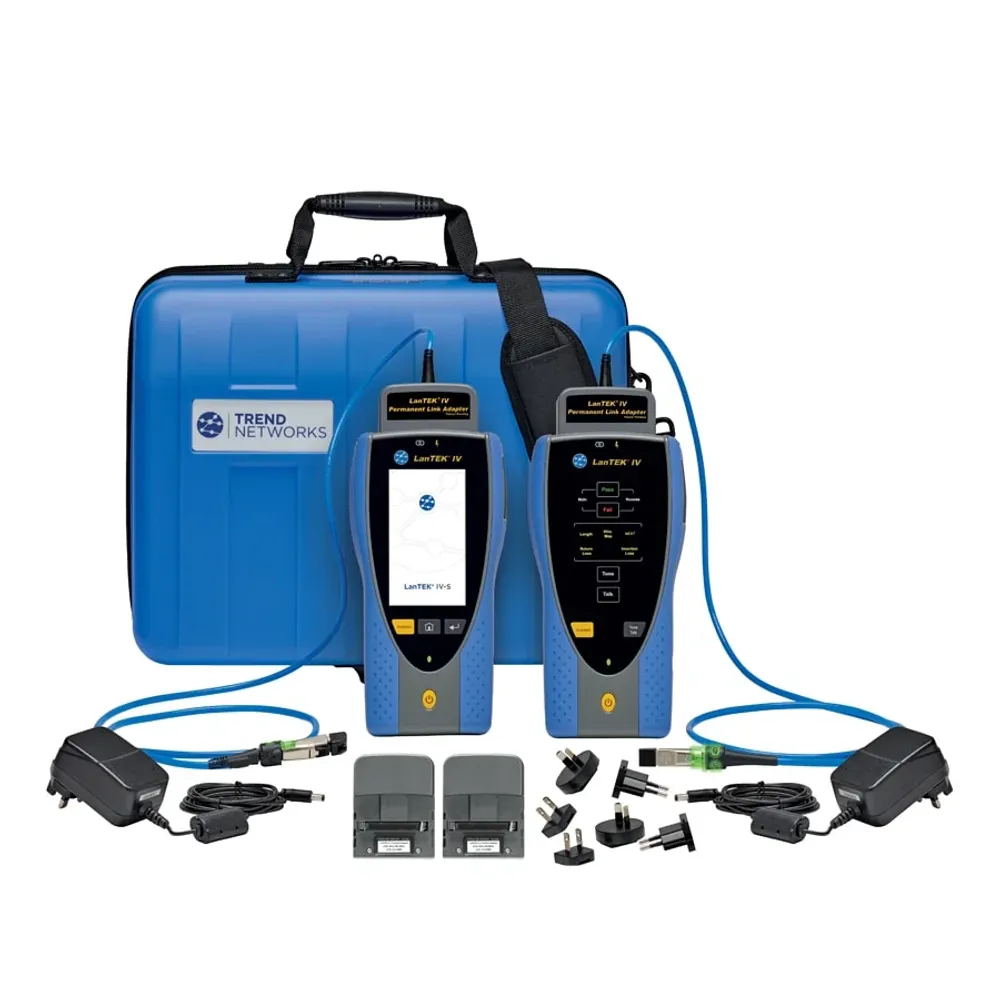

Items Included

• LanTEK IV-S 3000MHz Cable Certifier
• LanTEK IV Display/Remote handsets
• Li-ion Battery (2)
• Univ. Power Adapter (2)
• Hang Strap (2)
• Quick Ref. Guide, Carry Case
• CAT8 RJ45 VisiLINQ Permanent Link Adapters (2)
• Cat8.1/6A/6/5e RJ45 Channel Adapter (2)
• TRADE163008 Trade-In of any Cat5e (or high)

Downloads

Datasheet
