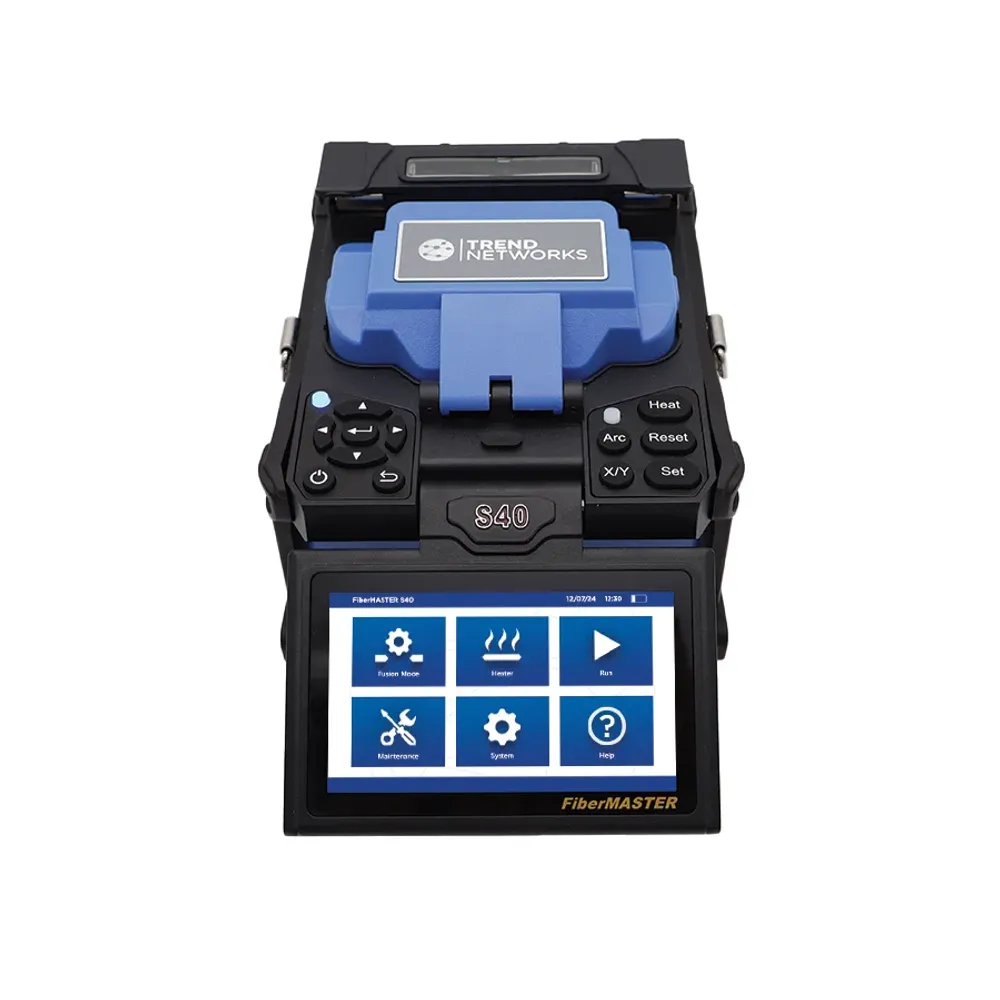

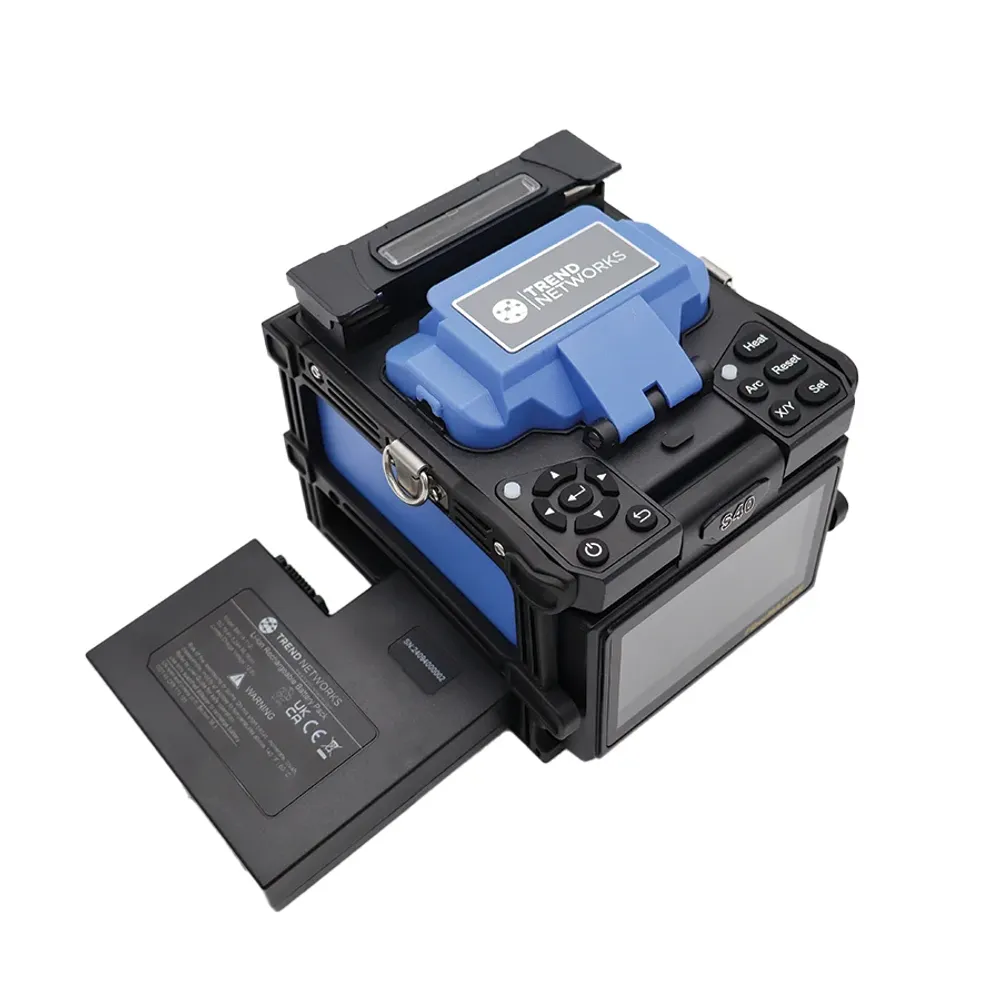

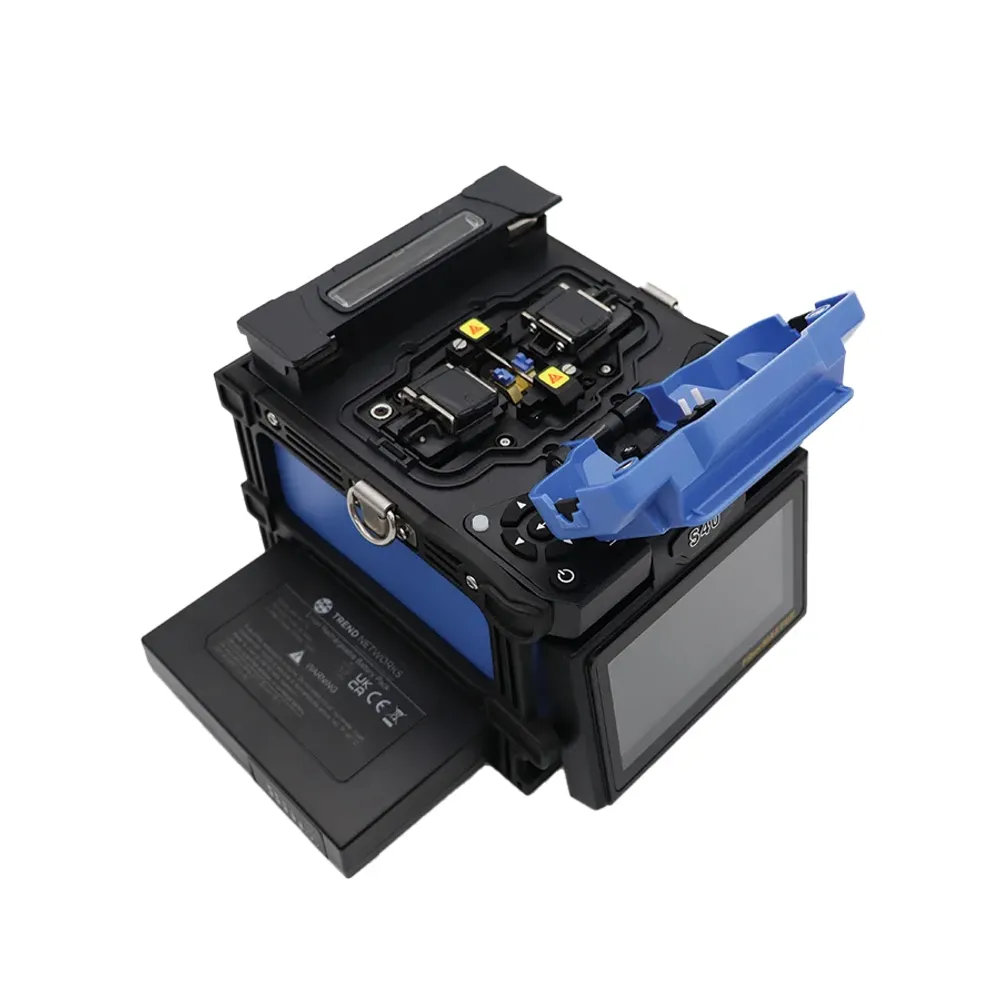

Trend Networks FiberMASTER S40 Adaptive Clad Alignment Fusion Splicer Kit FiberMASTER S40 Adaptive Clad Alignment Fusion Splicer Kit

Features

• Offers fast/precise fusion splicing backed by 3-year warranty
• Designed to significantly improve efficiency, reduce errors
• Ensures last splice will be as accurate as first splice
• Delivers superior splice performance in as little as 7 seconds
• Dependable performance with splice loss as low as 0.01 dB
• Fully automatic modes detect fiber type, optimizes splicing parameters
• Splice protection heater supports 25 mm to 60 mm shrink sleeves with SOC support
• Protective cover protects splicer in all conditions
• Bright LED lighting optimizes splicing productivity in dark environments
• Long-life battery provides up to 240 splice/heating cycles per charge
• Easy-to-use interface allows for easy setup/operation with touchscreen/push-buttons
• USB connection for software updates, downloading splice results, connecting USB work light
• Robust design built for field/real-world conditions
• Rugged design offers metal shell/soft rubber edge protectors for maximum durability

Technical Information

• Display 5” Colour LCD Touch Screen
• Heating Time Typical 18 seconds
• Data Storage Stores 10,000 results + 100 images
• Fiber Types SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), G.657
• Splice Loss SM
• Return Loss Greater than 60dB
• Splice Time 7 seconds (Fast Mode)
• Part Number R301-S40K

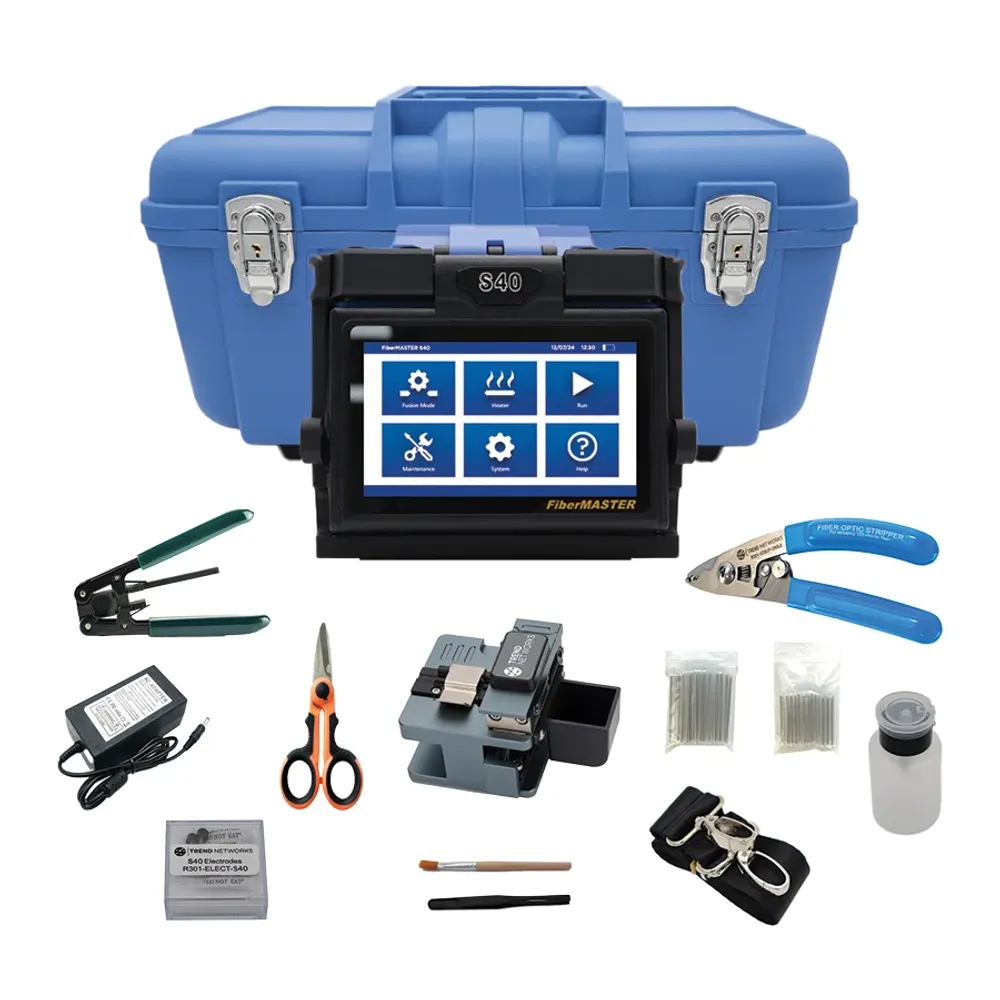

Items Included

• 1 - FiberMASTER S40 Adaptive Cladding Alignment Fusion Splicer
• 1 - Set of Splicer Electrodes (R301-ELECT-S40)
• 1 - Cooling Tray
• 1 - Robust Carrying Case (R301-CASE)
• 1 - Quick Reference Guide
• 1 - Power Supply
• 1 - Cleaver
• 1 - Alcohol Dispenser
• 1 - Cleaning Brush
• 1 - Fiber Stripper (R301-STRIP-3HOLE)
• 1 - Drop Cable Stripper (R301-STRIP-DROP)
• 1 - Kevlar Shears (R301-SHEAR-KEVLAR)
• 1 - USB Work Light
• 50 - Fiber Protective Sleeves, 60mm
• 50 - Fiber Protective Sleeves, 40mm
