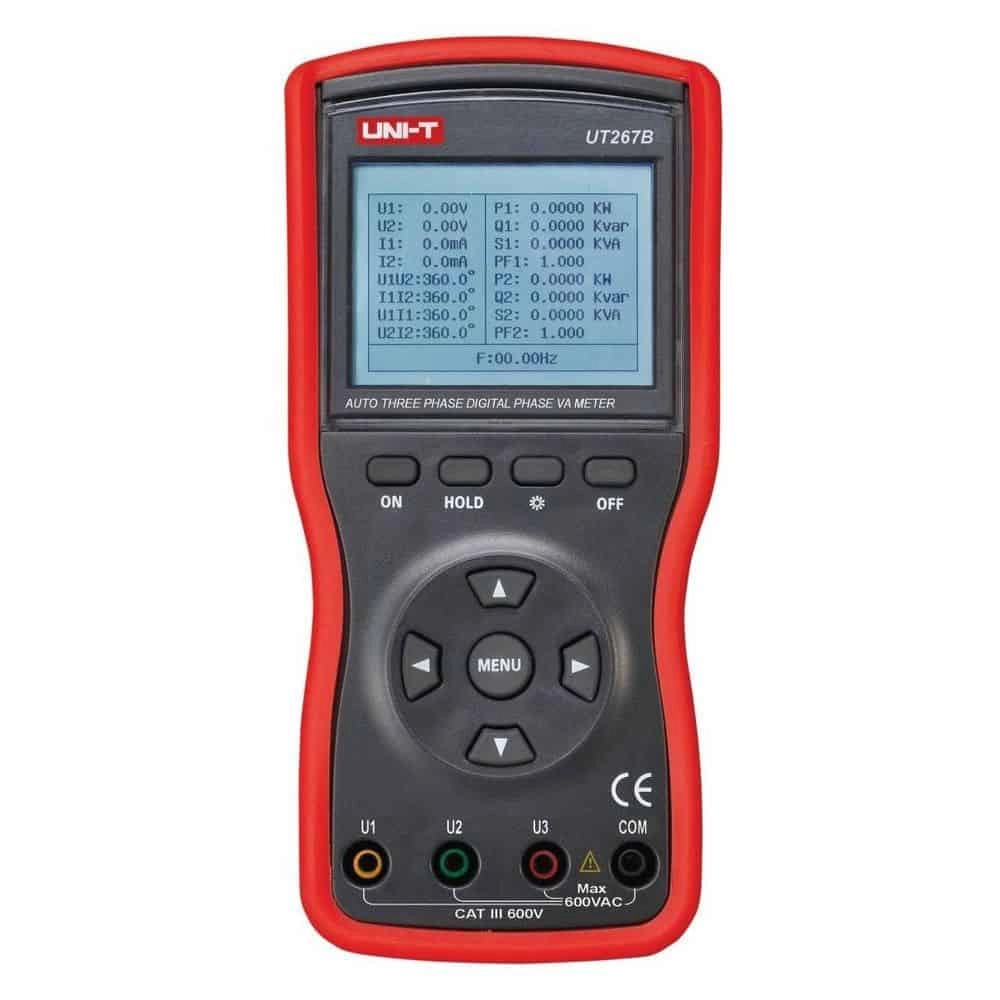

Specifications | Range | UT267B |
AC current (A) | 0mA~20A | ±(1.5%+3) |
AC voltage (V) | 0V~600V | ±(1.5%+3) |
Frequency (Hz) | 45Hz~65Hz | ±(2%+3) |
Active power (W) | 0W~12kW | ±(3%+3) |
Apparent power (VA) | 0VA~12kVA | ±(3%+3) |
Reactive power (VAR) | 0VAR~12kVAR | ±(3%+3) |
Power factor | -1~+1 | ±0.03 |
Phase angle (°) | 0°~360° | ±1° |
Current vector sum | 0mA~60A | √ |
Phase sequence test | Forward rotation, U1-U2-U3 or I1-I2-I3;
reverse rotation, U1-U3-U2 or I1-I3-I2 | √ |
Features |
Display mode | LCD: 240 dots×160 dots | √ |
Clamp size | Acuminate current clamp: 7.5mm×13mm (optional)
Round jaw current clamp: 35mm×40mm (optional) |
Auto range | | √ |
RS-232 | | √ |
Data storage | | 99 |
LCD backlight | | √ |
Data hold | | √ |
Input impedance for DCV | ≥2MΩ | √ |
Auto power off | About 15 minutes | √ |
Low battery indication | | √ |
Sampling rate | About 0.5 times/s | √ |
General Characterisitics |
Power | 1.5V battery (LR6) x 6 |
Product color | Red and grey |
Product net weight | 550g |
Product size | 196mm x 92mm x 54mm |
Standard accessories | Batteries, current clamps (3pcs), test leads (1 yellow, 1 green, 1 red, 1 black) |
Standard individual packing | Gift box, tool box, English manual |
Standard quantity per carton | 1pcs |
Standard carton measurement | 337mm x 136mm x 333mm |
Standard carton gross weight | 3.3kg |
