Future-Ready Fluke Solar Testing Tools: Ensure Safer, Smarter, Higher-Yield PV Systems

As the world embraces solar power at an unprecedented pace, the need for dependable installation, monitoring, and maintenance practices has reached new heights. Photovoltaic systems are popping up on rooftops, in businesses, and across large utility-scale farms, with many operating at voltages as high as 1,500 Vdc.

To make sure these systems run at their best, technicians depend on specialized solar testing tools that allow for precise measurements throughout the entire lifecycle: from installation to operation and maintenance.

Accurate Testing and Monitoring

The performance of a photovoltaic system hinges on several factors, including module temperature and solar irradiance levels. If system owners don’t measure and verify these elements properly, they could face issues like underperformance, hidden faults, or even safety risks. Thankfully, modern testing equipment enables technicians to gather essential data points like voltage, current, resistance, temperature, and irradiance ensuring that each array is running as it should.

Maximizing Energy Yield

The output from a PV module really depends on how much sunlight it gets. By measuring the irradiance and linking it to the system's output, technicians can effectively gauge efficiency and quickly spot any problems that might be affecting yield. With tools ranging from handheld irradiance meters to clamp meters that come with built-in temperature probes, professionals have everything they need to optimize system performance and boost their returns on investment.

Ensuring Safety and Compliance

Solar arrays operate at high voltages, and if any components are compromised, they can create serious risks like fire, electric shock, or ground faults. To catch these hidden dangers before they turn into bigger problems, tools like insulation testers, thermal imaging cameras, and advanced PV analyzers are essential. They not only safeguard technicians and end-users but also ensure that everything meets industry standards and regulatory requirements, which is especially important for large-scale commercial and utility projects.

Reducing Maintenance Costs

By using solar testing tools for early fault detection, we can significantly cut down on unexpected downtime and avoid expensive damage. Technicians are able to spot issues like hotspots, loose connections, or malfunctioning modules before they start affecting the overall efficiency of the system. This proactive strategy not only helps extend the lifespan of the installation but also keeps long-term operational costs in check.

Driving Sustainability Goals

When we look at the bigger picture, accurate solar testing plays a crucial role in supporting global renewable energy initiatives and low-emission objectives. Having reliable and efficient photovoltaic systems means we can deliver more clean energy to the grid, lessen our dependence on fossil fuels, and speed up our journey toward net-zero emissions. So, testing tools aren’t just technical gadgets they’re essential for creating a safer, cleaner, and more sustainable future.

International Standards for PV Testing

Global standards like IEC, UL, and CE set the bar for electrical safety, measurement precision, and environmental resilience. These guidelines outline voltage categories (CAT II, CAT III, CAT IV), insulation needs, and transient protection levels that testing instruments are required to meet. Tools that have been independently certified under these standards are built to handle the tough electrical conditions found in residential, commercial, and utility-scale solar projects.

Fluke’s Role in Meeting Compliance

Fluke's commitment to quality and safety is evident in the rigorous testing that its tools undergo at their accredited Product Compliance Laboratory. These tools experience extreme stress tests designed to push them to their limits. For instance, impulse testing simulates conditions like lightning strikes and switching surges, while overload testing assesses their resilience against potential user errors. Additionally, Fluke employs Highly Accelerated Lifetime Testing (HALT), which involves rapid temperature variations and vibrations to mimic years of real-world use.

To ensure that their products can withstand the elements, Fluke conducts ingress protection (IP) tests, assessing dust and water resistance. Alongside these evaluations, tools are subjected to drop and vibration tests, confirming their durability in rugged field conditions. Fluke’s dedication to third-party certifications, including those from CSA, UL, TÜV, and Intertek, reflects their commitment to delivering tools that meet stringent safety and durability standards.

For solar professionals, this means having access to instruments that provide not only accurate results but also the assurance of safety in high-energy environments. By selecting IEC, UL, and CE-compliant test equipment from reputable brands like Fluke, technicians and system owners can be confident in achieving safe, efficient, and future-ready solar installations.

Accurate performance analysis is crucial for ensuring a dependable photovoltaic (PV) system. Solar technicians and operators depend on specific diagnostic metrics to evaluate system health, uncover hidden problems, and confirm that installations achieve both efficiency and safety standards. Among these metrics, I-V curve tracing stands out as one of the most effective tools for troubleshooting and optimizing performance.

Core Solar Performance Metrics

The IV curve illustrates the current-voltage relationship of a solar module or array and reveals performance issues such as shading or component failures. Key parameters include open-circuit voltage (Voc) and short-circuit current (Isc). A low Voc may indicate shading or hardware issues, while a reduced Isc often points to shading effects or dirt accumulation on panels.

The fill factor (FF) measures the “squareness” of the I-V curve; a lower FF suggests increased resistance or aging modules. Efficiency, representing the ratio of electrical output to solar energy input, is crucial, as drops can indicate underlying problems like microcracks or degradation.

Modern PV analyzers like the Fluke PVA-1500 Series help trace I-V curves to identify hidden issues such as shading, corroded connections, or potential induced degradation (PID). Module-level testing targets localized faults, while string-level testing provides an overview of overall performance, essential for large installations.

Regularly measuring Voc, Isc, fill factor, and efficiency allows solar professionals to enhance energy yield, ensure safety, and extend system lifespan. These metrics are vital for performance verification, financing, and compliance, forming a blueprint for efficient solar installations.

As PV systems grow in scale and complexity, solar professionals need specialized instruments to commission, validate, and maintain performance safely and efficiently. Fluke, a global leader in test and measurement equipment, offers a suite of solar-specific tools that combine precision, ruggedness, and compliance with international standards.

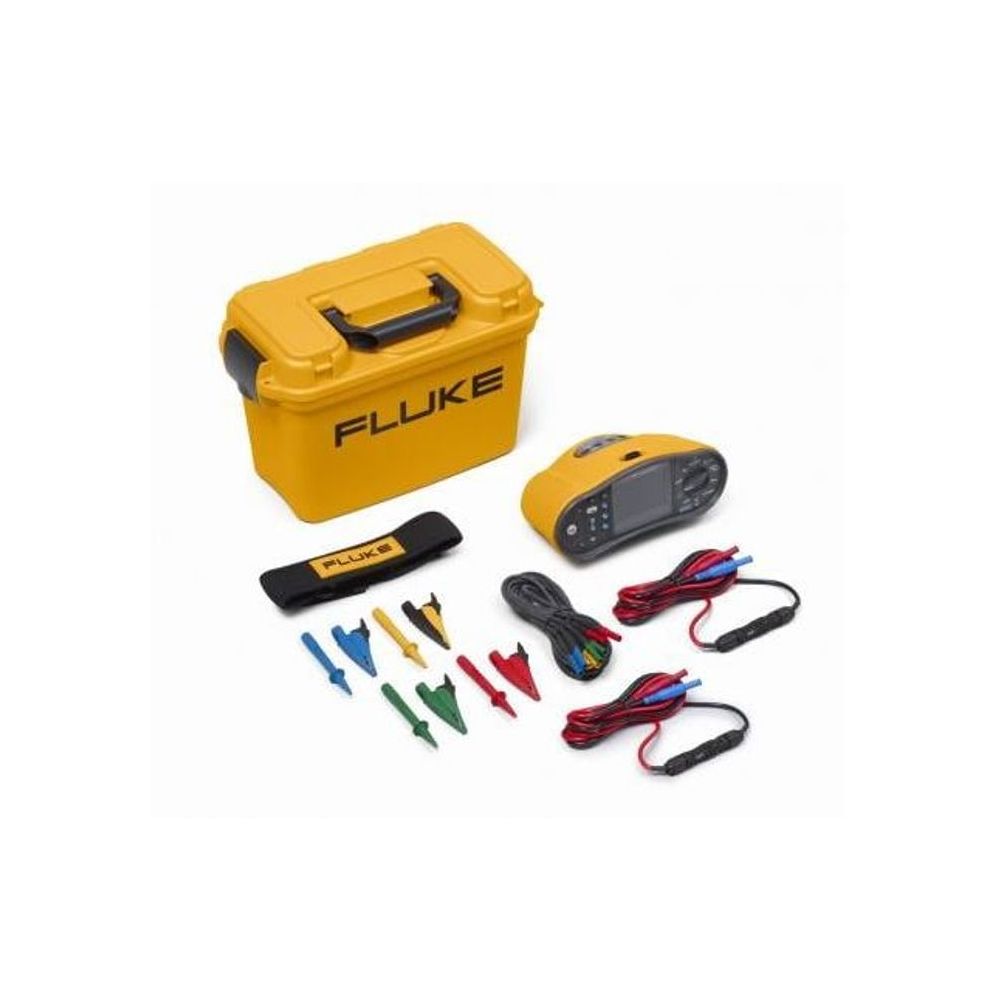

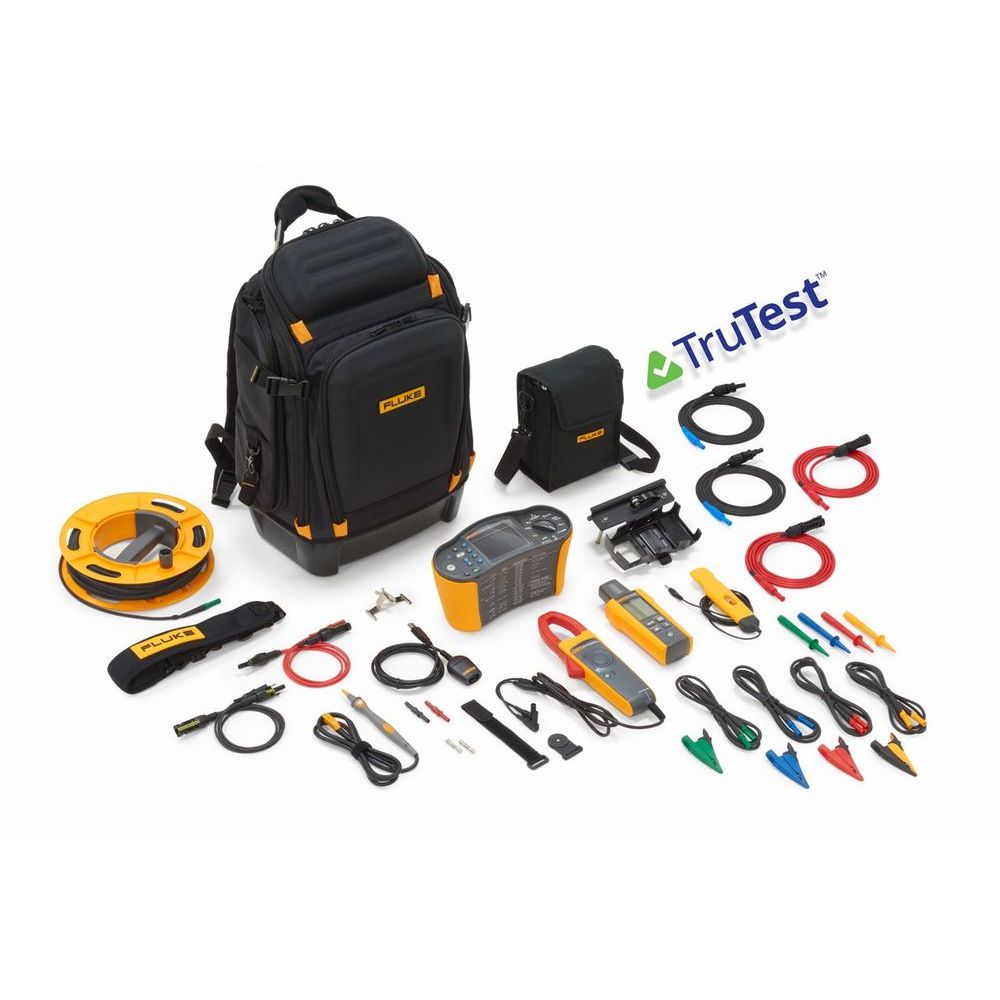

Fluke SMFT-1000/KIT Multifunction PV Tester and Analyzer

The Fluke SMFT-1000/KIT is a comprehensive tool designed for everything from PV commissioning to ongoing operation and maintenance. It meets the IEC 62446-1 Category 1 and 2 standards, providing technicians with all the essentials they need in the field to ensure safety and performance.

Key Functions:

• I-V curve tracing with on-screen comparison to manufacturer data
• Open-circuit voltage (Voc) measurement up to 1000 V
• Short-circuit current (Isc) measurement up to 20 A
• Insulation resistance testing across multiple ranges (50 V to 1000 V)
• Protective conductor resistance (RLO) with test currents ≥200 mA
• Polarity checks with acoustic/visual alerts
• Blocking diode and surge protection device testing
• AC/DC current and voltage measurement for complete system validation

This multifunction kit minimizes the need for multiple tools, enhancing efficiency and accuracy on-site. With its durable design, integrated irradiance and temperature sensors, and Fluke’s 3-year warranty, it’s designed for the challenges of PV fieldwork.

Fluke Solmetric PVA-1500 Series PV Analyzer

For utility-scale and high-efficiency solar projects, the Fluke Solmetric PVA-1500HE2 stands out as the industry benchmark for sophisticated I-V curve analysis. Its advanced features and precision engineering make it the ideal tool for optimizing solar panel performance and ensuring maximum energy output.

Key Features:

• Measures I-V curves up to 1500 V and 30 A, including on high-efficiency modules
• Fast sweep-to-sweep delay (~9 seconds) enables testing of 3.5 MW in under 1 hour
• Integrated PV model for instant performance validation
• Wireless operation for safer, faster diagnostics
• Automated data management and reporting for streamlined compliance and documentation

The PVA-1500 enables large-scale system operators to swiftly identify performance losses, shading issues, or module mismatches with unmatched accuracy, ensuring optimal yield and bankability.

Fluke IRR1-SOL Solar Irradiance Meter

Accurate irradiance measurement is essential for performance ratio (PR) calculations, system design validation, and I-V curve correlation. The Fluke IRR1-SOL provides real-time irradiance, temperature, and orientation data in a lightweight handheld unit.

Key Functions:

• Instantaneous irradiance measurement from 0 to 1400 W/m²
• PV module and ambient temperature measurement with external probe
• Integrated compass for roof/site orientation
• Inclination sensor for tilt angle measurements during surveys or installation
• High-contrast LCD for outdoor visibility

By providing precise and detailed information about site conditions while ensuring adherence to the IEC 62446-1 standard, this innovative tool equips technicians with the means to validate designs meticulously. It facilitates the optimization of system alignment, enabling maximum efficiency and performance in their projects.

Fluke GFL-1500 Solar Ground Fault Locator

The Fluke GFL-1500 is a purpose-built tool designed to quickly locate ground faults in large-scale photovoltaic (PV) systems. Ground faults can compromise safety, reduce system output, and even cause fires if left undetected. The GFL-1500 simplifies fault location, allowing technicians to pinpoint issues efficiently across solar farms and complex installations.

Key Functions:

• Detects and locates ground faults in PV arrays up to 1500 V
• Designed for utility-scale solar projects with long cable runs and distributed architectures
• Provides fast diagnostics to minimize downtime and restore performance quickly
• Helps ensure compliance with international safety standards
• Rugged and field-ready design built for demanding solar environments

By enabling quick, precise fault location, the GFL-1500 reduces costly troubleshooting time and enhances overall safety in PV systems. Its portability and efficiency make it an essential tool for utility operators, O&M providers, and technicians managing large installations.

Additional Advanced Solar Tools from Fluke

PV analyzers and irradiance meters are essential tools for solar testing, but technicians often need a wider range of instruments to perform thorough system diagnostics, ensure safety, and meet compliance standards. Fluke offers advanced tools specifically designed to meet the unique challenges of solar environments.

Fluke TiX580 Thermal Camera

Fluke TiX580 detects hotspots, failed cells, and poor electrical connections with high-resolution thermal imaging. Its 240° articulating lens and superior image clarity make it ideal for inspecting large arrays and identifying issues before they escalate into costly failures.

Fluke 393 FC Solar Clamp Meter (CAT III 1500 V)

Fluke 393 FC Solar Clamp Meter the world’s only 1500 V CAT III rated solar clamp meter, designed specifically for high-voltage DC environments. It enables safe, accurate measurement of DC currents in live PV systems and offers wireless data logging via Fluke Connect for streamlined reporting.

Fluke 1623-2 GEO Earth Ground Resistance Meter

Fluke 1623-2 Verifies grounding and earthing integrity, ensuring PV systems meet critical safety standards. Its advanced testing methods (3- and 4-pole fall-of-potential and selective testing) provide reliable results even in complex solar installations.

Together, these fluke solar tools provide a holistic view of PV system health from electrical performance to safety compliance. By equipping field teams with the right instruments, solar professionals can reduce downtime, optimize maintenance schedules, and extend system longevity.

Solar testing tools play a vital role in various areas of the renewable energy sector. Whether it’s for small residential rooftops or expansive utility farms and research facilities, Fluke instruments deliver the precision, safety, and compliance necessary to ensure these systems operate at their peak performance.

Residential Rooftop PV Installations

Rooftop solar is rapidly becoming one of the hottest markets out there, allowing homeowners to produce their own electricity and lessen their dependence on the grid. With handy tools like the Fluke SMFT-1000 Multifunction PV Tester and the Fluke IRR1-SOL Irradiance Meter, homeowners can safely set up, validate, and maintain their systems. This not only helps them save on electricity bills but also empowers them to enjoy greater energy independence while playing a part in creating a cleaner energy future.

Commercial and Industrial Solar Projects

More and more businesses and manufacturing facilities are turning to on-site solar solutions to cut down on operational costs, achieve their sustainability targets, and adhere to ESG requirements. These systems are typically larger than residential setups, which means they need dependable tools for performance testing and compliance. The Fluke PVA-1500 Series Analyzers and thermal imagers are essential for helping operators boost output, minimize downtime, and ensure everything is running smoothly before sending any excess power back to the grid.

Utility-Scale Solar Farms

At the core of the renewable energy shift are large-scale solar plants that generate gigawatts of electricity, enough to power thousands of homes and businesses. The intricate nature of these expansive systems demands precise diagnostics and quick measurement tools. The Fluke PVA-1500HE2 PV Analyzer enables technicians to efficiently trace I-V curves across massive arrays in no time, while clamp meters, ground resistance testers, and thermal cameras help ensure long-term stability, safety, and compliance with grid standards.

R&D Labs and Academic Institutions

Research centers and universities are crucial in pushing the boundaries of renewable energy technologies. In these spaces, solar testing tools are utilized not only for diagnostics but also for fostering innovation and education. By assessing photovoltaic (PV) performance across different conditions, spotting degradation trends, and experimenting with new module designs, labs depend on Fluke’s reliable instruments to deliver precise and consistent results. These initiatives are key to unlocking advancements in module efficiency, system design, and future-ready renewable solutions, all while preparing the next wave of solar engineers and scientists.

As solar technology continues to advance, the tools and techniques we use to ensure performance, reliability, and safety are evolving right along with it. The future of solar testing is being influenced by automation, digitalization, and predictive intelligence, enabling operators to shift from a reactive maintenance approach to proactive, data-driven strategies.

Drones with Radiometric Sensors and Infrared Cameras

Faster Inspections: Drones equipped with thermal imaging and radiometric sensors can scan entire solar farms much more quickly than traditional ground-based inspections.

Defect Detection: These sensors can identify heat anomalies that signal faulty modules, damaged cells, or electrical issues, allowing technicians to locate problems swiftly and accurately.

AI Integration: The images captured by the drones can be analyzed using artificial intelligence, which facilitates automated fault classification and maintenance planning based on precise data insights.

IoT-Enabled, Real-Time Monitoring Platforms

Continuous Data Collection: IoT devices integrated into photovoltaic (PV) systems continuously gather performance and environmental data.

Remote Access: Operators and investors can monitor the operations of solar farms from any location, enhancing transparency and control.

Improved Management: Real-time alerts and diagnostics allow for immediate corrective actions, reducing downtime and optimizing overall performance.

Digital Twins for Predictive Diagnostics

Virtual Replicas: Digital twins create accurate virtual models of utility-scale solar farms that closely reflect their physical systems.

Predictive Maintenance: By analyzing historical performance data alongside real-time inputs, digital twins can identify potential faults before they happen, allowing for proactive maintenance.

Optimized Performance: These models provide actionable insights to enhance system efficiency, lower operational costs, and extend the lifespan of assets.

As solar installations continue to grow rapidly, choosing the appropriate testing equipment is crucial for ensuring safety, compliance, and optimal performance. The selection of the right tools depends not only on their features but also on the scale of the project, which can vary from residential rooftops to utility-scale solar farms.

Key Factors for Solar Testing Tools

When it comes to compliance, always opt for instruments that adhere to international standards like IEC 62446-1, UL, and CE. Using certified tools guarantees safety, reliability, and performance validation for both residential and commercial projects.

Accuracy is key, having high precision is essential for diagnosing issues correctly and steering clear of costly mistakes. Accurate measurements of voltage, current, and irradiance help prevent misunderstandings and ensure that systems function as intended.

Portability is another crucial factor for field technicians. They need tools that are lightweight, durable, and user-friendly. This is especially vital for rooftop or remote installations where being mobile is a must.

When it comes to data features, look for instruments that have advanced capabilities like data logging, wireless connectivity, and software integration. These features allow for smooth performance tracking, easy report generation, and long-term analysis.

Lastly, scalability is important, hence select tools that fit the scale of your project. While residential systems might require compact devices, larger solar farms will need sophisticated analyzers, thermal imagers, and monitoring platforms.

From multifunctional PV testers to precision analyzers and irradiance meters, Fluke’s solar testing lineup is designed to keep pace with the ever-changing needs of the renewable energy sector. Whether you’re setting up a residential rooftop system, troubleshooting a commercial installation, or checking the performance of a utility-scale solar farm, Fluke tools deliver the accuracy, compliance, and durability that professionals rely on to ensure safe and efficient projects. But picking the right tool is just part of the equation, having a trusted distributor adds real value.
