Fluke GFL-1500 GFL-1500 Solar Ground Fault Locator (Surya)

Features

• Pinpoints active ground faults in solar PV systems with FaultTrack™ Technology
• Non-contact tracing directly to the fault location, saving time and reducing safety risks
• Three-piece system: Transmitter, Receiver, and Signal Tracing Clamp
• Eliminates the need for disconnecting conductors and manual testing, speeding up diagnostics
• Detects active faults and generates a traceable signal to easily identify fault locations
• Efficient fault identification without relying on site maps or complex test procedures
• Intuitive design for quick deployment and simplified operation in the field

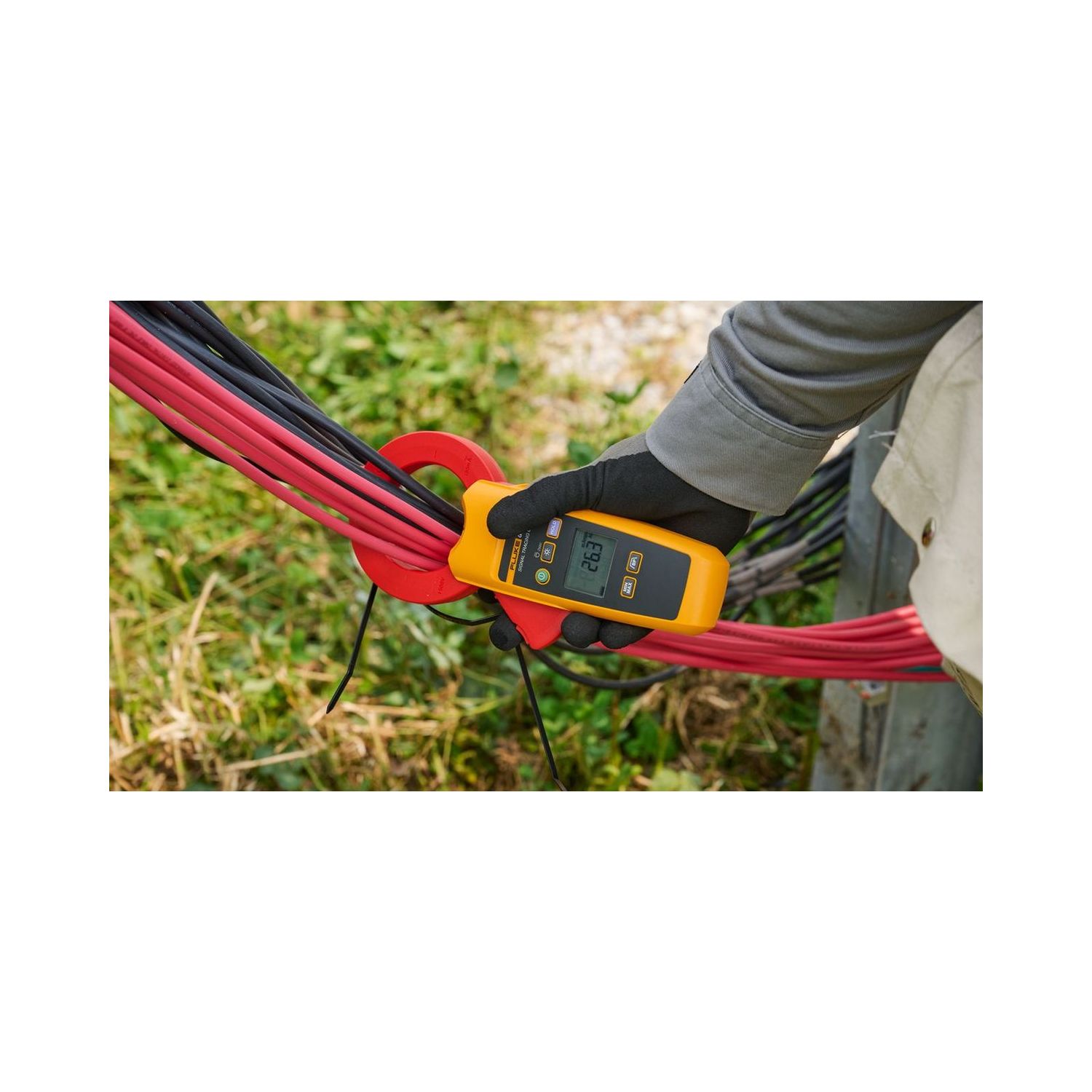

• Signal tracing clamp aids in noisy environments, pinpointing faults without disconnections
• Designed for real-world conditions with rugged, durable construction
• Suitable for high-efficiency solar maintenance and troubleshooting tasks
• CAT III 1500 V DC, CAT IV 600 V, meets IEC 61010-1 & IEC 61010-2-030 standards
• Ensures technician safety when working with high-voltage solar systems, even in utility-scale setups

Technical Information

• Measurement category CAT III 1500 V DC / CAT IV 600 V
• Operating voltage 1500 V DC / 600 V AC
• Transmitter trace signal indications Graphical display, audible beep
• Receiver trace signal indications Numeric, bar graph display, audible beep, LED
• Clamp trace signal indications AC current
• Clamp range 150 mA
• Clamp resolution 0.1 mA
• Clamp maximum conductor diameter 61 mm (2.4 in)
• Transmitter display type Graphic LCD Display
• Clamp display type Segment LCD Display
• Transmitter illumination Front light
• Clamp illumination Back light
• Transmitter operating temperature -20 °C to 50 °C (-4 °F to 122 °F)
• Clamp operating temperature -10 °C to 50 °C (14 °F to 122 °F)
• Transmitter operating altitude 0 to 3 000 m (9 843 ft)
• Transmitter storage altitude 0 to 12 000 m (39 371 ft)
• Transmitter transient protection 10.00 kV (1.2/50 μS surge)
• Transmitter IP rating IP54 (Non-operating)
• Receiver IP rating IP54
• Clamp IP rating IP30 ( Jaw Closed)

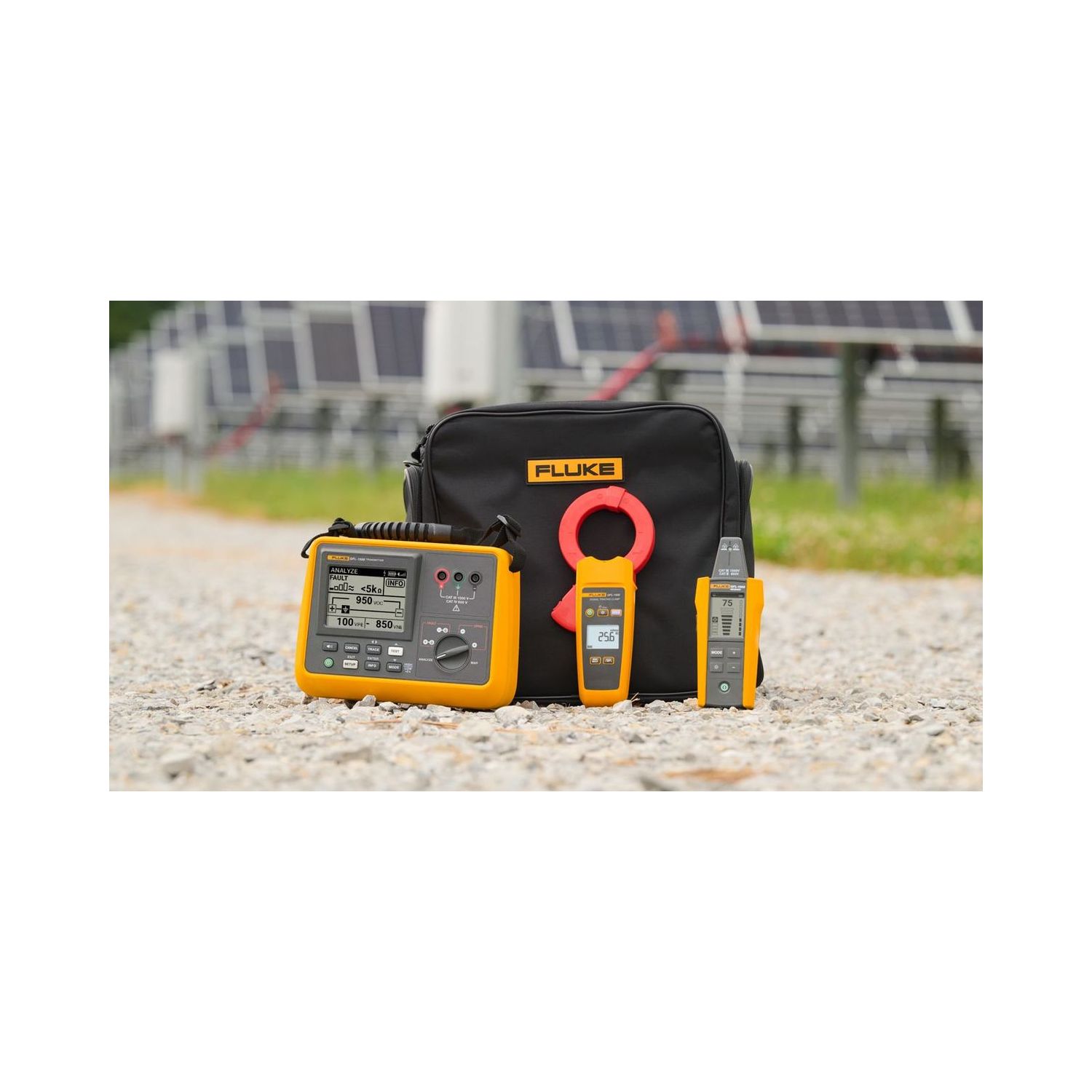

Items Included

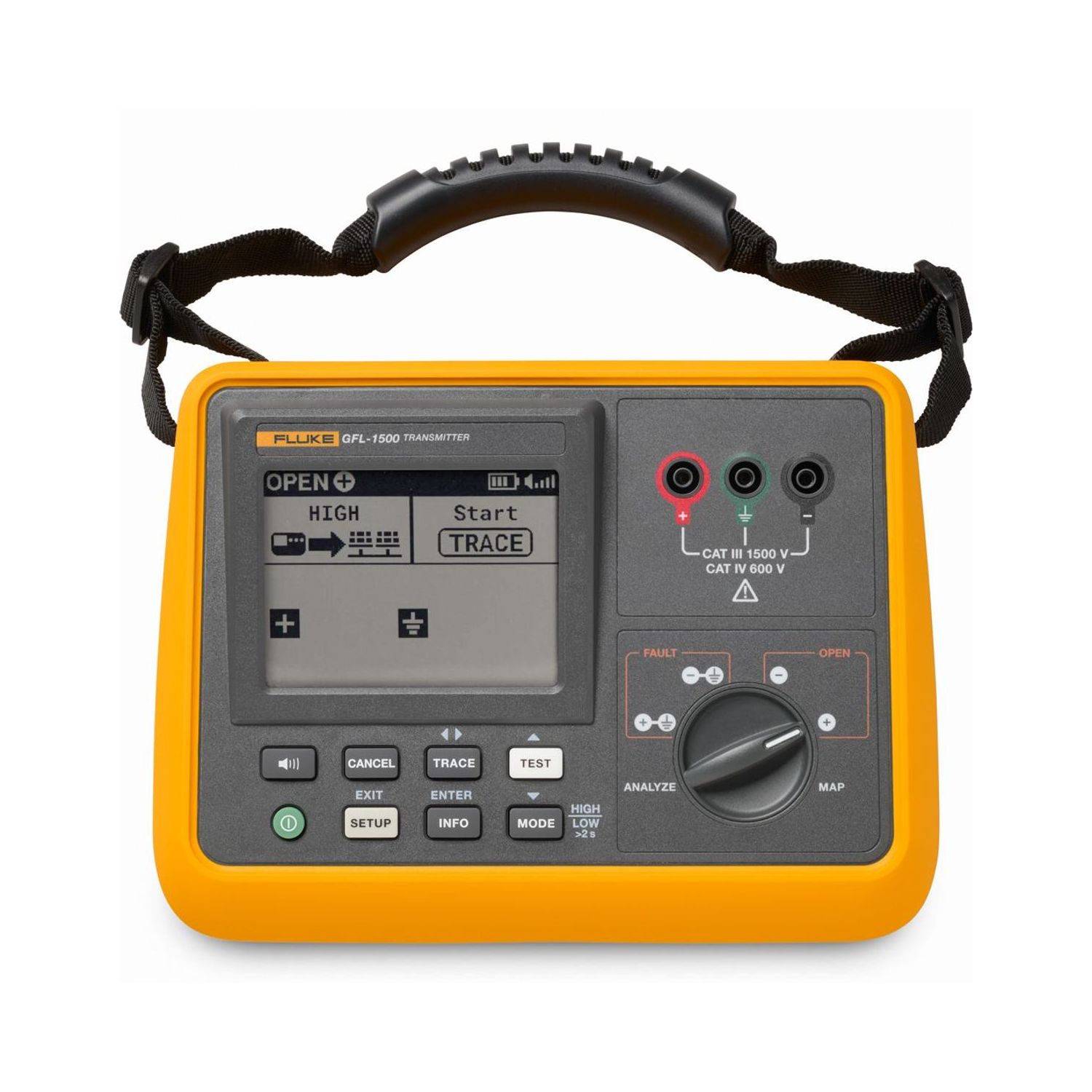

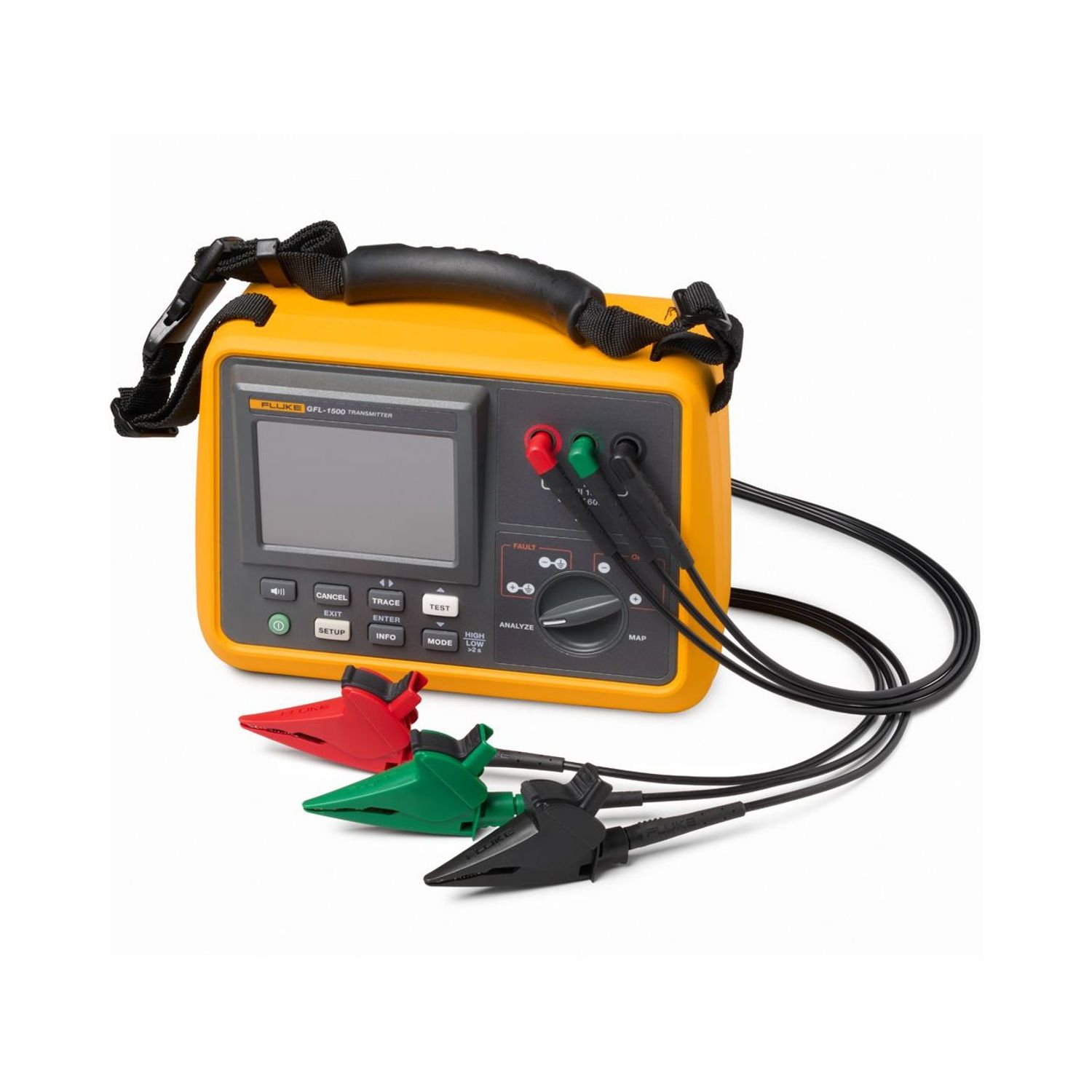

• GFL-1500 Transmitter

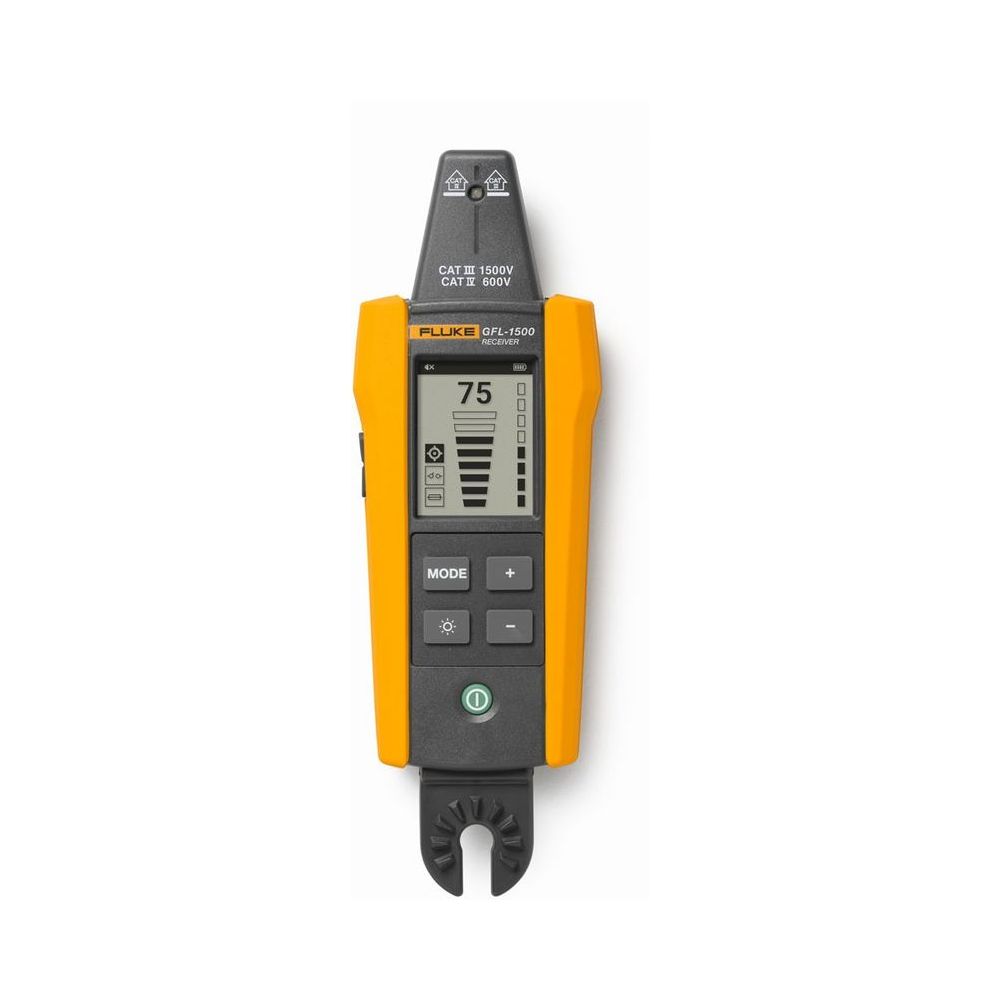

• GFL-1500 Receiver

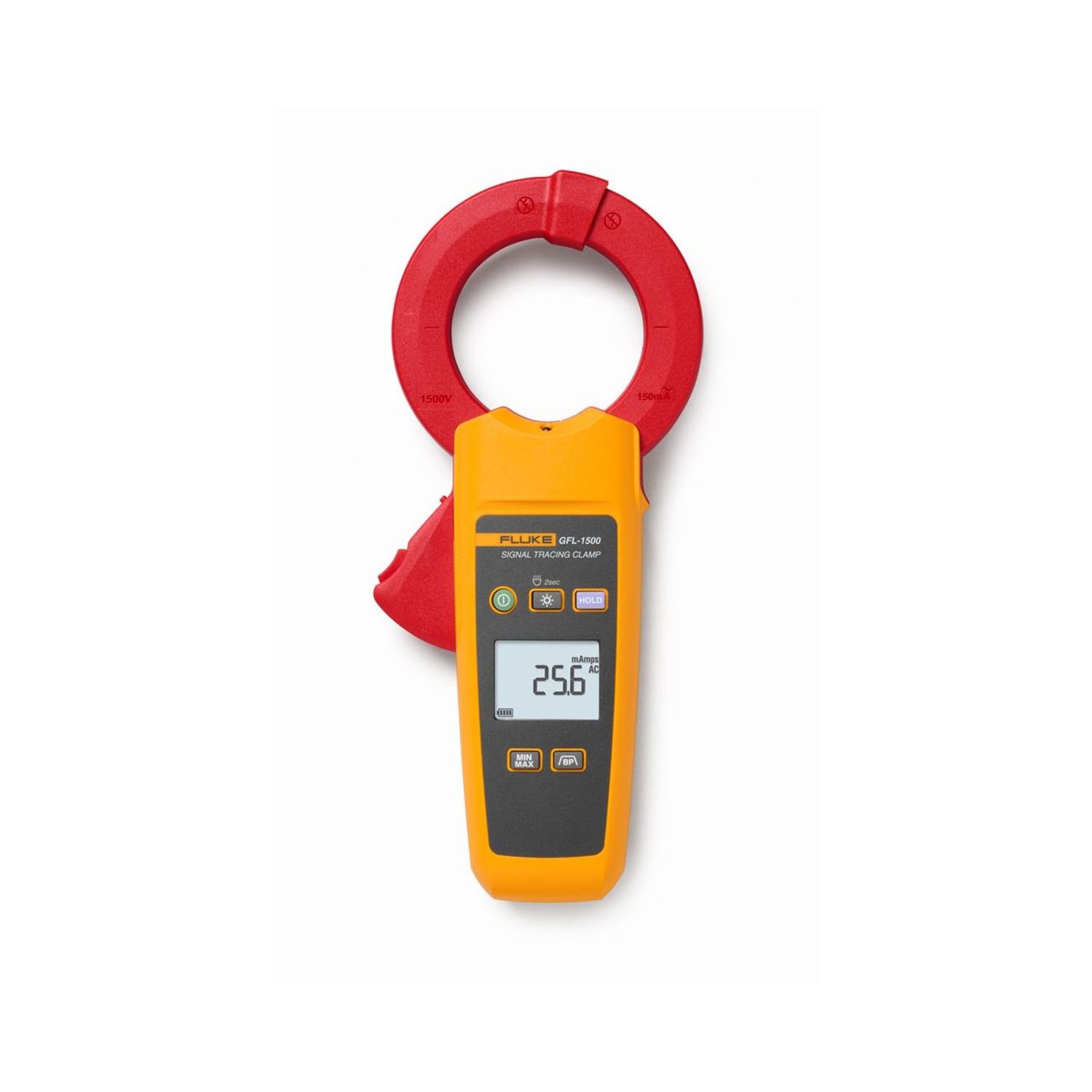

• GFL-1500 Clamp
• MC4 Test Leads 1500 V rated test leads
• Alligator clips
• MC4 unlocking tool
• Soft carrying case
• Backpack style shoulder strap
• AA Alkaline batteries (14)

Downloads

Datasheet
