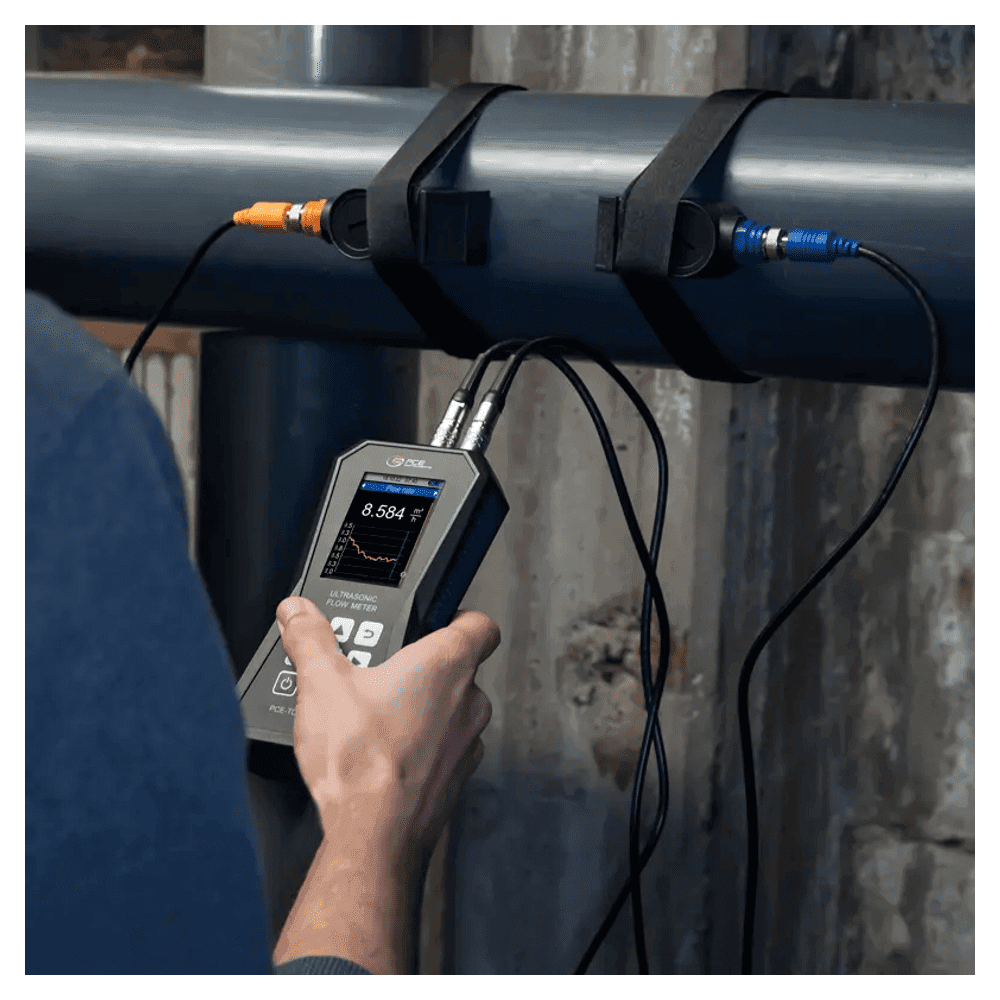

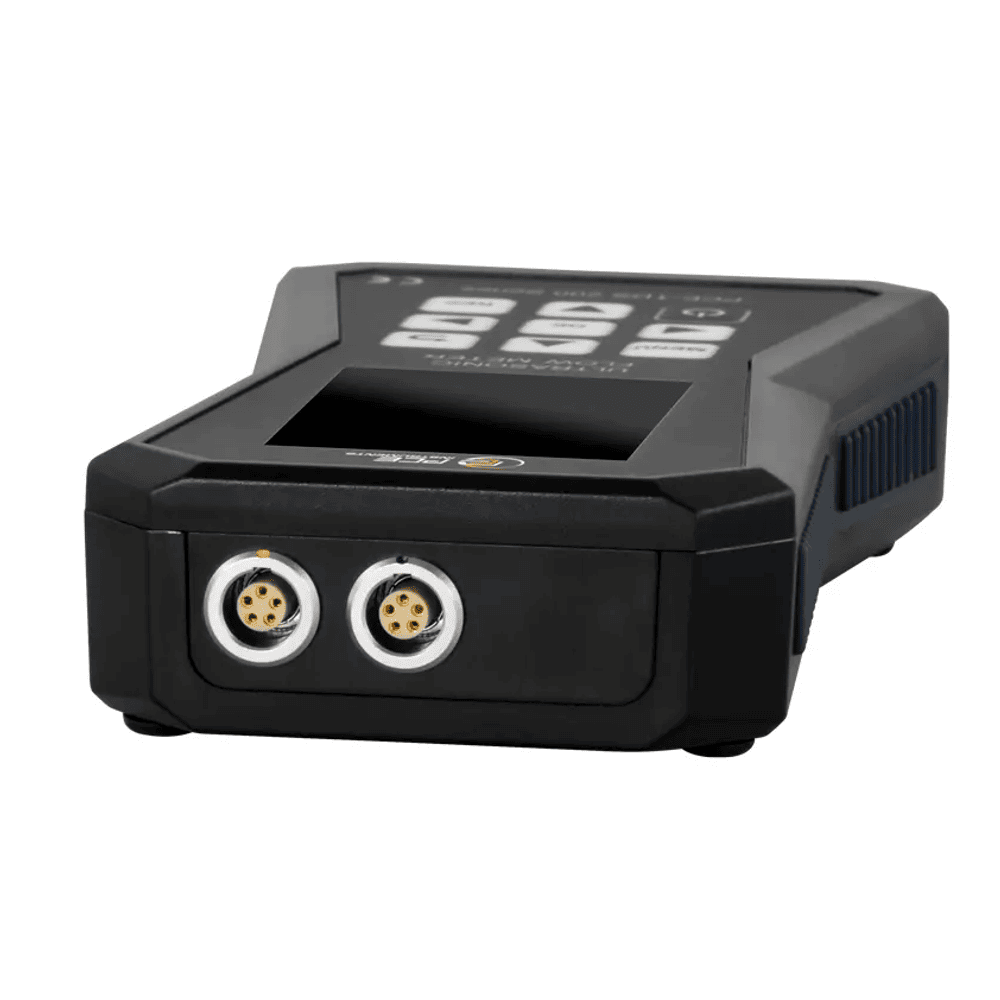

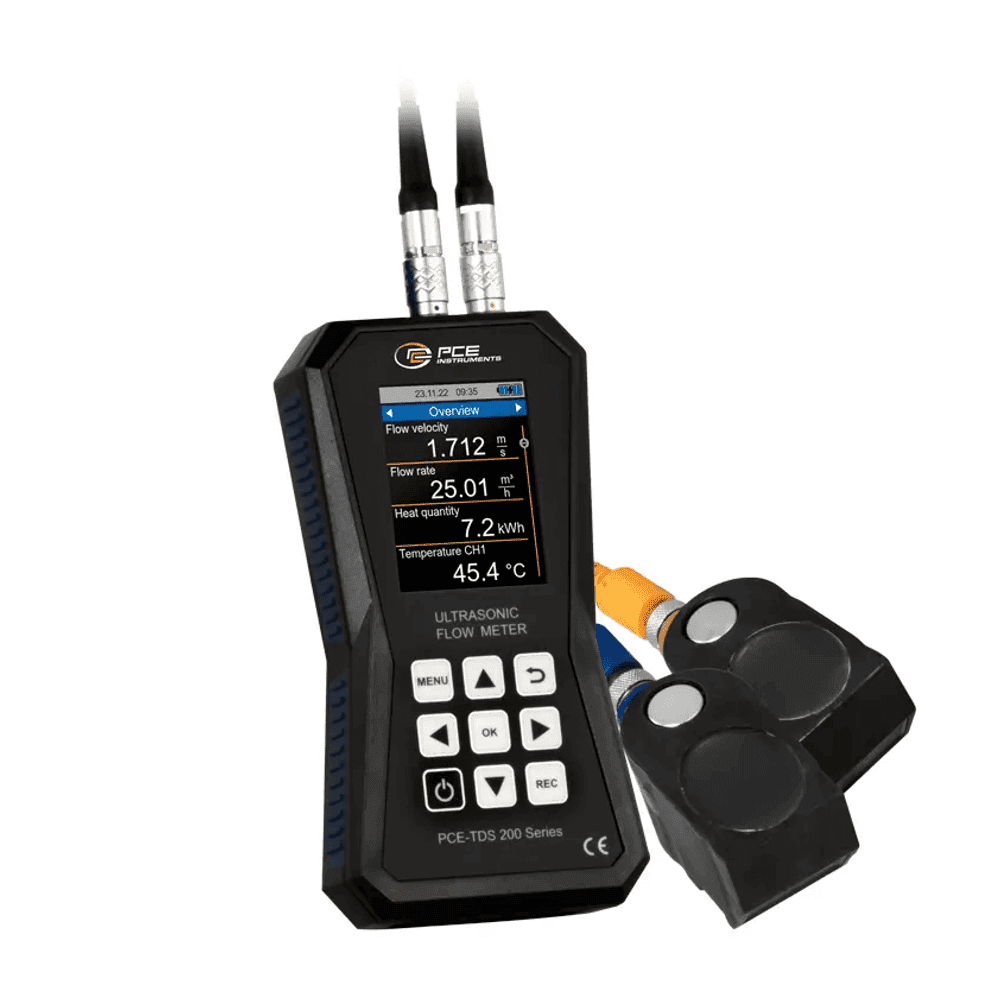

PCE Instruments TDS 200 M Ultrasonic Flow Meter – includes M Sensor, for 57-720mm Pipes
# TDS 200 M
- Measuring range ±32 m/s
- USB-C interface for data transfer
- Reproducibility ±0.5 % of measured value
- Data memory for 10 million measuring points
- Measuring range ±32 m/s
- USB-C interface for data transfer
- Reproducibility ±0.5 % of measured value
- Data memory for 10 million measuring points
- Individually adjustable alarm limits
| Flow Measurement | ±32 m/s |
| Accuracy | 0.001 m/s |
| Reproducibility | ±0.5% of measured value |
| Display | 2.8″ LCD |
| Protection class | IP52 |
| Dimensions | 165 x 85 x 32 mm |
| Weight | 255 g |
| M Sensor, Range | DN 50-700 / 57-720 mm |
| Sensor Temperature Resistance | -30 to 160 °C |
| Measurement parameters | flow velocity, volume flow and volume |

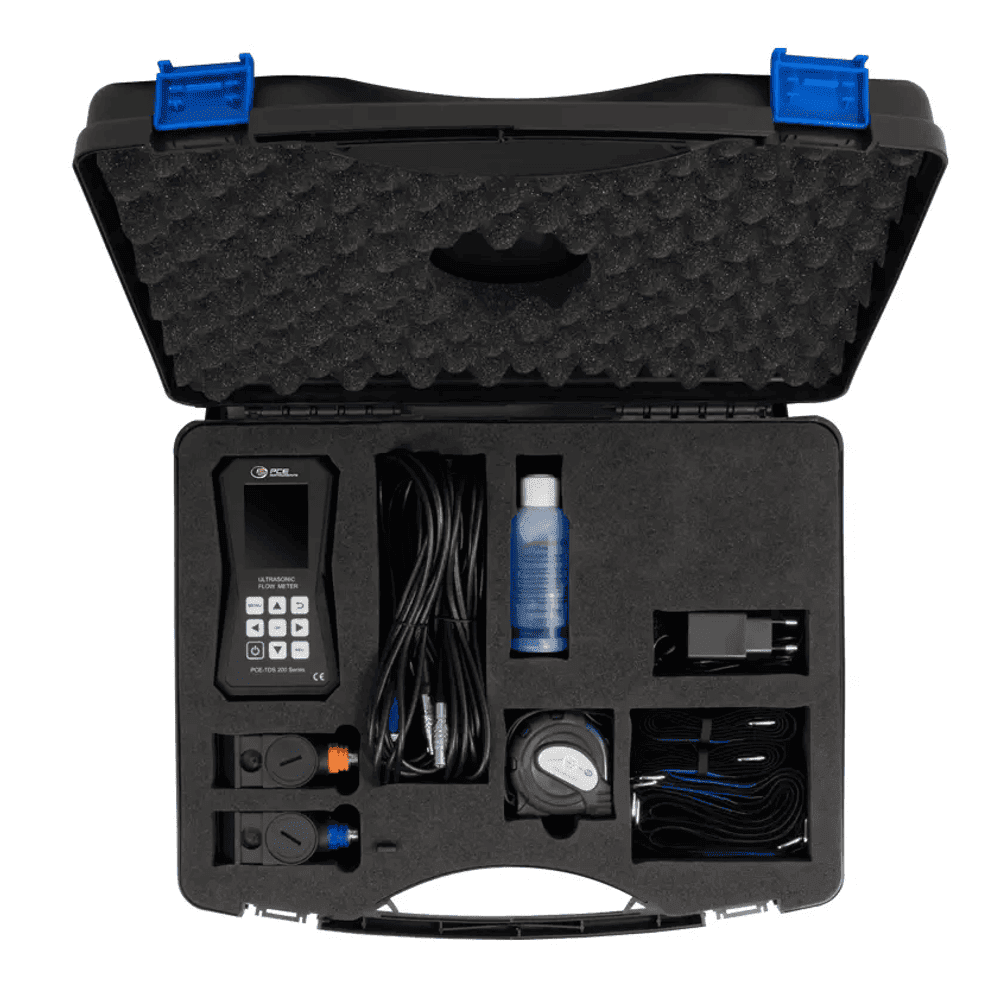

- 1 x Ultrasonic flow meter PCE-TDS 200 M

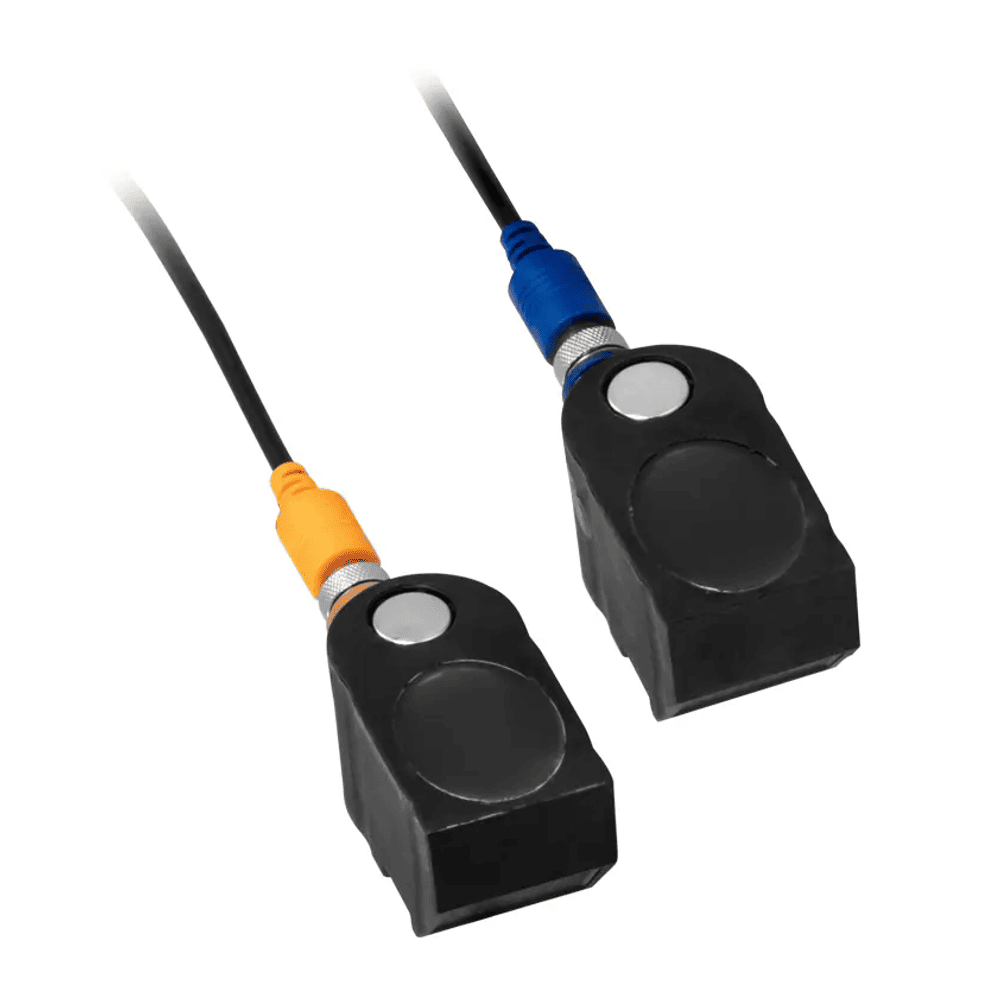

- 1 x flow sensor PCE-TDS 200 M SENSOR (pair)
- 2 x 5 m connection cable
- 2 x detachable cable ties
- 1 x power supply unit
- 1 x USB-C cable
- 1 x ultrasonic contact gel
- 1 x PCE measuring tape
- 1 x plastic case
- 1 x instruction manual
