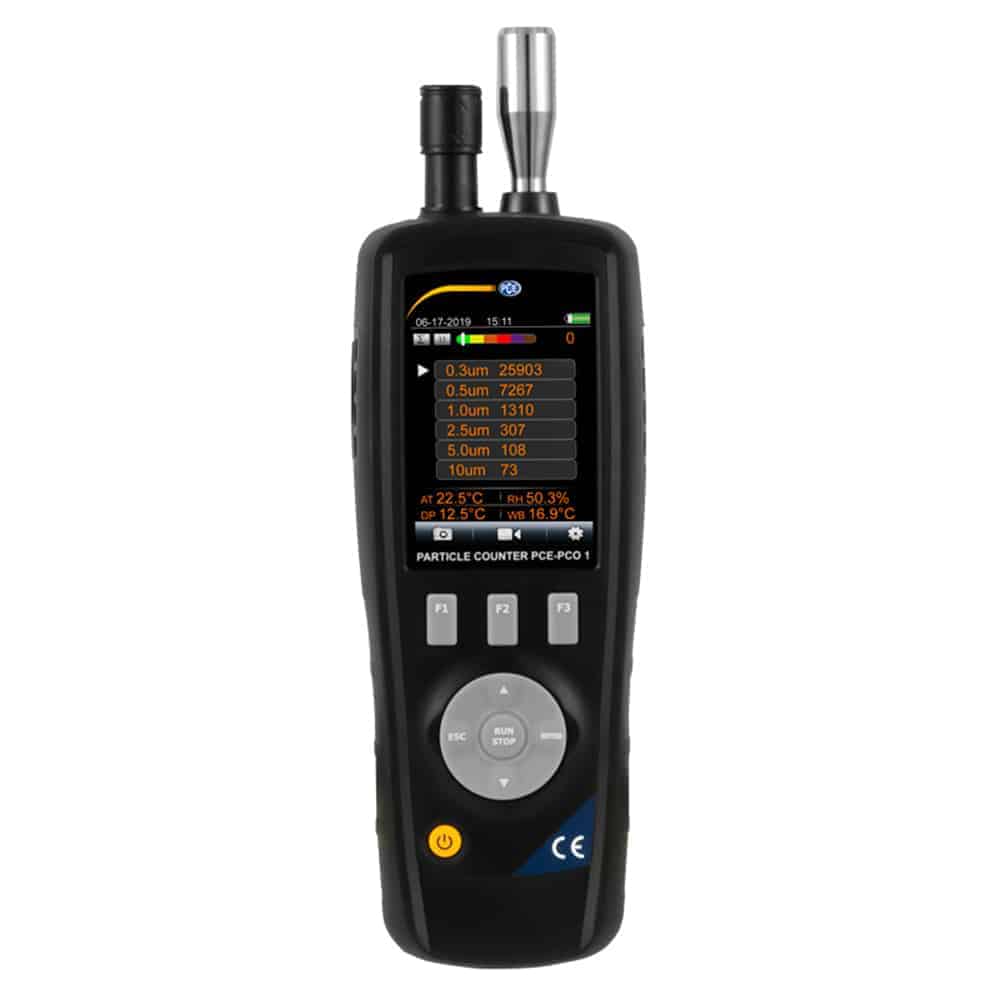

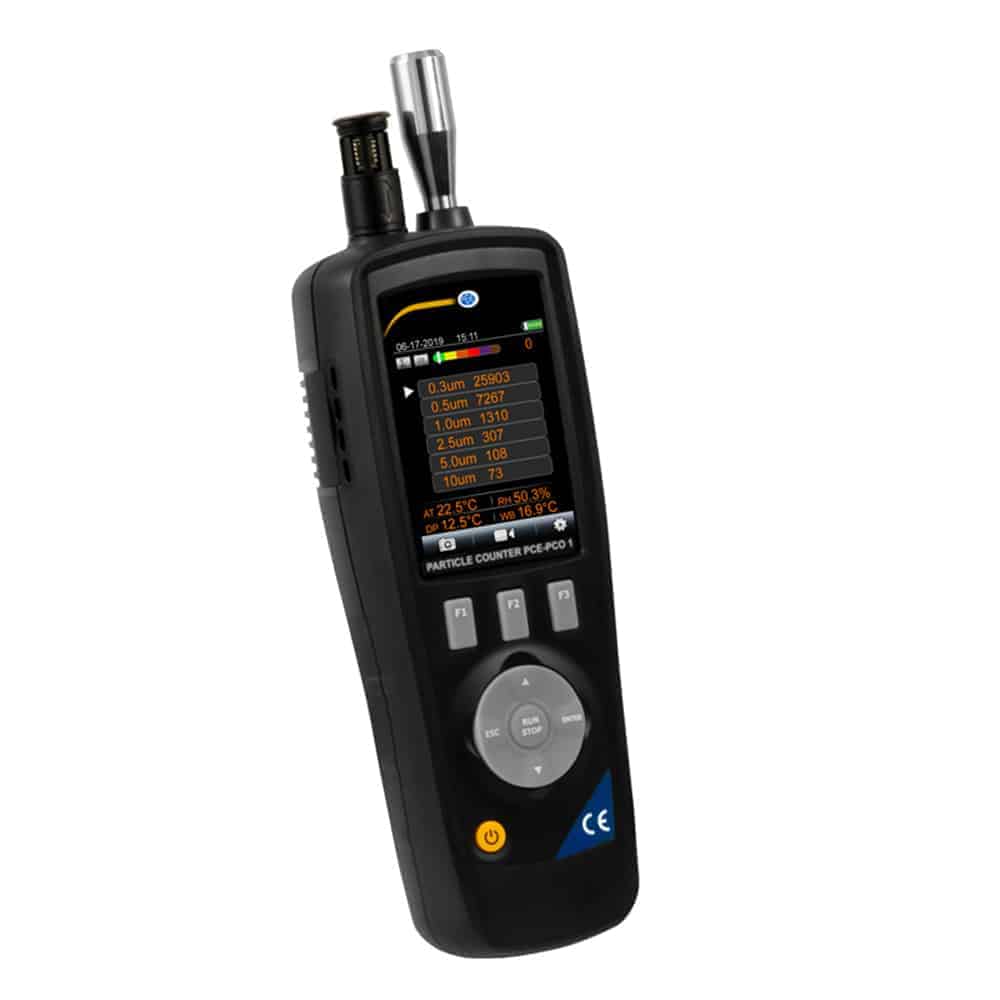

PCE Instruments PCO 1 Air Sampler

Model # PCO 1

Measures 6 sizes of particles: 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10 µm
Offers a robust, 80 MB internal memory
Features a large, full-color LCD display with back-light
Includes a built-in camera for image and video recording

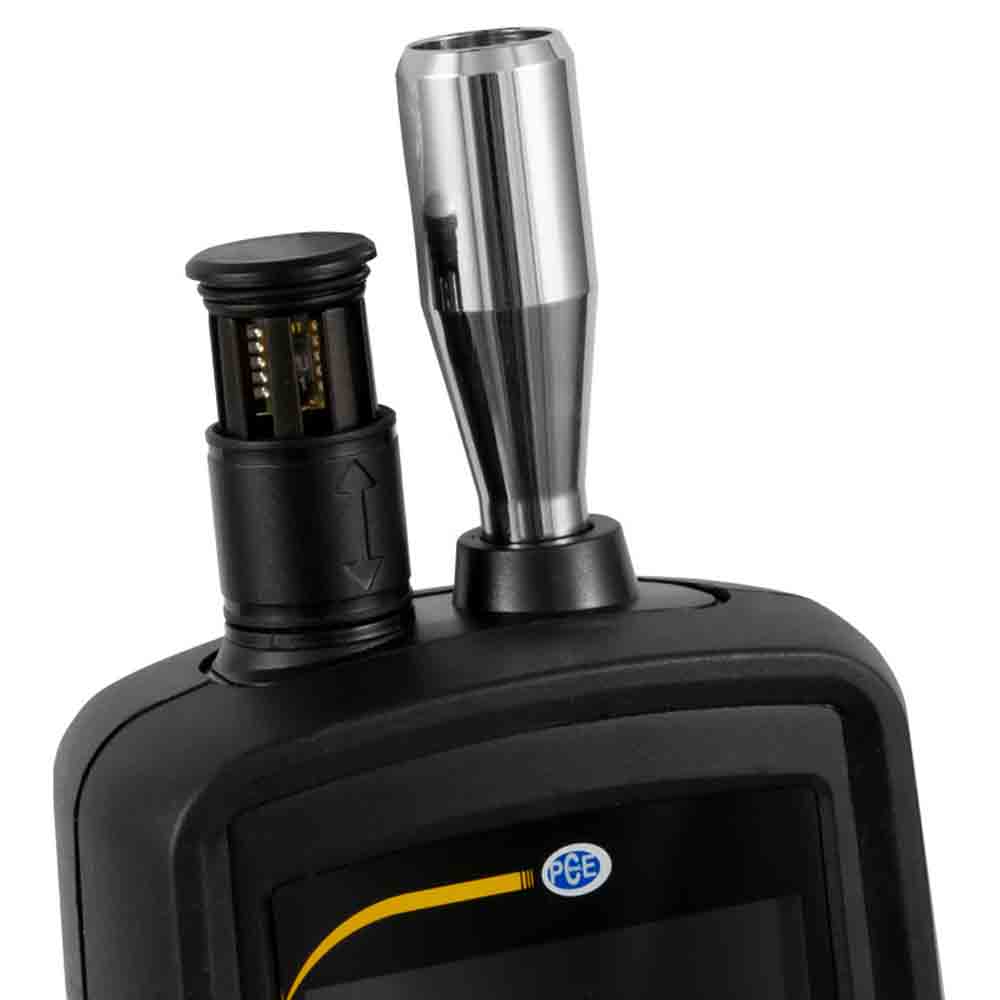

Contains sensors for measuring air temperature, dew point and relative humidity
Displays temperature measurements in degrees Celsius (°C) or degrees Fahrenheit (°F)

BrandPCE Instruments
Model NumberPCO 1

ADD TO MY RFQ LIST Add to your requistion list to get a quote.

PCE-PCO 1 Data Logger Handheld laser dust measuring device for monitoring clean room particulate concentrations, indoor air quality and exposure to dust.
It is a data logger, laser particle counter, or dust measuring device, for measuring the concentration of particles in the air.
The measuring device is ideal for monitoring clean rooms, indoor air quality, exposure to exhaust, tobacco or cigarette smoke and other harmful air pollutants, and levels of airborne dust. Cigarette smoke particles mainly are distributed in the size range from 0.1 to 1.0 micron.
A variety of materials are explosive in dust form. Some examples include: food (e.g., candy, sugar, spice, starch, flour and feed), grain, tobacco, plastics, wood, paper, pulp, rubber, pesticides, pharmaceuticals, dyes, coal and metals (e.g., aluminum, chromium, iron, magnesium and zinc). These materials are used in agriculture, chemical manufacturing, pharmaceutical production, furniture, textiles, fossil fuel power generation, recycling operations, metal working and processing (including additive manufacturing and 3D printing) and many other industries and processes.
In addition to being a combustion hazard, certain kinds of dust can be a health hazard. Exposure (such as skin contact, eye contact and inhalation) can be linked to sneezing, a stuffy or runny nose, itchy or red eyes, headaches, fatigue, fever, cough, shortness of breath, dermatitis, asthma, bronchitis, pneumonia (e.g., Legionnaire disease and hypersensitivity pneumonitis) and cancer.

Particulate matter channels	PM 2.5 / PM 10
Particle sizes (in micrometers)	0.3, 2.5 and 10 μm
Particle concentrations	0.3 µm / 0.5 µm / 1.0 µm / 2.5 µm / 5.0 µm / 10 µm
Resolution	1 μg / m³
Environmental conditions	0 … +50 °C / +32 … +122 °F, 10 … 90 % RH (non-condensing)
LCD display	2.8 ” / 320 x 240 pixels, back-lit, color
Rechargeable battery	Operating time ~ 4 hours
Dimensions	240 x 75 x 55 mm / 9.45 x 2.95 x 2.17 in
Weight	420 g / 0.93 lb
Memory (Internal)	80 MB
Memory (External)	Micro SD card up to 8 GB (optional)
