  • PCE Instruments HVAC 4 Differential Pressure Gauge for Refrigeration Systems

    # HVAC 4

    • The manometer PCE-HVAC 4 is a versatile measuring instrument for the determination of differential pressure, differential temperature and ambient temperature.
    • The measurements of the manometer PCE-HVAC 4 are via measuring terminals, thermocouples and an internally installed NTC sensor.
    • The PCE-HVAC 4 differential pressure gauge is often used in the installation and maintenance of refrigeration systems. In particular, the high measuring range up to 34.47 bar is a big advantage of the differential pressure gauge, as most differential pressure gauges do not reach these measuring ranges.
    • The manometer PCE-HVAC 4 is a versatile measuring instrument for the determination of differential pressure, differential temperature and ambient temperature. The measurements of the manometer PCE-HVAC 4 are via measuring terminals, thermocouples and an internally installed NTC sensor. All measurements can be performed simultaneously. By simply plugging in or screwing on, the measuring terminals, thermocouples and pressure hoses can be attached to the differential pressure gauge. The PCE-HVAC 4 differential pressure gauge is powered by a high-performance 7.4V polymer Li-ion battery, which is charged via the mains.

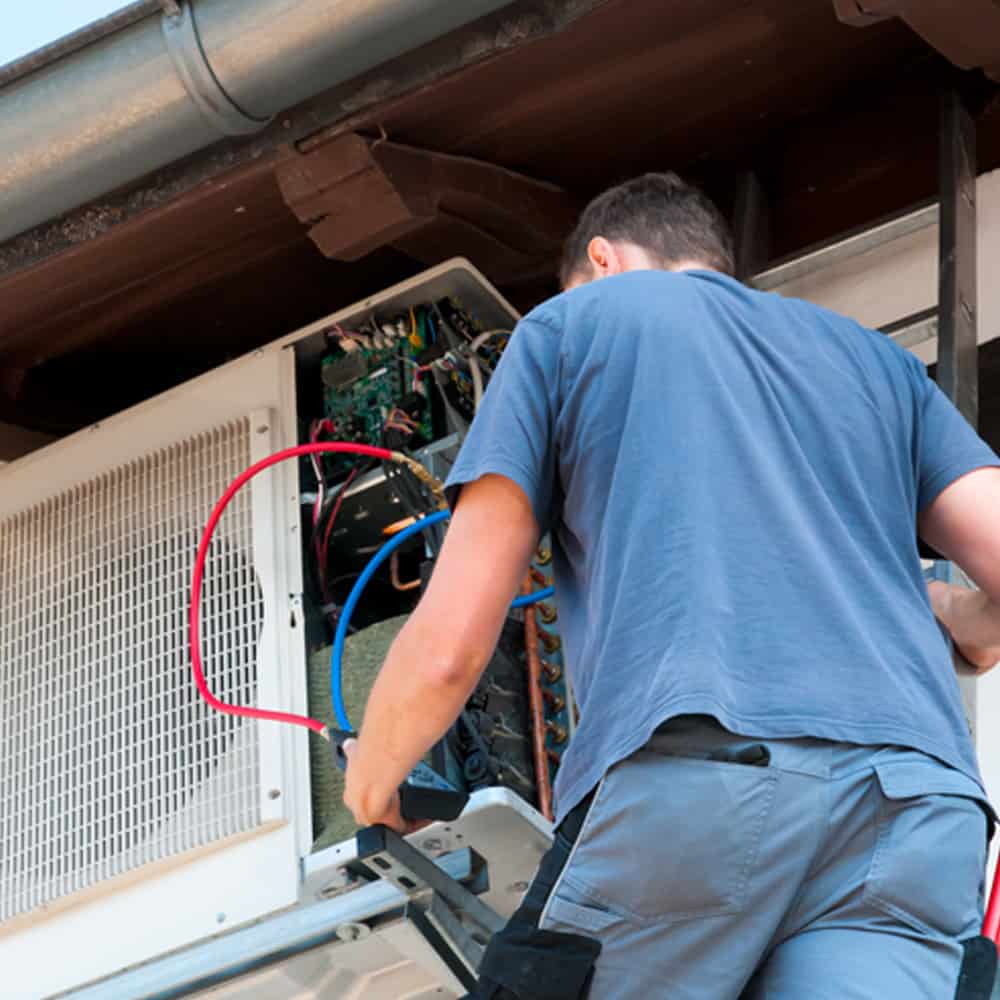

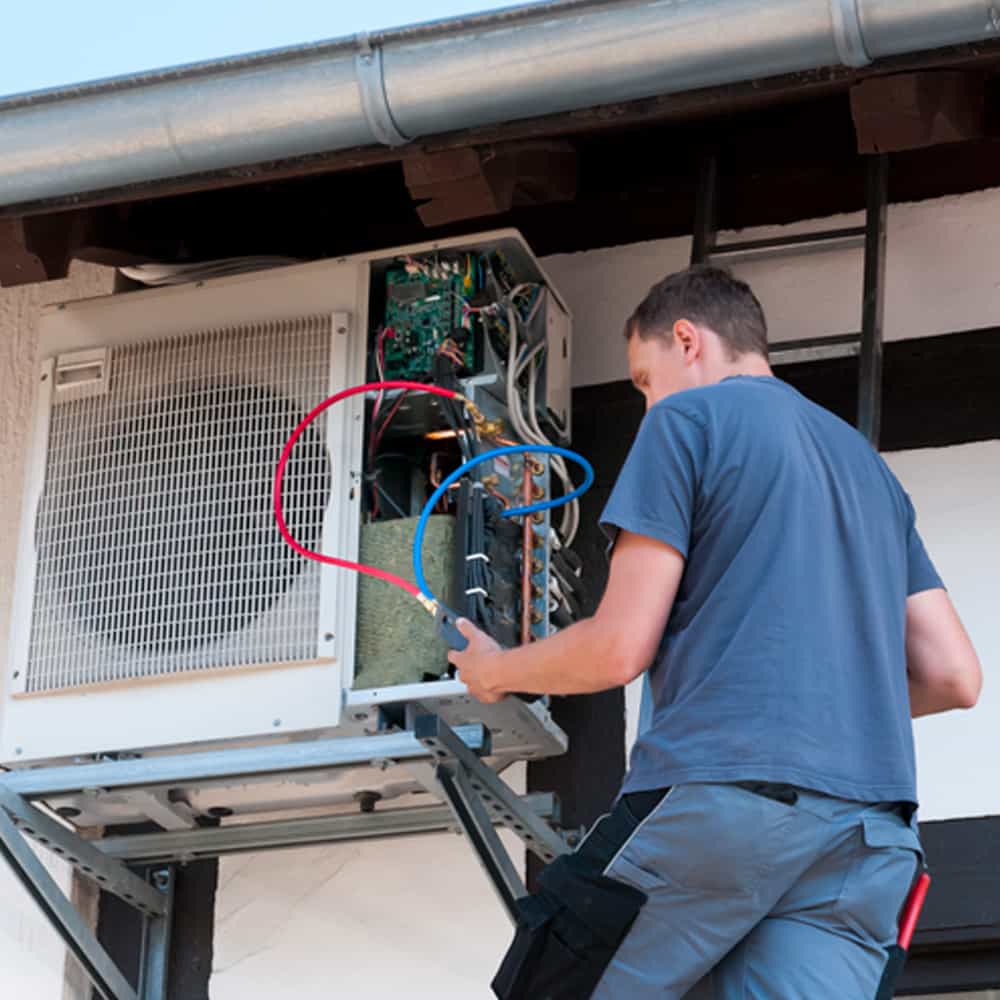

    • The PCE-HVAC 4 differential pressure gauge is often used in the installation and maintenance of refrigeration systems. In particular, the high measuring range up to 34.47 bar is a big advantage of the differential pressure gauge, as most differential pressure gauges do not reach these measuring ranges. The handy design, in combination with the battery mode, enables non-stationary measuring operation.

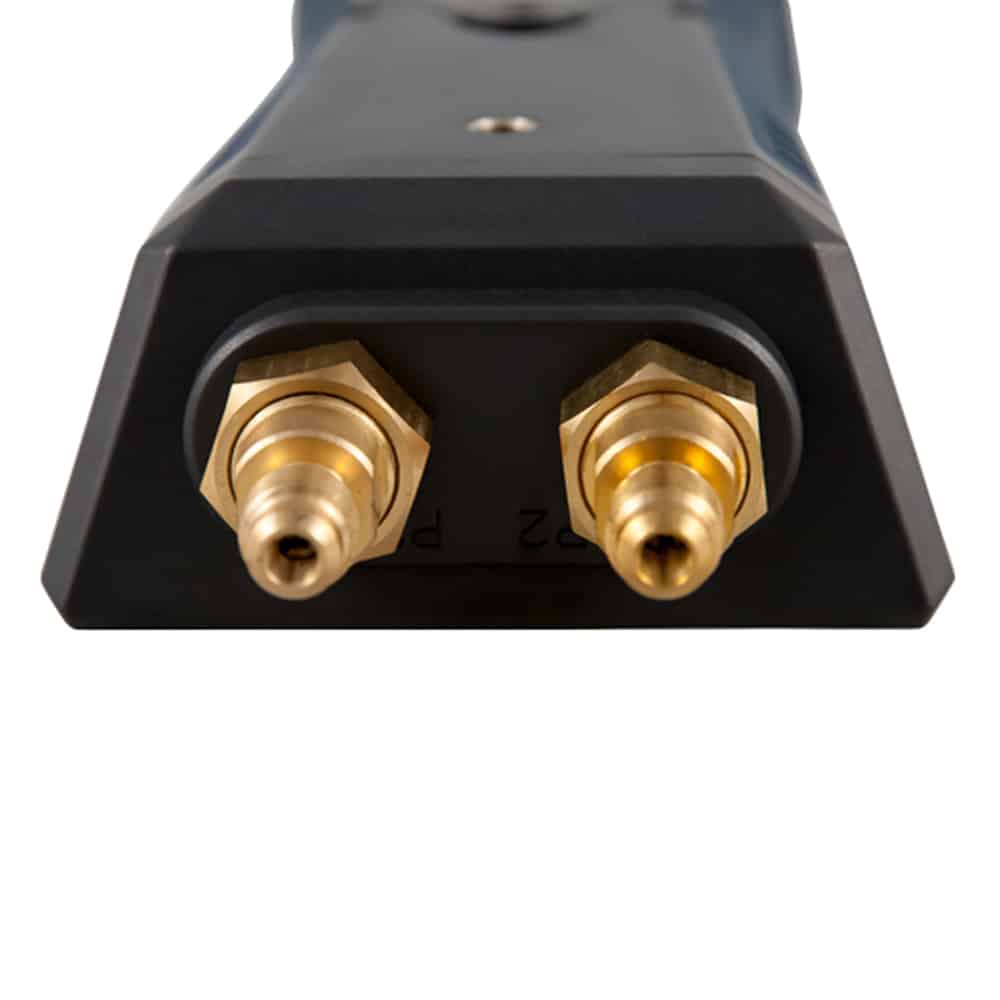

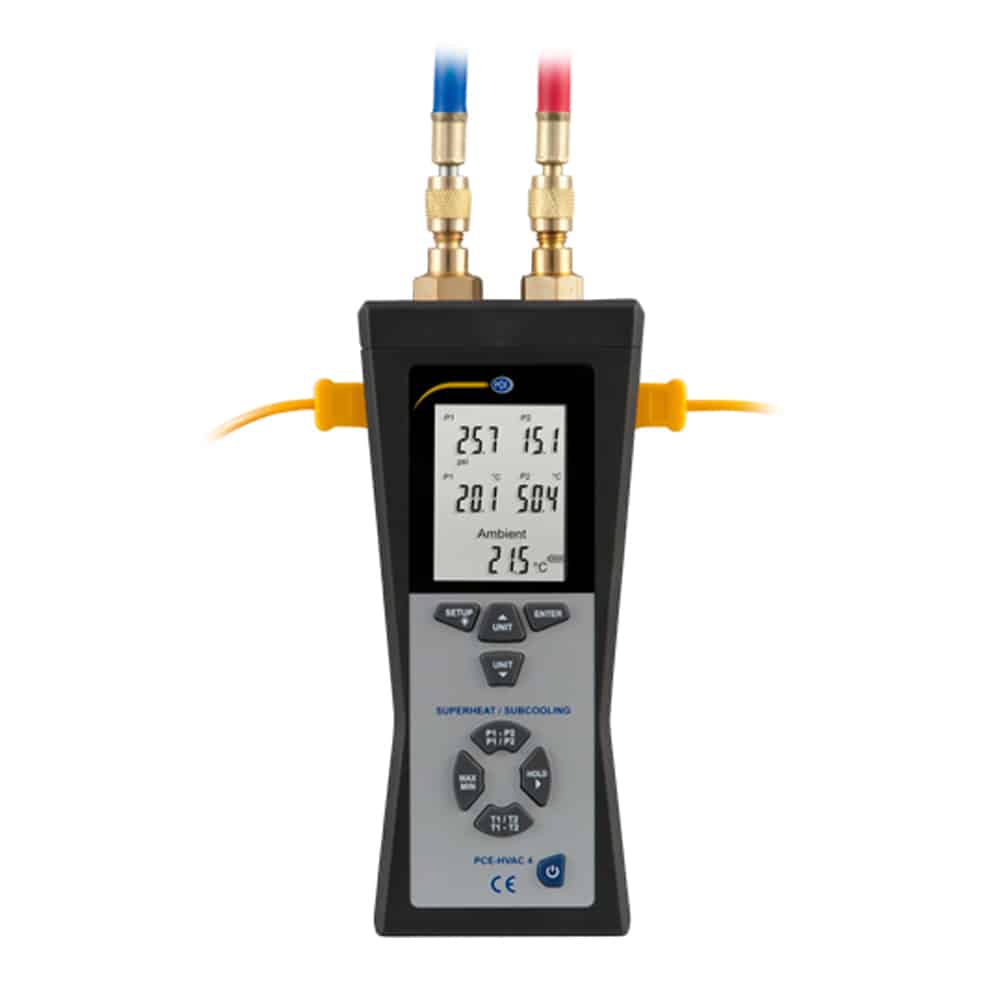

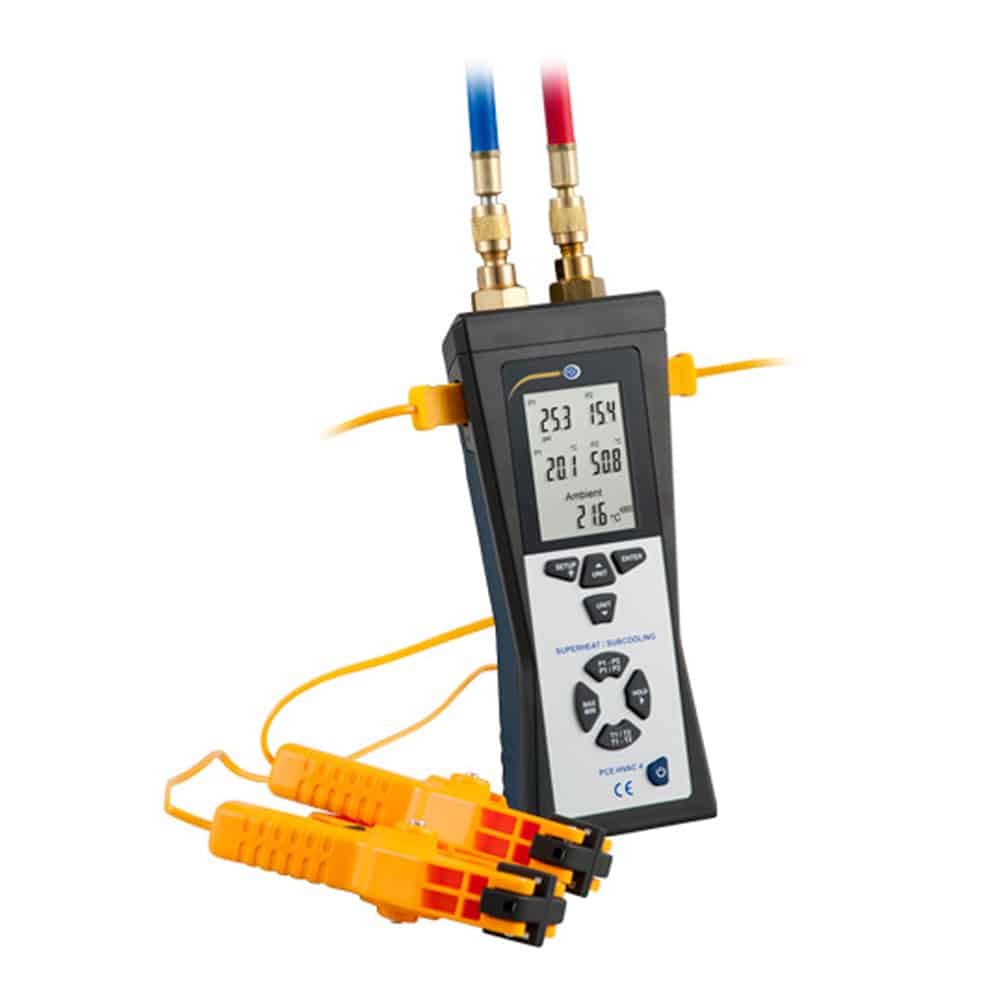

    • The measurements of the differential pressure gauge are made via the corresponding measuring lines. On the sides, shown in yellow, the temperature measurement by thermocouples is made. The corresponding setting also determines the temperature difference. The internally installed NTC sensor is responsible for the ambient temperature. The pressure hoses are attached to the upper side. The pressure is determined there as well as the differential pressure.
    • Different measurement modes
    • Built-in ambient temperature sensor
    • Battery warning indicator
    • Overload indicator
    • Automatic shutdown can be activated
    • Powerful 7.4V polymer Li-ion battery
    Operating conditions0 to 50°C / 32 to 122°F, < 75% r.H.
    Storage conditions-20 to 60°C / -4 to 140°F, 0 to 80 r.H.
    Back-lightBlue
    Battery7.4V polymer Li-ion battery
    Battery warning indicatorEmpty battery symbol is displayed when the battery voltage drops below the operating level
    Automatic shutdownAfter 30 minutes of inactivity, when activated
    Display outside the measuring range“OL” or “-OL” is displayed
    Technical Data Pressure Measurement
    Type of connector7/16 in PT
    Measuring range -14 to +500 psi, -96 to +4000 kPa, -0.96 to +34.47 bar, -28.5 to 1018 inHg, -72 to +2585 cmHg
    Resolution0.1 psi / inHg, 1 kPa / cmHg, 0.01 bar
    Measuring accuracy at 25°C / 77°F, <75% r.H. -29 to 0 inHg: ± 0.2 inHg, -74 to 0 cmHg: ± 0.4 cmHg, 0 to 200 psi: ± 1 psi, 0 to 1378 kPa: ± 7 kPa, 200 to 500 psi : ± 0.3% + 1 psi, 1378 to 3447 kPa: ± 0.3% + 7 kPa
    Maximum overload800 psi
    Unitspsi, kPa, inHg, amHg, bar
    Technical Data Temperature T1 / T2
    Sensor typeThermo element Type K
    Measuring range -60 to 537°C / -76 to 998°F
    Resolution0.1°C / 32°F
    Measuring accuracy -60 to 93°C /  -76 to 199°F: ± 0.5°C, 93 to 537°C / -199 to 998°F: ± 1°C
    Technical Data Ambient Temperature
    Sensor typeNTC
    Measuring range0 to 50°C /  32 to 122°F
    Resolution0.1°C / 32°F
    Measuring accuracy±0.5°C / 33°F

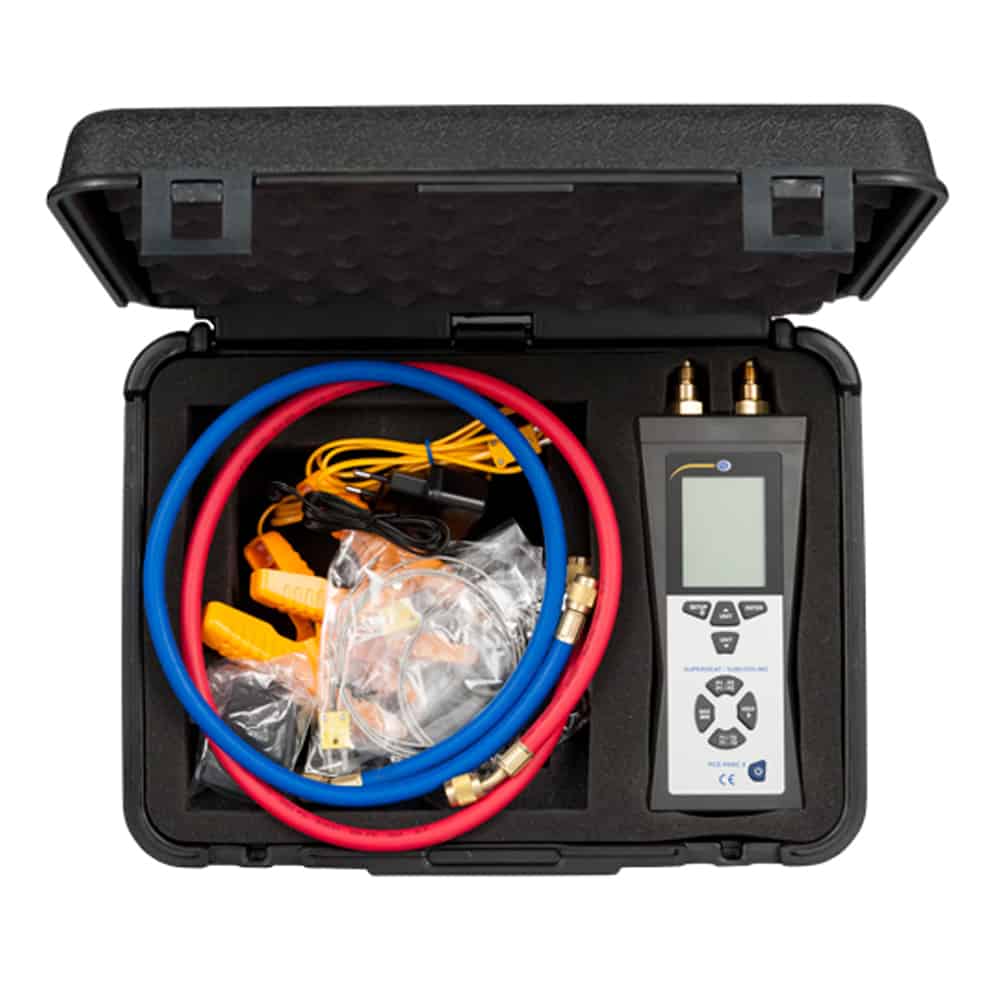

    • 1 x Manometer PCE-HVAC 4
    • 1 x 7.4V polymer Li-ion battery
    • 1 x Power adapter
    • 2 x Pressure hose
    • 2 x Measuring terminal
    • 2 x Thermo element Type K
    • 1 x Carrying case
    • 1 x User manual
