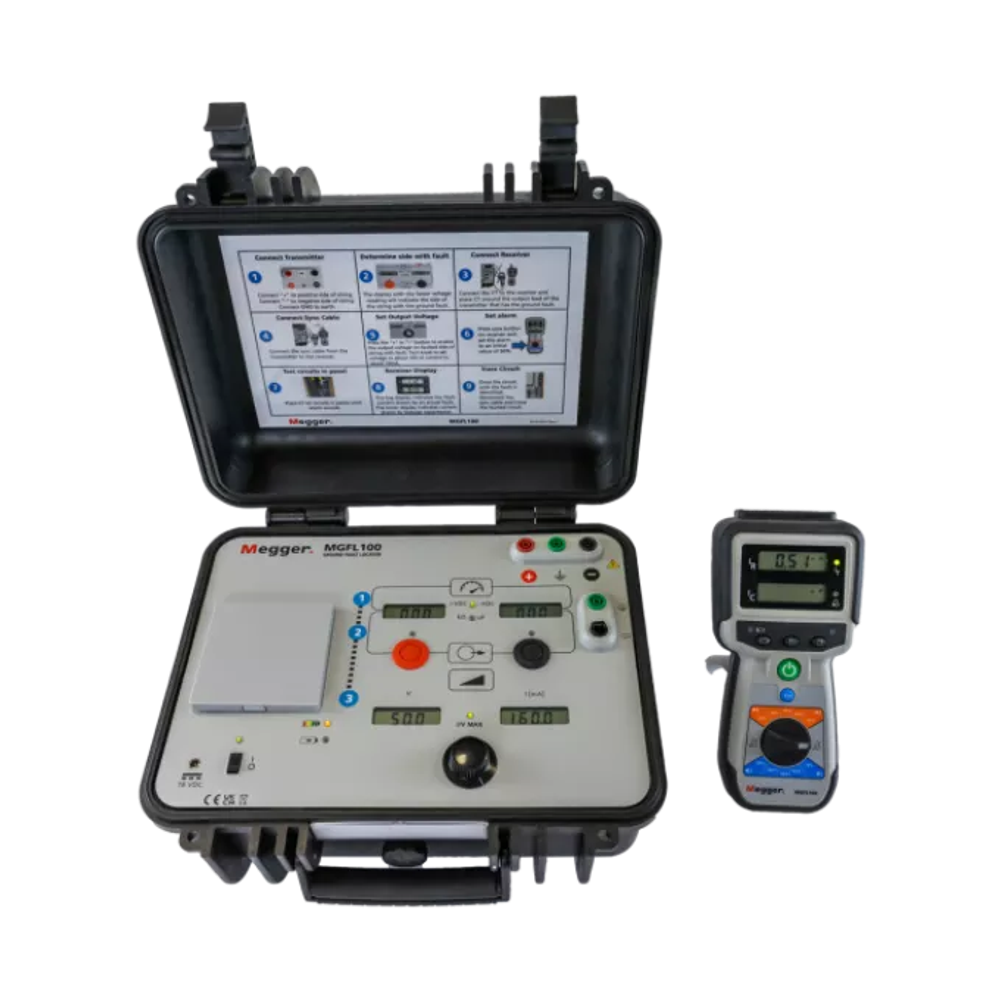

Megger MGFL100 Battery Ground Fault Locator, Transmitter & Receiver, Up to 400 kOhm, DC/AC Systems Up to 600V
Key Features
?
Question about this product?
Features
- Locates ground faults on ungrounded DC and AC systems, DC battery systems, and protected IT networks without system shutdown
- Automatically distinguishes between real fault current and reactive leakage current drawn by stray system capacitance
- Issues an audible and visual alarm when a real ground fault is found, eliminating the need for complicated tuning
- Locates high-impedance ground faults up to 400 kOhm, including those caused by water ingress
- Directly measures fault resistance, system capacitance, real fault current, and reactive leakage current
- Identifies which side of the battery string has the ground fault, removing the need for a DMM
- Password-protected adjustable voltage and current limits prevent excessive current injection into the system
- Transmitter can be powered from AC mains or internal rechargeable battery for full portability — approximately 4 hours battery life
- Operates on systems up to 600V
- Fused test leads provide arc-flash safety
- Suitable for substations, railways, hospitals, maritime, and industrial facilities
- CAT IV 600V safety rating to IEC 61010
Technical Information
- Max. Fault Impedance Detection 400 kOhm
- System Voltage Up to 600V DC/AC
- Transmitter Dimensions 14.2 x 12 x 7.65 in (360 x 305 x 194 mm)
- Receiver Dimensions 8.7 x 4.1 x 2 in (221 x 104 x 51 mm)
- Power Supply AC mains (90–264 VAC, 47–63 Hz) or internal rechargeable battery
- Battery Life Approx. 4 hours
- Safety Rating CAT IV 600V to IEC 61010-1
- EMC CISPR 11 Group 1 Class A
- Certifications CE, UKCA

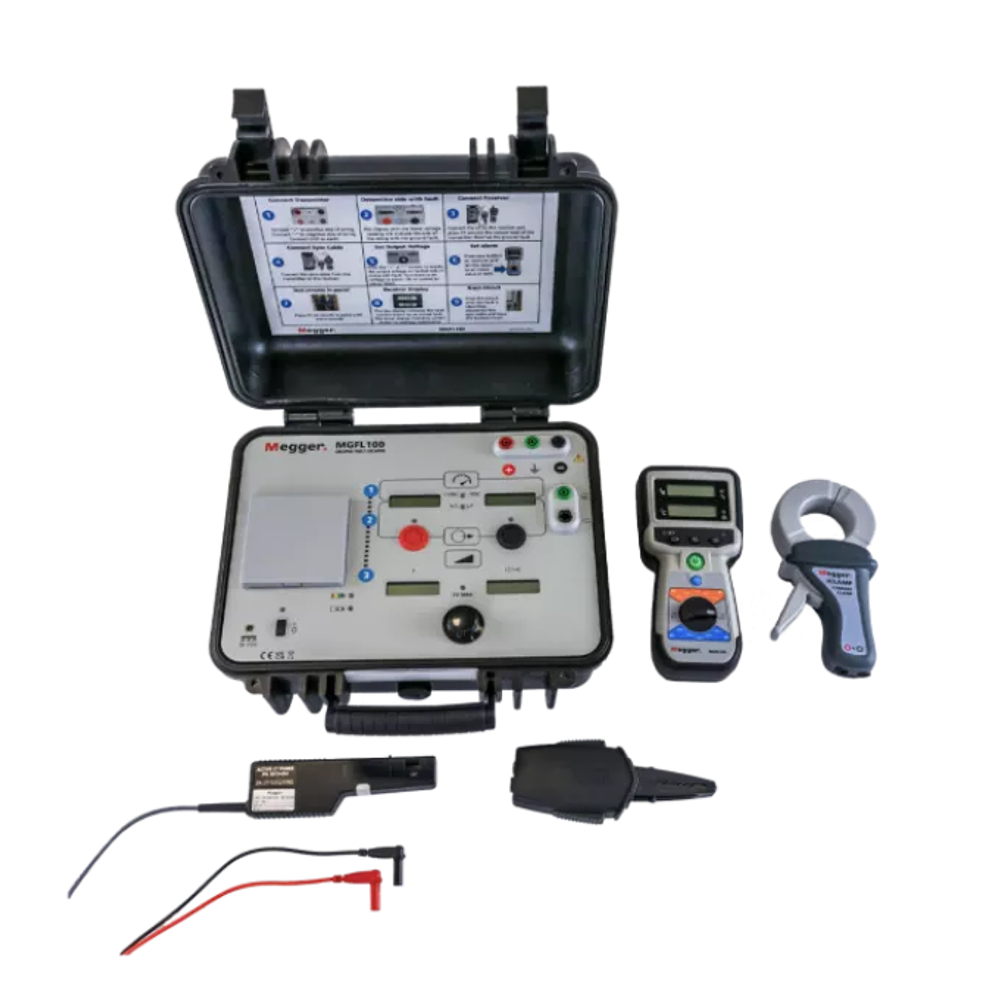

Items Included
- MGFL100 Transmitter
- MGFL100 Receiver
- Fused Transmitter Leads (large and small clips)
- Transmitter AC Power Adapter
- Transmitter Rechargeable Batteries (4x)
- ICLAMP Current Sensor
- Active CT 9V Battery
- Sync Cable
- Transmitter Safety Ground
- Carry Backpack
