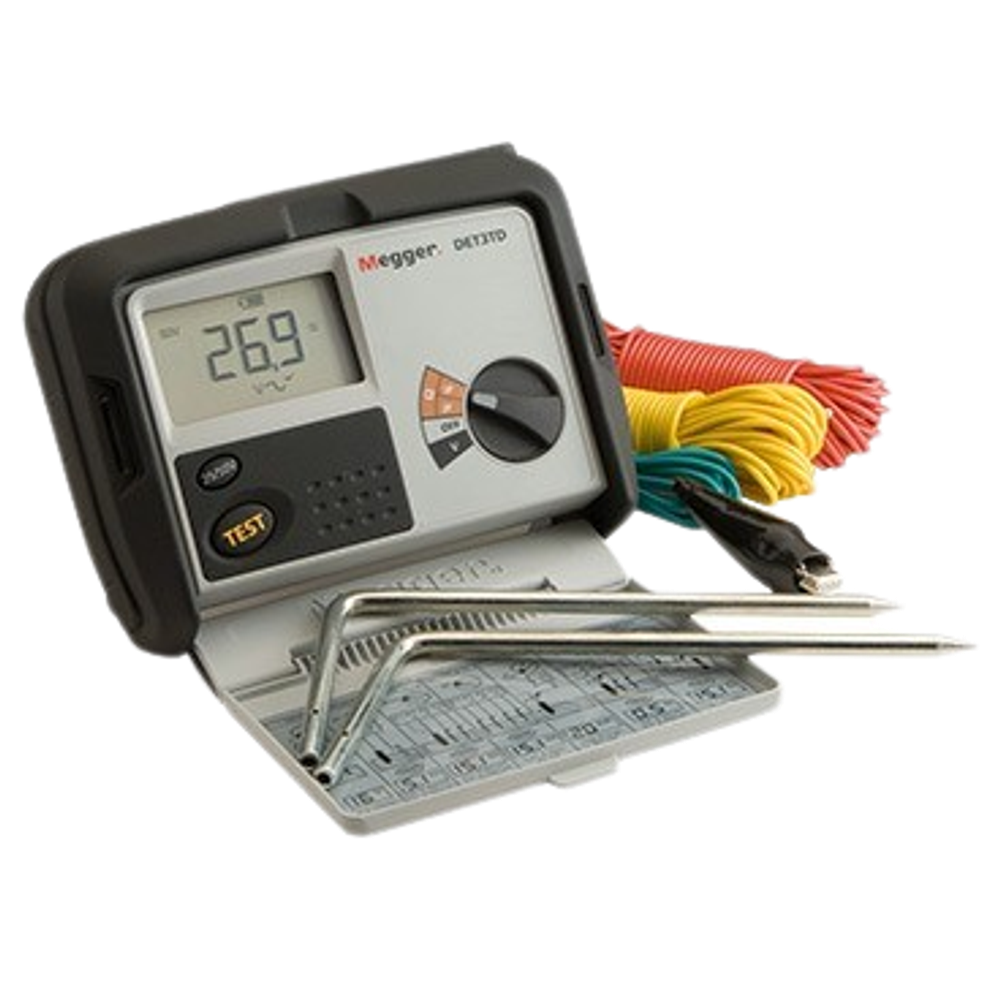

Megger DET3TD Digital Earth Tester 2 & 3 Terminal, with Case & Kit

Features

• 2 and 3 point testing
• ART (Attached Rod Technique) testing capability
• User selectable test voltage (25/50 V)
• Choice of digital or analog display
• Warning indicators prevent test failure
• IP54 rated
• Complete with leads, stakes and rugged carry case
• Simple one button operation

Technical Information

• Resistance range 0.01 to 2000 Ω autoranging
• Earth voltage range 0 – 100 V
• Earth voltage accuracy 2% ±2 V
• 2- and 3-wire test Yes
• Ground current range (with current measuring clamp) 0.5 mA to 19.9 A
• Ground current accuracy 5% ±3 digits
• Display LCD
• Test frequency 128 Hz
• Test voltage 25 V or 50 V, user selectable (factory setting 50 V)
• Test current 450 mA or 4.5 mA
• Noise rejection 40V pk to pk
• Dimensions 8 x 5.7 x 3.2 in. (203 x 148 x 78 mm)
• Weight 2.2 lb (1 kg)

Items Included

• Hard carry case
• Replacement 3-wire lead set (15m red wire, 10m yellow wire, 4m green wire)
• Ground test stakes (x2) (200mm, 8mm dia)
