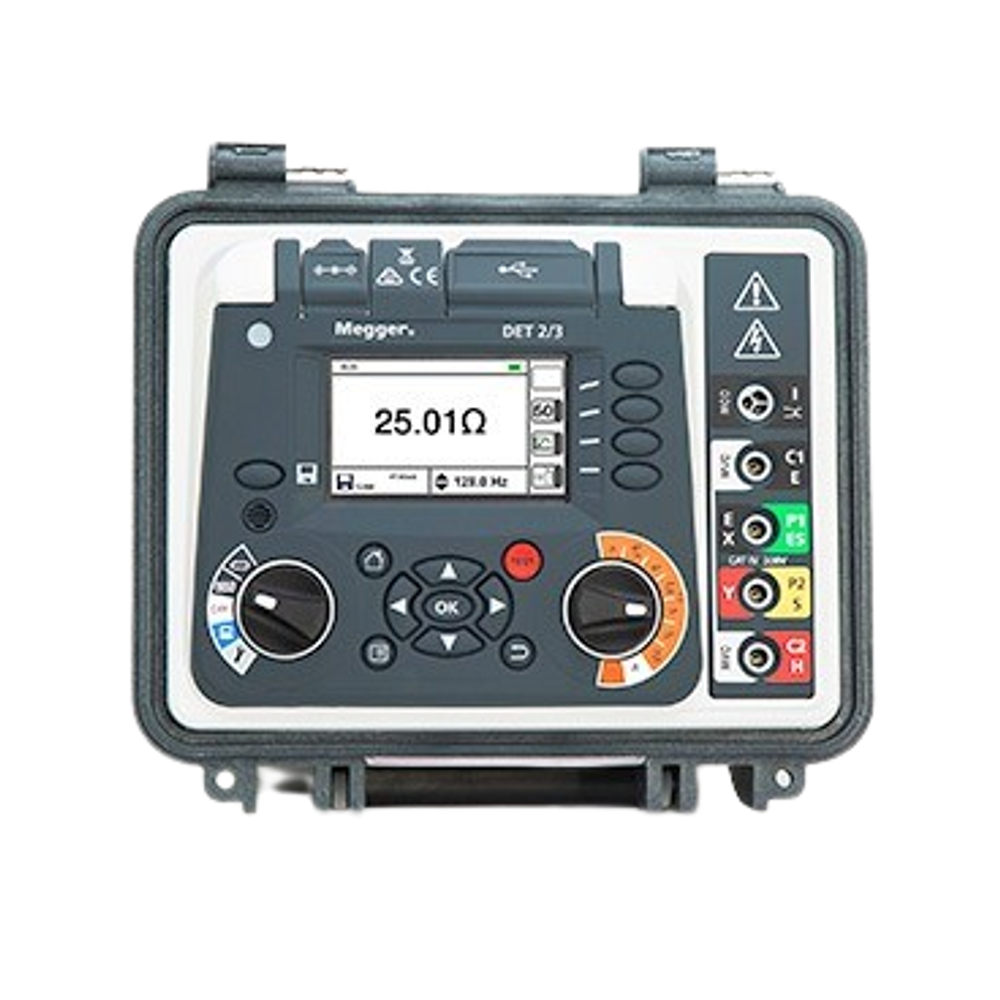

Megger DET2/3 Digital Earth Tester, 0.001 Ohm to 20 kOhm, Memory Storage and USB Download

Features

• High resolution of 1 mΩ, ideal for large earth systems
• Versatile tests modes
• High accuracy for earth/ground electrode grid and soil resistivity tests
• Rechargeable battery power that can last all day with a fast re-charge (up to 10 hours)
• Robust instrument with IP65 protection
• Automatic test frequency selection, with filters and high current features
• Diagnostic trace display
• Data storage
• Large colour display that shows numeric and graphical results

Technical Information

• Resistance Range 0.001 Ω to 20.00 kΩ auto range
• Display Four digit display
• Resistance Accuracy at 23 °C ±0.5% of reading ±2 digits
• 3P ±10 mΩ
• 2P ±20 mΩ
• Resistance Test current 50 mA max
• Continuity 0.01 Ω to 1 kΩ (3 digits)
• Continuity Test Current 12 V, 205 mA
• Storage temperature -20 to 60 °C
• Measurement rating CAT IV 300 V
• Power supply Internal Li-ion battery or external 12-18 V, 65 W, DC supply
• Battery life Up to 10 hrs use
• Part No 1008-942

Items Included

• MCC1010 and MVC1010
• Cable reels with spike
• Continuity test cables and clips
• Accessories bag
