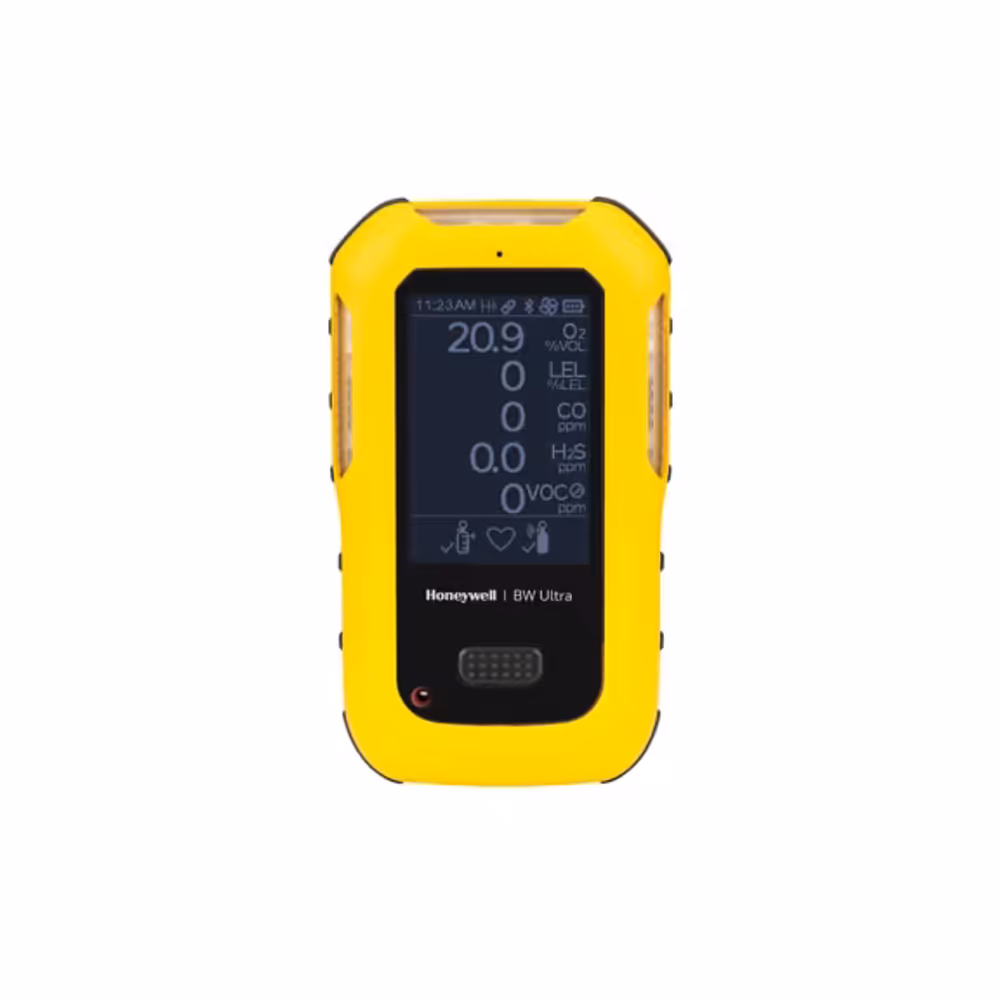

Honeywell HU-X1W1H1M1B1-Y-N BW Ultra Five Multi-Gas Detector with Pump (O2/LEL/H2S/CO/CO2)

Features

• Tamper-proof operation with one button operation
• Intuitive LCD icons for quick decision making
• Intuitive large dot matrix display giving clear readings
• IntelliFlash™ and also Reverse IntelliFlash™ for clear compliance
• Honeycomb-designed housing for extra ruggedness and scratch-resistant display protector
• Ergonomically designed for easy use, light yet rugged design
• Quick responding sensor technology and quick bump & calibration with IntelliDoX system

Technical Information

• Size 5.8 x 3.3 x 1.6 in. / 14.8 x 8.5 x 4.0 cm
• Weight 14.5 oz. / 411 g (with clip)
• Operating Temperature -4 to 131°F (-20 to 50°C)
• Humidity 5 - 95% RH (non-condensing) continuous
• Ingress Protection IP66/68
• Alarms and Type Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)
• Self Test Activated detectors automatically perform one internal diagnostic test every 24 hours (sensors, battery, and circuitry)
• Typical Battery Life 18 hours (14 hours with PID or IR sensor) @ -4°F / -20°C
• Pump Draw Sample from up to 75 ft. / 22.9 m
• Event Logging 30 alarm events and 10 bump events
• Data Logging 45 days based on 8 hour shifts every 15 seconds logging

Items Included

• Gas Detector
• Adapter
• Tube
• 2 x Fitting mini quick connector to 1/8"
• 5 x Pump Filters
• Screwdriver Telescope
• Dust Porous Filter
• 2 x Fitting male Luer-Lock to 1/8"
• USB memory stick containing user manuals
• Battery (Installed)
• Quick Reference Guide

Downloads

Datasheet
