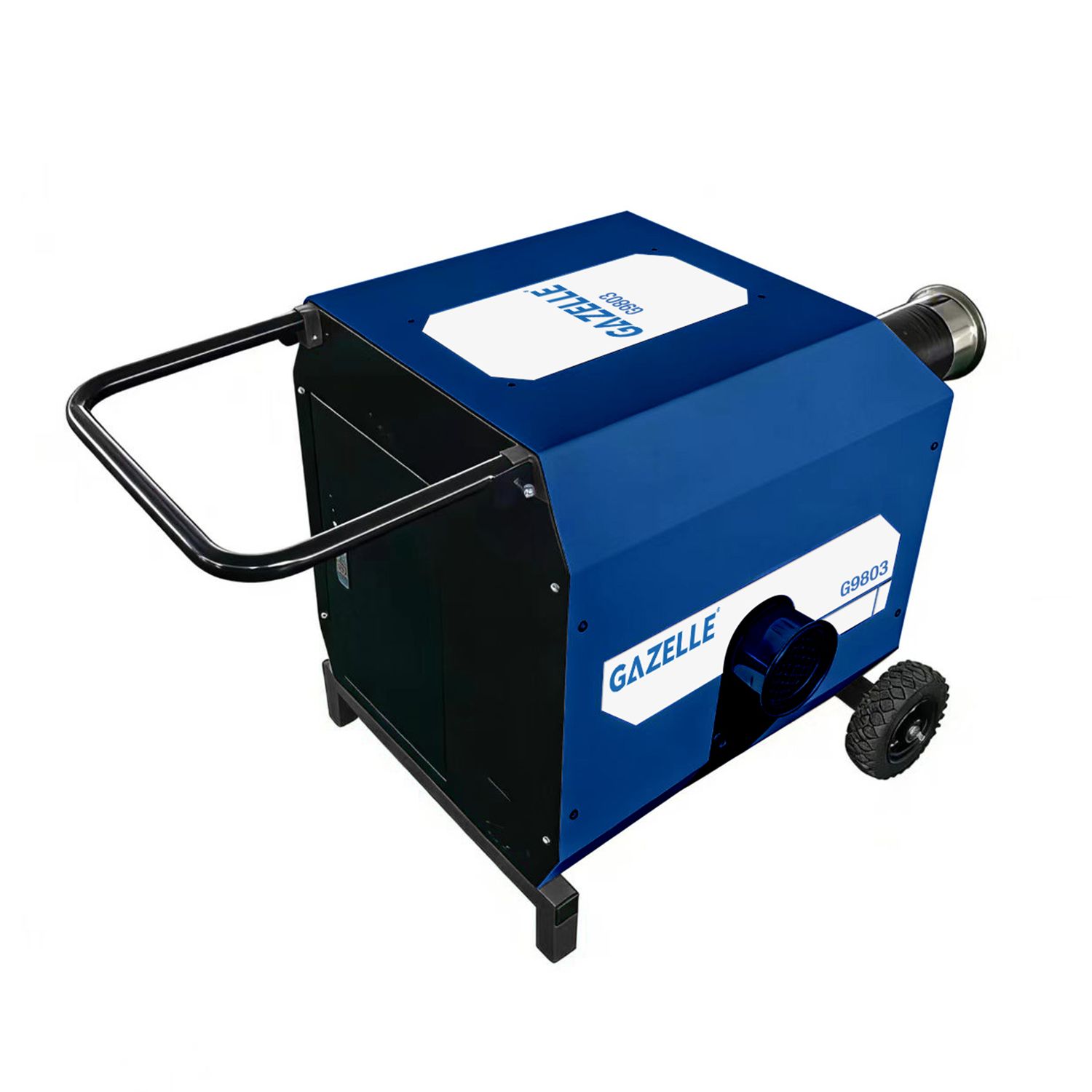

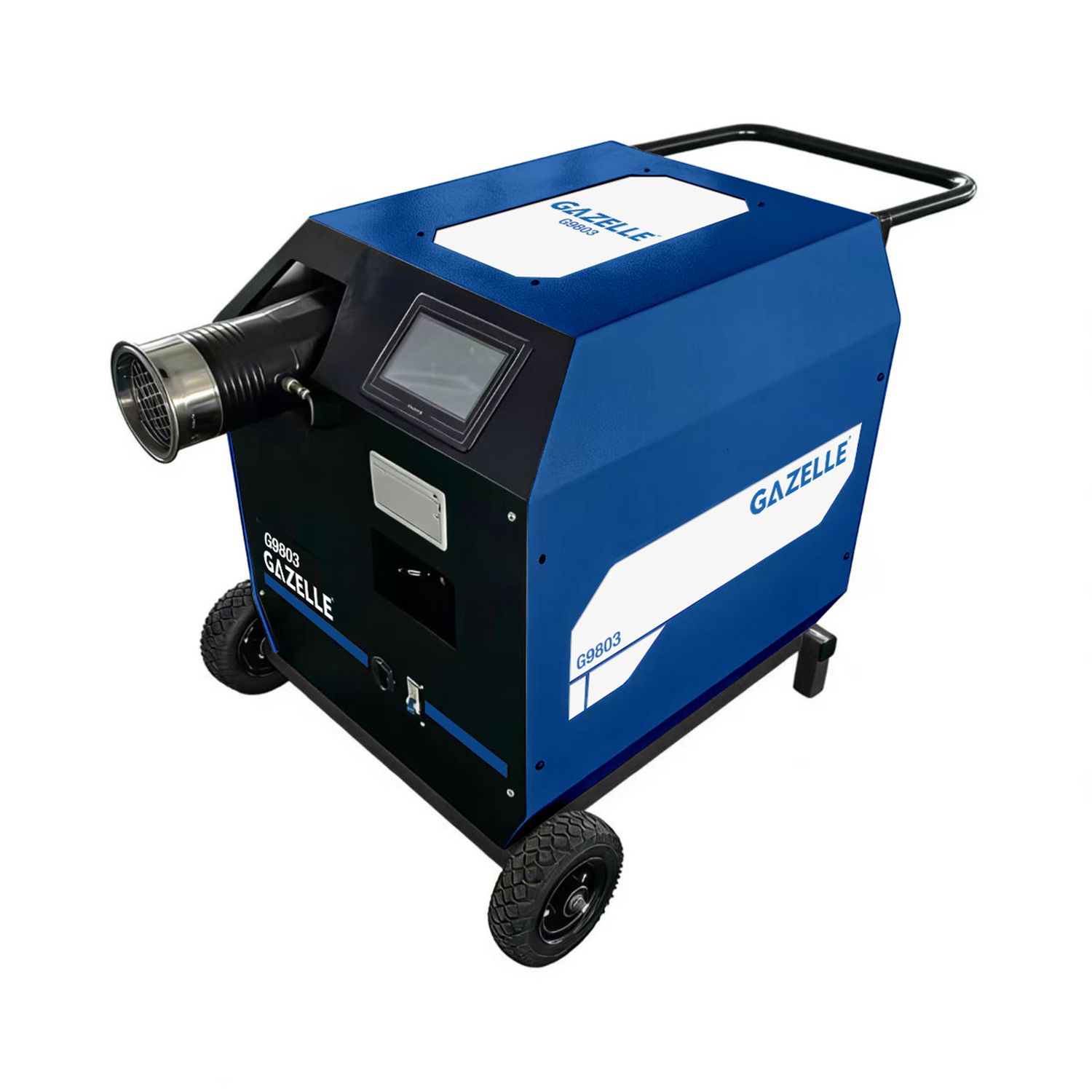

Gazelle G9803 Duct Air Leakage Tester with Built-in Printer

Features

• Flexible Testing Modes: Supports duct air leakage testing under both positive and negative pressure conditions for comprehensive evaluation
• International Standards Compliance: Fully compliant with major global standards including EN1507:2006, EN12237:2003, Eurovent 2/2, DW/143, SMACNA, AABC, and GB50243 (2003/2016)
• High-Precision Measurement: Wide airflow testing range combined with dual measurement tools ensures accurate and reliable results
• Clear Pass/Fail Assessment: Instantly determines duct sealing performance, helping verify compliance and quality standards
• Real-Time Monitoring: Displays leakage rate, test pressure, temperature, and atmospheric conditions in real time for complete test visibility
• Large Data Storage Capacity: Stores up to 1,000 test records with options to review and delete data as needed
• User-Friendly Touch Interface: Equipped with a 5-inch LCD touchscreen for intuitive and easy operation
• Compact & Easy Installation: Designed with a simple structure for quick setup and convenient on-site use

Technical Information

• Air Flow Range (Matrix) 36~640 m³/h
• Air Flow Range (Nozzle)4~36 m³/h
• Air Flow AccuracyThe reading is ±2.5% ±0.1 m³/h
• Air Flow Resolution0.01m³/h
• Static Pressure Range±2500 Pa
• Static Pressure AccuracyReadings are 1% ±1 Pa
• Static Pressure Resolution0.1 Pa
• Temperature Range0 ～ 60 ℃
• Temperature Accuracy±0.5 ℃
• Temperature Resolution0.1 ℃
• Atmospheric Pressure Range70～130k Pa
• Atmospheric Pressure AccuracyReadings are ±2%
• Atmospheric Pressure Resolution0.1k Pa
• Power Supply (G9803-0E)100-120V, 1 Phase, 50/60Hz, 16A
• Power Supply (G9803-1E)200-240V, 1 Phase, 50/60Hz, 10A
• Weight: Net weight approximately72 Kg
• Size98*63*63 cm
• Data LoggingUp to 1000 measurements

Items Included

• 1 x Duct Air Leakage Tester
• 1 x Flow Grid
• 1 x Low Flow Nozzle
• 6 x Silicone Tube (white)
• 1 x Duct Connection Hose
• 1 x Power Cord
• 1 x Container
• 6 x Silicon Tube (blue)
• 6 x Silicon Tube (red)
• 1 x Calibration Certificate
• 1 x Instruction Manual

Downloads

DatasheetUser Manual-en
