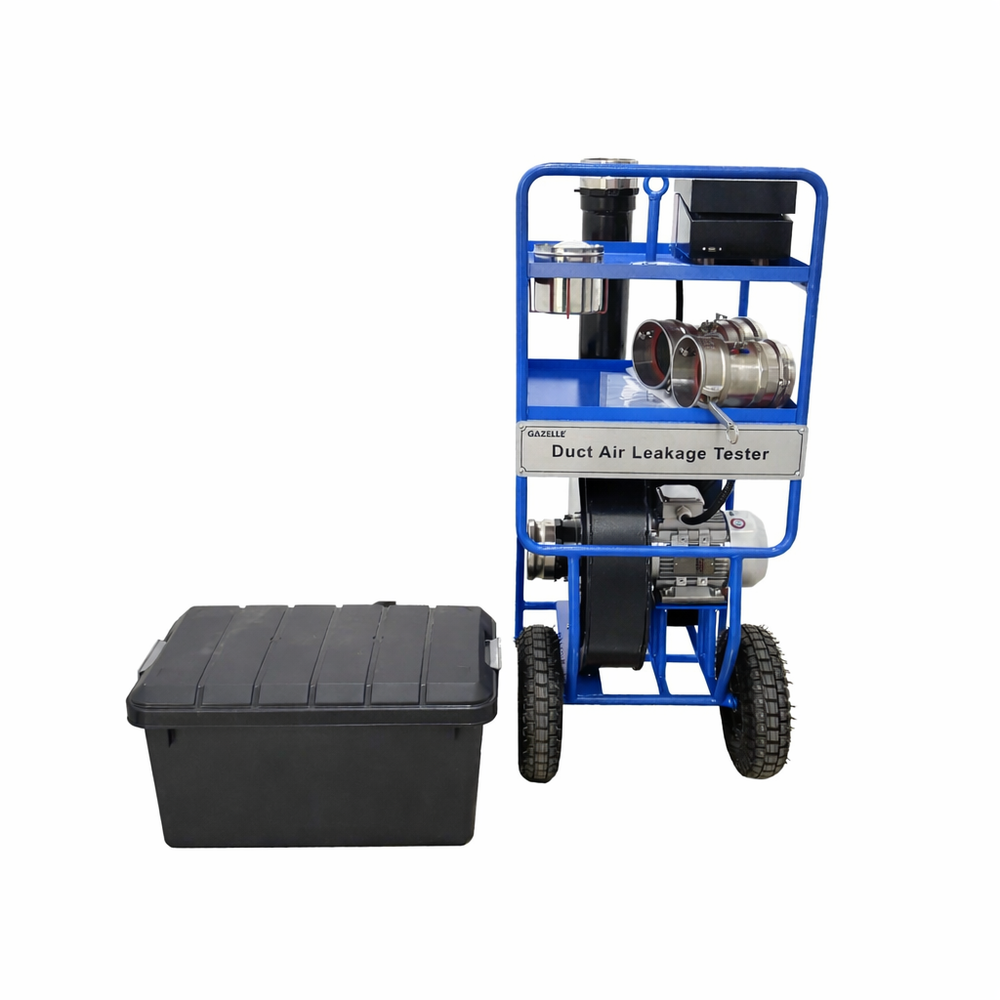

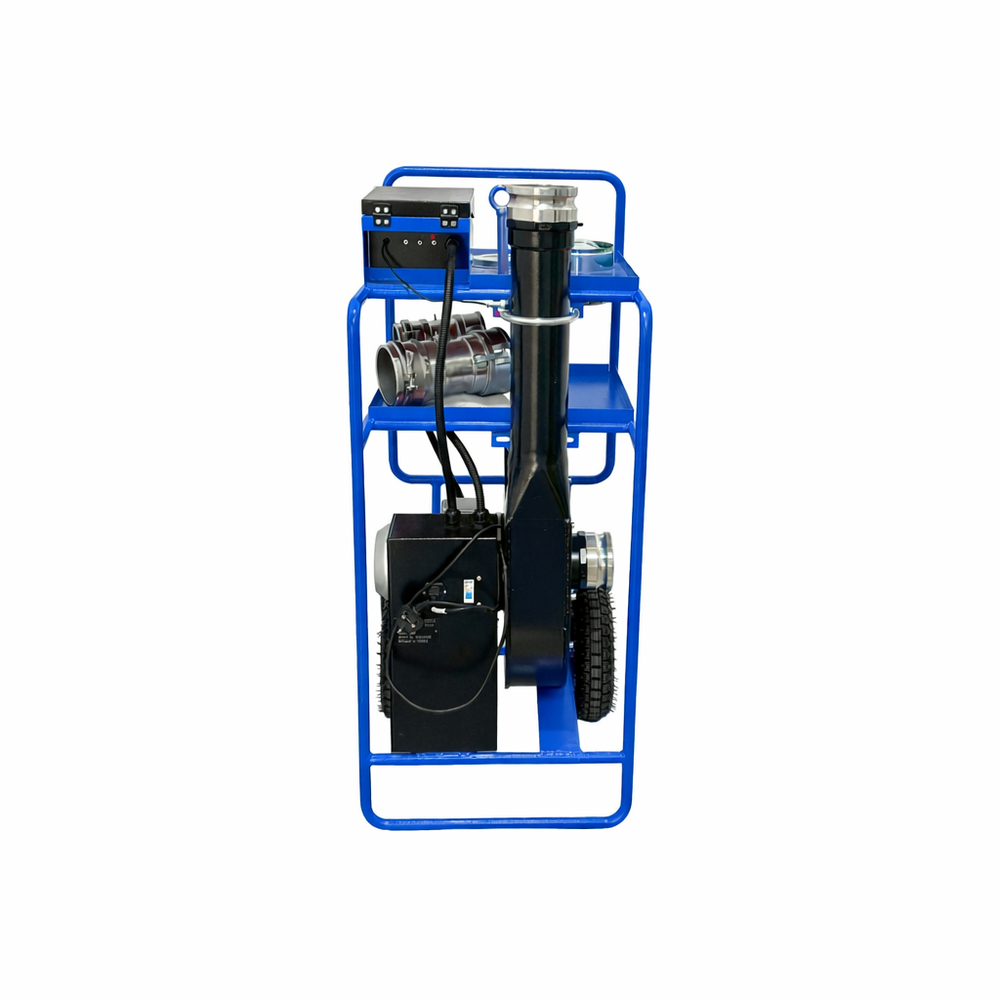

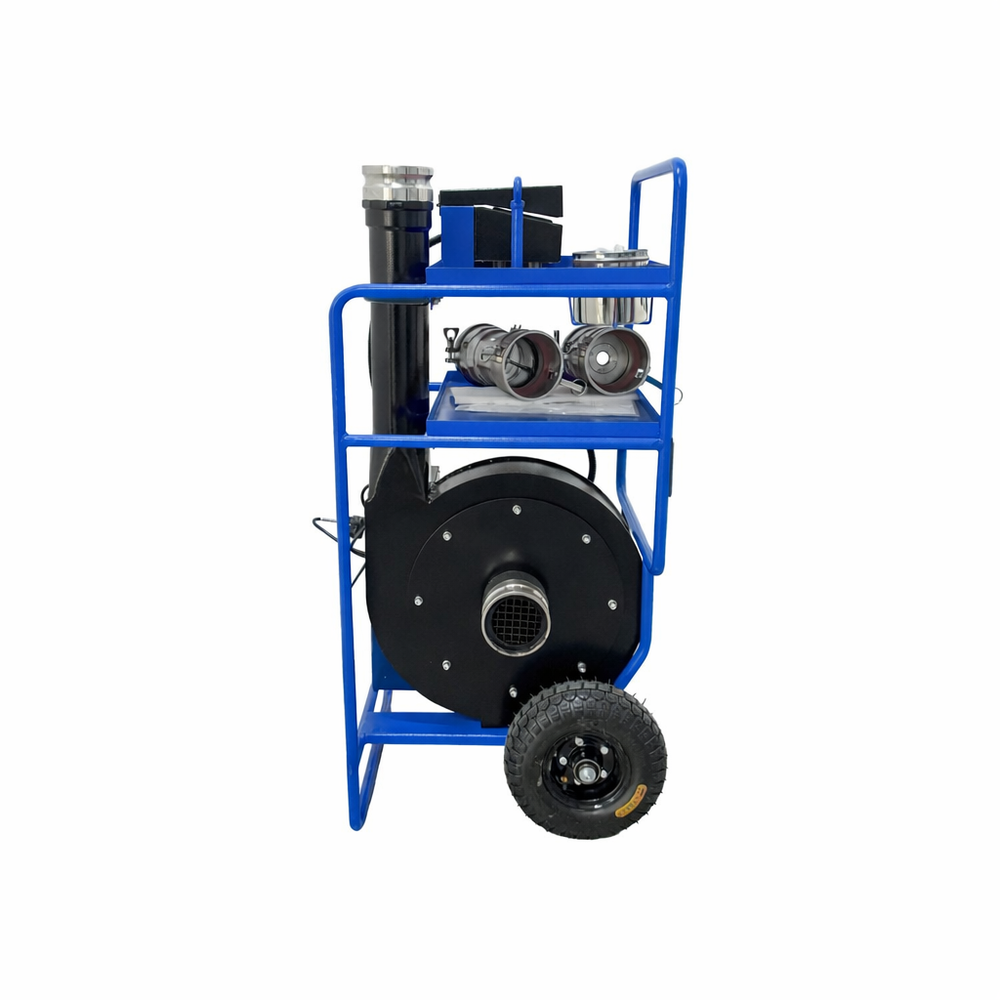

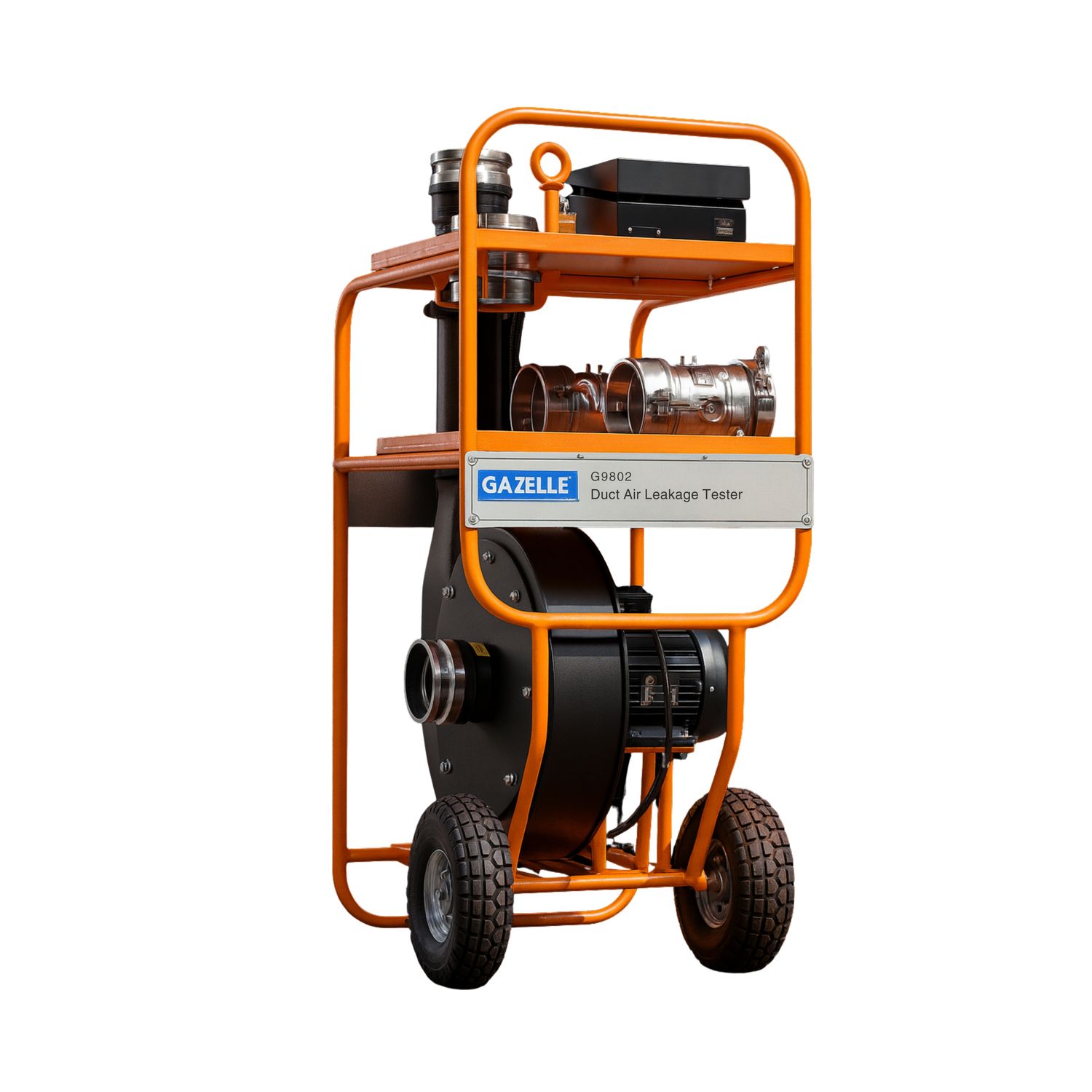

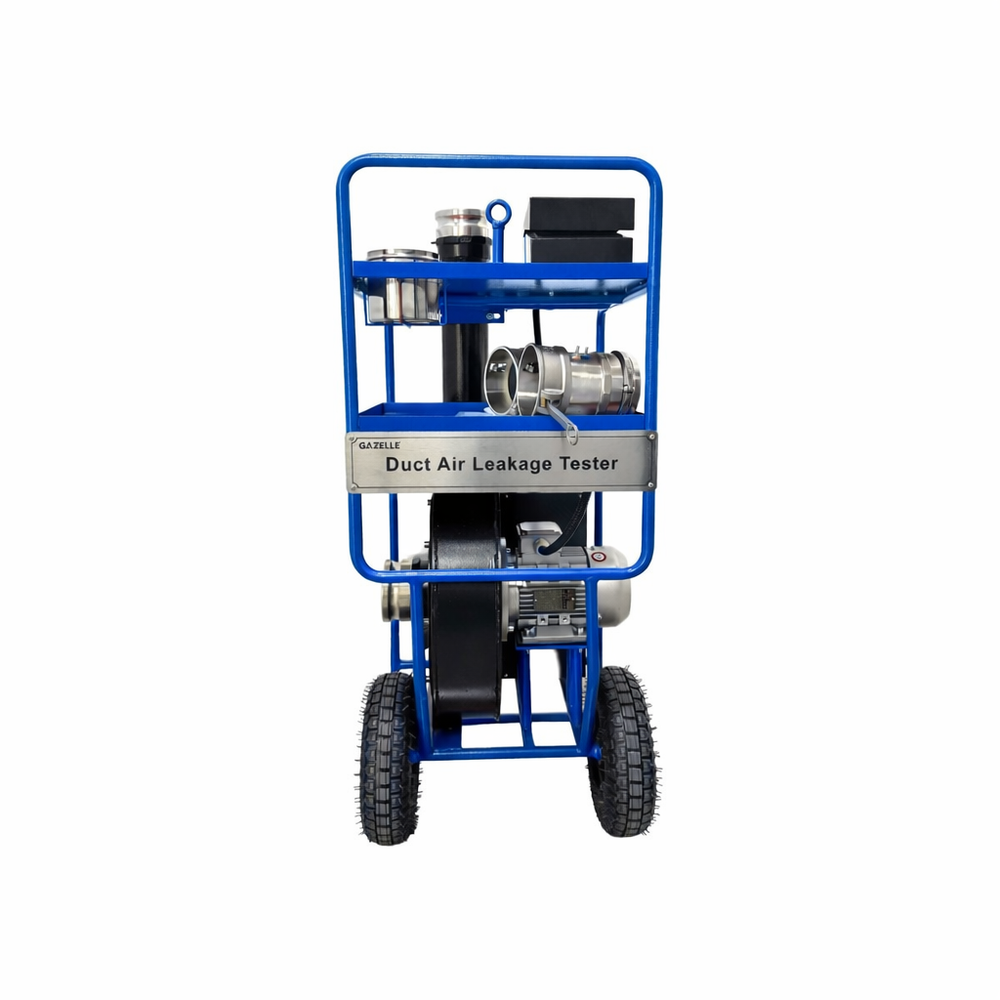

Gazelle G9802 Duct Air Leakage Tester with Touchscreen Control
Key Features
?
Question about this product?
Features
- Airflow & Pressure Accuracy: High-precision measurement for HVAC duct systems
- Real-Time Display: Instant graphical and numerical data visualization
- Portable Design: Wheel-mounted unit for convenient on-site mobility
- Standards Compliance: SMACNA, BS EN 12237:2003 (EU), BS EN 1507:2006 (EU), DW/143 (EU), Eurovent 2/2 (EU), and GB50243
- Data Logging: Integrated storage for up to 1000 test records
- Touchscreen Interface: User-friendly control for simplified operation
Technical Information
- Air Flow Range (Matrix)36 ～640 m³/h
- Air Flow Range (Nozzle)4 ~ 36 m³/h
- Air Flow Accuracy±2.5% of the reading ±0.1 m³/h
- Air Flow Resolution0.01 m³/h
- Static Pressure Range±2500 Pa
- Static Pressure Accuracy1% ±1 Pa of the reading
- Static Pressure Resolution0.1 Pa
- Temperature Range0～60 ℃
- Temperature Accuracy±0.5 ℃
- Temperature Resolution0.1 ℃
- Atmospheric Pressure Range70～130k Pa
- Atmospheric Pressure Accuracy±2% of the reading
- Atmospheric Pressure Resolution0.1k Pa
- Power Supply (G9802-0E)100-120V, 1Phase, 50/60Hz, 16A
- Power Supply (G9802-1E)200-240V, 1 Phase, 50/60Hz, 10A
- Weight Net weight approximately 72kg
- Size54 x 50 x 120cm
- Data LoggingUp to 1000 measurements
Items Included
- Duct Air Leakage Tester
- Low flow nozzle
- ⌀6 Silicone tube (Blue) 4m

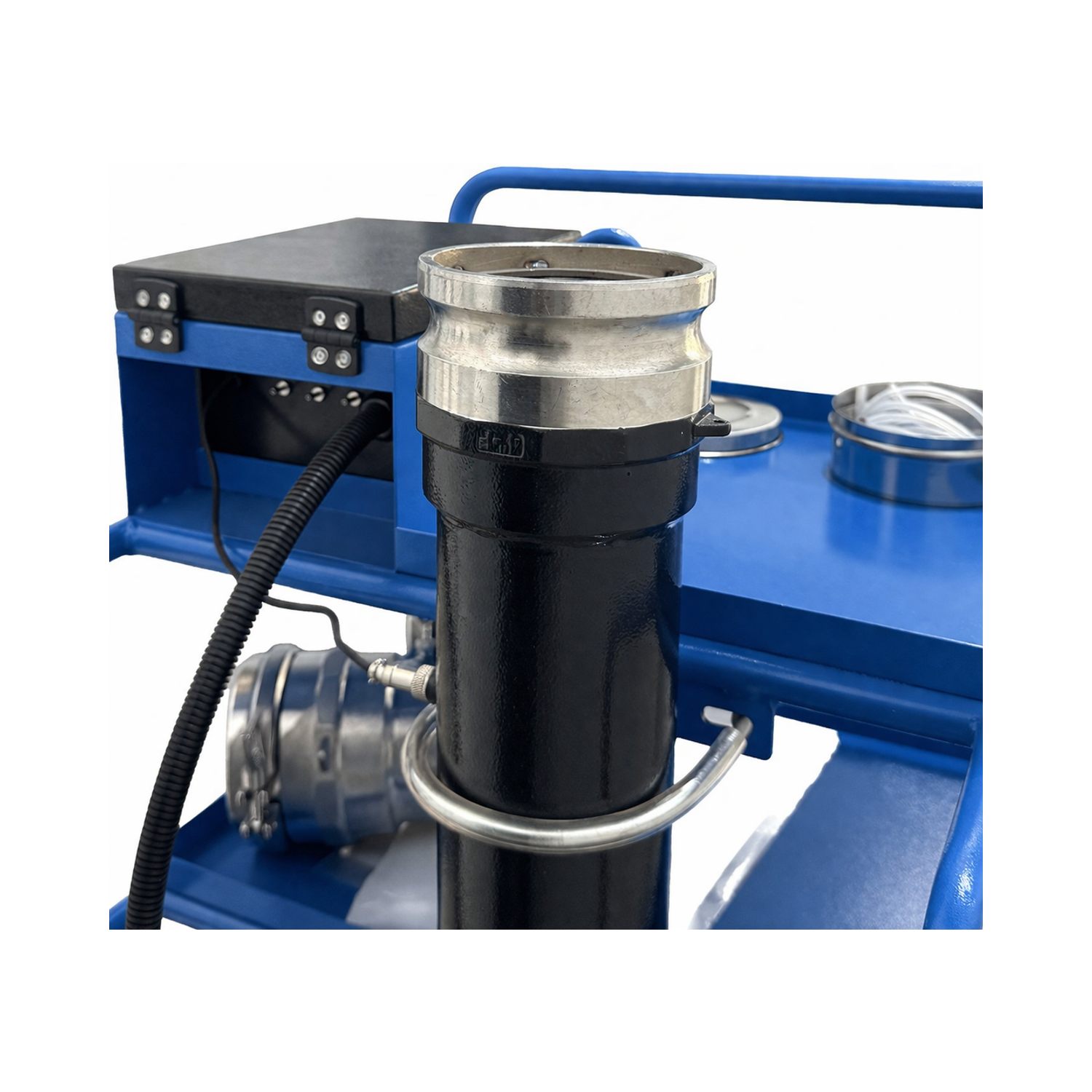

- Duct connection hose

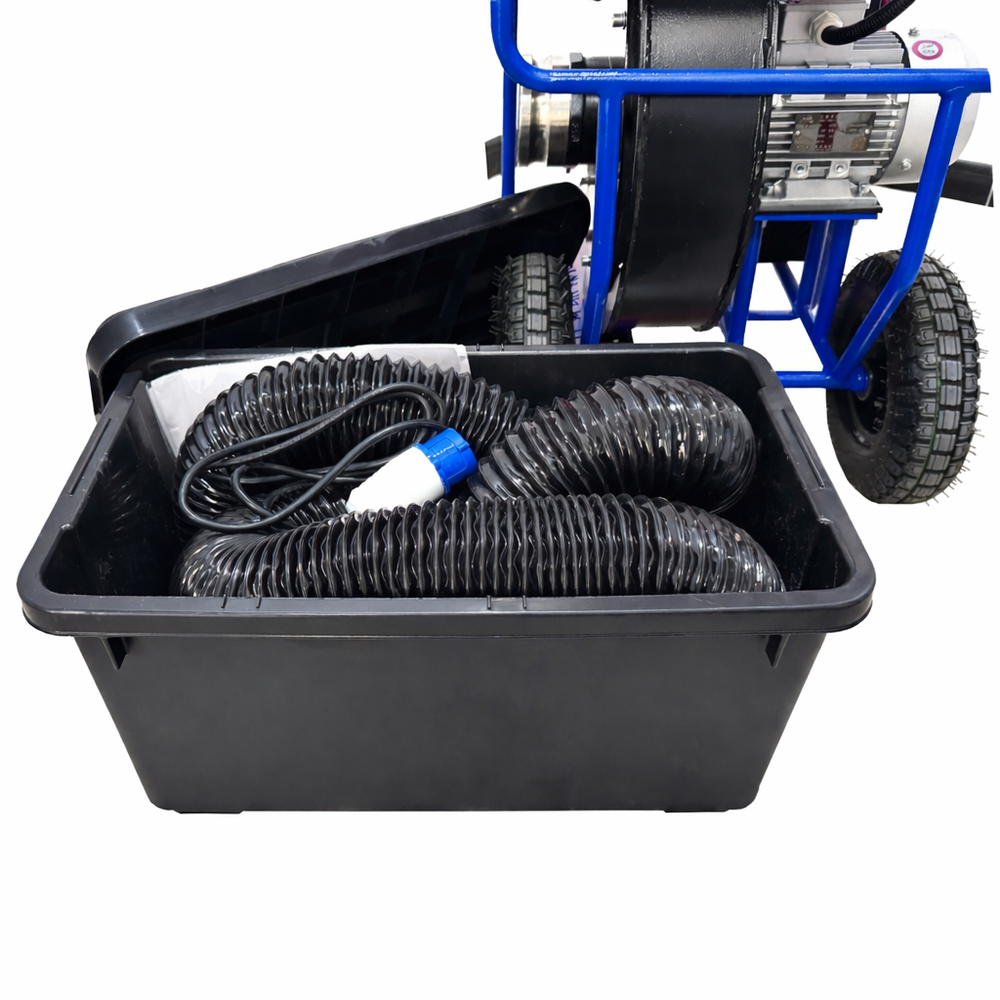

- Storage box
- Power cord
- Calibration Certification
- Operation manual
