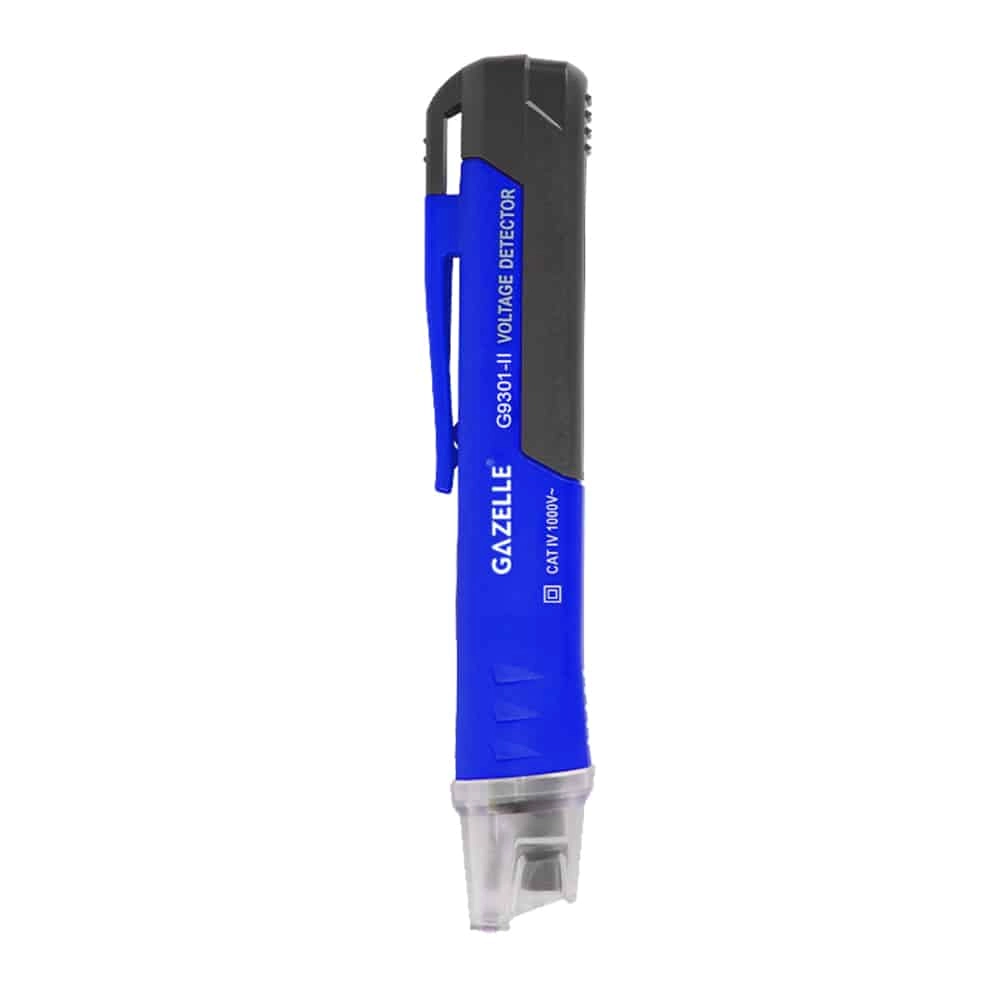

Gazelle G9301-II Non Contact AC Voltage Detector, 1000V

Features

• Voltage Detection: Detects AC voltage in two sensitivity ranges—24–1000V (low) and 90–1000V (high).
• Induction Mode: Automatic induction mode for hands-free and efficient voltage detection.
• Alerts: Loud audible alarm and red light indicator for clear identification of live cables.
• Flashlight: Built-in white spotlight flashlight for enhanced visibility in dimly lit environments.
• Safety Rating: CAT IV 1000V safety rating for reliable operation in high-voltage applications.
• Power Efficiency: Auto power-off feature activates after approximately 5 minutes of inactivity to conserve battery life.
• Design: Compact and lightweight design for easy handling and portability.

Technical Information

• AC Voltage (Low)24-1000V
• AC Voltage (High)90-1000V
• Frequency50/60Hz
• Operating ModeAutomatic Induction
• Spotlight FlashlightWhite spotlight
• Auto power offAbout 5 minutes

Items Included

• Operating Manual
• Batteries

Downloads

Datasheet
