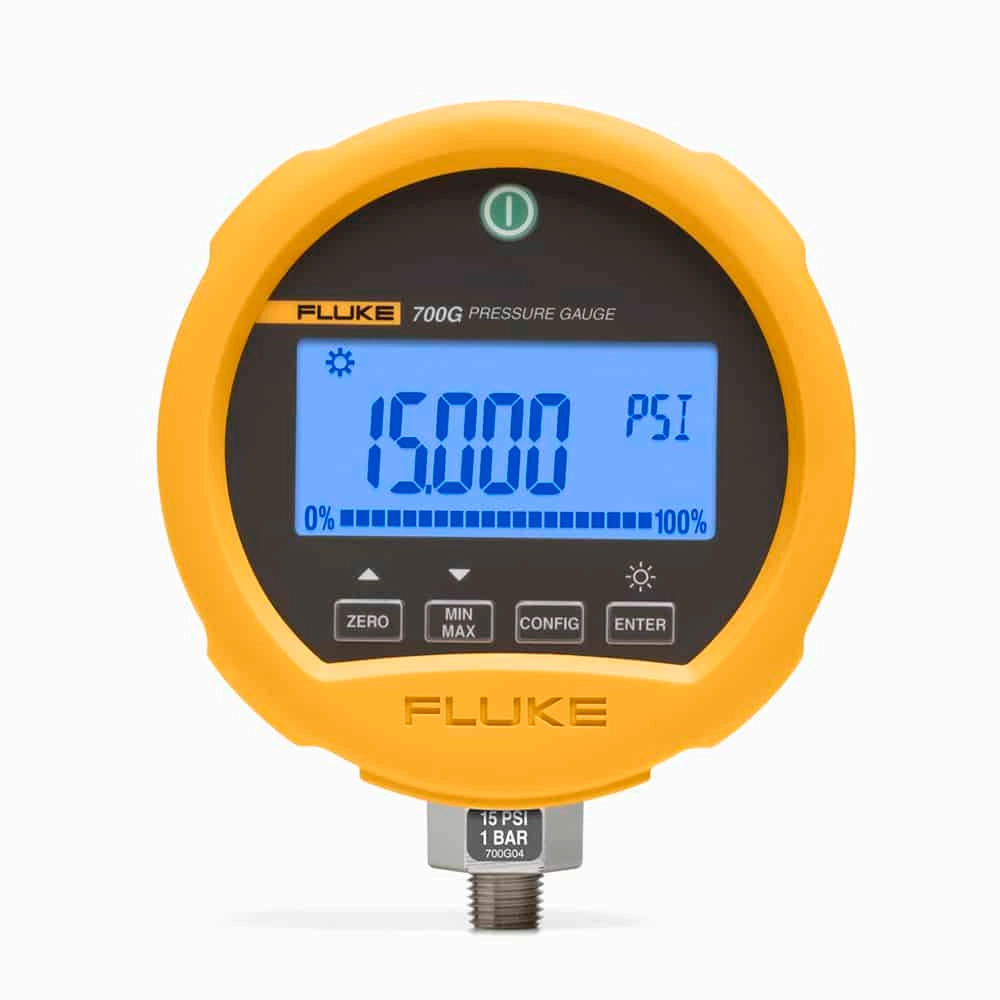

Fluke 700GA4 Pressure Gauge, 0 to 15 PSIA, 0 to 1 Bar Absolute

Features

• Absolute Pressure Gauge Calibrator; 15 psi Absolute
• ATEX rating: II 3 G Ex nA IIB T6
• Bright backlit display for easy viewing of pressure measurements
• Rugged; durable design with protective holster
• Precision pressure measurement from ±10 inH2O to 10,000 psi (20 to 690 bar)
• Absolute pressure measurement ranges 15, 30, 100, 300 psia
• Reference class gauge accuracies to 0.04% of reading
• Easy to use, rugged construction for reliable performance
• Log up to 8493 pressure measurements to memory (requires 700G/TRACK software)

Technical Information

• Range0 to 15 psia 0 to 1 bar absolute
• Resolution0.001 psi 0.0001 bar
• Accuracy± 0.05 % of range
• Burst Pressure60 psi 4 bar
• Dimensions (H x W x D)12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
• Pressure connection¼ in NPT Male
• Weight0.56 kg (1.22 lb) with holster
• Display5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100%
• PowerThree (3) AA alkaline batteries
• Battery life1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate

Items Included

• Fluke 700GA4 Pressure Test Gauge
• 15 psia

Downloads

Datasheet
