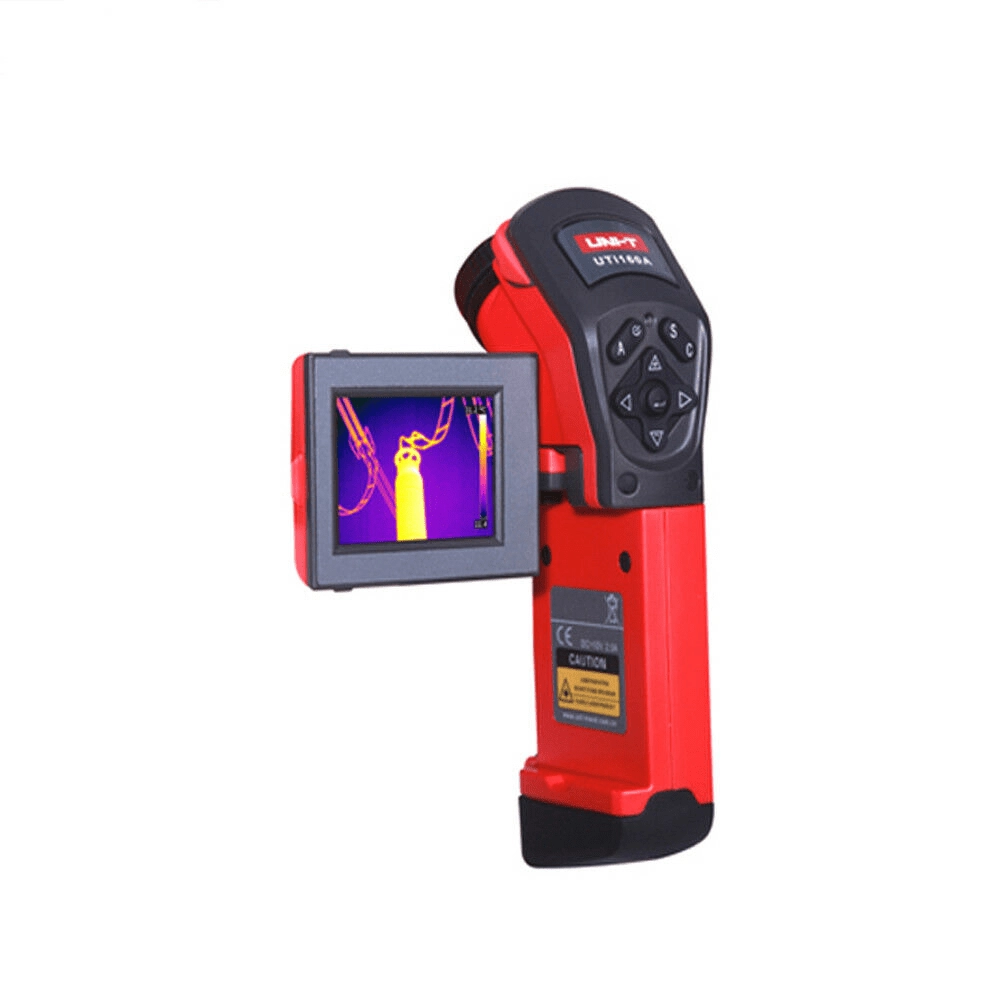

    UNI-T UTi160A Handheld 2.5inch TFT LCD Infrared Thermal Imager Camera Visual Infrared Thermometer

    # UTi160A

    • The size of radiation energy of object is related to surface temperature of objects.
    • Infrared radiation: in nature, all objects with temperature above absolute zero(-273C) with emit infrared radiation to the outside world.
    • Infrared detector: it’s the device which can convert the change of amount of infrared radiation of measured object into power change
    UNI-T
    • UNI-T
    • UTi160A

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • The size of radiation energy of object is related to surface temperature of objects.
    • Infrared radiation: in nature, all objects with temperature above absolute zero(-273C) with emit infrared radiation to the outside world.
    • Infrared detector: it’s the device which can convert the change of amount of infrared radiation of measured object into power change, i.e. convert light signals into electrical signals.
    • Infrared thermal imager will focalize the infrared energy radiated from measured objects to infrared detector by optical devices.
    • After the infrared data which each pixel on detector receivers are processed, compare the pre-calibrated temperature data, convert them into standard video format and display, thus the process can be achieved that the heat distribution of measured objects is converted into infrared thermal map.
    • This infrared thermal map corresponds to the thermal distribution on the surface of measured objects.
    • The different colors on thermal images represent different temperatures of measured object.

    View field angle/Min. imaging distance: 20°x15°/0.1m(can select other lens)

    Temperature Sensitivity: 0.08°C , 30°C

    Detector Type: Uncooled Focal Plane Detector

    Resolution: 160*120

    Waveform Length: 8-14um

    Focus: Manual adjustment

    Spacial Resolution: 2.2mrad

    Imaging Model: IR(iron red,anti-iron-red,black hot,white hot,colourful,feather red)

    LCD Display: 2.5” TFT LCD

    Video Output: PAL(50Hz) or NTSC(60Hz)combined video

    Temperature Range: -20°C~300°C

    Accuracy: +-2°C or 2% readings

    Temperature Measurement Model: The center point of measurement temperature or Full screen automatic catch Max./Min. temperature

    Settings: Language/Time/Fake Color/Unit

    Temperature Correction: Environment Temperature/Radiation rate/Humidity /Distance/Corrected Temperature

    Memory Type: 2GB SD card, support Max.16GB

    File format: .UIR

    Alert Setting: Yes

    Battery/Working hours: Li-battery/2.5 hours

    Power Save Mode: Sleep Mode

    Working environment temperature:-15°C to 50°C;

    Storage temperature: -14°C to 70°C

    Humidity: 95%

    Water proof: IP54

    Impact & Vibration resistance: 25G/2G

    Net Weigh: <500g

    Size: 172mm x 80mm x 162mm

    1 x UTi160A Hand-Held IR Infrared Thermal Imager Imaging Camera

    1 x Charger

    1 x Battery

    1 x Memory Card

    1 x Card Reader

    1 x CD Software

    1 x User Maunal

    1 x Carry Case
