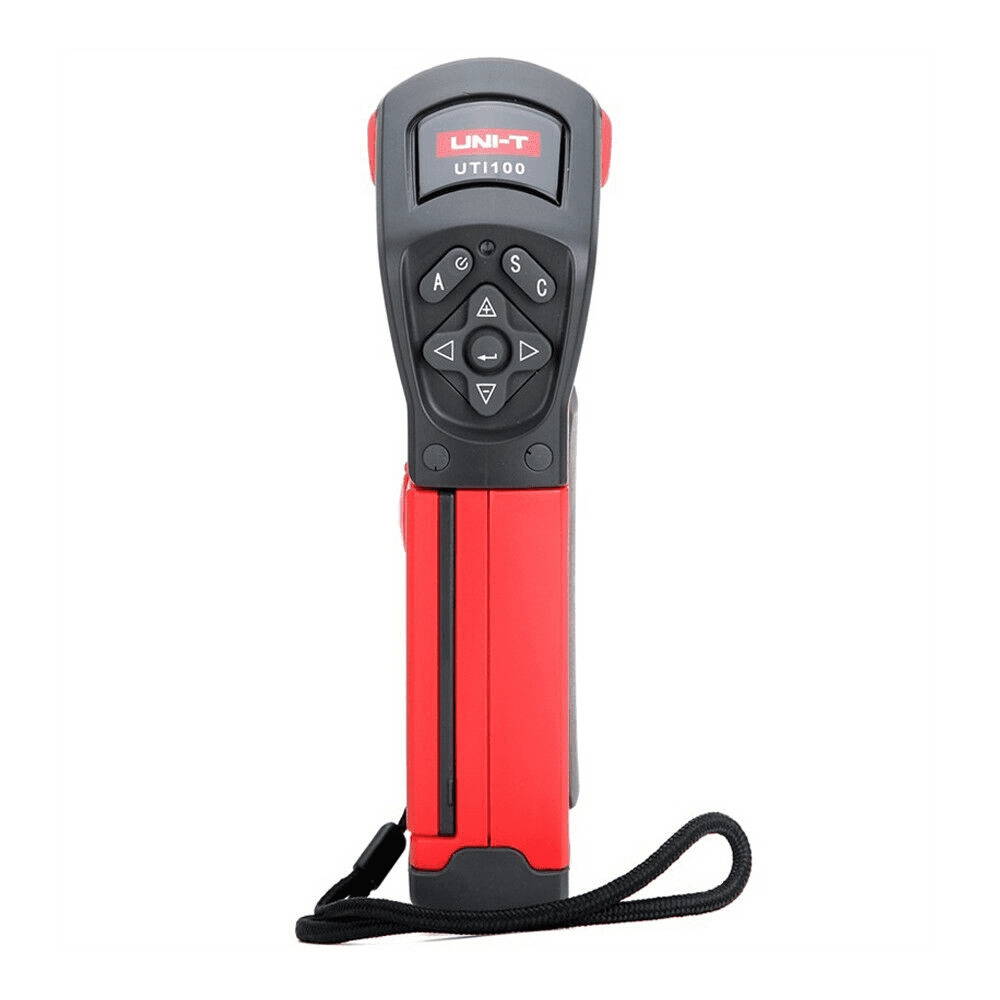

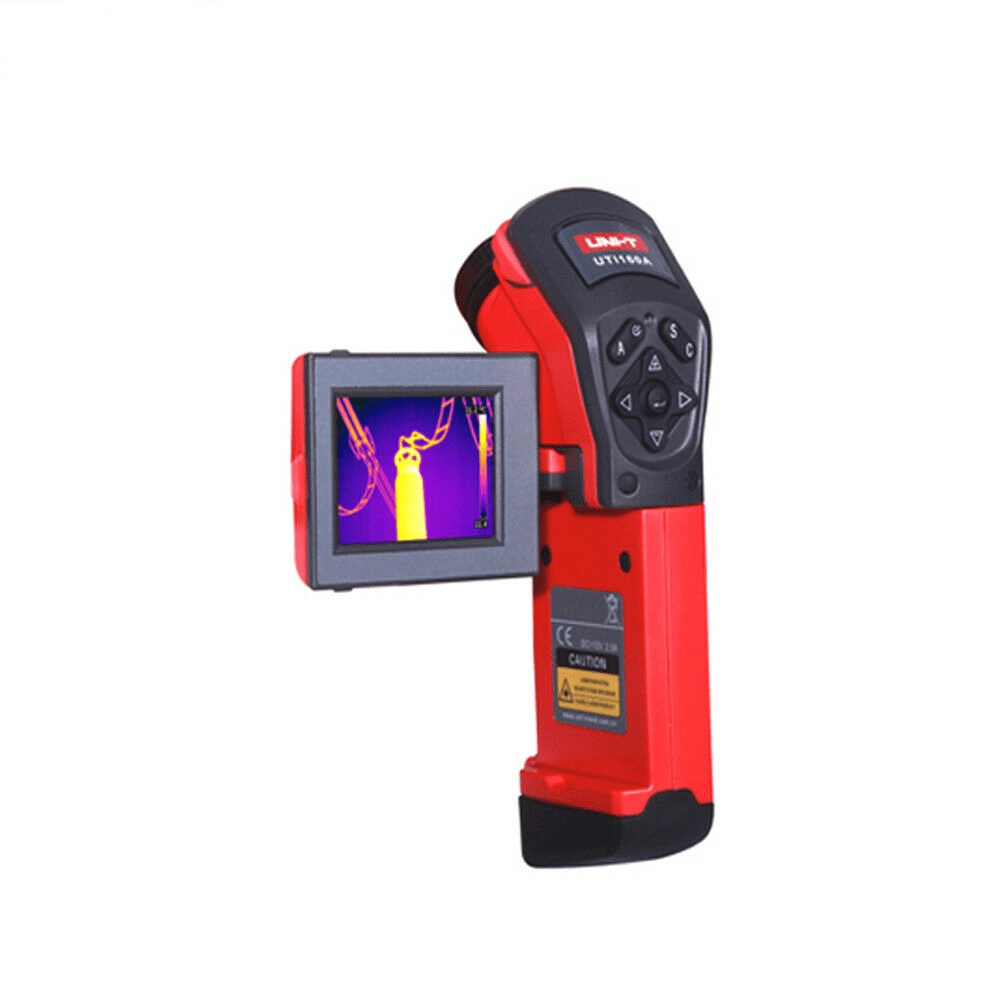

UNI-T UTi100 Handheld IR Infrared Thermal Imager Camera

Model # UTi100

UTi100 Series IR Thermal Imagers are designed with infrared detector 100*80 pixel.
It is precise to measure, clear to view on images, easy to carry with and offers a price you can totally afford.
Choosing a UTi100 means a significant work effectiveness and high temperature measurement accuracy.

UNI-T

BrandUNI-T
Model NumberUTi100

ADD TO MY RFQ LIST Add to your requistion list to get a quote.

UTi100 Series IR Thermal Imagers are designed with infrared detector 100*80 pixel as the core and supported with high-quality optical lens, ease-of-use operating system.
It is precise to measure, clear to view on images, easy to carry with and offers a price you can totally afford.
Choosing a UTi100 means a significant work effectiveness and high temperature measurement accuracy, which is especially a perfect choice for users who are already used to point-contact thermometers.
Applicable industries:electric power,construction,electronics,smelting,energy,railway,automobile,petrochemical.

Thermal Imager: UTi100
Basic Function: Technical Parameters
View field angle/Min. imaging distance: 12°x9.4°/0.1m(can select other lens )
Temperature Sensitivity: 0.08°C , 30°C
Detector Type: Uncooled Focal Plane Detector
Resolution: 80*120
Waveform Length：8-14um
Focus：Manual adjustment
Spacial Resolution：2.2mrad
Imaging Model：IR(iron red,anti-iron-red,black hot,white hot,colourful,feather red)
LCD Display：2.5” TFT LCD
Special Function：Video Output，PAL(50Hz) or NTSC(60Hz)combined video
Temperature Range：-20°C~300°C
Accuracy：±2°C or 2% readings
Temperature Measurement Model
The center point of measurement temperature or Full screen automatic catch Max./Min. temperature
Settings Language/Time/Fake Color/Unit
Temperature Correction Environment Temperature/Radiation rate/Humidity /Distance/Corrected Temperature
Type 2GB SD card, support Max.16GB
File format UIR
Alert Setting Yes
Battery/Working hours Li-battery/2.5 hours
Power Save Mode Sleep Mode
Working environment temperature:-15C to 50C; Storage temperature:-14C to 70C; Humidity:95%;
Packaging:IP54;
Impact & Vibration resistance: 25G/2G;
Weigh:<500g;
Size:172mm x 80mm x 162mm;
Reporting software.

1 x UNI-T UTI100 Infrared Thermal Imager Camera
1 x Set Essential Accessories as we shown in picture.
