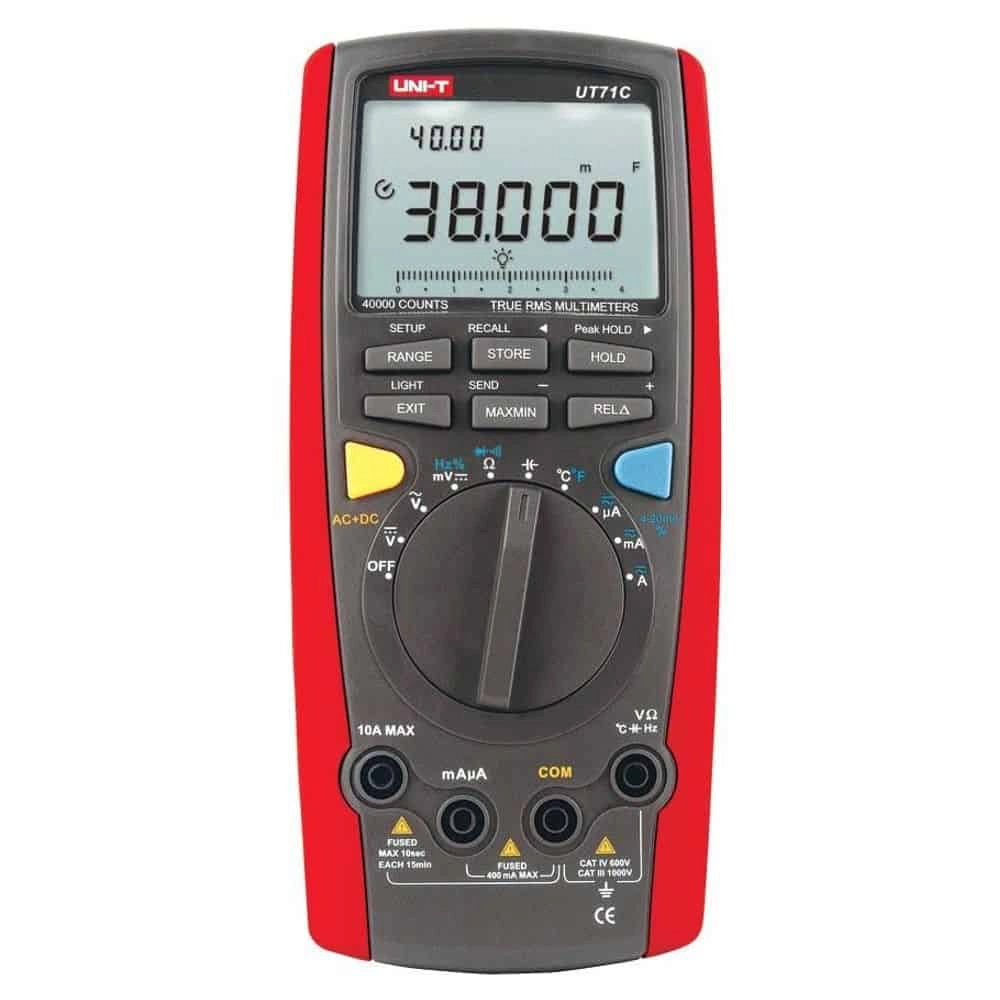

  • UNI-T UT71C Digital Multimeter 400mV-1000V

    # UT71C

    • Adjustable data recording interval
    • True RMS, duty cycle, continuity buzzer
    • MAX/MIN/REL modes; peak/data hold; analog bar graph
    UNI-T
    • UNI-T
    • UT71C
    • Adjustable data recording interval
    • True RMS, duty cycle, continuity buzzer
    • MAX/MIN/REL modes; peak/data hold; analog bar graph
    • 4-20mA loop test
    • 45Hz~100kHz frequency response
    • LCD backlight; misplug alarm
    • Auto power off, low battery indication
    • Data logging
    • Auto and manual ranges selectable
    • USB interface, Bluetooth
    • Temperature measurement, k-type
    • Smart phone APP: iDMM
    • Works with UT-D07A Bluetooth adaptor
    • Download from Apple Store or Google Play Store
    Specifications Range UT71C
    DC voltage (V) 1000V ±(0.025%+5)
    AC voltage (V) 1000V ±(0.4%+30)
    DC current (A) 10A ±(0.1%+15)
    AC current (A) 10A ±(0.7%+15)
    Resistance (Ω) 40MΩ ±(0.3%+8)
    Capacitance (F) 40mF ±(1%+20)
    Frequency (Hz) 40Hz~400MHz ±(0.01%+8)
    Temperature -40°C~1000°C ±(1%+30)
    -40°F~1832°F ±(1.5%+50)
    Display count   40000
    General Characteristics
    Power 9V battery (6F22)
    Display 73mm x 50mm
    Product color Red and grey
    Product net weight 384g
    Product size 200mm x 93mm x 40mm
    Standard accessories Battery, test leads, alligator clip, test clips, USB interface cable, PC software CD, carrying bag, point contact temperature probe
    Standard individual packing Gift box, English manual
    Standard quantity per carton 10pcs
    Standard carton measurement 515mm x 380mm x 205mm
    Standard carton gross weight 9kg
