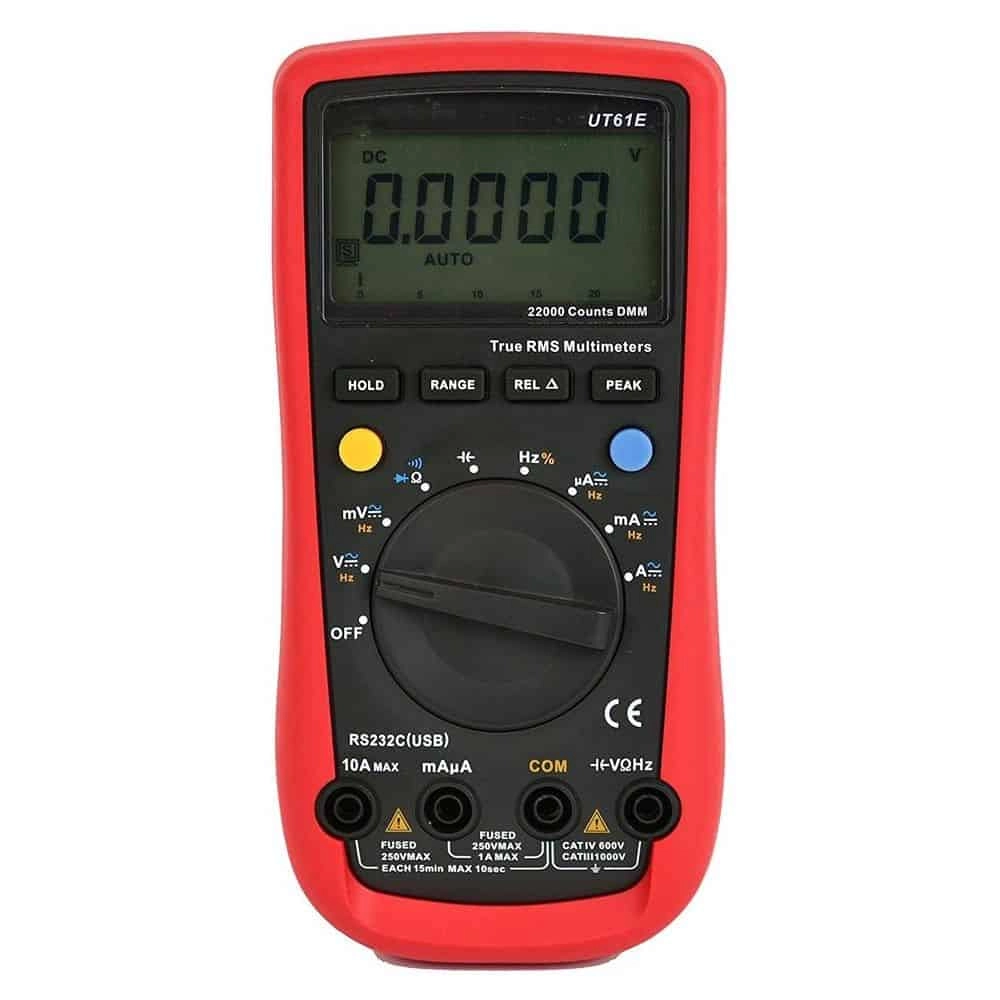

  • UNI-T UT61E Digital Multimeter 600mV-1000V

    # UT61E

    • 22;000 display count; can measure weak signals
    • Analogue bar graph
    • True RMS measurement
    UNI-T
    • UNI-T
    • UT61E

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • 22;000 display count; can measure weak signals
    • Analogue bar graph
    • True RMS measurement
    • 220mF capacitance measurement
    • Peak hold: auto hold the max/min value of pulse signals
    • Diode test and buzzer continuity
    • Auto range
    • MAX/MIN/REL measurement mode
    • Overload protection for all ranges
    • Data hold
    • Complies with CE (European Union) directives



    Specifications Range UT61E
    DC voltage (V) 1000V ±(0.1%+2)
    AC voltage (V) 750V ±(0.8%+10)
    DC current (A) 10A ±(0.5%+10)
    AC current (A) 10A ±(0.8%+10)
    Resistance (Ω) 220MΩ ±(0.5%+10)
    Capacitance (F) 220mF ±(3%+5)
    Frequency (Hz) 10Hz~220MHz ±(0.01%+5)
    Features
    Display count   22000
    Bandwidth (Hz)   45Hz~10kHz
    Duty cycle 0.1%~99.9%
    General Characteristics
    Power 9V battery (6F22)
    Display 65mm x 43mm
    Product color Red and grey
    Product net weight 370g
    Product size 180mm x 87mm x 47mm
    Standard accessories Battery, test leads, multi-purpose socket, RS-232 interface cable, PC software CD
    Standard individual packing Gift box, English manual
    Standard quantity per carton 22pcs
    Standard carton measurement 455mm x 335mm x 375mm
    Standard carton gross weight 12.9kg
    Optional accessory USB interface cable
