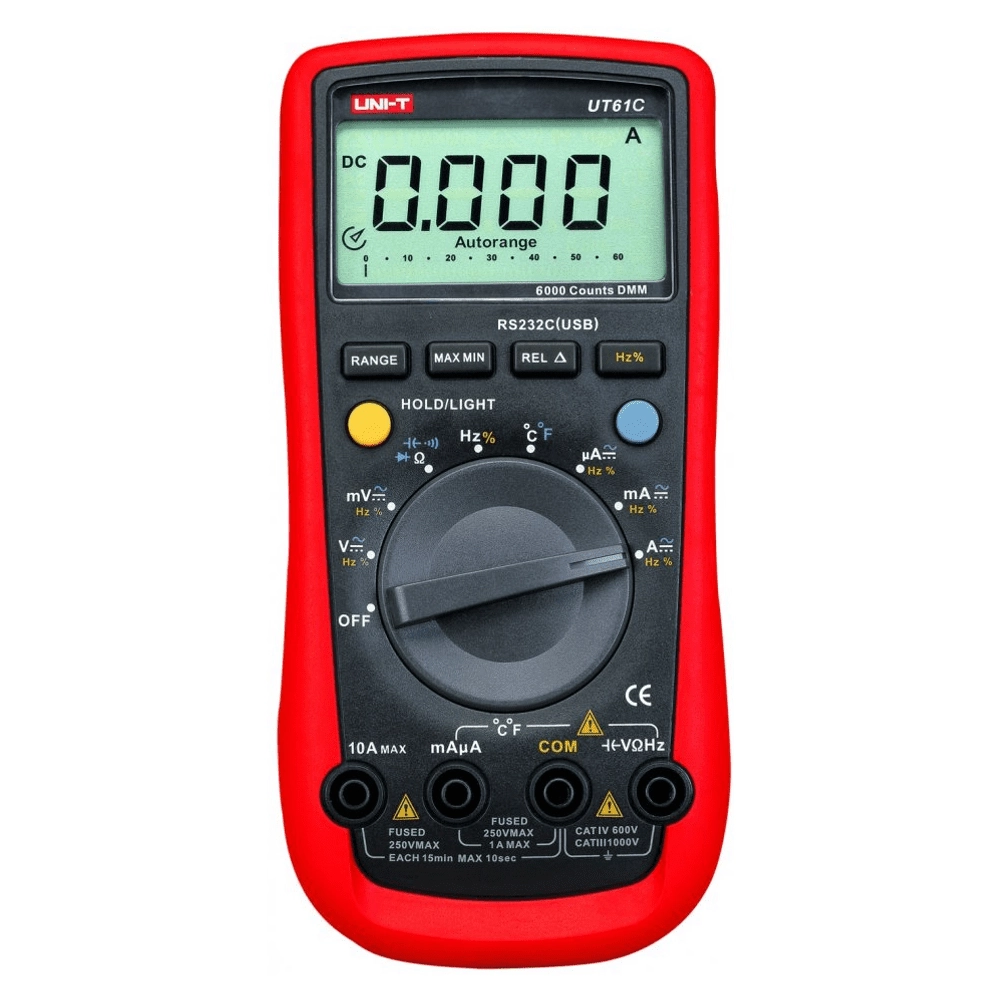

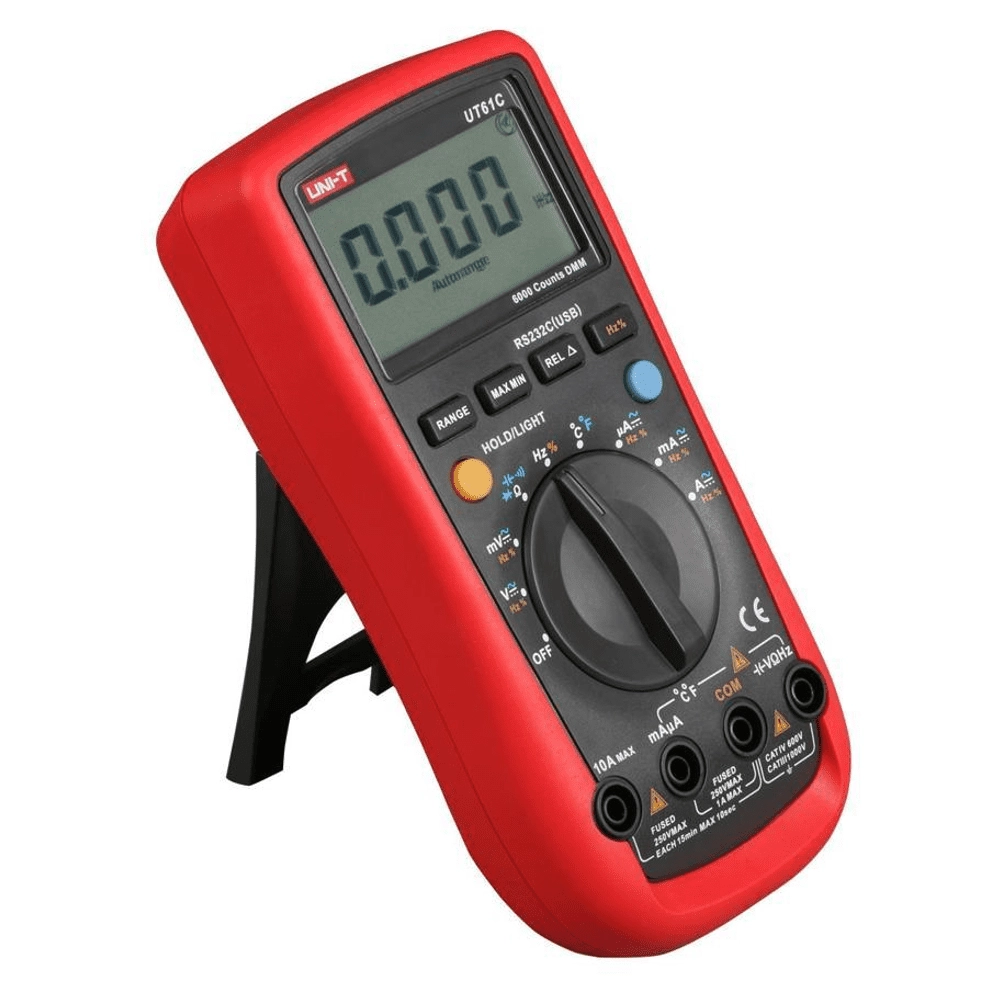

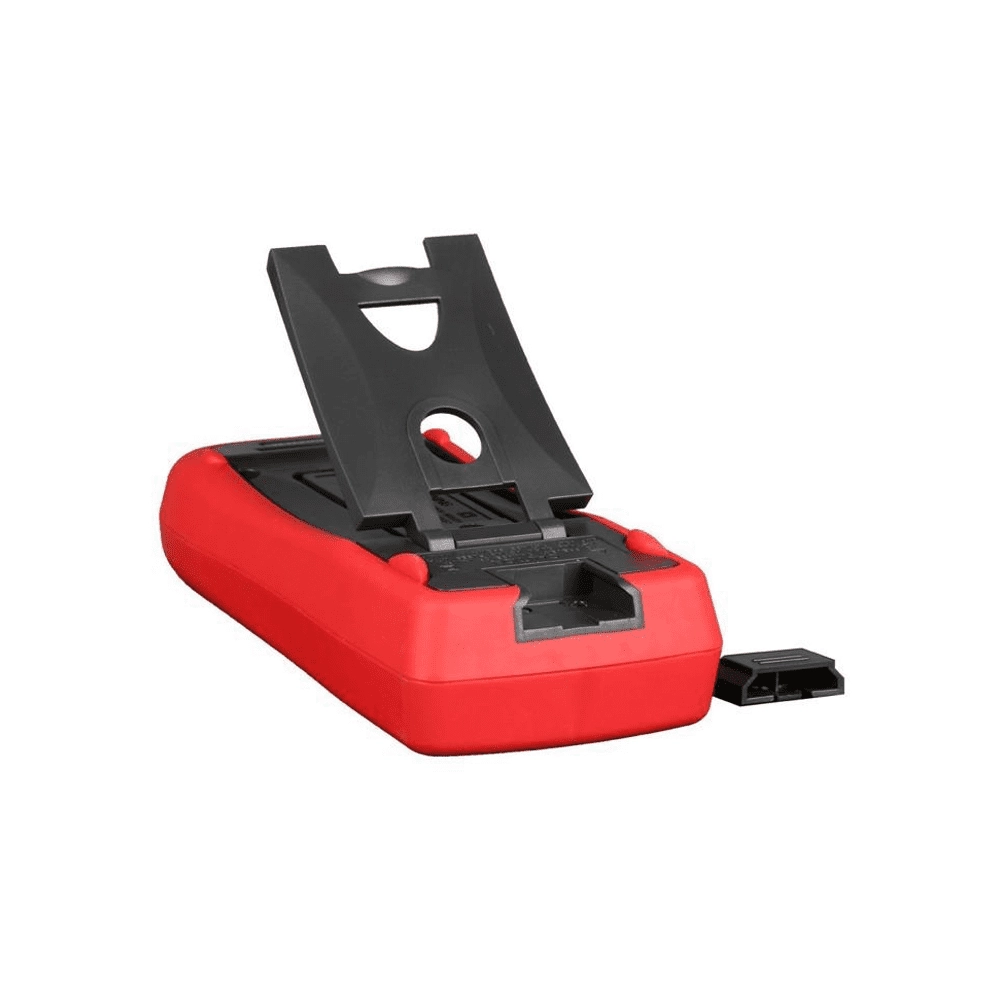

    UNI-T UT61C Digital Multimeter 600mV-1000V

    # UT61C

    This product has been discontinued by the manufacturer.
    Alternate products: UT61D+.

    • Back-lit LCD Screen with 40-segment analog bar graph
    • Relative value measurement
    • Max & Min value
    • Back-lit LCD Screen with 40-segment analog bar graph
    • Relative value measurement
    • Max & Min value
    • Data hold
    • Automatic power-off (can be disabled)
    SpecificationsRangeBest Accuracy
    ModelUT61C
    DC Voltage (V)60mV/600mV/6V/60V/600V/1000V±(0.5%+1)
    AC Voltage (V)60mV/600mV/6V/60V/600V/750V±(1.0%+3)
    DC Current (A)600μA/6000μA/60mA/600mA/6A/10A± (1.0%+3)
    AC Current (A)600μA/6000μA/60mA/600mA/6A/10A±(1.2%+5)
    Resistance (Ω)600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.0%+2)
    Capacitance (F)40nF/400nF/4μF/40μF/400μF/4000μF ±(3.0%+5)
    Frequency (Hz)10Hz-10MHz±(0.1%+4)
    Temperature (°C)-40°C ~ 1000°C±(1.2%+3)
    Temperature (°F)-40°F~1832°F±(1.2%+4)
    Features
    Display Count6000
    Auto Range
    Bandwidth (Hz)45Hz ~1kHz
    Duty Cycle0.1% ~ 99.9%
    Diode
    Auto Power OffAround 15 Minutes
    Continuity Buzzer
    Low Battery Indication≤7.5V
    Data Hold
    Relative Mode
    MAX/MIN
    RS-232
    LCD Backlight
    Analogue Bar Graph61
    Input Protection
    Input Impedance for DCVAround 10MΩ
    General Characteristic
    Power9V Battery(6F22)
    LCD Size65mm × 43 mm
    Product ColorRed and Grey
    Product Net Weight370g
    Product Size180mm × 87mm × 47 mm
    Standard AccessoriesBattery, Test Lead, Muli-Purpose Socket, RS-232 Interface Cable, PC Software CD, Point Contact Temperature Probe
    Standard Individual PackingGift Box, English Manual
    • UT-61C digital multimeter
    • Test leads
    • Multi-functional adapter: 1
    • RS232 cable: 1
    • Software CD: 1, Windows 95 & up User manual
