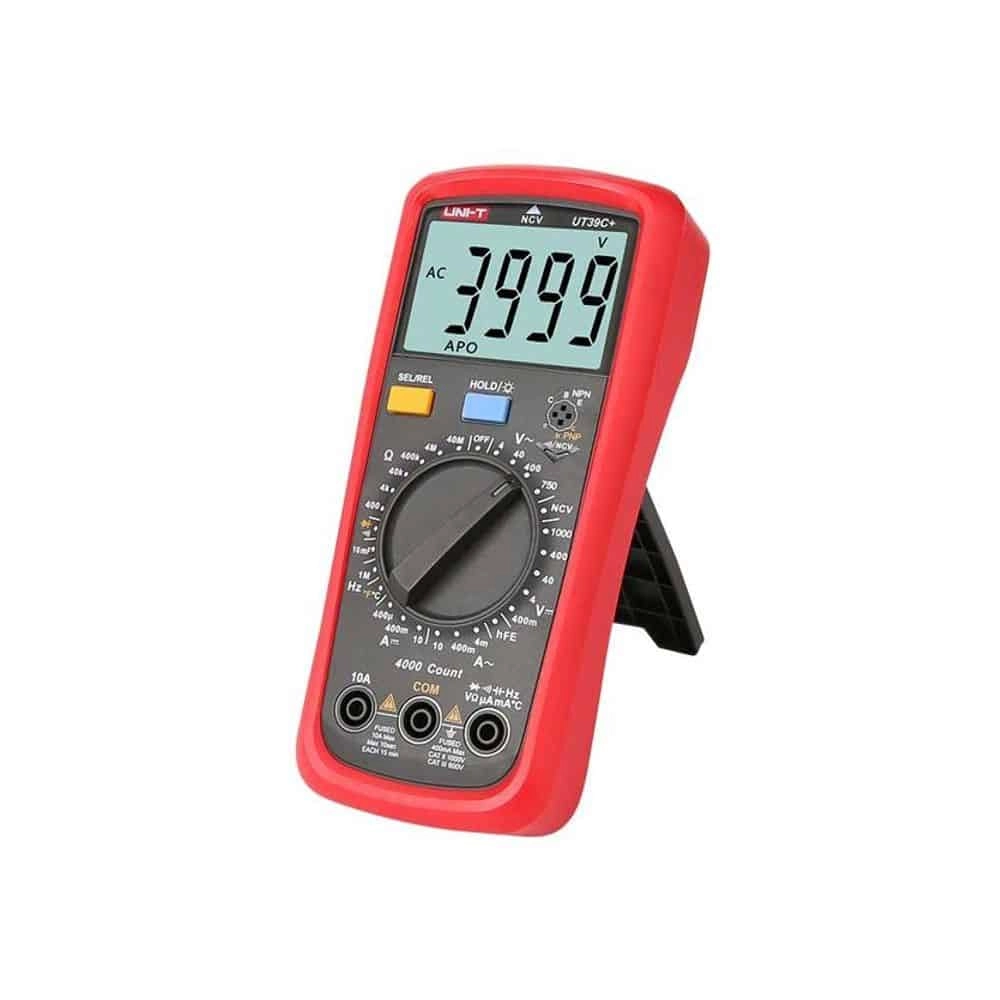

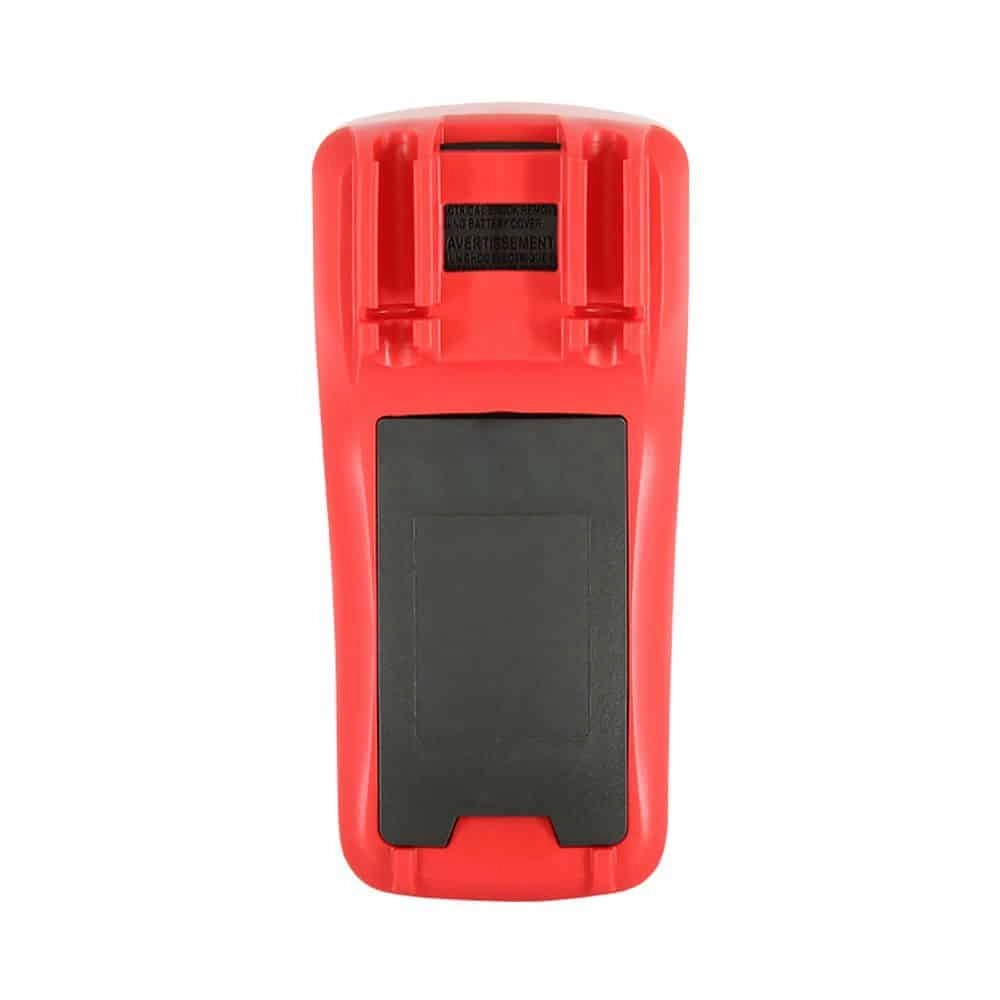

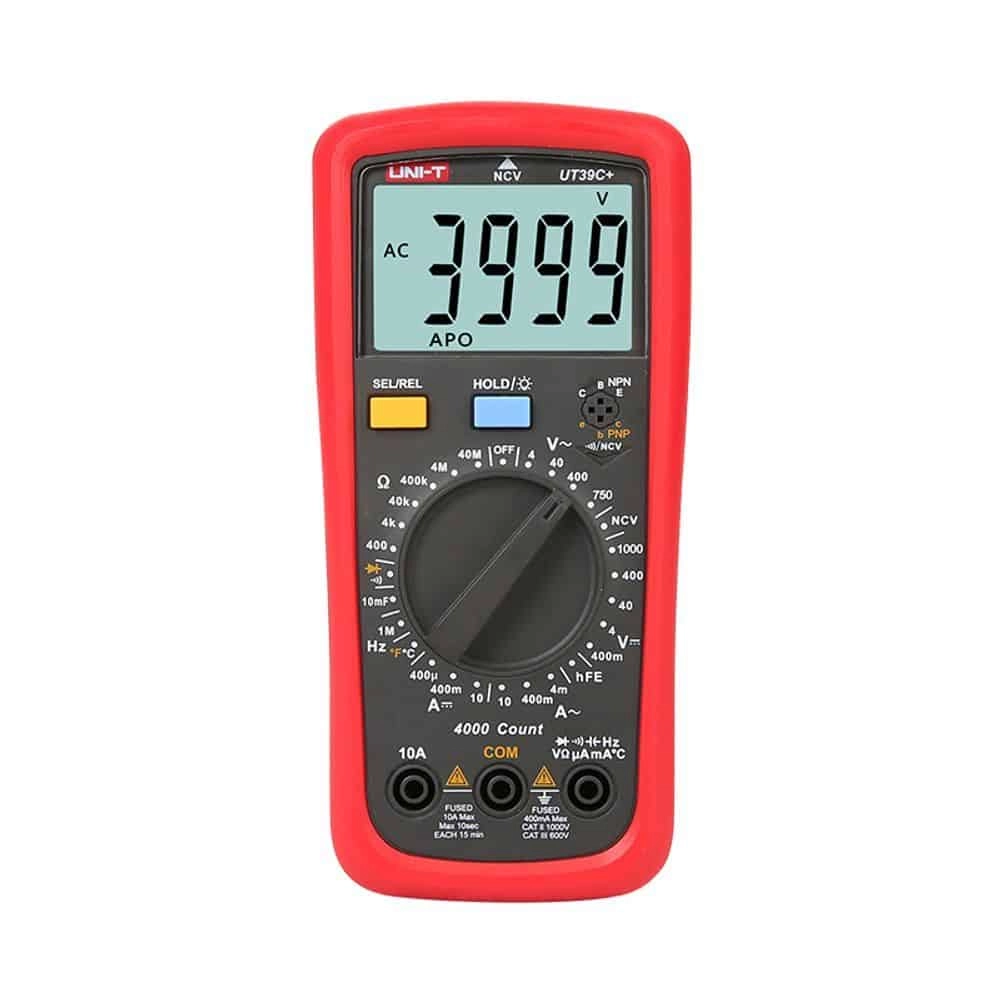

UNI-T UT39C+ Digital Multimeter
# UT39C+
UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with its temperature measurement feature. Designed according to CAT II 1000V/CAT III 600V safety standards.
- 1000V DC voltage measurement
- 750V AC voltage measurement
- 10A DC/AC current measurement
- Resistance/Capacitance
- hFE
- Diode/Continuity test
| Specifications | Range | UT39C+ |
| DC voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
| AC voltage (V) | 4V/40V/400V/750V | ±(0.8%+3) |
| DC current (A) | 400uA/400mA/10A | ±(0.8%+3) |
| AC current (A) | 4mA/400mA/10A | ±(1%+2) |
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) |
| Capacitance (F) | 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(1%+4) |
| Temperature | -40℃~1000℃ | ±(1%+4) |
| -40℉~1832℉ | ±(1.5%+5) | |
| Features | ||
| Display count | 4000 | |
| Transistor hFE | √ | |
| NCV | √ | |
| Diode | √ | |
| Frequency response | 40Hz~400Hz | √ |
| Range selection | Manual | |
| Continuity test | √ | |
| Data hold | √ | |
| Backlight | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03)×2 | |
| Display | 56.5mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
| Standard accessories | Test leads, temperature probe | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 30pcs | |
| Standard carton measurement | 390mm x 355mm x 340mm | |
| Standard carton gross weight | 14.5kg | |
