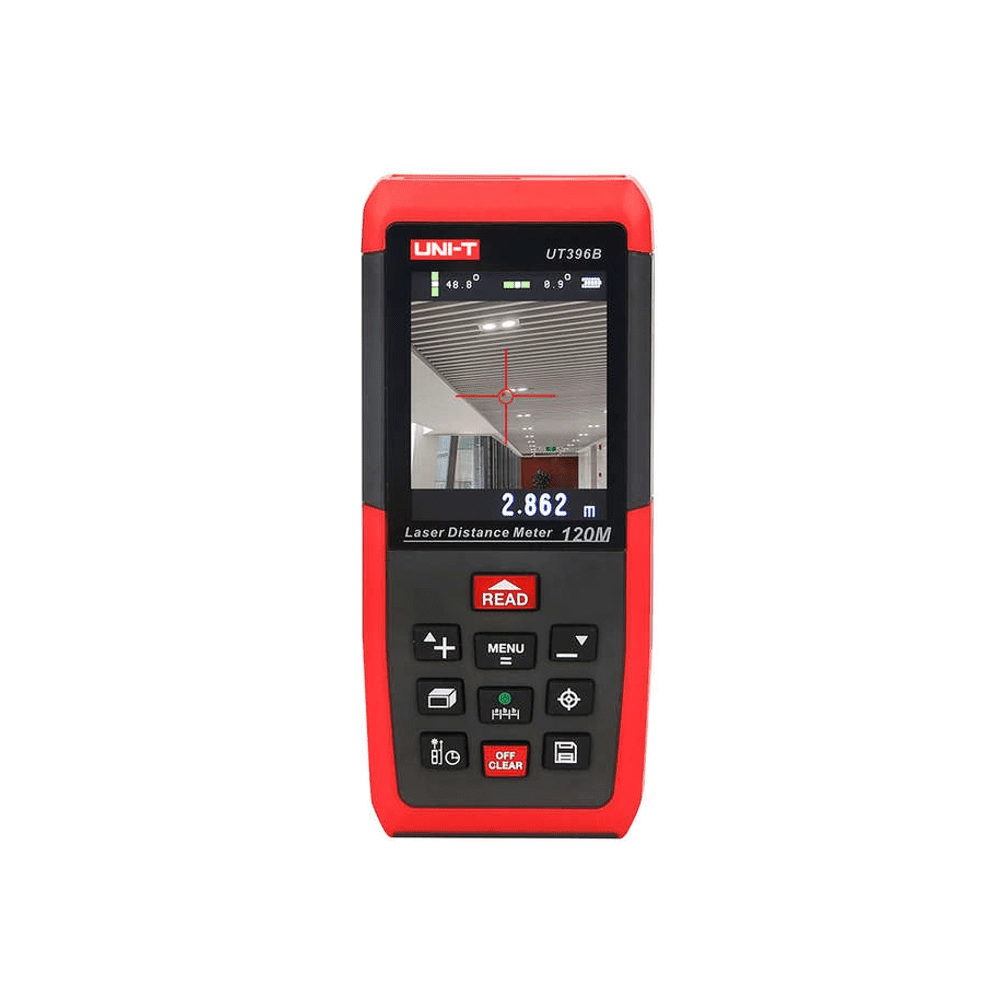

    UNI-T UT396B Prof-Laser Distance Meter 120M

    # UT396B

    • UT396 serious is new professional multi-purpose laser distance meter with high precision.
    • It can measure distance, area, and even obtain volume data by using the Pythagorean Theorem.
    • It is portable, reliable,operationally simple and phase.
    • UT396 serious is new professional multi-purpose UNI-T laser distance meter with high precision.
    • It can measure distance, area, and even obtain volume data by using the Pythagorean Theorem.
    • It is portable, reliable,operationally simple and phase.
    • It is a perfect substitute of traditional measuring tool (tape, steel rule) which can be widely used in construction, decoration, property management, transportation, fire controlling, gardening, city planning, city appearance, management, water conservancy testing, and electric power maintenance industries.
    • Function: Remark
    • Range: 0.05-100 m
    • Min Unit: 1 mm
    • Accuracy**: 2.0 mm+d x5/100000
    • Max Laser Power: <1mW
    • Laser Wave Length: 635 nm
    • Max/Min/Continuous: √
    • Area/ Volume: √
    • Triangle Pythagorean: √
    • Triangle Height/ Angle: √
    • Triangle Area: √
    • Dip Angle Range: -90.0~90.0
    • Delay Measurement: √
    • Staking-out: √
    • Storage Quantity: 100 pcs
    • Universal Electron Level Ruler: √
    • Auto Power off: 100s-300s (adjustable)
    • Auto Laser off: 20s-120s( adjustable )
    • Camera: 2MP
    • USB Connector: √
    • Storage Temperature: -20~60º C
    • Operating Temperature: 0~40º C
    • Storage Humidity: RH 85%
    • Dimension: 126 x 56 x 28 mm
    • Battery: 1.2V 800mAh AAANI-MH battery *3
