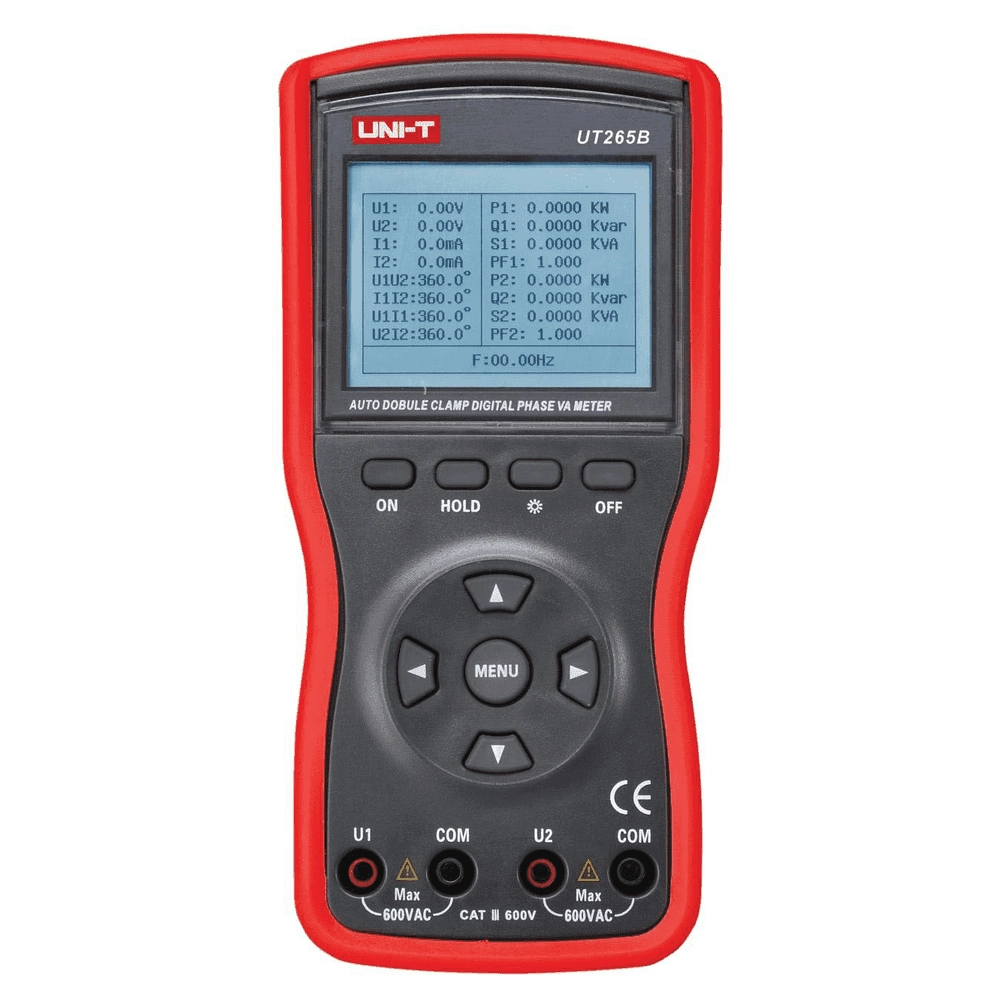

    UNI-T UT265B Intellegent Double Clamp Phase Voltammeters 20A

    # UT265B

    • Measure two-way AC voltage; current; phase angles between voltages
    • Current or both; frequency; phase sequency
    • Active; reactive and apparent powers
    UNI-T
    • UNI-T
    • UT265B
    • Display Mode: LCD:240dots×160dots
    • Auto Range
    • RS-232
    • Data Logging
    • LCD Backlight
    • Input Impedance for DCV
    • Auto Power Off
    • Low Battery Indication
    Specifications Range UT265B
    AC current (A) 0mA~20A ±(1.5%+3)
    AC voltage (V) 0V~600V ±(1.5%+3)
    Frequency (Hz) 45Hz~65Hz ±(2%+3)
    Active power (W) 0W~12kW ±(3%+3)
    Apparent power (VA) 0VA~12kVA ±(3%+3)
    Reactive power (VAR) 0VAR~12kVAR ±(3%+3)
    Power factor -1~+1 ±0.03
    Phase angle (°) 0°~360° ±1°
    Features
    Display mode LCD: 240 dots×160 dots
    Clamp size Acuminate current clamp: 7.5mm×13mm (optional)
    Round jaw current clamp: 35mm×40mm (optional)
    Auto range
    RS-232
    Data storage   1500
    LCD backlight
    Data hold
    Input impedance for DCV ≥2MΩ
    Auto power off About 15 minutes
    Low battery indication
    Sampling rate About 0.5 times/s
    General Characterisitics
    Power 1.5V battery (LR6) x 6
    Product color Red and grey
    Product net weight 550g
    Product size 196mm x 92mm x 54mm
    Standard accessories Batteries, current clamps (2pcs), test leads (2 yellow, 2 black)
    Standard individual packing Gift box, tool box, English manual
    Standard quantity per carton 1pcs
    Standard carton measurement 337mm x 136mm x 333mm
    Standard carton gross weight 3.3kg
