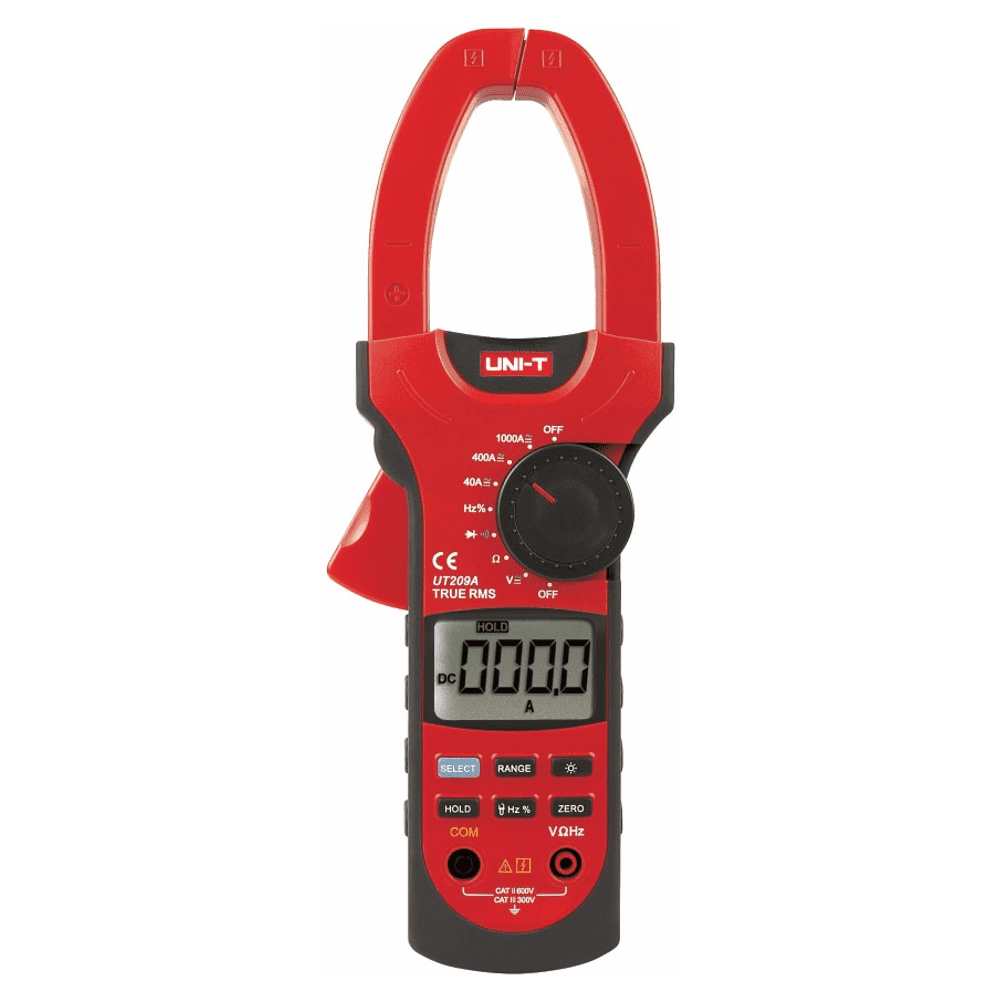

    UNI-T UT209A Clamp Meters True RMS 1000A 400mV-1000V

    # UT209A

    • 1000A AC/DC current measurement, 3 times/s sampling rate
    • Auto/manual ranges selectable
    • True RMS
    UNI-T
    • UNI-T
    • UT209A

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • 1000A AC/DC current measurement, 3 times/s sampling rate
    • Auto/manual ranges selectable
    • True RMS
    • Zeroing function
    • LCD backlight
    • Data hold; Duty cycle
    • Auto power off and low battery indication
    • Diode; Continuity buzzer; Input Impedance for DCV
    Specifications Range UT209A
    AC current (A) 1000A ±(2%+2)
    DC current (A) 1000A ±(1.5%+5)
    AC voltage (V) 600V ±(1.2%+3)
    DC voltage (V) 600V ±(0.8%+1)
    Resistance (Ω) 40MΩ ±(1%+2)
    Frequency (Hz) 10MHz ±(0.1%+3)
    General Characterisitics
    Power 9V battery (6F22)
    Display 47mm x 30mm
    Product color Red and grey
    Product net weight 533g
    Product size 286mm x 105mm x 45mm
    Standard accessories Battery, test leads, tool box
    Standard individual packing Gift box, English manual
    Standard quantity per carton 20pcs
    Standard carton measurement 600mm x 370mm x 474mm
    Standard carton gross weight 28.3kg
