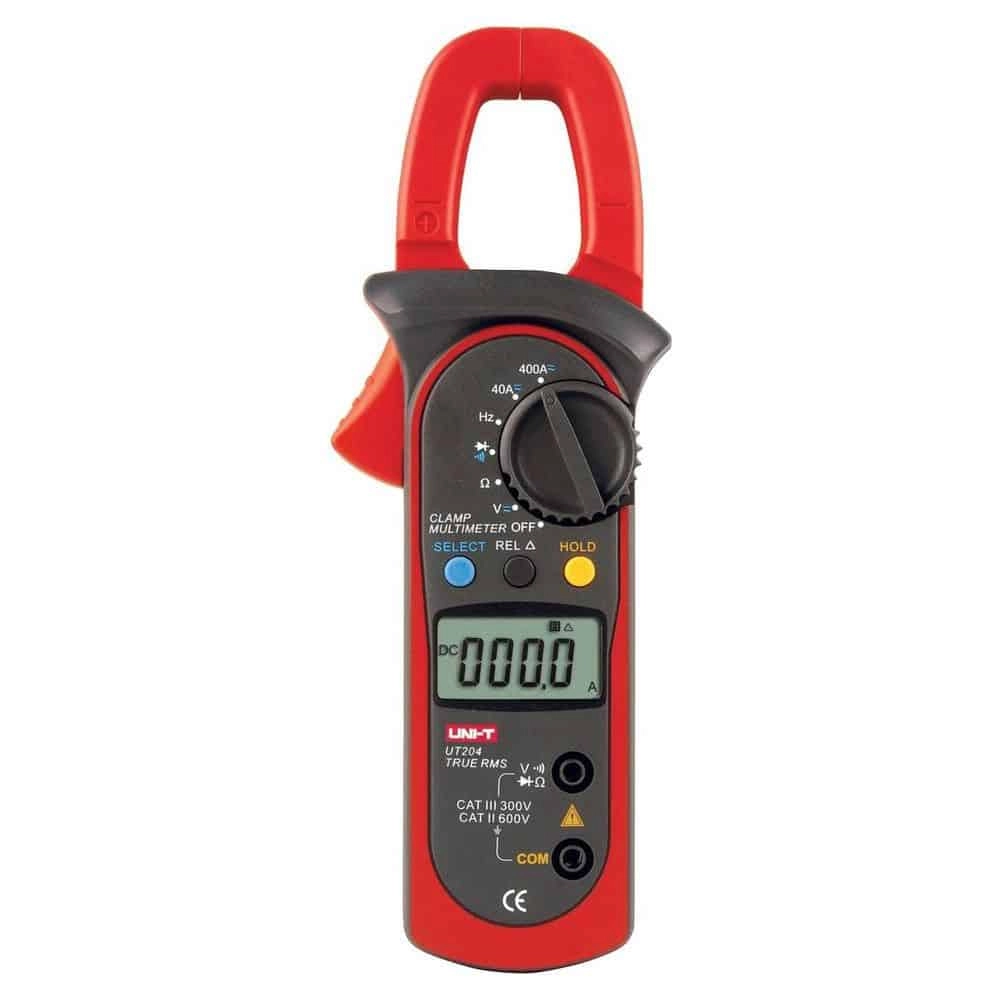

    UNI-T UT204 Digital Clamp Meters True RMS 600A 400mV-600V

    # UT204

    • Designed for measuring AC/DC voltage
    • Current; resistance; frequency; capacitance;
    • Performs diode check and continuity test.
    UNI-T
    • UNI-T
    • UT204

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?
    • 400A/600A AC/DC measurement with Hall-effect sensorand 3/s sampling rate
    • Auto range and 3;999 display count
    • Data hold
    • Relative mode for capacitance zeroing and offset adjustment
    • Auto power off
    • Equipped with K-type point contact temperature probe
    • Capacitance measurement
    • Low battery prompt; over-range prompt and auto polarity display
    • Comfortable to hold and easy to carry with (Product weight: 260g)
    • 1m drop proof
    • Complies with CE (European Union) directives
    Specifications
    Model   UT204
    AC Current (A) 40A/400A ±(2.5%+5)
    DC Current (A) 40A/400A  ±(2%+3)
    AC Voltage (V) 4V/40V/400V/600V ±(1%+5)
    DC Voltage (V) 400mV/4V/40V/400V/600V ±(0.8%+1)
    Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2)
    Frequency (Hz) 10Hz ~ 10MHz ±(0.1%+3)
    Features
    Display Count   3999
    Auto Range
    Jaw Capacity   28mm
    True RMS
    Duty Cycle 0.1%~99.9%
    Diode
    Auto Power Off
    Continuity Buzzer
    Data Hold
    Relative Mode
    Setup
    Input Impedance for DCV Around 10MΩ
    General Characteristics
    Power 9V Battery (6F22)
    LCD Size 35.6mm x18mm
    Product Color Red and grey
    Product Net Weight 260g
    Product Size 208mm X 76mm X30mm
    Standard Accessories Battery, Test Lead, Carrying Bag
    Standard Individual Packing Gift Box, English Manual
    Standard Quantity Per Carton 48pcs
    Standard Carton  Measurement 503×485×295mm (0.072 CBM Per Standard Carton)
    Standard Carton Gross Weight 58kg
