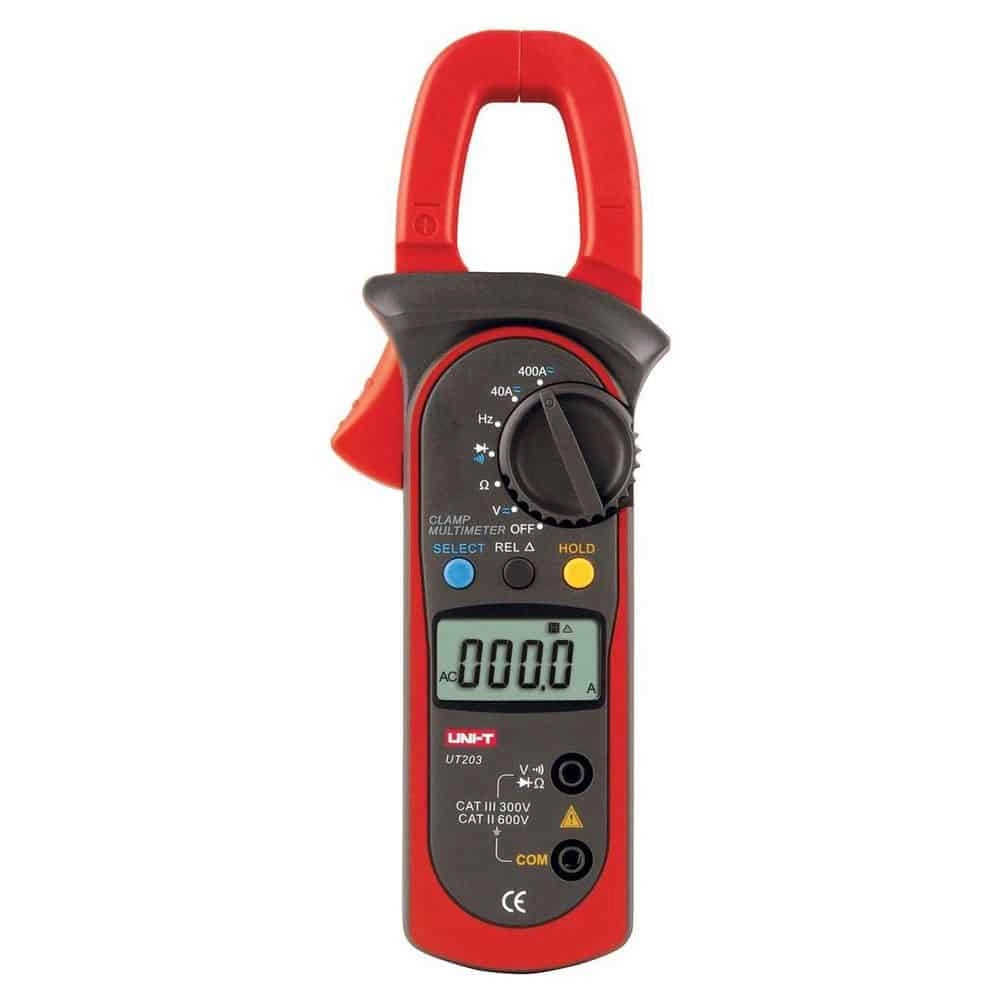

UNI-T UT203+ Digital Clamp Multimeter DC AC Current Voltmeter 400-600A
# UT203+
- Automatic power-off
- Autoranging
- HOLD function
- Multifunctional Clamp Meter: can be used to measure AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, relative value, Max/Min value, continuity test, and diode test.
- Measuring Range: 400A AC/DC current, 600V AC/DC voltage, 40MΩ resistance, 40mF capacitance, 10Hz~10MHz frequency, and 0.1%~99% duty cycle.
- Data Hold & Max/Min: hold the measured data for conveniently checking or observing data.
- Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
- 28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit.
- Material: ABS
- Safety Rating: CAT II 600V, CAT III 300V
- Display Count: Max. 4000
- Jaw Opening: 28mm
- Auto off: 15 minutes
- Range: Auto
- AC Current Range: 40.00A/400.0A
- AC Current Resolution: 0.01A/0.1A
- DC Current Range: 40.00A/400.0A
- DC Current Resolution: 0.01A/0.1A
- AC Voltage Range: 4.000V/40.00V/400.0V/600V
- AC Voltage Resolution: 0.001V/0.01V/0.1V/1V
- AC Voltage Frequency: 10Hz~60kHz
- AC Voltage Frequency Resolution: 0.01Hz~0.01kHz
- DC Voltage Range: 400.0mV/4.000V/40.00V/400.0V/600V
- DC Voltage Resolution: 0.1mV/0.001V/0.01V/0.1V/1V
- Resistance Range: 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
- Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
- Capacitance Range: 40.00nF/400.0nF/4.000uF/40.00uF/400.0uF/4.000mF/40.00mF
- Capacitance Resolution: 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
- Frequency Range: 10Hz~10MHz
- Frequency Resolution: 0.01Hz~0.01MHz
- Duty Cycle Range: 0.1%~99%
- Duty Cycle Resolution: 0.1%
- Continuity Range: 400.0Ω
- Continuity Resolution: 0.1Ω
- Diode Range: 4.000V
- Diode Resolution: 0.001V
- Operating Temperature: 0~30℃(humidity ≤ 80%RH), 30~40℃(humidity ≤ 75%RH),
- 40~50℃(humidity ≤ 45%RH)
- Storage Temperature & Humidity: -20~60℃, ≤ 80%RH
- Altitude: 2,000 meters
- Power Supply: 2 * 1.5V AAA battery (NOT included)
- Item Size: 215 * 63.5 * 36mm / 8.46 * 2.5 * 1.41in
- Item Weight: 268g / 9.45oz
- Package Weight: 359g / 12.66oz
- Package Size: 23.5 * 9.2 * 5.3cm / 9.25 * 3.62 * 2.09in
- 1 – Clamp Meter
- 2 – Test Lead
- 1 – Storage Bag
- 1 – Manual (English)
