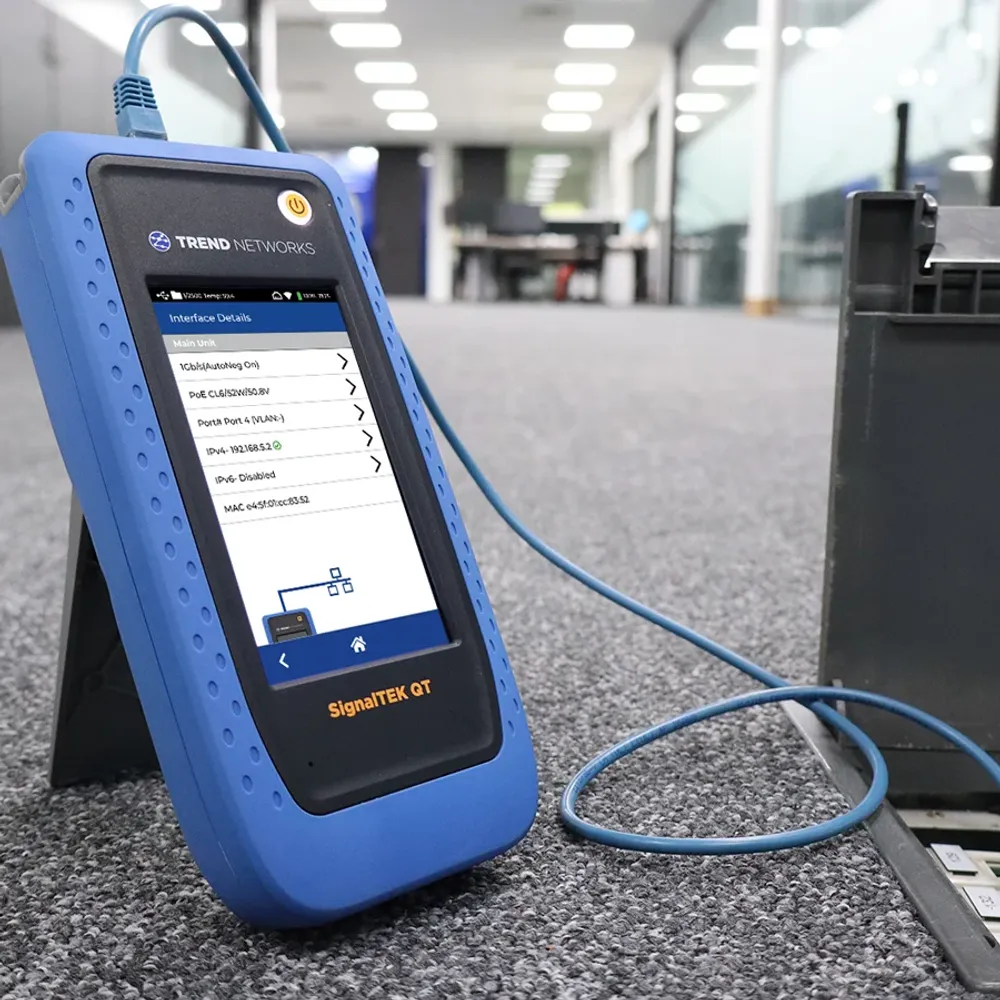

Trend Networks TRADE166001 SignalTEK QT Pro, Trade In

Features

• Simplified user interface for easy setup and operation
• Test copper cable performance (10Mb/s to 10Gb/s) and fibre cables (10Mb/s to 100Gb/s)
• Perform load tests up to 90 watts to ensure power delivery to the latest PoE devices
• 54 Wh battery provides 10-hour operation on a single charge
• Gigabit Ethernet port 2 x USB A ports
• Instant wiremap result before the Autotest begins
• Check connector quality and perform automatic, Pass/Fail testing to IEC 61300-3-35 standard
• Pre-configure jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes

Technical Information

• Copper qualification 10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, 10Gb/s

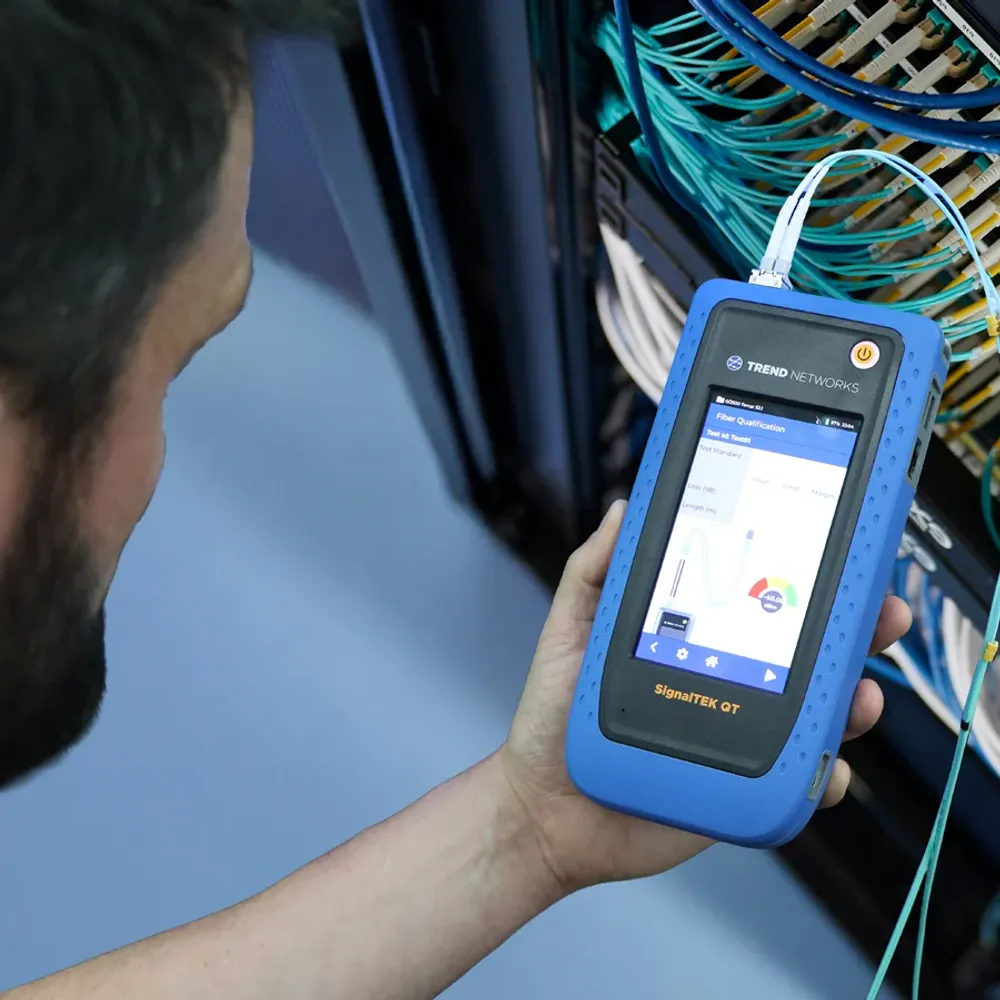

• Fibre attenuation (dB loss) Yes
• Integrated visual fault locator (VFL) Yes
• Fibre optic connector inspection microscope Pass/Fail testing to IEC 61300-3-35 Optional
• Switch port info (speed, name, port number, address) Copper & Fibre

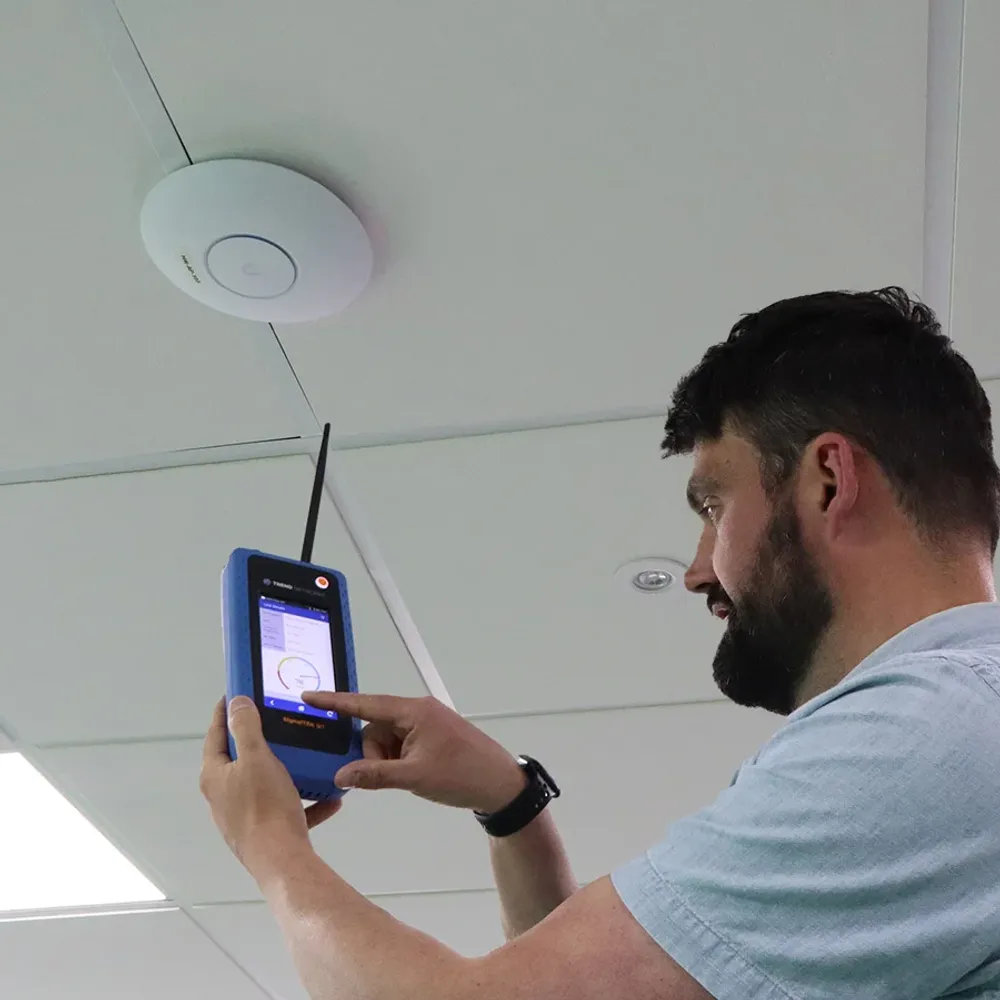

• Wi-Fi AP scan with conflict check and Wi-Fi signal strength Yes
• Wi-Fi site scan with AP information, channel map, Tx/Rx rates, channel utilization, AP location with external antenna Yes
• Network diagnostics Copper, Fibre & WiFi
• Identify top VLAN IDs (levels 1-3) Yes
• Interface ports RJ45 test port, ext. Wi-Fi antenna, SFP+, VFL, wired Ethernet, 2 x USB A, USB C
• Touchscreen Yes
• Internal storage for 2,500 test results Yes
• Part no TRADE166001
