Trend Networks STQT-PRO-KIT-3Y SignalTEK QT Pro Bundle, 10G Copper/Fibre/Wi-Fi Qualification Tester with Extended Warranty, Accessories and Hard Carry Case

Features

• Simplified user interface for easy setup and operation
• Test copper cable performance (10Mb/s to 10Gb/s) and fibre cables (10Mb/s to 100Gb/s)
• Perform load tests up to 90 watts to ensure power delivery to the latest PoE devices
• 54 Wh battery provides 10-hour operation on a single charge
• Gigabit Ethernet port 2 x USB A ports
• Instant wiremap result before the Autotest begins
• Check connector quality and perform automatic, Pass/Fail testing to IEC 61300-3-35 standard
• Pre-configure jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes

Technical Information

• Copper qualification 10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, 10Gb/s
• Fibre attenuation (dB loss) Yes
• Integrated visual fault locator (VFL) Yes
• Fibre optic connector inspection microscope Pass/Fail testing to IEC 61300-3-35 Optional

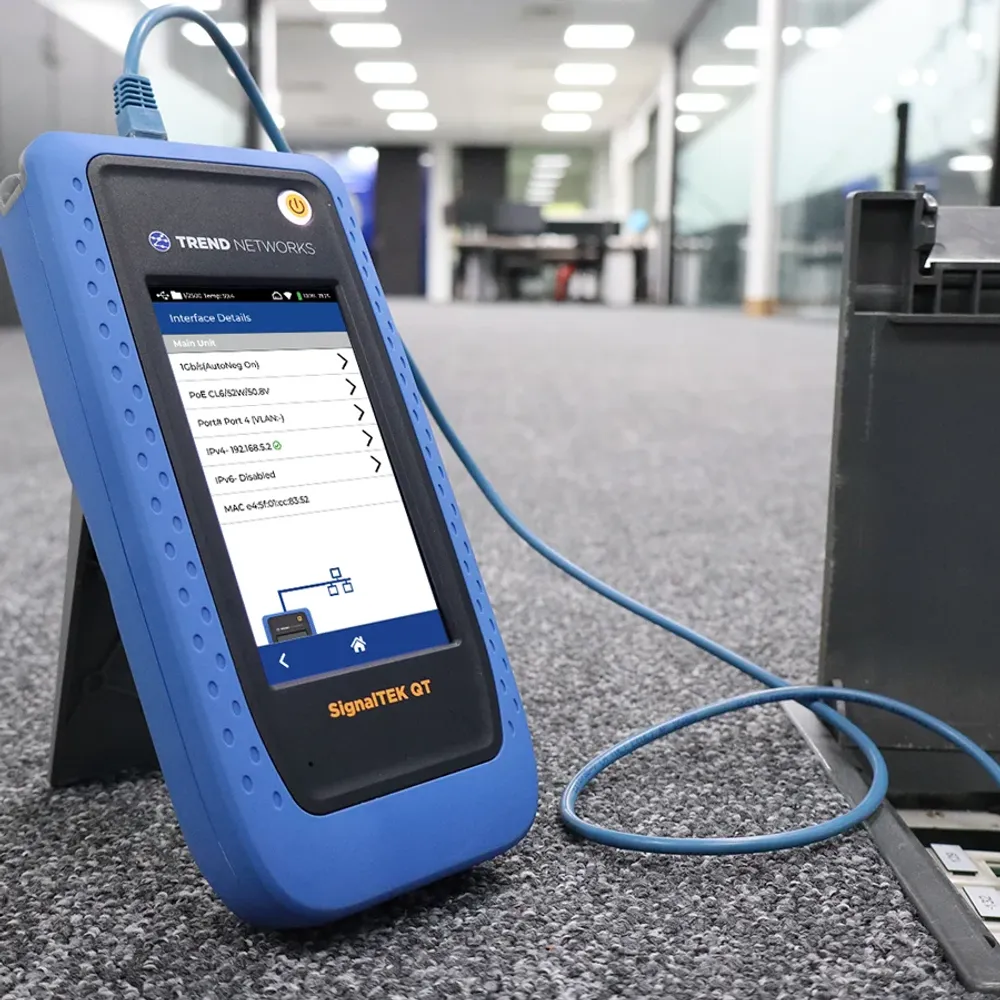

• Switch port info (speed, name, port number, address) Copper & Fibre

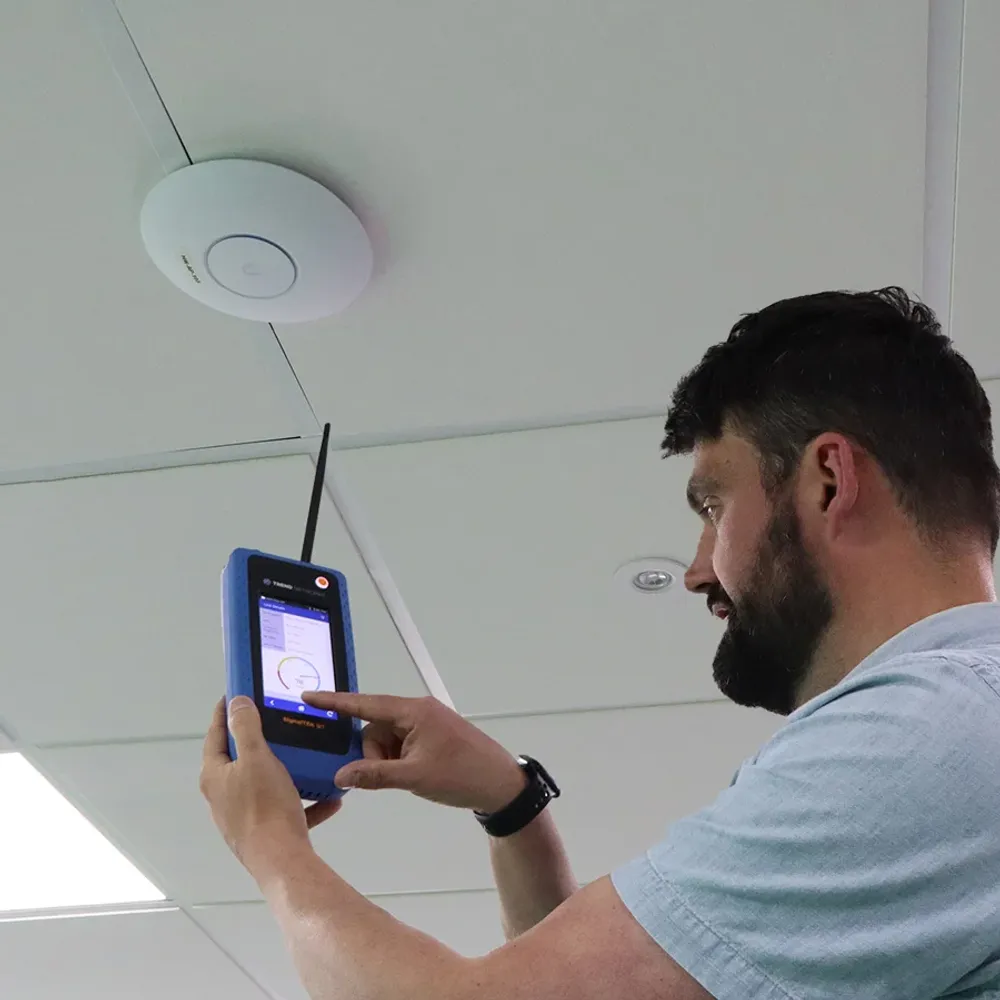

• Wi-Fi AP scan with conflict check and Wi-Fi signal strength Yes
• Wi-Fi site scan with AP information, channel map, Tx/Rx rates, channel utilization, AP location with external antenna Yes
• Network diagnostics Copper, Fibre & WiFi
• Identify top VLAN IDs (levels 1-3) Yes
• Interface ports RJ45 test port, ext. Wi-Fi antenna, SFP+, VFL, wired Ethernet, 2 x USB A, USB C
• Touchscreen Yes
• Internal storage for 2,500 test results Yes
• Part no STQT-PRO-KIT-3Y

Items Included

• 10G copper/fibre qualifier with Wi-Fi (internal and external antennas)
• Hard carry case
• 12 x plug (male) copper remotes – ID #1-12
• 12 x socket (female) copper remote – ID #1-12
• 1 x 1310nm SM high stability SFP module
• 1 x 850nm MM high stability SFP module
• 1 x LC-LC and 1 x LC-SC SM and MM duplex patch cords
• 1 x LC and 1 x SC SM and MM fibre loopback remotes
• 2.5 & 1.25mm fibre cleaning pens
• Cable tracing probe
• Hard carry case

Downloads

Datasheet
