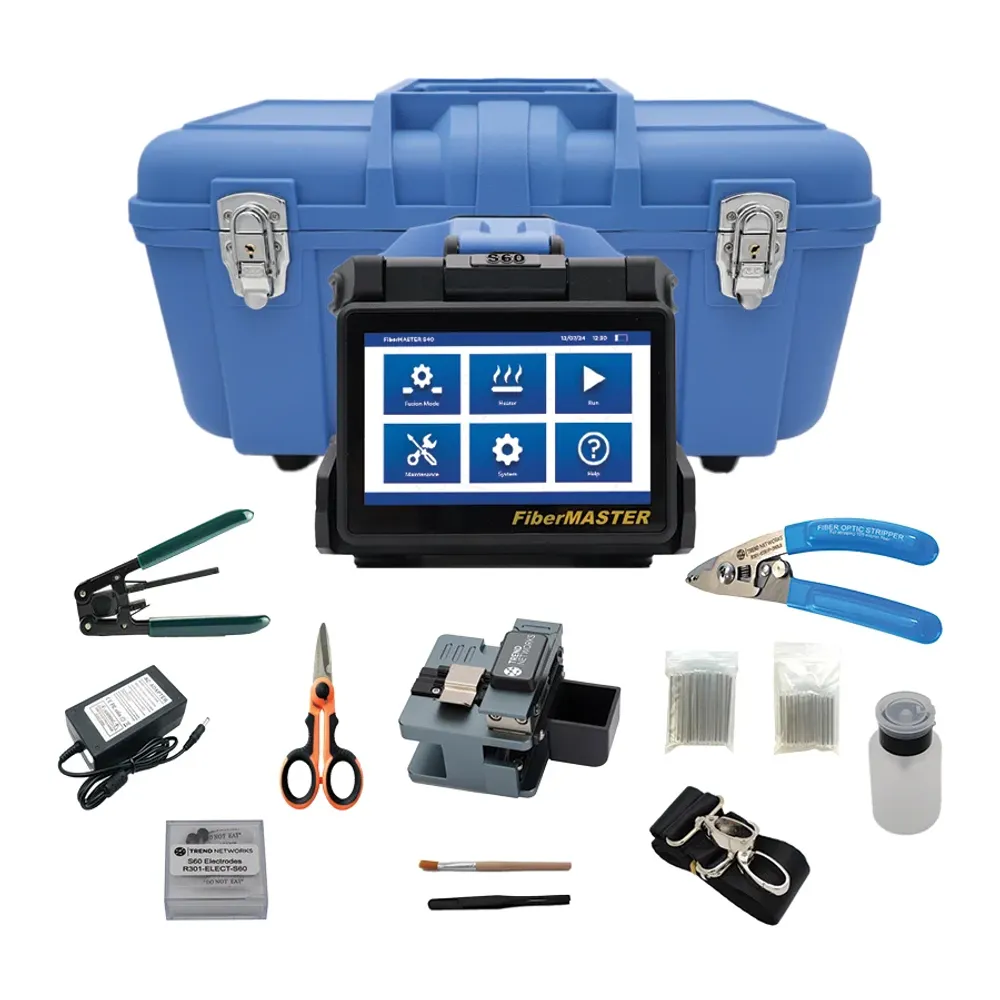

Trend Networks R301-S60K FiberMASTER S60 Active Core Alignment Fusion Splicer Kit

Model # R301-S60K

Key Features

Qty:

Question about this product?

FiberMASTER achieves maximum performance and industry leading repeatability over hundreds of splices
Industry leading with splice loss as low as 0.01dB
Built for field use in a variety of real-world conditions
Industry leading with splice loss as low as 0.01dB
Sapphire Care Plan available to minimise downtime and avoid unexpected service or repair costs
Depend on local Technical Support to ensure rapid resolution

Supported Fiber Types SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), G.657, EDF
Fiber Cladding Range 80 to 150μm
Fiber Coating Range 160 to 3000μm
SM Mean Splice Loss 95.0% of Splices 0.0121 dB, 0.0102 to 0.0140
Typical Return loss >60dB
Splicing Programs 40 Preset + 60 Custom
Operating Modes Automatic/Manual
Heating Modes Automatic Pre-Heat/Manual
Typical Splice Time 6 Seconds in Fast Mode
Typical Heating Time 18s/40mm, 20s/60mm
Camera Magnification 400X (X/Y views separately), 200X (X/Y views together)
Display 5 in./127 mm color LCD, capacitive touch
Record Storage 10,000 Loss Results + 100 images
Splice Loss Elimination Yes
Tension/Pull Test 1.8 to 2.2N

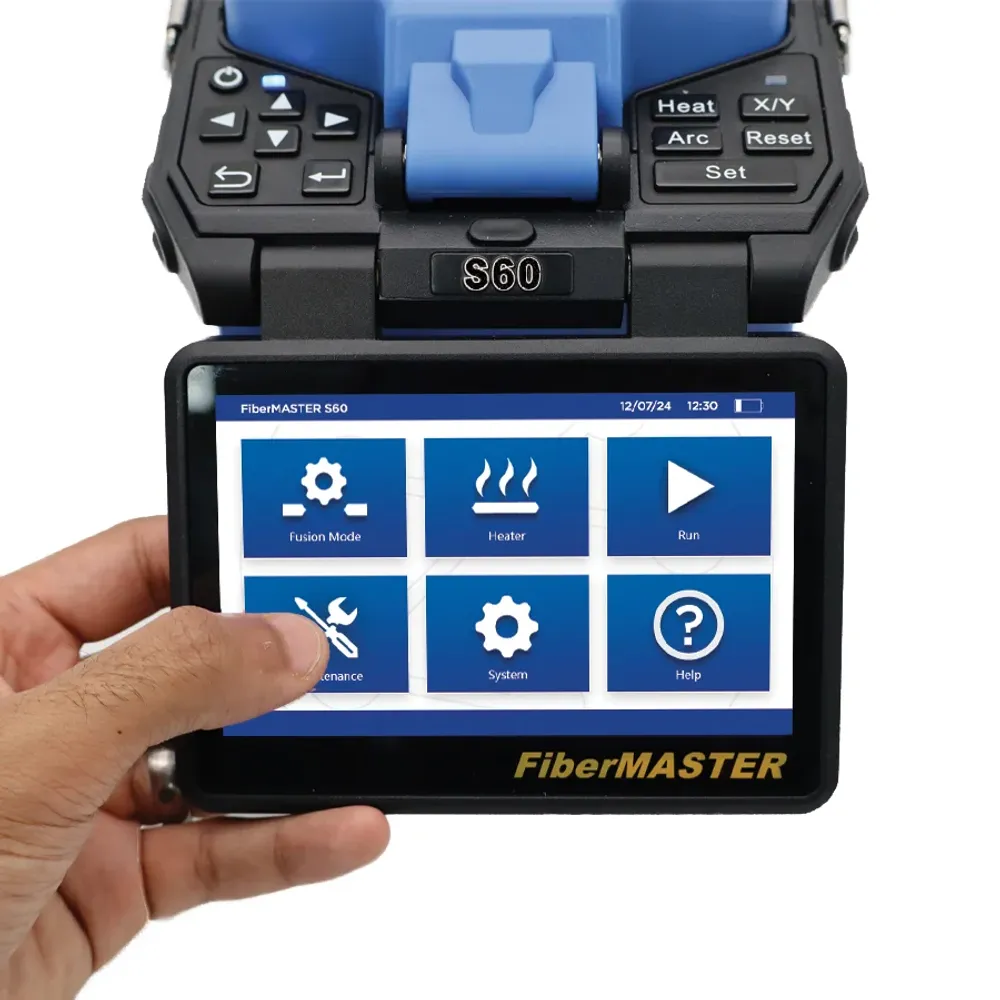

User Interface Graphical touch screen plus dedicated buttons for key functions
Battery Capacity
Charge time 8 hours
Power Supply Input
Electrode Durability >5,000 Arc discharges, user replaceable
Altitude 0 to 5000m / 0 to 16,400ft
Temperature -25°C to 50°C / -13°F to 122°F
Humidity 0 to 95%, non-condensing
Wind 15m/s, 54KPH, 33MPH max
Splicer Dimensions L x W x H 155 x 144 x155 x 155 mm., 6.1 x 5.7 x 6.1 in.
Splicer Weight with Battery, Excluding Case/Accessories 2.35kg, 5.18 lbs
Connectivity USB Type A to download splice results plus update software
Part no R301-S60K
