Trend Networks R240-PIP FiberMASTER PON OTDR

Model #   R240-PIP

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Configuration includes SC-APC connectors, video probe port, power meter
  • Wavelength Range: 1310 nm, 1550 nm, 1625 nm
  • Ultra-high dynamic range for measuring 1:32 splitters
  • Allows for in-service testing without interruptions to users
  • Configured with SC-APC connectors, video probe port, power meter
  • Enables easy verification/troubleshooting/certification of fiber optic cabling
  • Distance accuracy verified by German test lab GHMT AG in accordance with Telcordia GR-196 specifications
  • Offers ability to test longer fibers, PON systems, maintain accuracy on high-loss fibers
  • High dynamic range/small dead zones for precision required for installation/troubleshooting jobs
  • Software simplifies certification of cabling to meet TIA/ISO/IEC/IEEE requirements with simple PASS/FAIL results
  • Custom test parameters for accommodating any application
  • Automates testing, walks user through process
  • Identifies split ratios for easy testing/troubleshooting of inactive/active networks for FTTx/FTTH applications
  • High 1625 nm wavelength allows for in-service testing of networks without interrupting existing subscribers
  • Pairs with R240-LSIV FiberMASTER Quad Wavelength Light Source (not included) for directly measuring cable attenuation/output power of optical equipment
  • Supports R240-VIP FiberMASTER Video Inspection Probe (not included) to capture images of connector on each end of cabling
  • Compatible with CertSoft Reporting Software to easily manage test data/documentation
  • Minimal training time with guided setup/testing process
  • Rubber ears protect optical connectors
  • Intuitive user interface for easy setup/operation
  • Responsive bright color touchscreen for ease of use
  • Instant boot-up for faster testing
  • Lithium polymer battery offers 10 hours of continuous usage
  • Handy stylus clipped onto back of tester
  • Kickstand for benchtop use
  • Extra-thick rubber housing protects tester

Technical Information

  • 37dB dynamic range SM
  • Built in power meter +5 to -77 dBm
  • Generating reports From CertSoft
  • Display Range ~256 km
  • Wavelength Range 1310 nm, 1550 nm, 1625 nm
  • Dead Zones 1m Event, 5m Attenuation
  • Minimum Sampling Resolution 2.36 in. (6 cm)
  • Sampling Points ~128,000
  • Storage Results ~40,000
  • Connector Type SC-APC
  • Part no R240-PIP

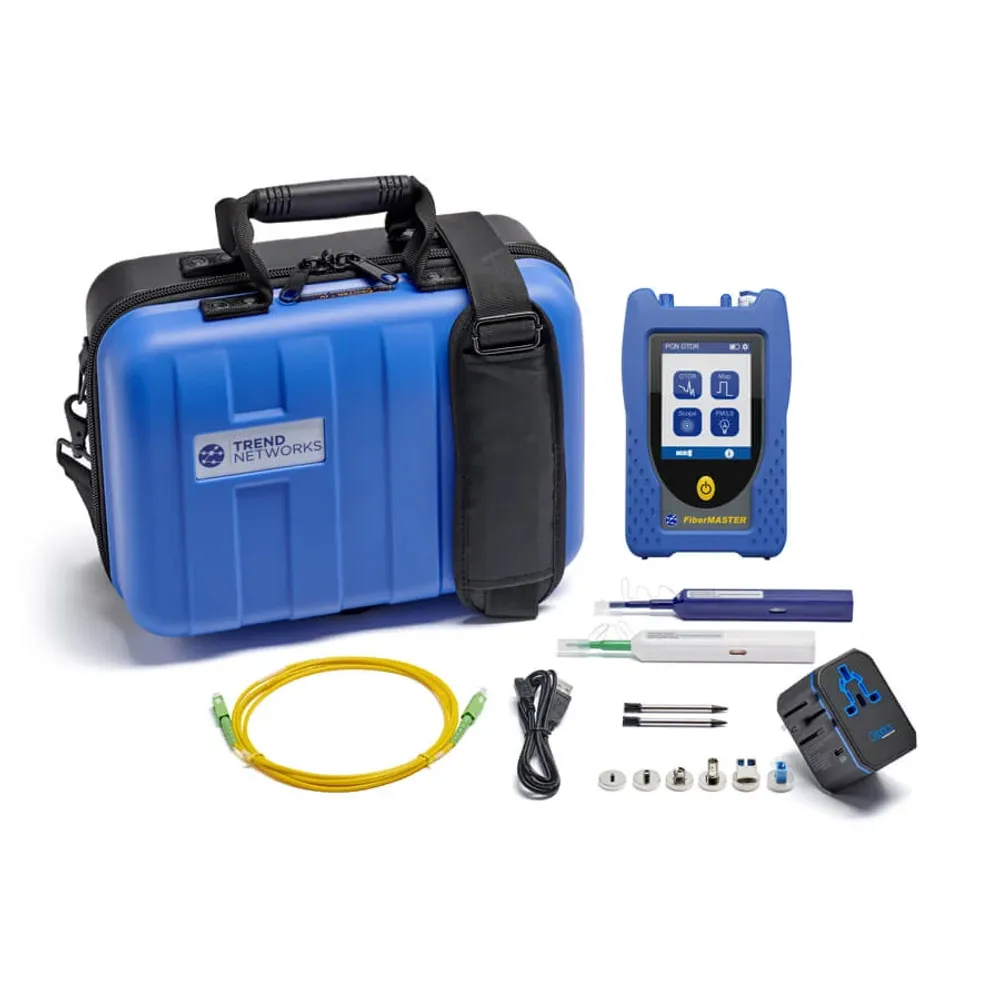

Items Included

  • 1 - FiberMASTER PON OTDR (R240-PIP)
  • 1 - Single-Mode APC SC-SC Cable, 2m
  • 1 - Cleaning Pen, 2.5 mm
  • 2 - Styluses
  • 1 - USB Cable
  • 1 - Power Adapter
  • 1 - Hard Carrying Case
  • 1 - User Manual
