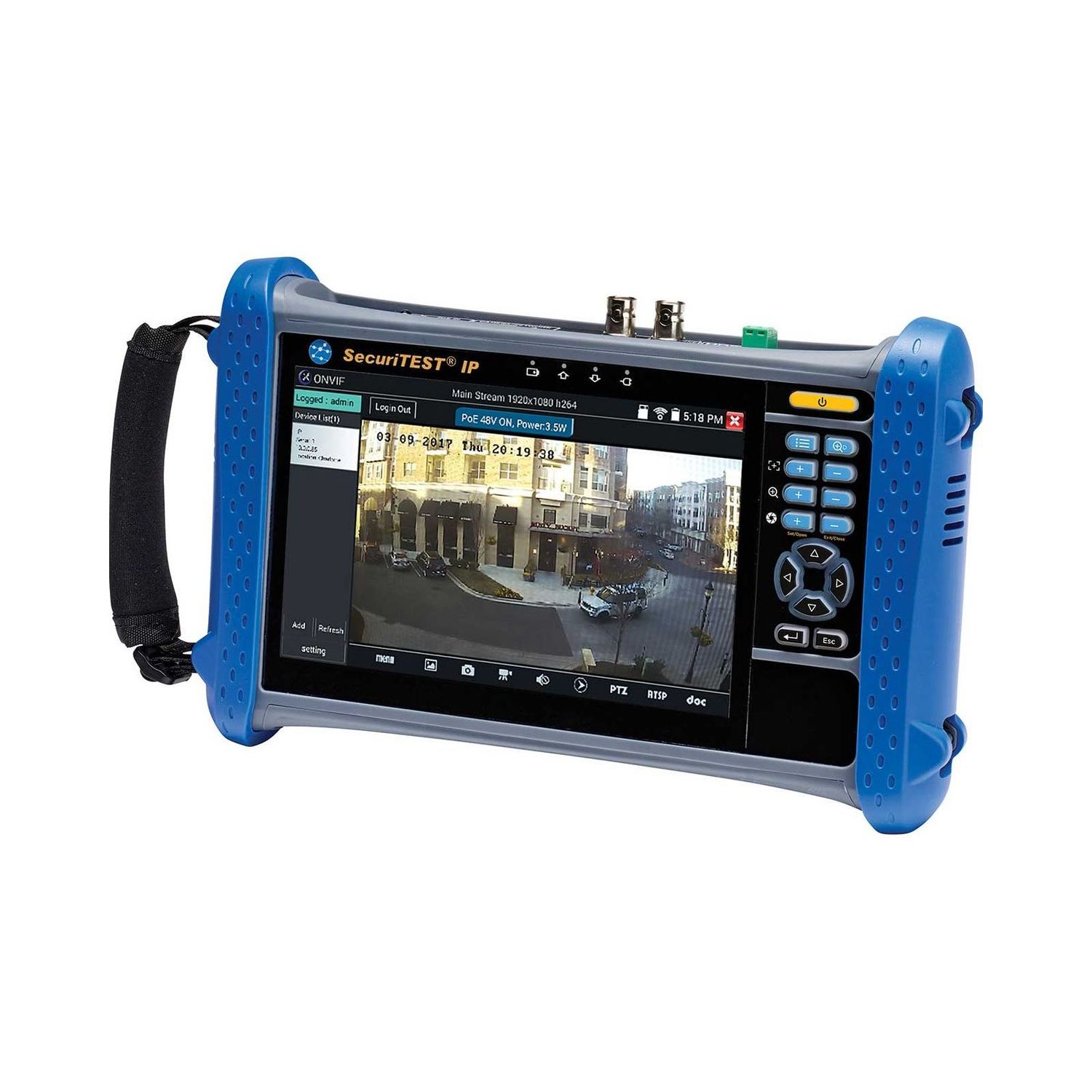

Trend Networks R171000 SecuriTEST IP, Digital/Analog/HD Coax CCTV Tester

Features

• SecuriTEST IP digital/analog/HD coax CCTV tester
• Accurate setup of 4k cameras: Digital zoom displays full detail of high resolution video on 7 in. touchscreen
• Fast access to key features: Shortcut menu to instantly launch most used tools
• One hand operation: Pan/Tilt/Zoom (PTZ) camera using either touchscreen or hard keys
• Long battery life: Up to 10 hours continuous usage with lithium-ion battery
• Ease of use: High resolution 7 in. capacitive touchscreen with 1920 x 1200 resolution display
• Flashlight: Bright LED flashlight with 5/10/30/60 minute auto-off options
• PoE+ troubleshooting: Display PoE+ consumption of attached camera in real-time using power monitor tool; displays voltage by pair and total wattage drawn
• Analog/AHD/CVI/TVI video input: Connect to all common analog and HD-over-coax cameras for maximum versatility
• Setup security monitors: Use analog Video Out port on tester with test pattern generator function to setup security monitors
• 12V DC power supply: Power any camera using built-in 12V/2A DC power supply
• Power up camera with PoE+: RJ-45 network port provides PoE+ (up to 24 watts) to camera using internal battery when network power is unavailable
• Troubleshooting HDMI: Use HDMI In port, connect to any HDMI source to isolate Network Video Recorder (NVR) vs monitor problems
• HDMI In: Eliminates need for separate monitors
• RS485 interface: Control and program Pan/Tilt/Zoom (PTZ) cameras and monitor incoming PTZ control signals to assist in troubleshooting analog cameras
• Camera audio testing using audio in port: Test microphone equipped cameras using tester's internal speaker
• Camera audio testing using audio out port: Listen to camera audio through tester using external headphones/earbuds; useful in noisy environments
• Data cable testing: RJ-45 port to perform wiremap testing of unshielded twisted pair (UTP) data cabling; automatically identify cross over cables and common wiremap faults using Tracer/Remote
• USB charging: High power 2A USB port quickly charges devices such as mobile phones and tablets (NOTE: This port does not support data transfer)
• microSD slot: Transfer test reports, screen captures and video clips, or update software using microSD card
• HDMI output: Display tester screen on larger monitor using HDMI for greater clarity

Technical Information

• Cable Test Wiremap, distance to fault, length, tone generator (digital)
• Power Options Power the cameras through PoE, 12V, WiFi, or NVR/DVR
• Reports Professional reports
• Image Attachment Capable of attaching up to 6 pictures in one report
• Part Number R171000

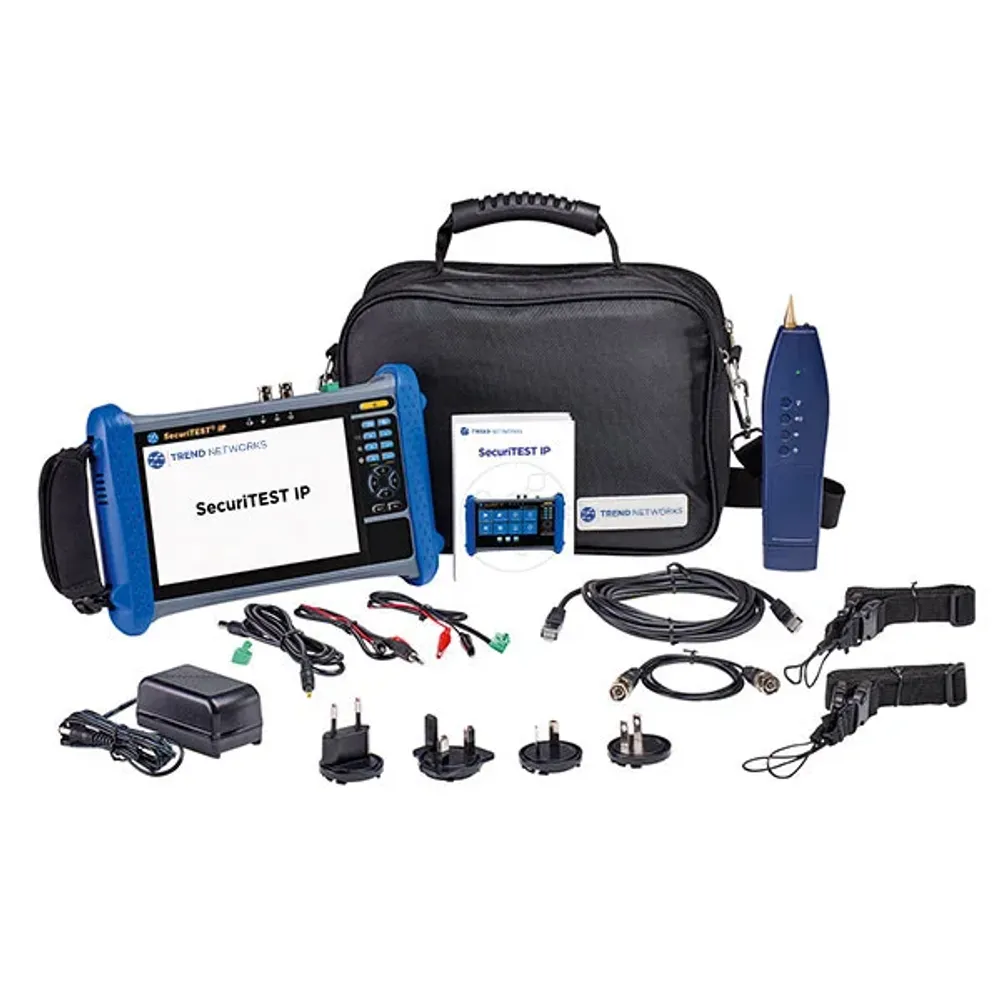

Items Included

• 1 - SecuriTEST IP Camera Tester
• 1 - Carrying Case
• 1 - Neck Strap
• 1 - PSU EU/UK/US/AU Adapters
• 1 - Cable Tracer/Remote
• 1 - 3m Cat. 5e UTP Patch Cable
• 1 - 3m Coax Cable with 2 End BNC (m) Connectors
• 1 - 3m DC12V 3.5(f) to 2.5(f) Power Cable
• 2 - RS485 Female Green Plugs
• 1 - 0.5m RS485 Cable with Female Green Plug and 2 Clips
• 1 - 0.5m Audio Male Jack with Other End 2 Clips
• 1 - Quick Reference Guide
• 1 - 8GB MicroSD Card and Reader with USB Adapter
