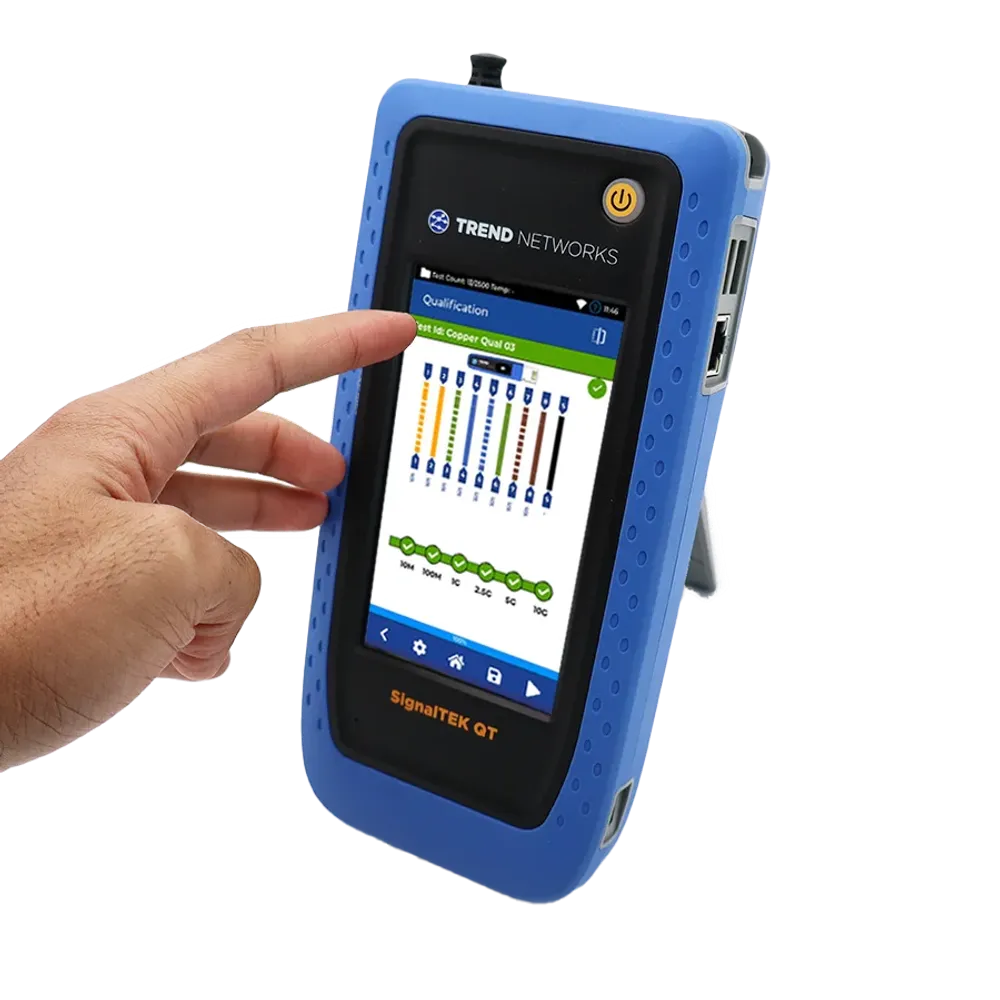

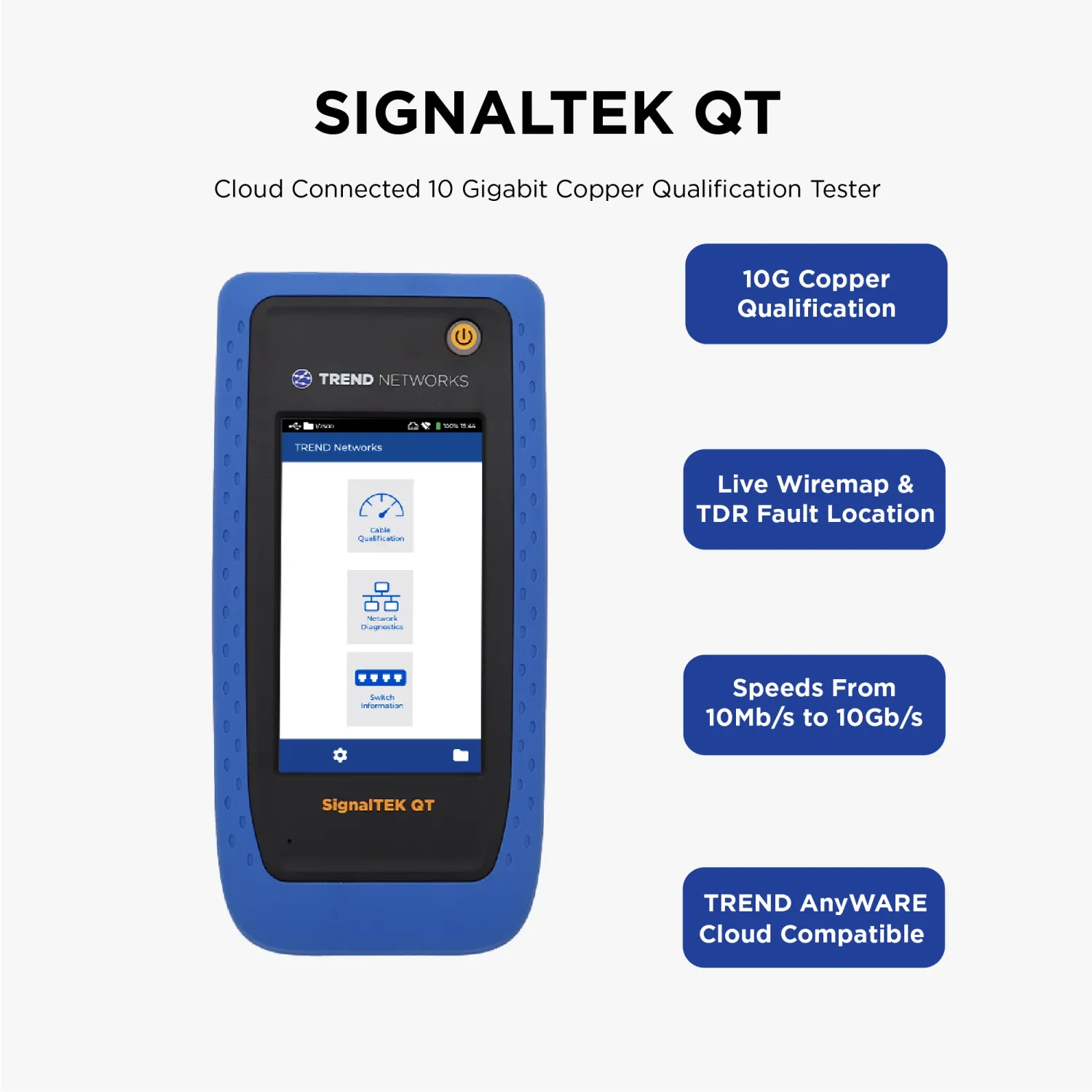

Trend Networks R166002 SignalTEK QT, 10G Copper Qualification Tester

Features

• TREND AnyWARE Cloud enables remote reporting and test result analysis
• Copper Qualification from 10Mb/s to 10Gb/s including the new 2.5 & 5Gb/s multigig speeds

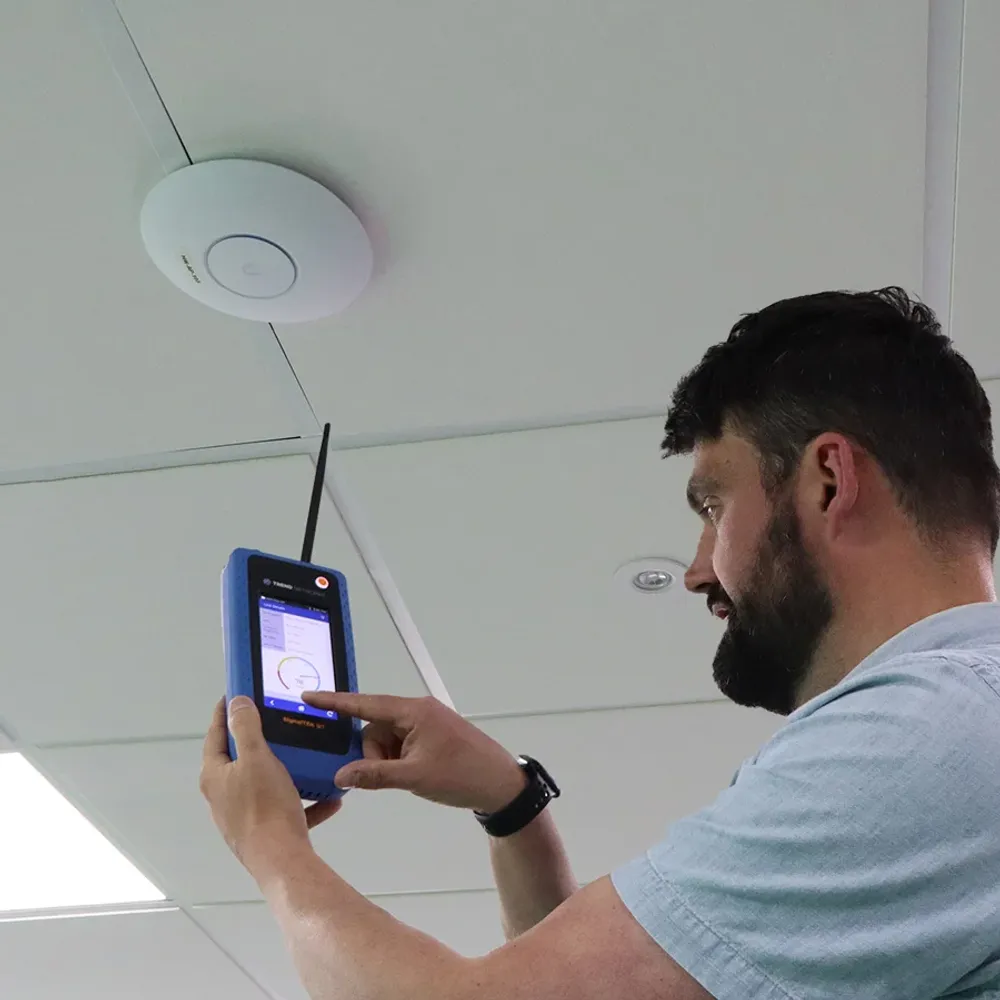

• Wi-Fi Testing with ping, traceroute and device scan tests
• PoE load test up to 90 watts with Pass/Fail results
• Maximise savings with Trade-Up options

Technical Information

• Copper qualification 10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, 10Gb/s
• Fibre attenuation (dB loss) No
• Integrated visual fault locator (VFL) No
• Fibre optic connector inspection microscope Pass/Fail testing to IEC 61300-3-35 No
• Switch port info (speed, name, port number, address) Copper
• Wi-Fi AP scan with conflict check and Wi-Fi signal strength Yes
• Wi-Fi site scan with AP information, channel map, Tx/Rx rates, channel utilization, AP location with external antenna Yes
• Network diagnostics Copper
• Identify top VLAN IDs (levels 1-3) No
• Interface ports RJ45 test port, wired Ethernet, 2 x USB A, USB C
• Touchscreen Yes
• Internal storage for 2,500 test results Yes
• Part no R166002

Items Included

• 10G copper qualifier
• Soft carry case

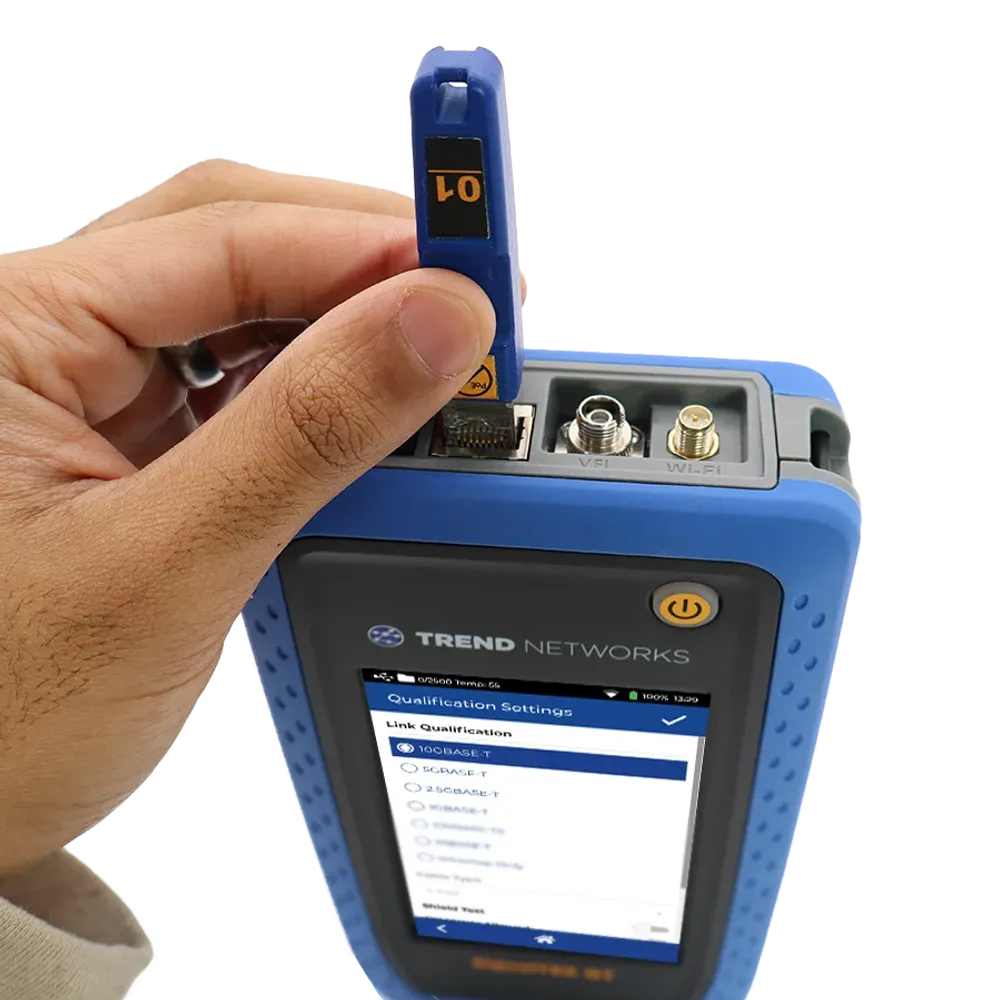

• 1 x plug (male) copper remote – ID #1
• 1 x socket (female) copper remote – ID #1
• 1m Cat 6A shielded patch cord
• USB-C charger with changeable plugs

Downloads

Datasheet
