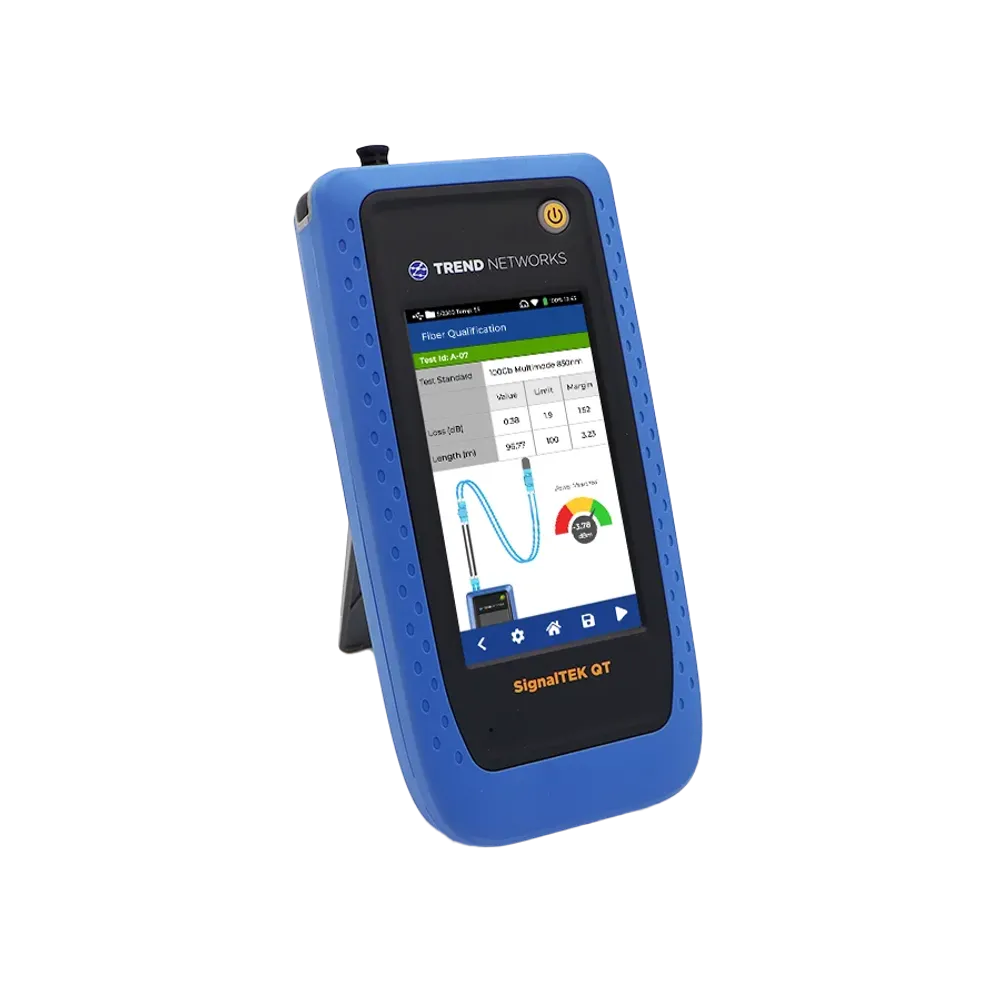

Trend Networks R166001 SignalTEK QT Pro, 10G Copper/Fibre/Wi-Fi Qualification Tester, powered by TREND AnyWARE Cloud

Model # R166001

Key Features

Qty:

Question about this product?

Simplified user interface for easy setup and operation

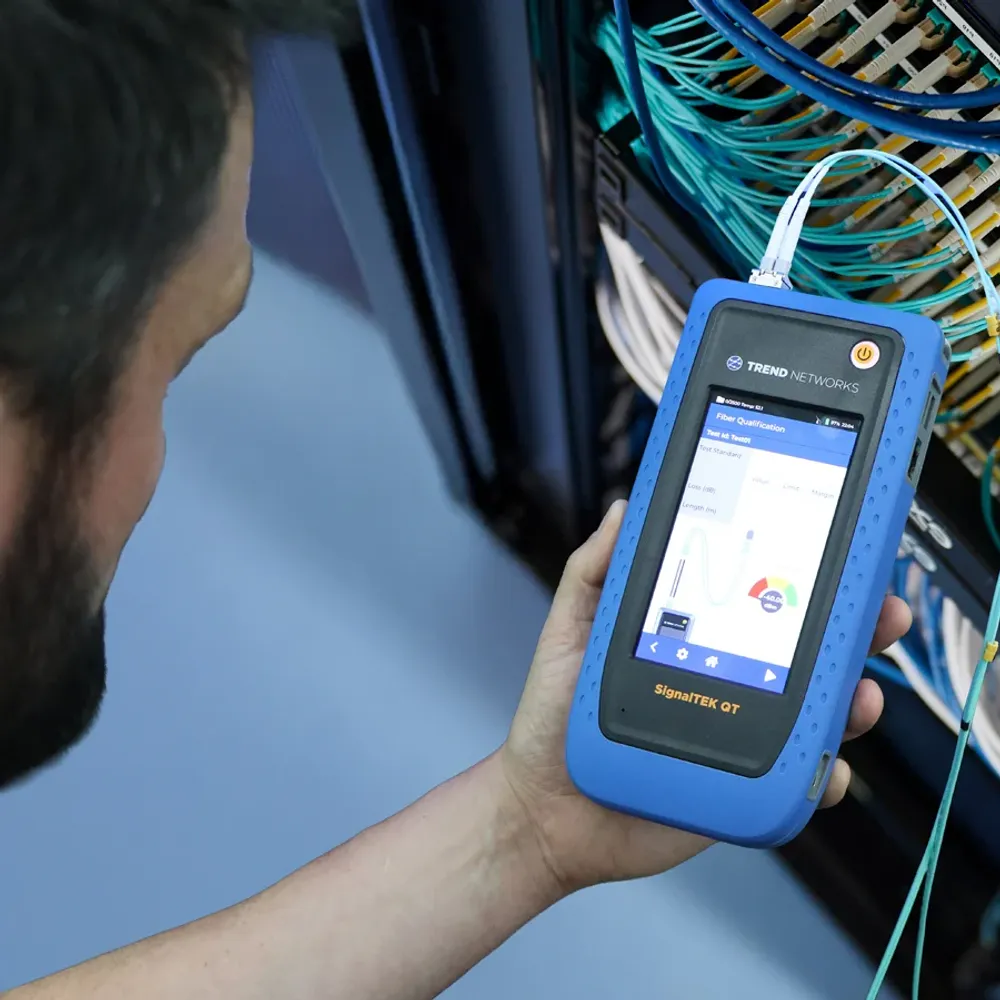

Test copper cable performance (10Mb/s to 10Gb/s) and fibre cables (10Mb/s to 100Gb/s)
Perform load tests up to 90 watts to ensure power delivery to the latest PoE devices
54 Wh battery provides 10-hour operation on a single charge
Gigabit Ethernet port 2 x USB A ports
Instant wiremap result before the Autotest begins
Check connector quality and perform automatic, Pass/Fail testing to IEC 61300-3-35 standard
Pre-configure jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes

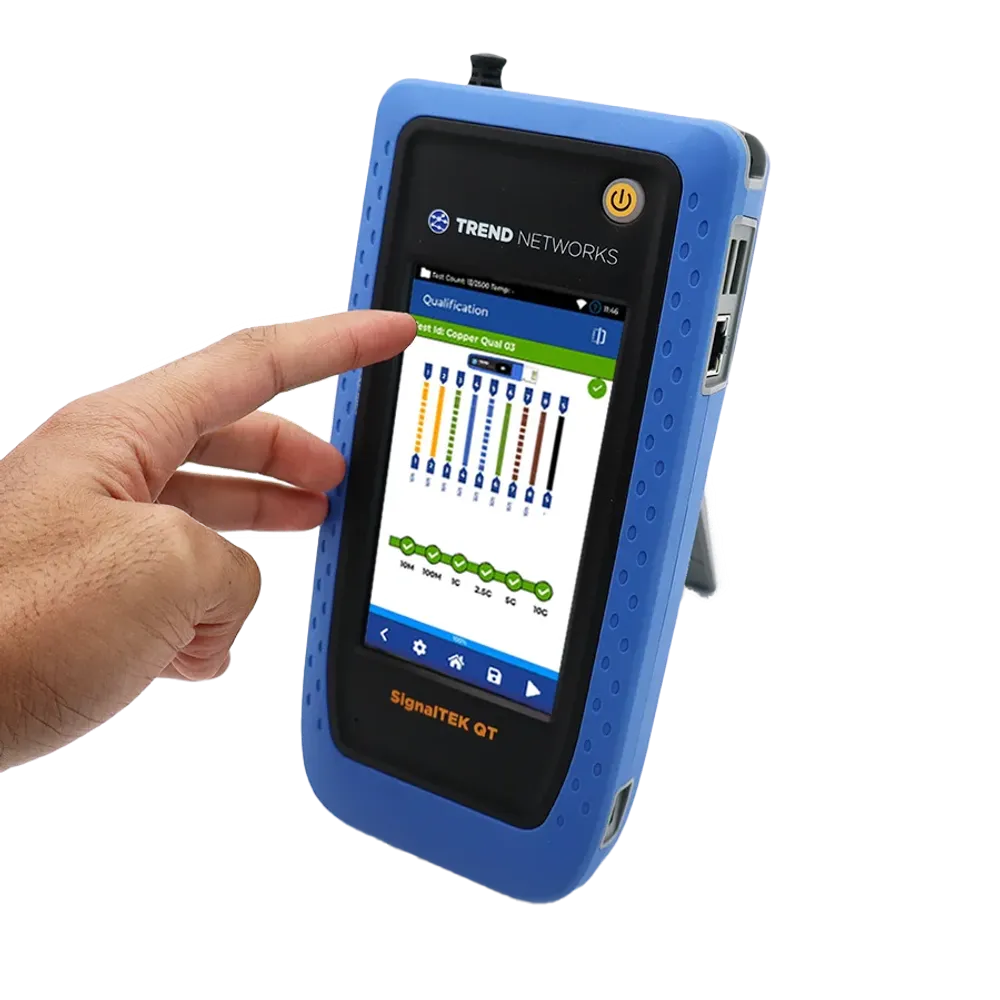

Copper qualification 10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, 10Gb/s
Fibre attenuation (dB loss) Yes
Integrated visual fault locator (VFL) Yes
Fibre optic connector inspection microscope Pass/Fail testing to IEC 61300-3-35 Optional

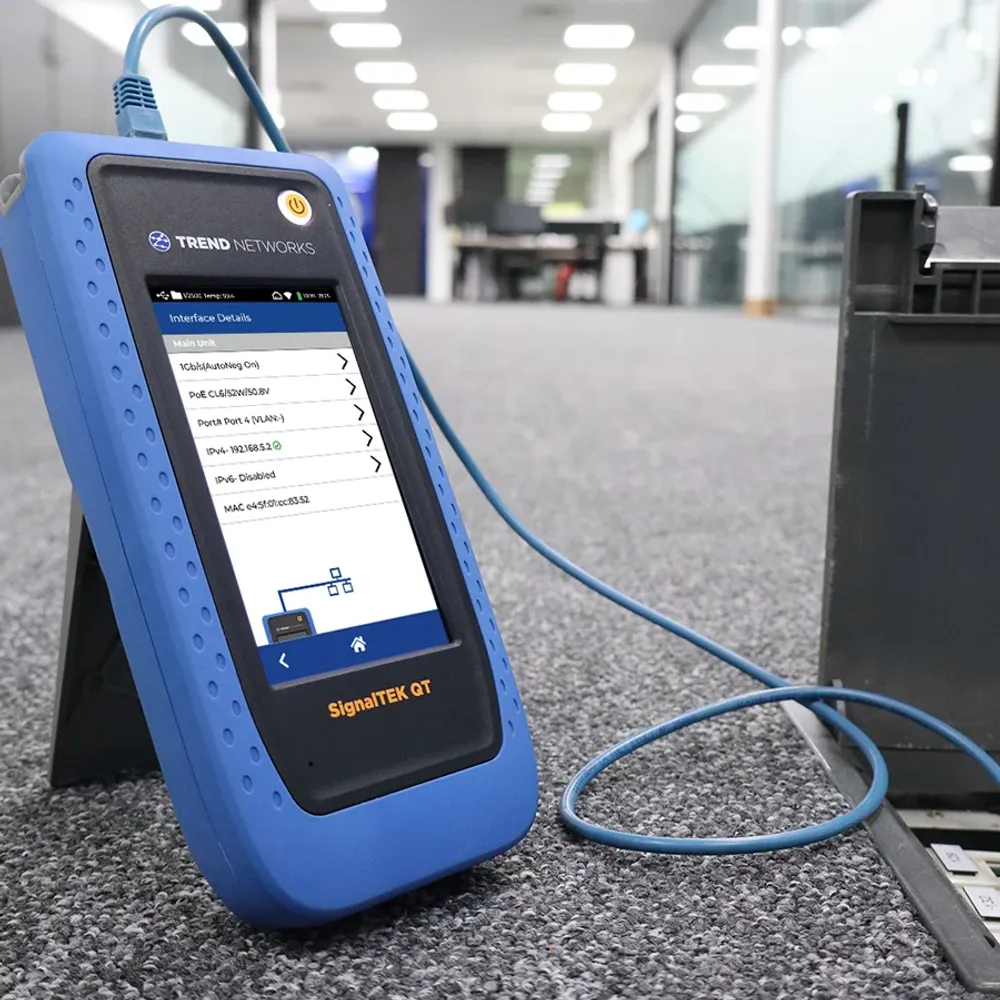

Switch port info (speed, name, port number, address) Copper & Fibre

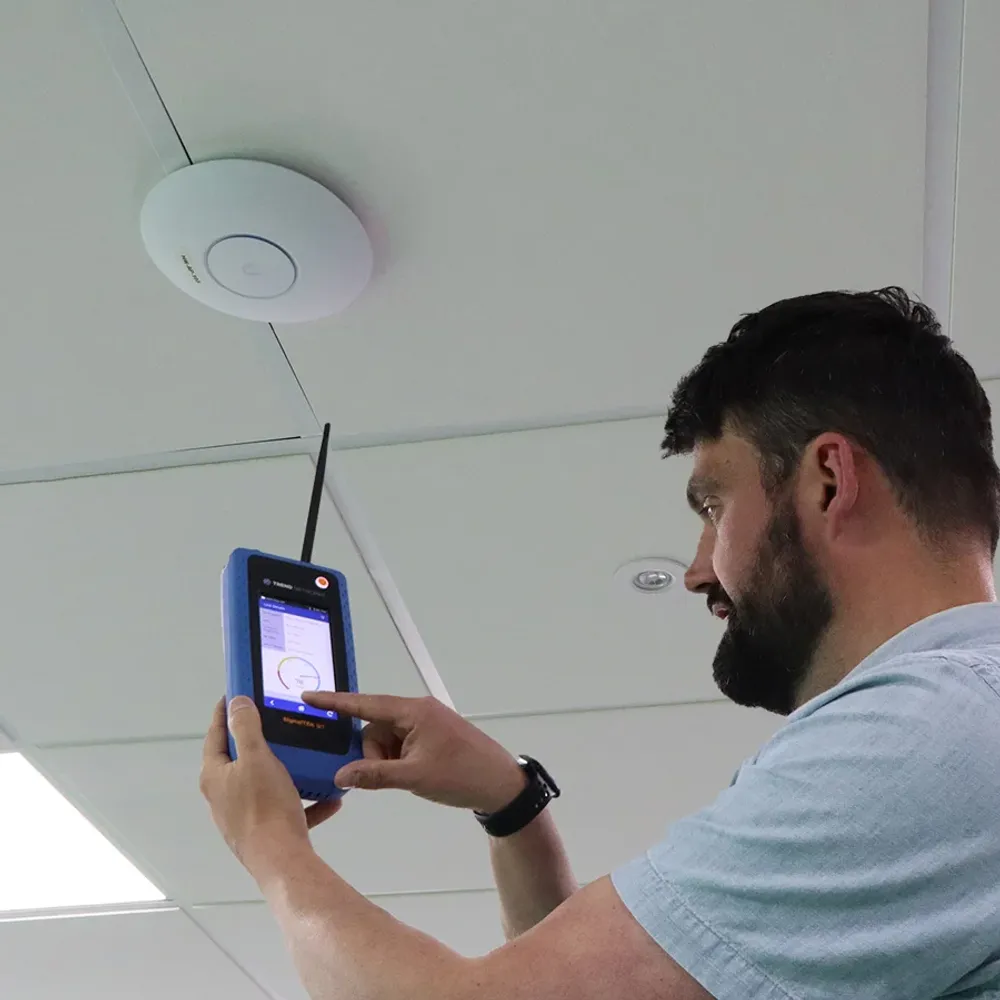

Wi-Fi AP scan with conflict check and Wi-Fi signal strength Yes
Wi-Fi site scan with AP information, channel map, Tx/Rx rates, channel utilization, AP location with external antenna Yes
Network diagnostics Copper, Fibre & WiFi
Identify top VLAN IDs (levels 1-3) Yes

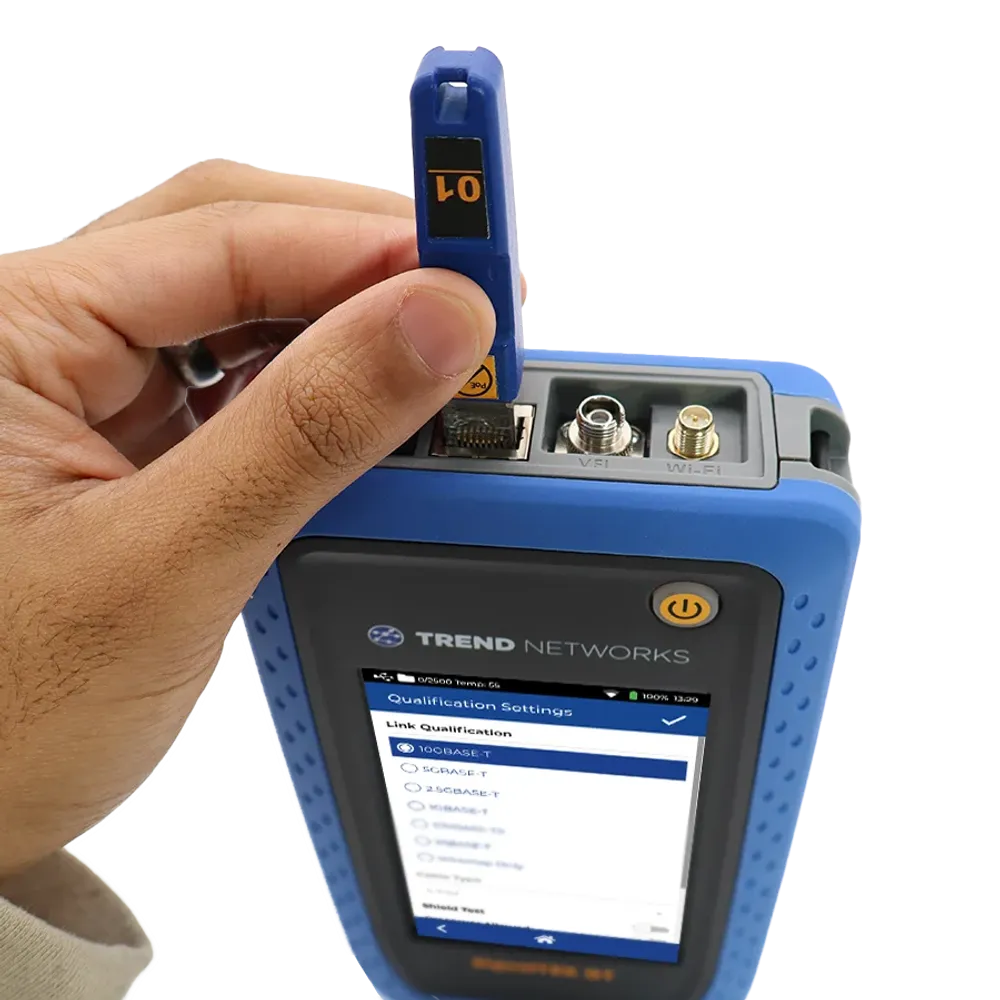

Interface ports RJ45 test port, ext. Wi-Fi antenna, SFP+, VFL, wired Ethernet, 2 x USB A, USB C
Touchscreen Yes
Internal storage for 2,500 test results Yes
Part no R166001
