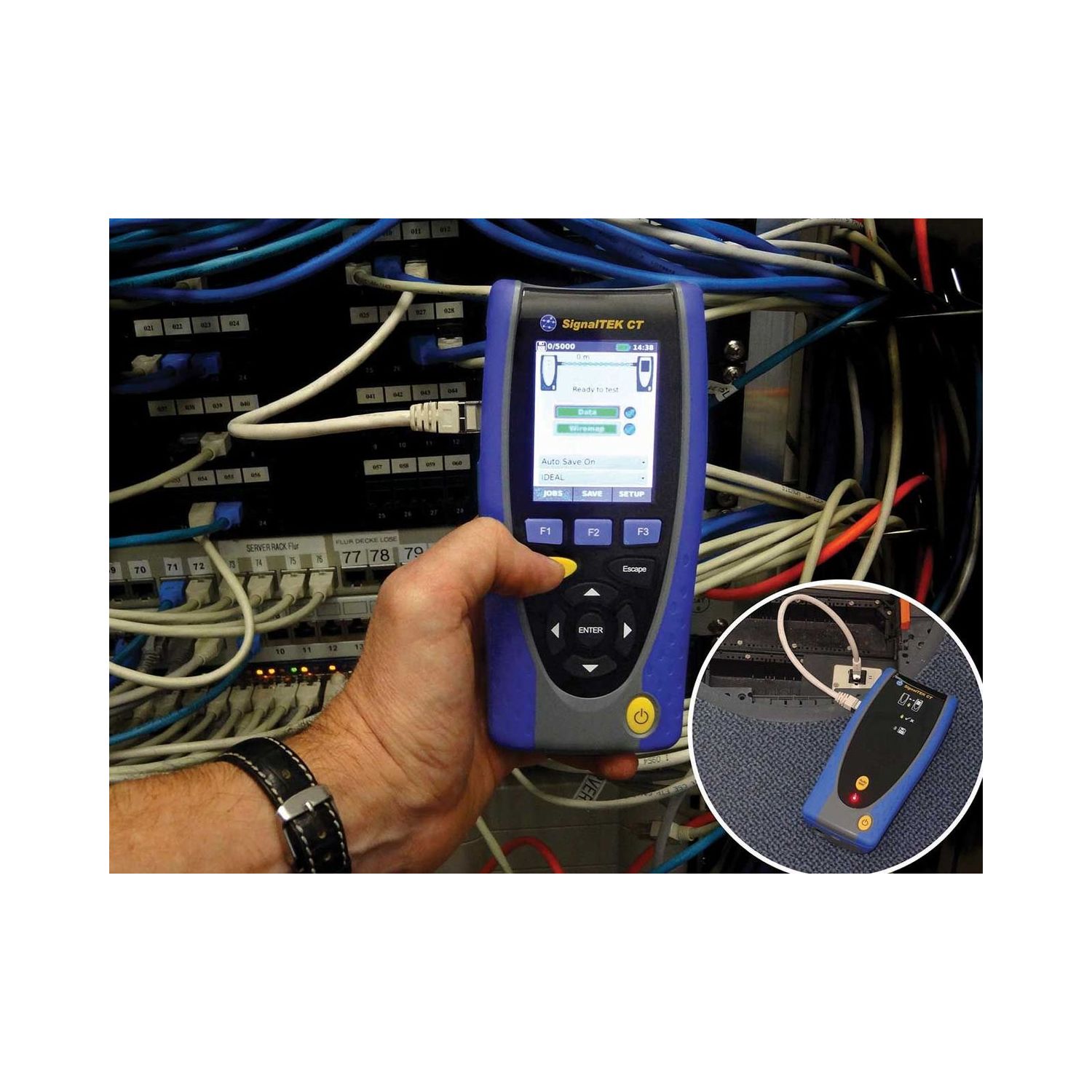

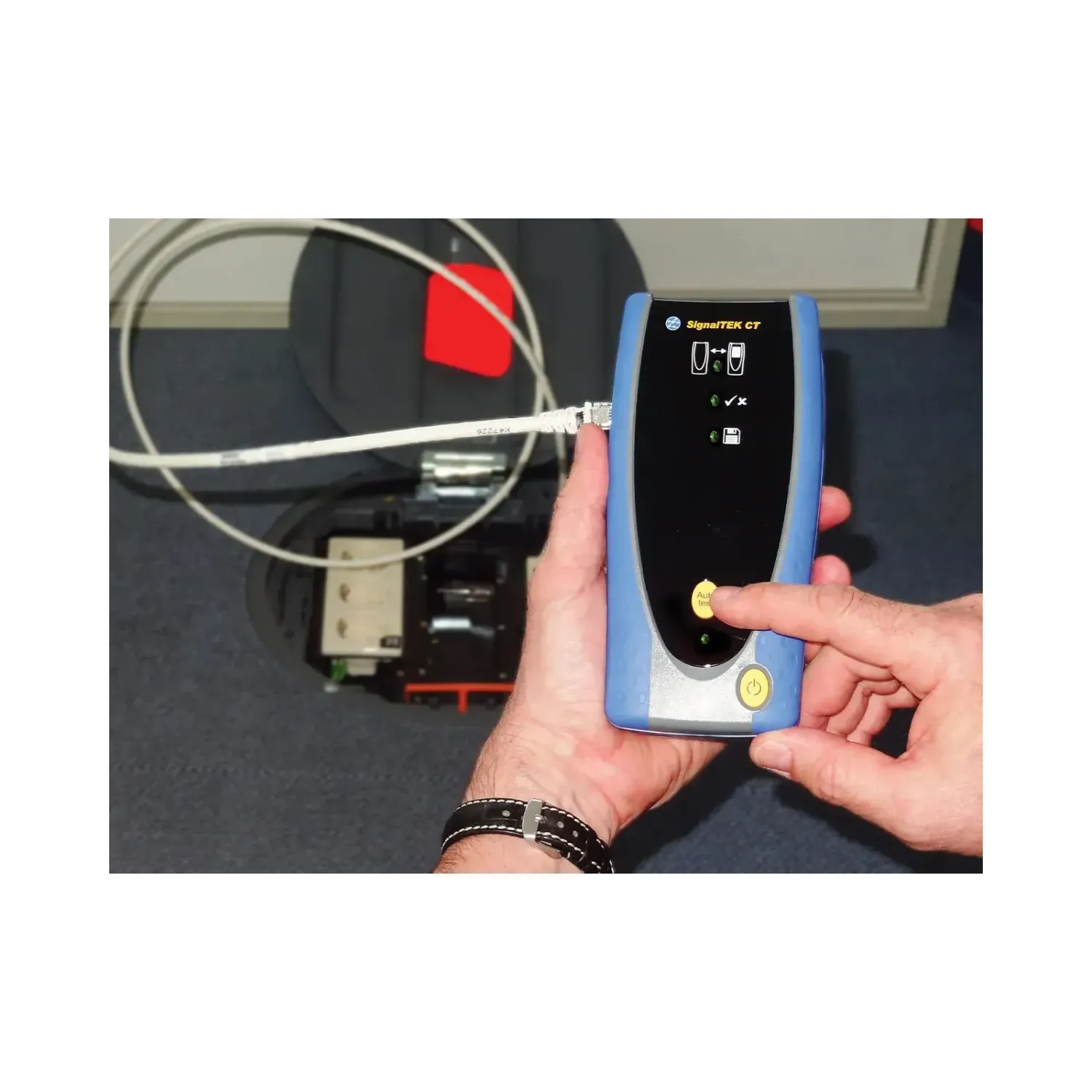

Trend Networks R156006 SignalTEK CT with Touchscreen

Model #   R156006

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Proves the performance of network cabling to 1Gb IEEE standards
  • Conducts IEEE Gigabit performance tests with advanced wiremapping
  • Effortlessly documents test results with automatic PDF report generation

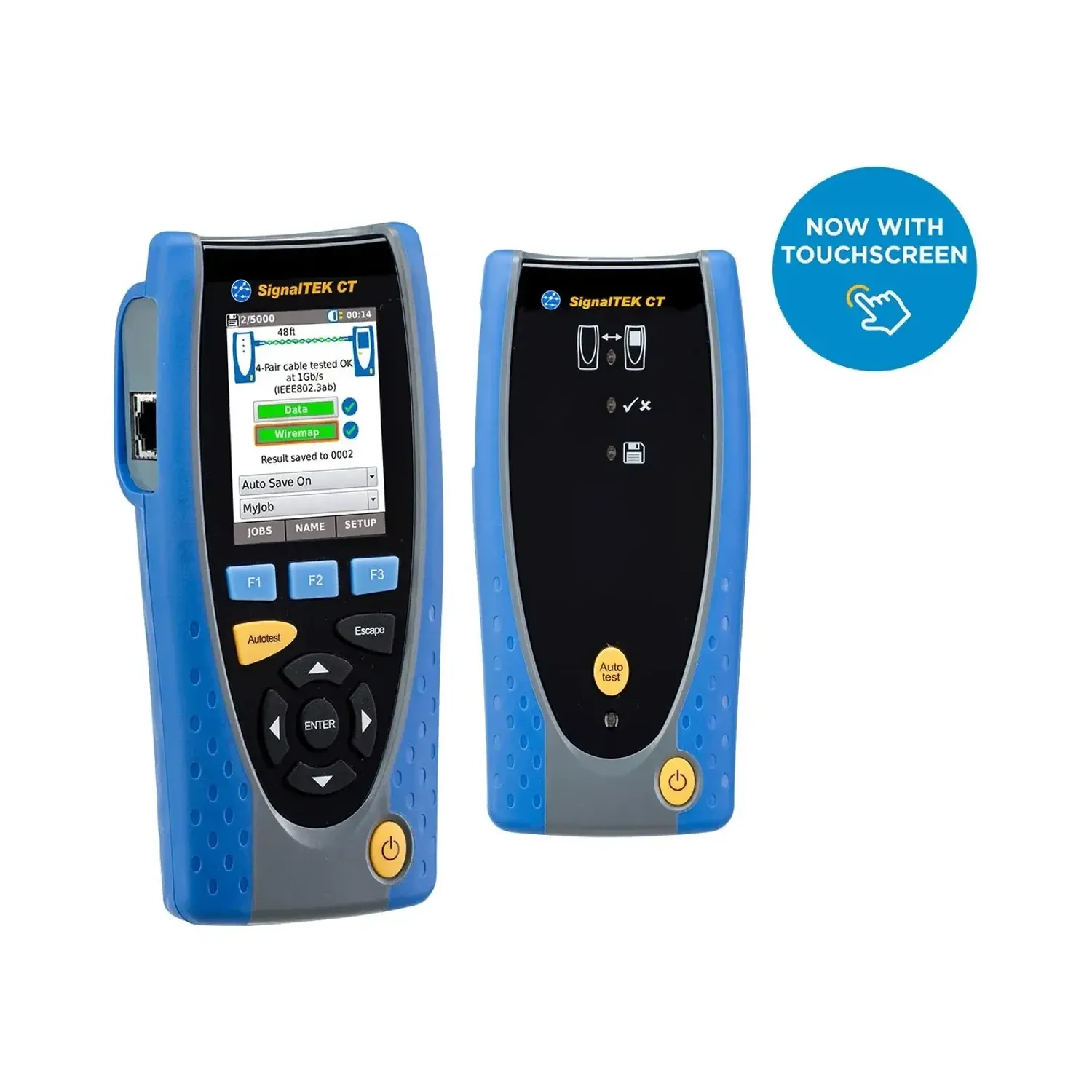

  • Includes a touchscreen for enhanced usability
  • Provides advanced wiremapping with TDR fault location
  • Performs Gigabit Ethernet tests to the IEEE802.3ab Ethernet standard

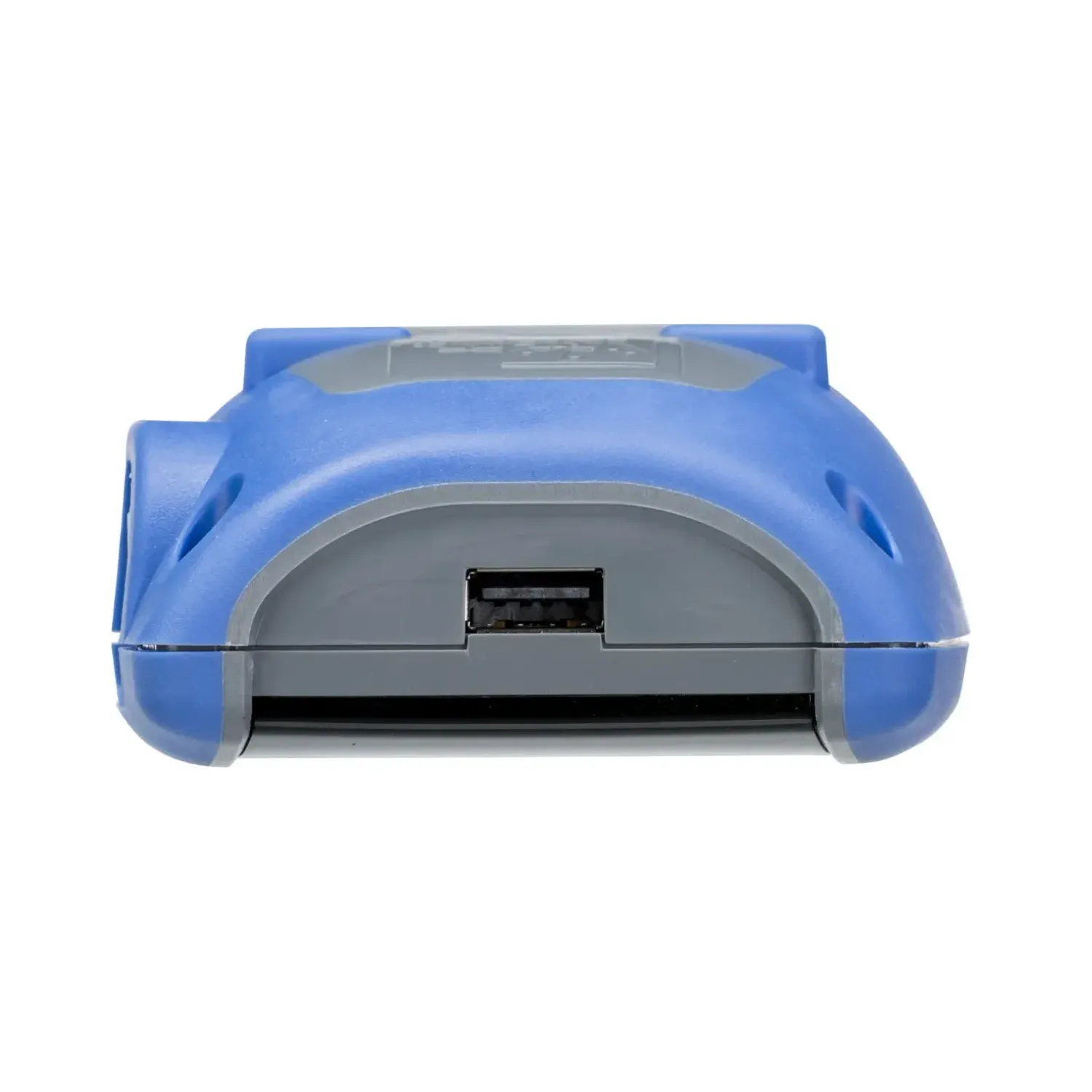

  • Uploads reports to USB memory stick without requiring a PC
  • Autotest feature provides proof of cable performance in seconds
  • TREND AnyWARE app allows PDF report sharing from anywhere
  • Real-world testing with bi-directional Gigabit Ethernet transmission
  • Low cost of ownership with no calibration required and field-replaceable RJ45 contacts

Technical Information

  • Cable qualification/transmission test Up to 1 G/s according to IEEE standard
  • Stores Up to 5000 tests and report generation to the mobile APP
  • Performance standard IEEE802.3ab Ethernet standard
  • Testing capability 1Gb IEEE Gigabit performance test
  • Report generation Automatic PDF reports
  • Wiremapping Advanced wiremapping with TDR fault location
  • Part no R156006

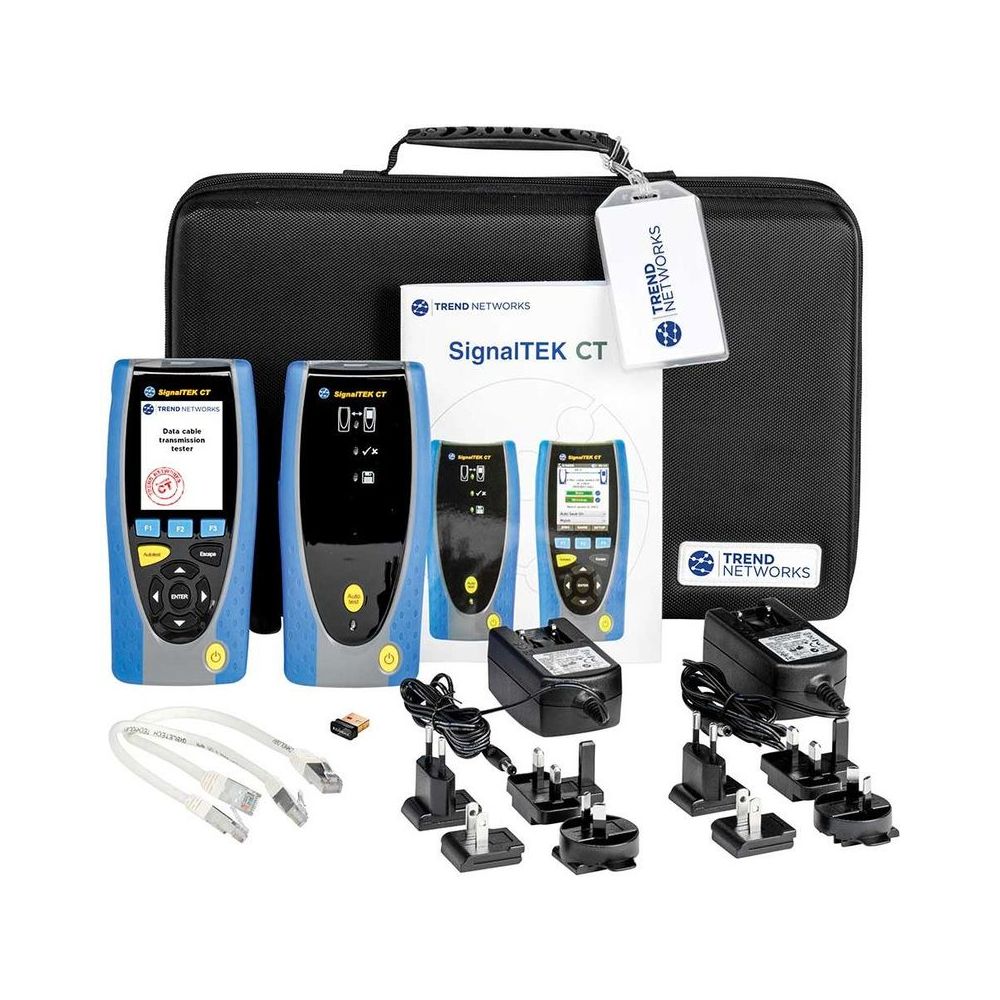

Items Included

  • Tester: 1 x SignalTEK CT data cable transmission tester
  • Accessories: 1 x touchscreen, 1 x USB memory stick
