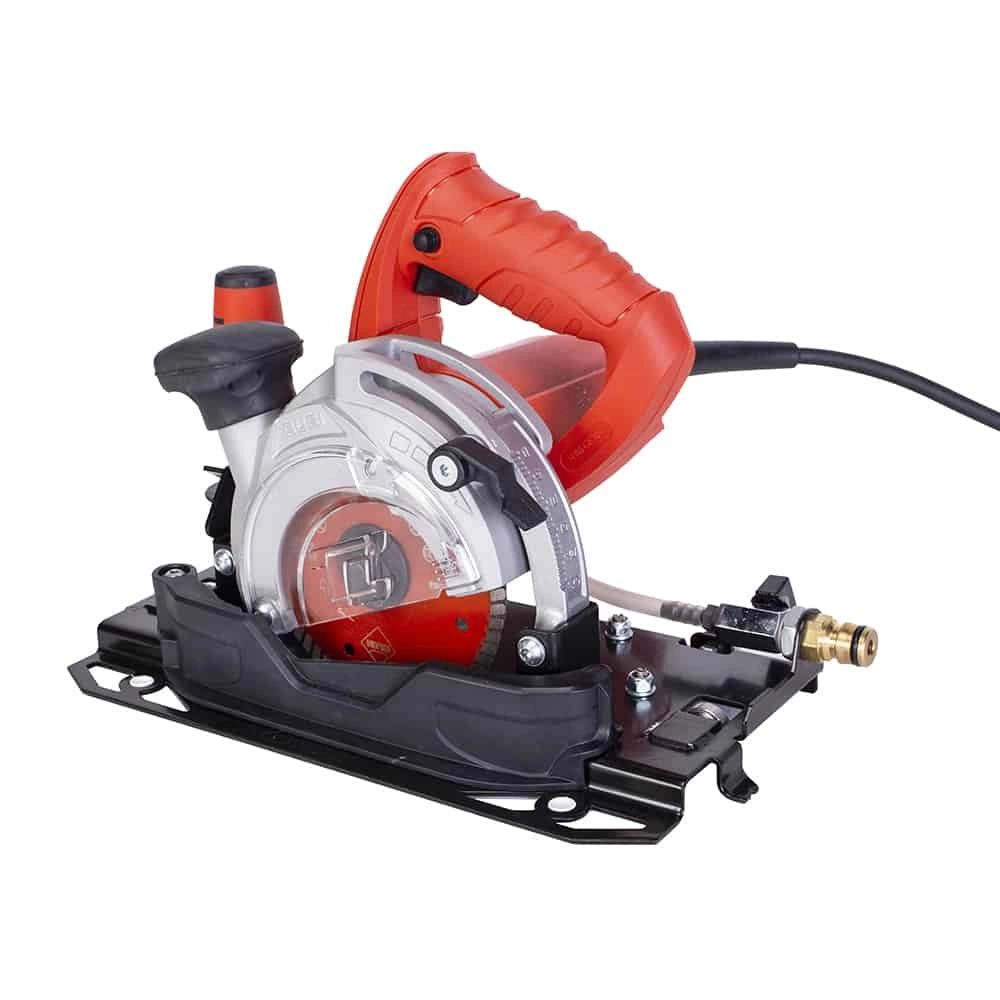

Rubi 51902 Circular Cutter Kit 320cm, TC-125

Model # 51902

PRECISE cutting thanks to the SLIM SYSTEM guide system.
Equipped with a carbon steel plate on adjustable stainless steel radial bearings.
Double dust reduction system: suction or wet system.

Rubi

BrandRubi
Model Number51902

ADD TO MY RFQ LIST Add to your requistion list to get a quote.

Direct connection to vacuum AS-30 PRO (Ø32mm). Includes adapter for other models and brands (Ø37, 42 and 50 mm).
Regulation valve and quick connection for hose ** (Ø16 mm). Rubber stopper for the suction outlet. IMPROVES ergonomics in wet cutting.
Switch with SECURITY lock to avoid accidental start-up. Electric cable with PRCD (differential).
Compatible with Ø125 or Ø115 mm blades. (Suitable for diamond blades with reinforcement bar, type TVA).
Injected aluminum disc protector with transparent polycarbonate lid with quick opening and closing system. It makes changing blades easy and minimises the projection of particles and water.
Tilting side guard for mitre cutting. REDUCES water splash and IMPROVES dust suction.
Includes TCR-125 SUPERPRO diamond blade (dry cut), carrying case and accessories. For easy transport and storage.

Power: 1.7 CV (P1: 1.25 kW).
RPM: 13800 (may vary depending on voltages and frequencies)
Outside diameter of disc: 115/125 mm. (Scales and graduations are determined for 125 mm discs)
Internal diameter of the blade: 22.2mm
Maximum cutting thickness: 20 mm (for 115 discs) and 25 mm (for 125 discs).
Maximum mitre cut thickness: 14 mm (for 115 discs) and 18 mm (for 125 discs).
Net weight: 4.8 kg. (only machine with serial disk)
Dimensions: 330 x 239 x 206 mm.
Vibration value according to UNE-EN 61029 is 1.78 m / s2 with a dispersion K = 15.

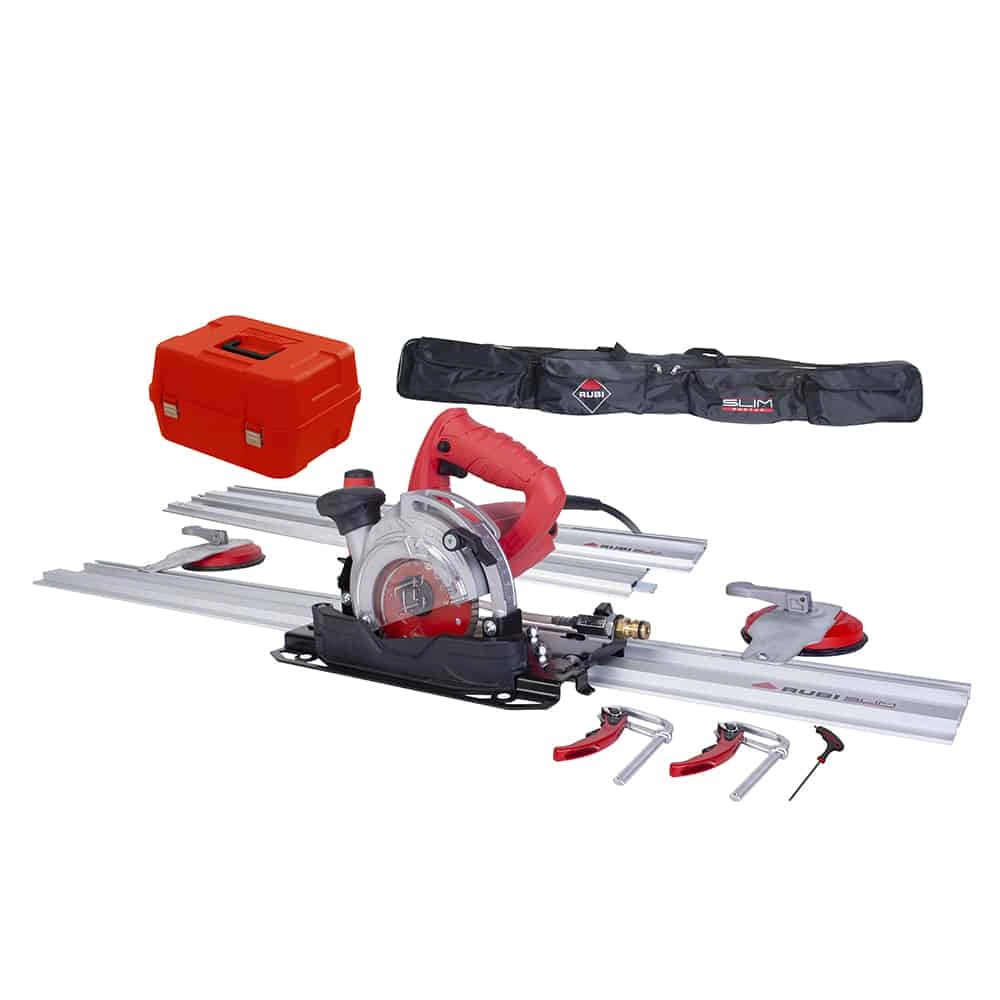

Rubi TCR-125 Super Pro diamond blade (for dry cutting)
Slim guide rails (320cm)
2 suction cups
Dust extractor adaptor
Additional handle
Carry bag for Slim guides
Hard carry case for TC-125

RubiKIT_Circular Cutting Machine TC-125 230V 50Hz UK
