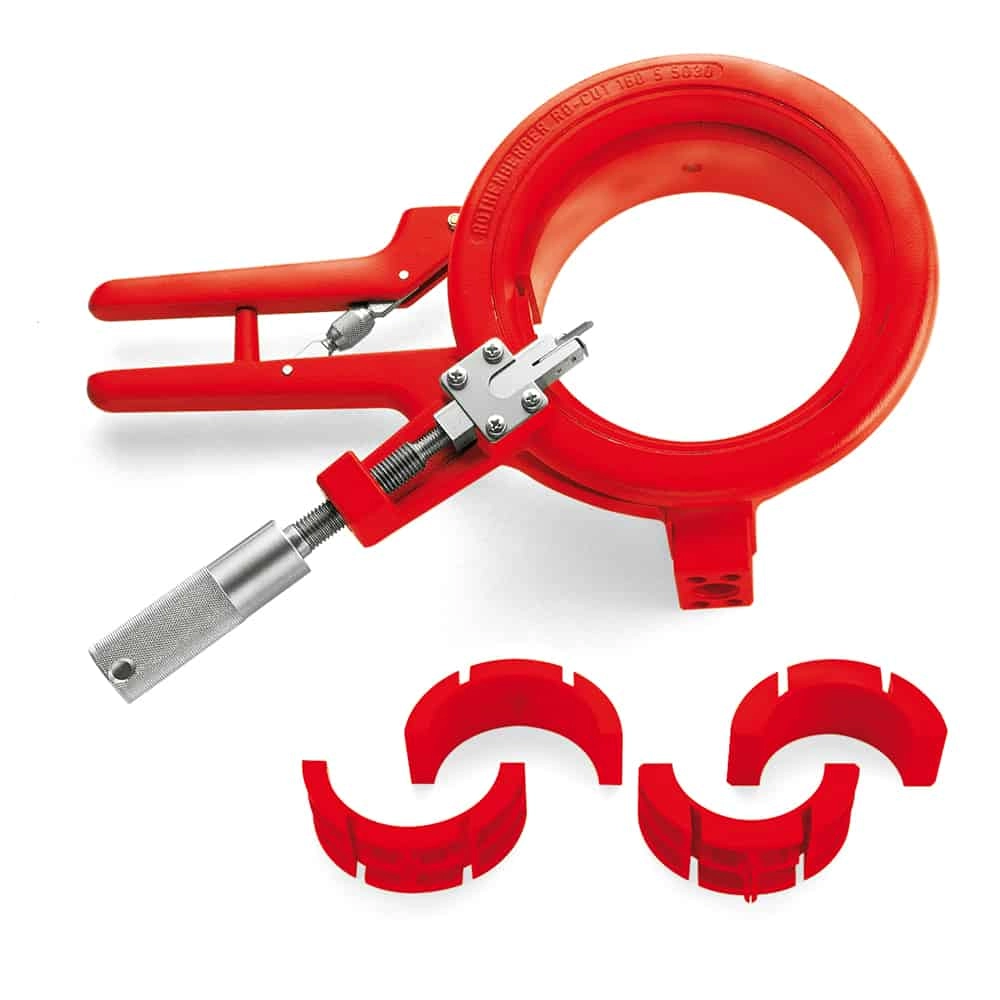

Rothenberger 55063 ROCUT 160 Set - Plastic Pipe Cutting and Chamfering Tool with Accessories, 110-160mm

Features

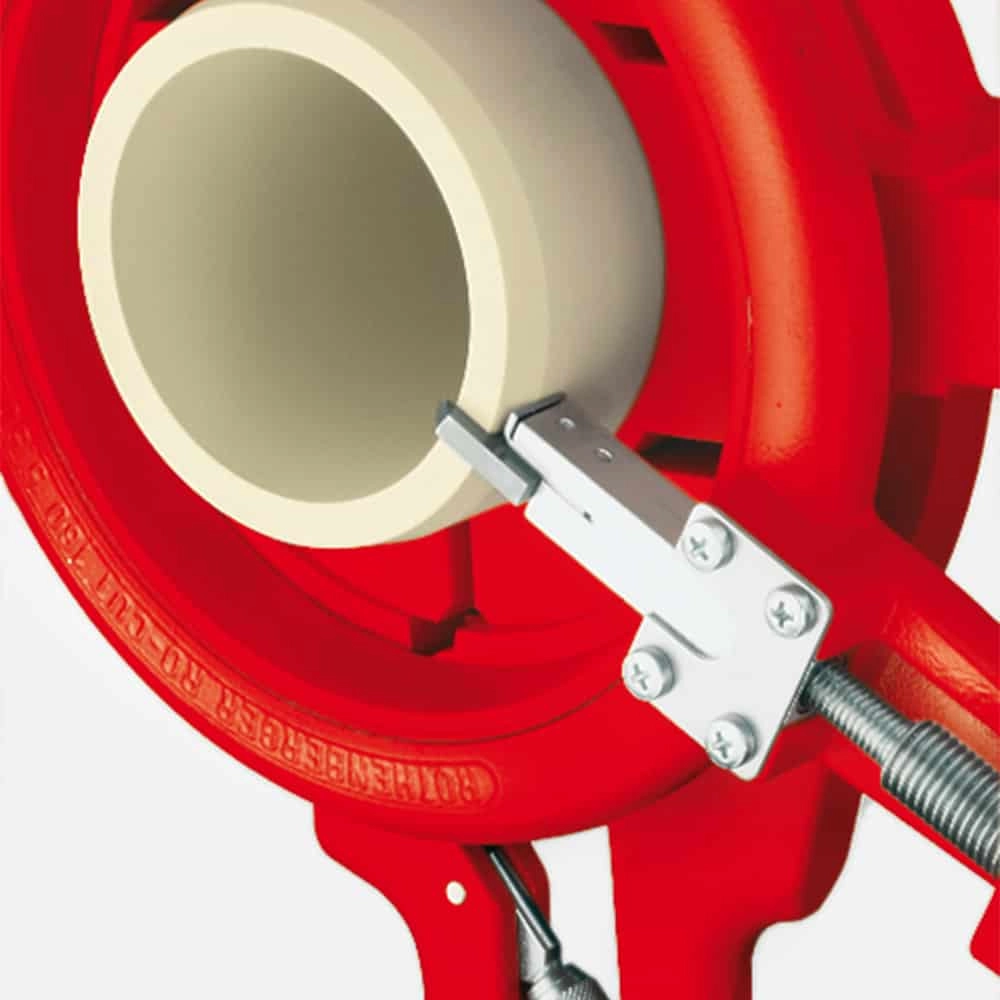

• The ROCUT 160 Set for plastic pipes 110, 125 and 160mm can be used for cutting and chamfering plastic pipes in one step. Simple and safe handling.
• Removable pipe deburrer integrated in the handle Pipe cutting without chamfering possible as cutter blade shaft can be mounted with 180° offset.
• The ROCUT 110 a single tool system for cutting, chamfering and deburring required and optimized cutting geometry.
• Uniform chamfering of the entire pipe circumference and continuously adjustable pipe clamping pressure
• Optional accessory for PE, PP, PEX and sound-insulated pipes
• Replacement against manufacturing defect (6 Months)

Technical Information

• Working Area (Diameter)110-160mm
• Working area in inches4.1/4-6.1/4 inches
• Cutting Depth with unit of measurement12.5mm
• Dimensions (Gross)490x270x160mm
• Weight5.143kg

Items Included

• ROCUT 160 (No. 55030)
• internal deburrer (No. 55018)
• 2 clamping sets
• cutter blade shaft with automatic copying and HM cutter blade insert 12,5mm (No. 55019)
• ROCASE inlay (No. 1300005864)
• ROCASE 4414 red w/o inlay (No. 1300003541)

Downloads

Datasheet
