Rothenberger 1000003922 ROCAM Mini HD Inspection Camera - Full HD Module 25/22 HD, Bluetooth & Wi-Fi, 22m Cable, App Control

Model #   1000003922

?

Question about this product?

Speak to an expert

Learn how to use

Features

  • Full-HD and TrueColour for fast, accurate analysis
  • 22m cable for more independence
  • Optimized cable stiffness & head geometry to pass up to six 90° bends (50mm tubes) / three 90° bends (40mm tubes)
  • Built-in Bluetooth module for connecting headphones to add voice recording video
  • Wi-Fi module for perfect connection between smartphone and ROCAM MINI HD. The app can be used to access the entire gallery of the ROCAM mini and share photos and videos directly
  • Live stream function via app to share the screen with the customer for a professional appearance

Technical Information

  • Working area diameter (min-max) 50 – 110 mm
  • Protection rating IP 41
  • Image format JPG
  • Display resolution (min-max) 800 px
  • Display type LCD
  • Touchscreen Yes
  • Operating ambient temperature 0 – 50 °C
  • Operating ambient humidity (min-max) 0 – 95 %
  • Storage temperature (min-max) -20 – 50 °C
  • Waterproof (min-max) 0 – 10 m
  • Image resolution (height x width) 1,920 x 1,080 px
  • Storage type SD Card
  • Locator transmitters 512 Hz
  • Video output Micro-HDMI
  • Computer interface SD Card, WLAN
  • WiFi transmitters Yes
  • App compatible Yes
  • Log Yes
  • Audio Yes
  • Video format AVI
  • Video resolution (height x width) 1,920 x 1,080 px
  • Cable length (with measuring unit) 22 m
  • Display size (with measuring unit) 7 Inch
  • Sliding cable diameter (with measuring unit) 7 mm
  • Camera head diameter (with measuring unit) 25 mm
  • Storage capacity (with measuring unit) 32 GB
  • Brightness (with measuring unit) 100 Lux

Items Included

  • ROCAM mini HD - Display

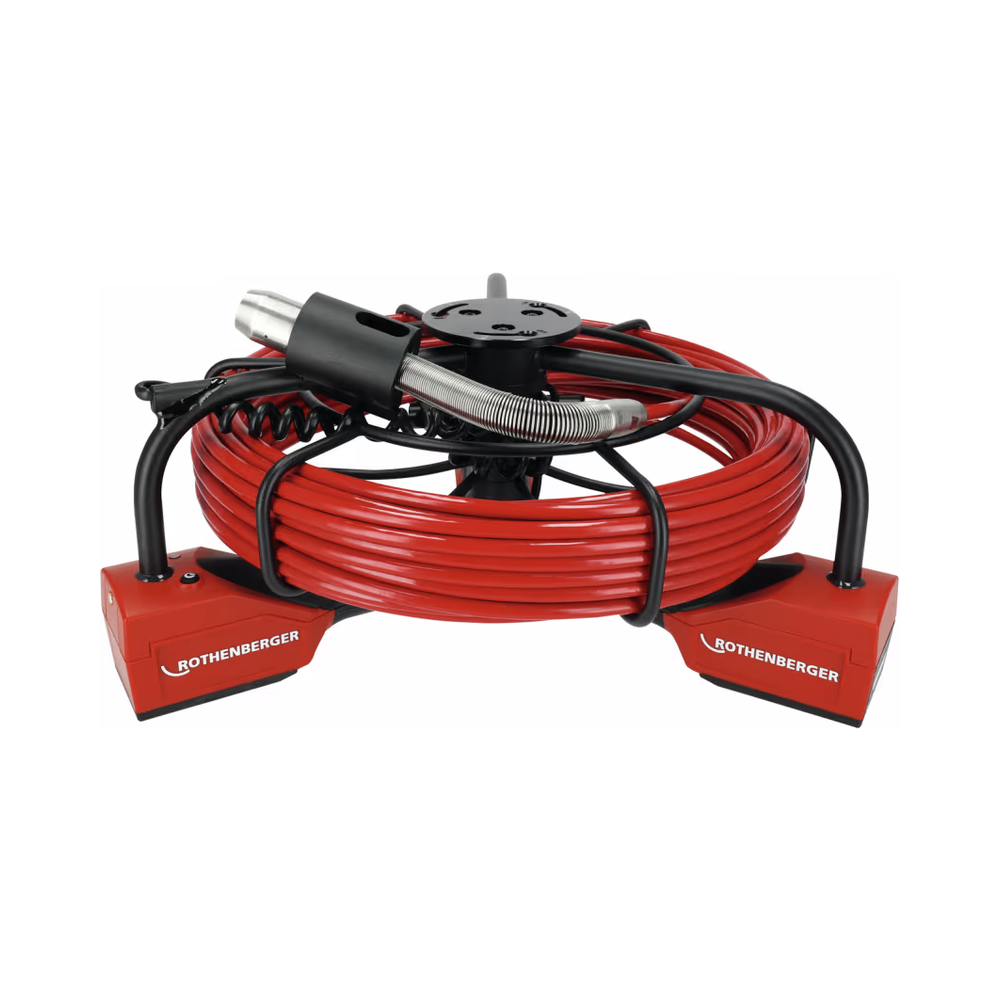

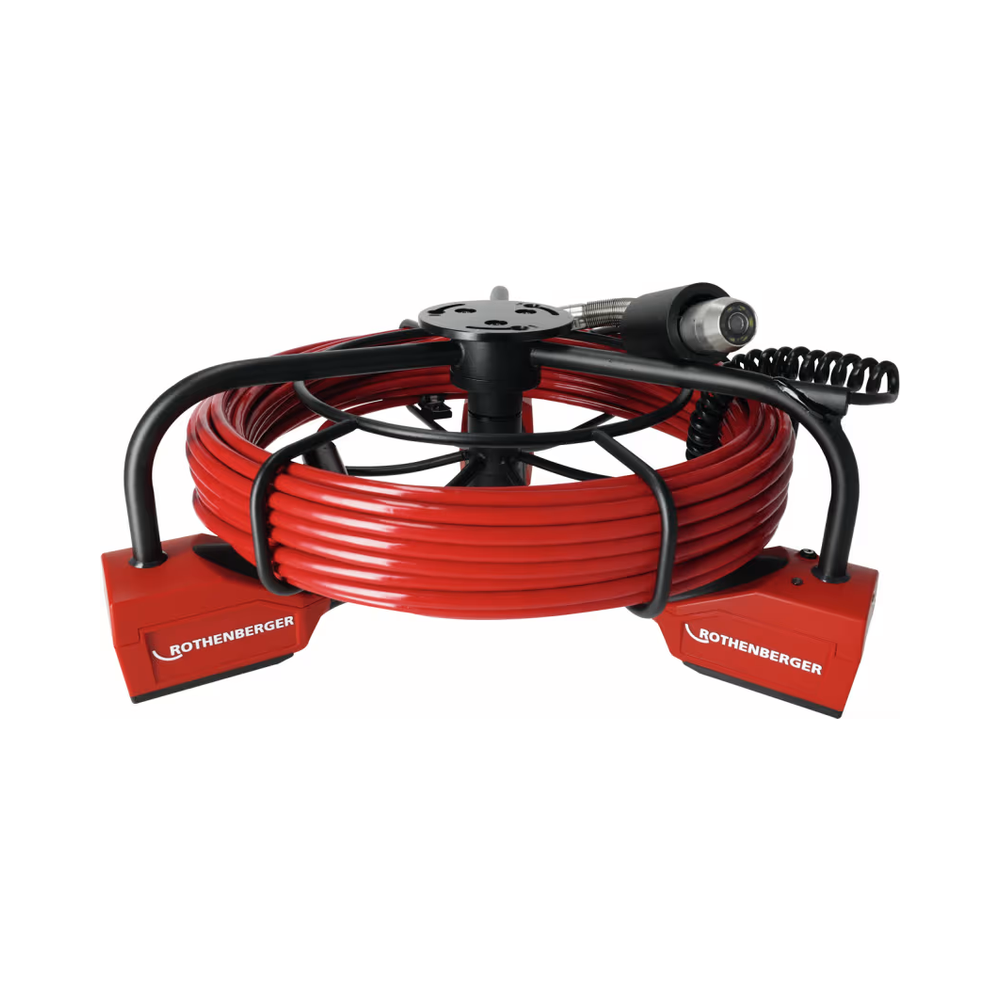

  • Module 25/22 HD - Reel
  • Module TEC - Endoscope
  • Guide ball
  • RO BP18/2 - CAS battery pack 18 V / 2Ah
  • RO BC14/36 - CAS charger EU
  • ROCASE 6427 with insert
