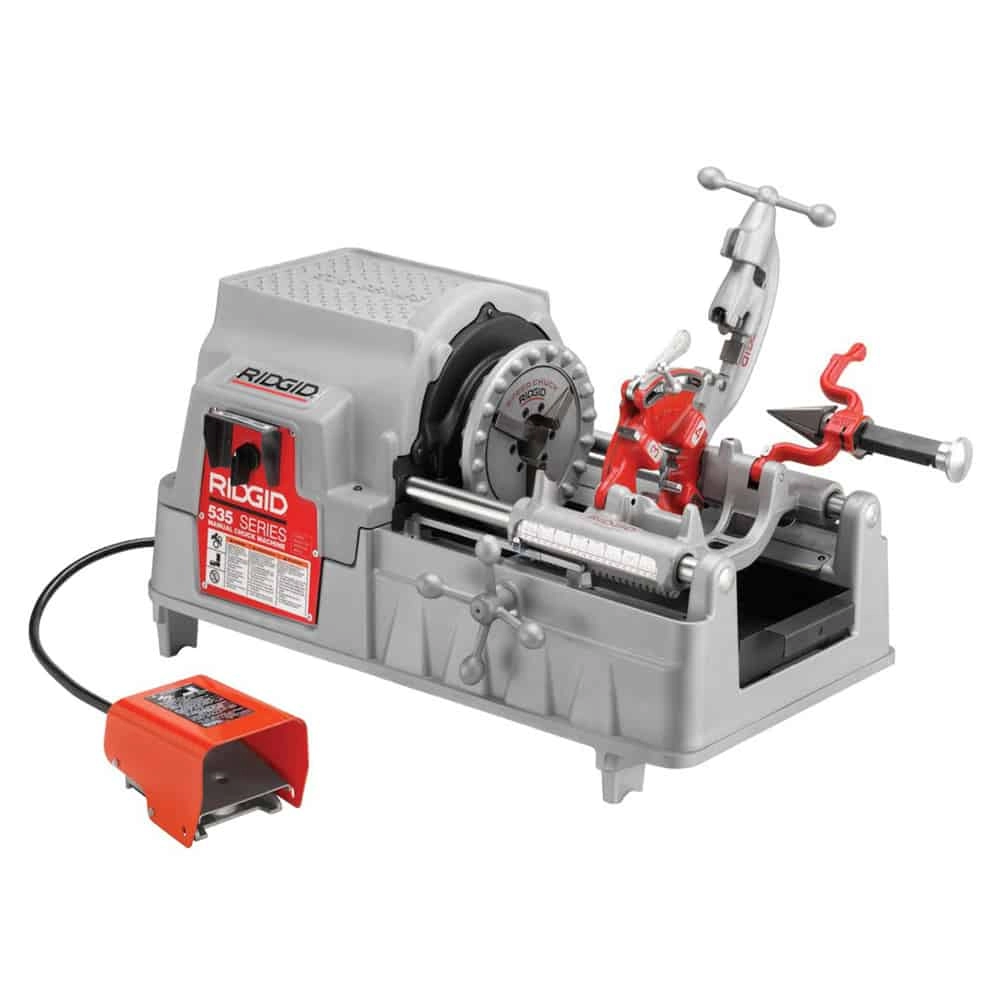

RIDGID 96512 535 Threading Machine 230v BSPT
# 96512
- Large 1.75 gallon (6.6 L) oil tray.
- Large chip tray.
- Generous top cover for keeping tools and fittings handy.
- Large 1.75 gallon (6.6 L) oil tray.
- Large chip tray.
- Generous top cover for keeping tools and fittings handy.
- High clearance carriage makes threading easier.
- Speed chuck with rocker-action jaws centers and grips work piece instantly.
- Can be used with geared Models 141 and 161 threaders.
- Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
- Length gauge for quick, accurate cut-off.
| Pipe Capacity | 1/8″-2″ (3mm-50mm) 2 1/2″-4″ (62mm-100mm), 4″-6″ (100mm-150mm) with 141 and 161 geared threaders. |
| Bolt Capacity | 1/4″-2″ (6mm-50mm). |
| Switches | Forward/off/reverse and integral foot switch. |
| Chuck | Speed Chuck™ with three replaceable rocker-action jaw inserts. |
| Rear Centering Device | Cam-action, turns with chuck. |
| Cutters | Self-centering, full-floating. Two models available: Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8″-2″ (3mm-50mm), bolt capacity 1/4″-1″ (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2″-2″ (12mm-50mm). See ordering chart. |
| Reamer | 5-flute cone, RH, 1/8″-2″ (3mm-50mm). |
| Oil Pump | Self-priming gerotor oil pump. |
| Reamers | RH/LH combination reamer available. |
- 1 – 535 Pipe Threading Machine
- 1 – 811A 1/8″ to 2″ BSPT Die Head, Quick-Opening (97070)
- 1 – 1/2″ to 3/4″ Universal Alloy Die Set, BSPT (66665)
- 1 – 1″ to 2″ Universal Die Set, BSPT (66670)
- 1 – 341 Reamer Assembly (42365)
- 1 – 820 Wheel-Type Cutter (42390)
- 1 – Spare Wheel for E1032 Cutter (44185)
- 1 – 3/16″ Hex Key (46030)
- 1 – 5/32″ Hex Key (46015)
- 1 – Nu-Clear Thread Cutting Oil (70835)
