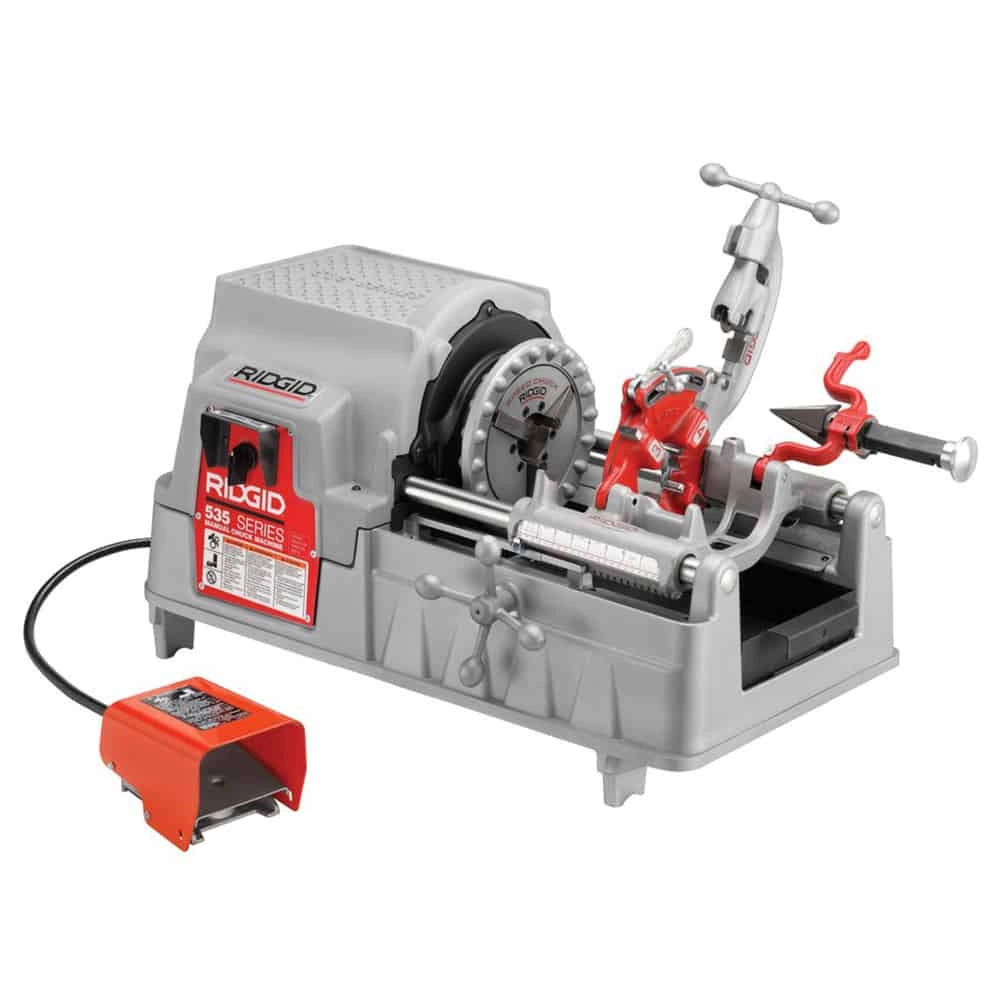

  • RIDGID 96507 535 Threading Machine 230v Npt

    # 96507

    • Large 1.75 gal oil tray
    • Large chip tray
    • Generous top cover for keeping tools and fittings handy
    • Large 1.75 gal oil tray
    • Large chip tray
    • Generous top cover for keeping tools and fittings handy
    • High clearance carriage makes threading easier
    • Speed chuck with rocker action jaws centers and grips work piece instantly
    • Can be used with geared threader models 141 and 161
    • Uses Model: 816/817 semi-automatic, Model: 815A self-opening or Model: 811A quick-opening die heads
    • Length gauge for quick, accurate cut-off
    • Steel Cabinet Features: 17 ga steel walls and welded construction, two internal and one external storage shelves, Oversized bi-fold door with steel clasp, Cut-outs for power cord and foot switch storage and two drain plugs for easy cleaning
    • 1/4 to 2 in bolt capacity
    • Forward/off/reverse and integral foot switch
    • Speed chuck with three replaceable rocker action jaw inserts
    • Cam action turns with chuck rear centering device
    • Self-centering full floating cutters
    • 5 flute cone, RH, 1/8 to 2 in reamer
    • Self-priming gerotor oil pump
    • 50 to 60 Hz NPT single-phase reversible universal motor
    Amperage Rating:7.5 A
    Bare Tool/Kit:Kit
    Control Type:Forward/Off/Reverse and Integral Foot Switch
    Horsepower:1/2 hp
    Includes:42365 – 341 Reamer, 46030 – 3/16 in Hex Key, 42390 – 820 Wheel-Type Cutter, 44185 – E1032 Wheel Cutter, 46015 – 5/32 in Hex Key, 47745 – 1/2 to 3/4 in Universal Alloy Die Set, 47750 – 1 to 2 in Universal Alloy Die Set, 70835 – Nu-Clear Oil and 97065 – 811A 1/8 to 2 NPT Self-Opening, RH Die Head
    Pipe Capacity:1/2 to 2 in
    Speed:36 rpm
    Voltage Rating:230 VAC
