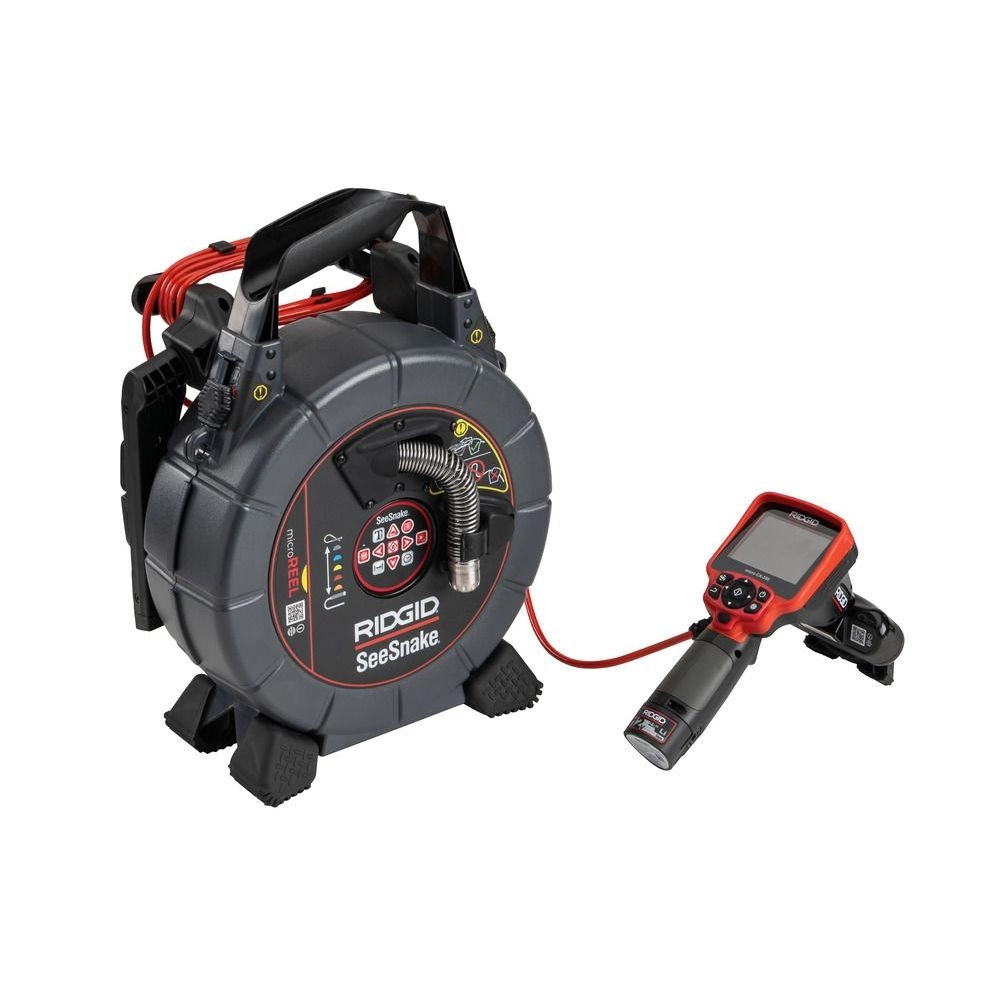

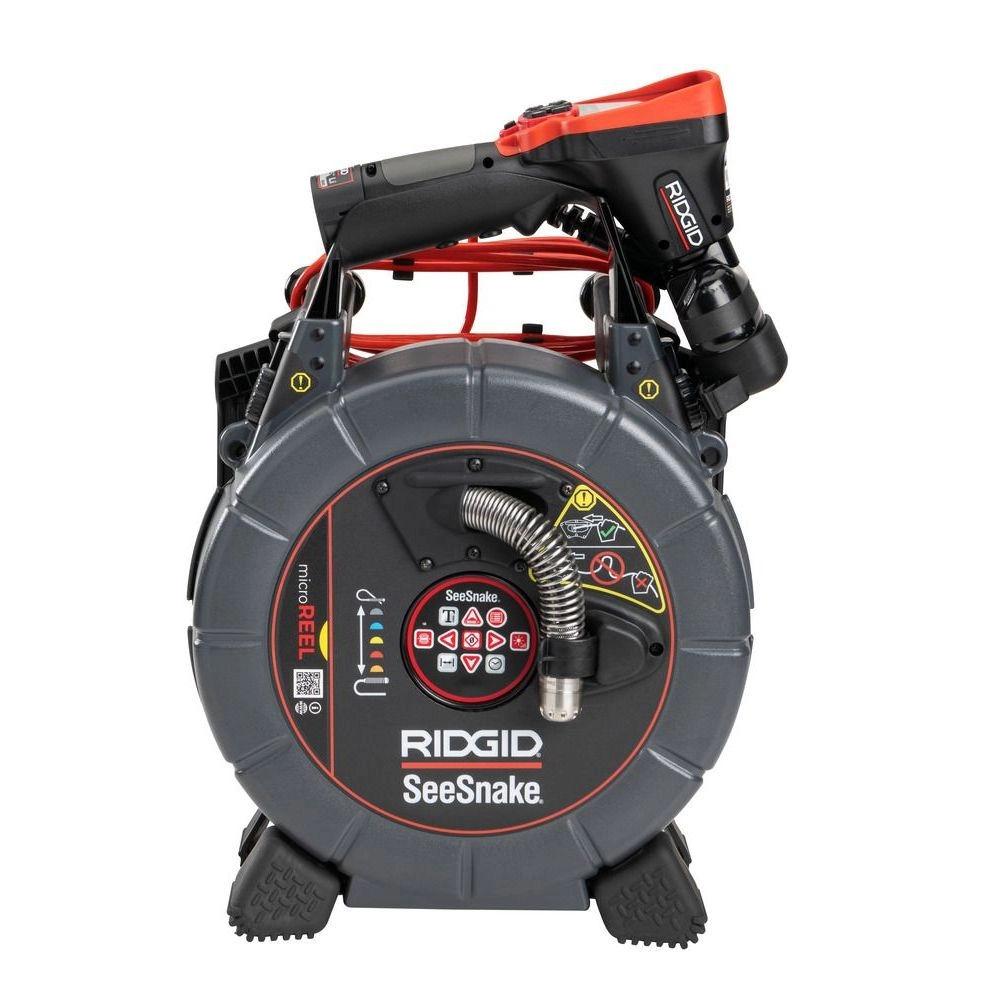

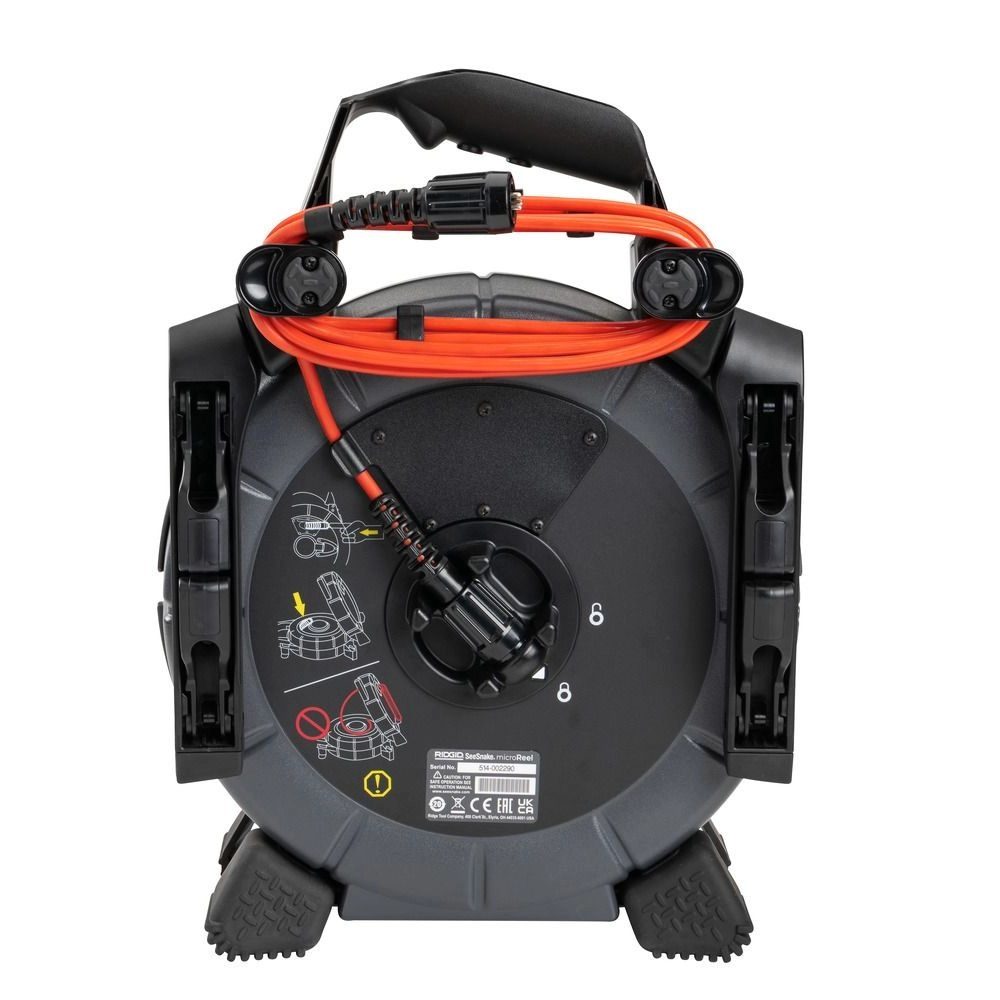

RIDGID 70803 SeeSnake® microREEL CA-350 Drain Video Inspection System

Catalog # 70803

Simplification – Already equipped with the micro CA-350 adaptor for inspection and documentation with the micro CA-350 inspection camera (micro CA-350 sold separately).
Portability – The added CA-350 docking handing is designed to easily transfer of equipment from jobsites.

Simplification – Already equipped with the micro CA-350 adaptor for inspection and documentation with the micro CA-350 inspection camera (micro CA-350 sold separately).
Portability – The added CA-350 docking handing is designed to easily transfer of equipment from jobsites.
Easy navigation – Mid-flex push cable ideal for small diameter (1 1/2″ to 4″, 40 to 101 mm) and tight-turn radius inspections up to 100′ (30 m).
Durability – Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
Flexibility – Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to provide stability while pushing or receiving.
Traceability – Integrated 512 Hz sonde allows for easy line tracing and locating.
Versatility – Use with any SeeSnake monitor or Wi-Fi Hub.

Camera Diameter	25 mm
Camera Type	Fixed
Self-Leveling	None
Resolution	640 x 480 pixels
Line Capacity	2 1/2″ to 4″ (40 mm to 101 mm)
Push Cable Length	100 ft (30 m)
Push Cable Diameter	.27 in (6.7 mm)
Cable Flexibility	Mid Flex
Push Cable Minimum Bend Radius	2.5 in (64 mm)
Sonde	512Hz, Integrated
Weight	12.7 lbs (5.8 kg)
Length	13.3 in (337 mm)
Width	8.8 in (224 mm)
Height	16.2 in (411 mm)
Drum Diameter	12 in (305 mm)
