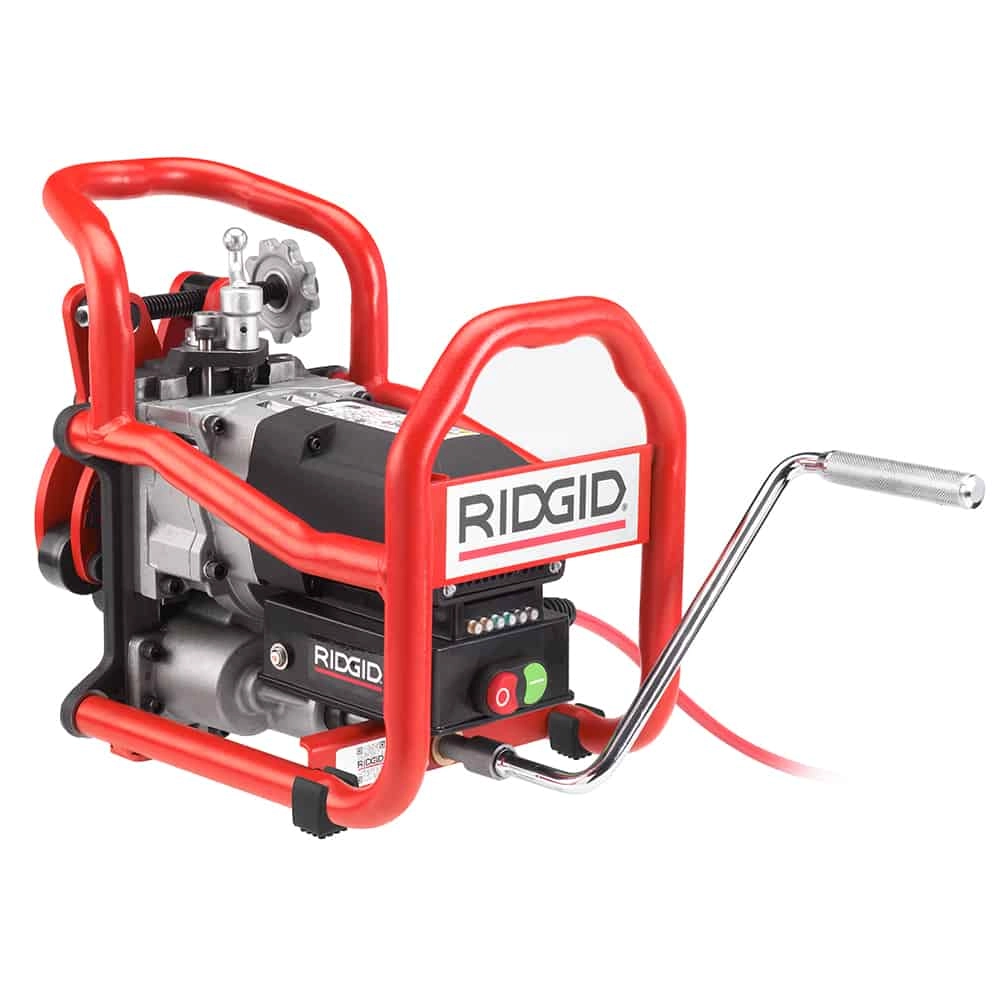

RIDGID 49298 B-500 Transportable Pipe Beveller w/371/2° Cutter Head 110v
# 49298
- Suitable for bevelling most steel and stainless steel pipe ends and plate edges
- Capable of bevelling 10 in. diameter schedule 40 pipe in 45 seconds
- Pipe is cool to touch immediately following bevelling
- Suitable for bevelling most steel and stainless steel pipe ends and plate edges
- Capable of bevelling 10 in. diameter schedule 40 pipe in 45 seconds
- Pipe is cool to touch immediately following bevelling
- Conical cutter head with replaceable cutter inserts produces 37.5° bevels
- Accurate bevel angle around diameter of pipe allows for optimal number of cover passes
- Produces a machined finish due to 6 replaceable cutter inserts working simultaneously
- LED indicators provide speed monitoring to ensure optimal cutter performance
- Adjustable land width from 0 in. to 3/16 in. to meet welders’ requirements
- Fast set-up and rotational speed
- Patent-pending clamp system firmly secures tool to pipe
- Spark-free operation
- Capacity: 4 in. and larger pipe, flat plate
- Pipe Wall/ Plate Thickness: Min 3/16 in. / Max 1/2 in.
- Bevel Angle: 37.5°; 30° and 45° (with optional cutter heads)
- Land Width: 0 in. to 3/16 in., in approximately 1/32 in. increments
- Materials: Most Steel, Stainless Steel
- Size (L x W x H): 15.8 in. x 11.5 in. x 13.3 in.
- Motor Type: Universal single-phase
- RPM: 950 (no load)
- Power: 1.2 HP
- Rating: 115V, 13 Amps, 50/60 Hz
- Body: Steel frame
- 1 – Pipe Beveller
- 1 – 37 1/2 Degree Cutter Head with 6 Inserts (48863)
- 1 – Crank Handle Assembly (50633)
- 1 – Torx Wrench T15/S7 (48888)
- 1 – 1″ Spanner Wrench (48893)
- 1 – 5/16 Hex Key (48898)
- 1 – Operator’s Manual
