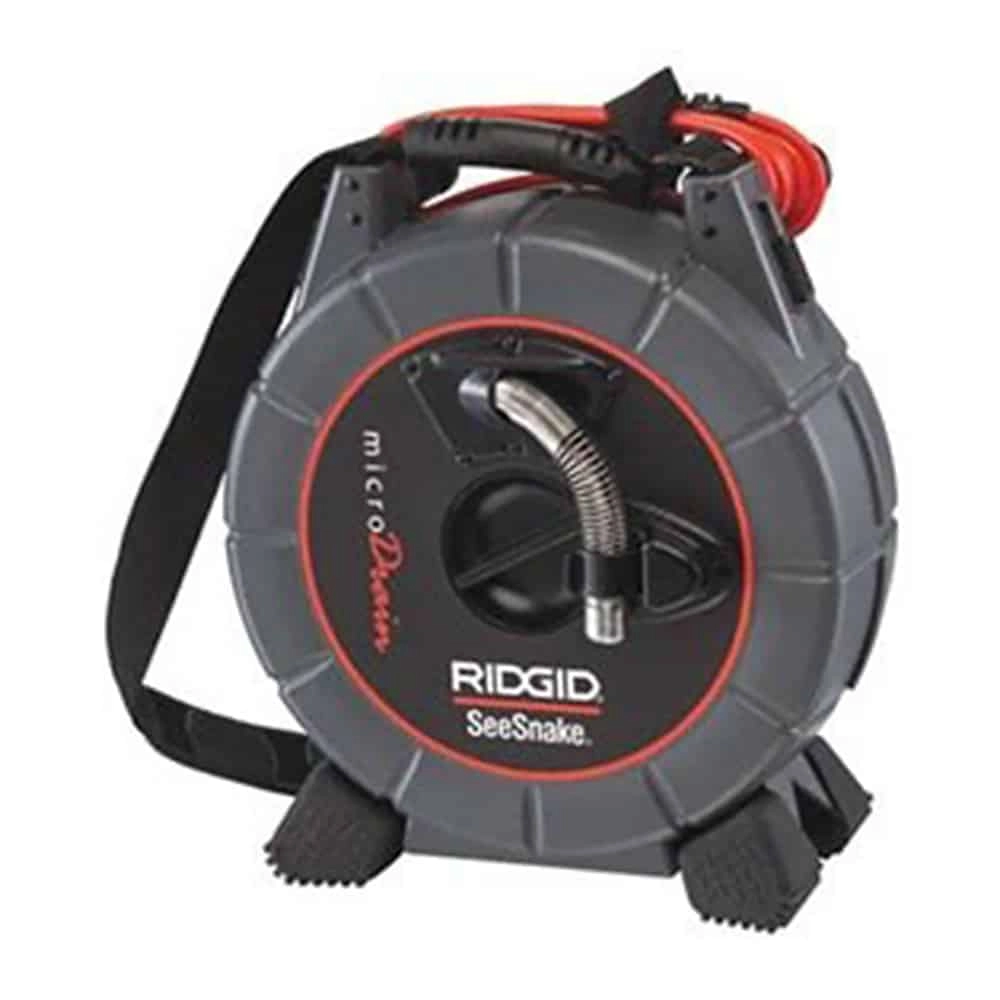

    RIDGID 40823 N85S MicroReel Inspection System Kit

    # 40823

    • Small diameter and tight turn radius camera allows lines up to 85′ (25 m) to be inspected with tight turns in 1″ (25 mm) lines.
    • Lightweight and compact unit allows for easy transport and efficient storage.
    • Interchangeable drums let you change out the inner drum depending on the application.
    RIDGID
    • RIDGID
    • 40823

    Quantity:

    - +
      ADD TO MY TOOLBOX
    Where to buy this product?

    The nanoReel system opens up new possibilities in long run small diameter inspection needs. Applications where only bore scopes could reach can now be inspected using the nanoReel system. Boiler tubes; supply lines; sprinkler systems; and a wide array of specialty applications can be inspected using the nanoReel system.



    • Small diameter and tight turn radius camera allows lines up to 85′ (25 m) to be inspected with tight turns in 1″ (25 mm) lines.
    • Lightweight and compact unit allows for easy transport and efficient storage.
    • Interchangeable drums let you change out the inner drum depending on the application.
    • L100/L100C ?? 1 1/2″ to 5″ (40 – 125 mm) lines with a stiffer push cable allowing you to inspect lines up to 100′ (30 m).
    • D30 and D65S ?? Small diameter with tight turns; 1 1/2″ to 4″ (40 – 100 mm) P-traps; toilet traps; pool lines up to 65′ (20 m).
    • N85S ?? Ultra small diameter lines 1″ to 2″ (25 – 50 mm) with tight turns for specialized applications
    • Camera Head: 0.62 (15.5 mm)
    • Cable Length: 85′ (25 m)
    • Cable Diameter: 0.25 (6.3 mm)
    • Line Capacity: ?? to 2″ (20 – 50 mm)
    • Weight: 9.5 lbs. (4;1 kg)
      Size: Length 13.25″ (33.7 cm); Width 6.6″ (16.8 cm); Height 17.5″ (44.5 cm)
