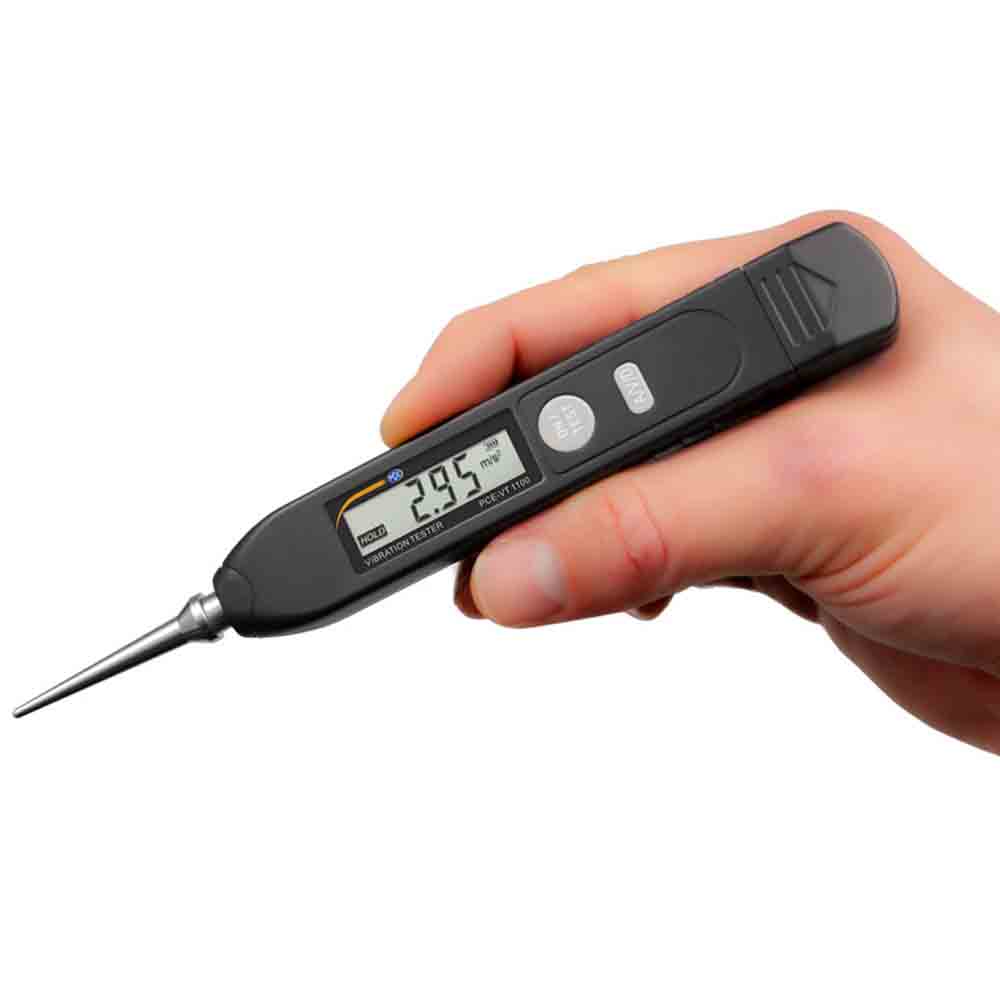

PCE Instruments VT 1100S Vibration Tester 10 Hz to 1 kHz

Model # VT 1100S

The accelerometer is used as a hand-held measuring device for the individual assessment of vibration on machines and systems. With the help of this accelerometer the actual state can easily be determined on-site.
Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can also be assessed. Thus, the accelerometer serves as a measuring device for a relative measurement on different machines.
The accelerometer is essentially for precautionary or preventive maintenance of production machines. This accelerometer is used for rapid measurement of imbalance and for checking bearing and gear conditions. Very often, the accelerometer is also used to assess the status of smaller electric motors.

The accelerometer is used as a hand-held measuring device for the individual assessment of vibration on machines and systems. With the help of this accelerometer the actual state can easily be determined on-site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can also be assessed. Thus, the accelerometer serves as a measuring device for a relative measurement on different machines.
The accelerometer is essentially for precautionary or preventive maintenance of production machines. This accelerometer is used for rapid measurement of imbalance and for checking bearing and gear conditions. Very often, the accelerometer is also used to assess the status of smaller electric motors.
Measures speed, distance, acceleration
Keeps the value after every measurement
Easy to handle and powered by batteries
Wide frequency range
Automatic shut-down after 20 seconds of inactivity to protect battery life
Battery level indicator

Parameter	Measuring Range	Frequency Range
Acceleration	0.01 … 199.9 m/s² peak	10 Hz … 1 kHz
Vibration speed	0.01 … 199.9 mm/s rms	10 Hz … 1 kHz
Displacement	0.001 … 1.999 mm p-p	10 … 500 Hz
Measurement accuracy	Acceleration: ≤ 3 % Vibration speed: ±5 %, ±2 Digits Displacement: +10/-20 % (10…20 Hz); ±5 % (20…1000 HZ)
General specifications
Display	LCD, Response time approx. 1 second
Power supply	2 x 6 V CR2032 button cell
Battery life	about 5 hours (in continuous operation)
Environmental conditions	0 … +40 °C / 32 … 104°F, 0 … 84 % r.H.
Dimensions	155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7″
Weight	ca. 40 g / 1.4 oz (incl. batteries)
